HE-67xx Humidity Element with Temperature Sensor
Installation
IMPORTANT:
Use this HE-67xx Humidity
Element with Temperature Sensor only as an
operating control. Where failure or malfunction of the
humidity element with temperature sensor could lead
to personal injury or property damage to the
controlled equipment or other property, additional
precautions must be designed into the control system.
Incorporate and maintain other devices, such as
supervisory or alarm systems or safety or limit
controls, intended to warn of or protect against failure
or malfunction of the humidity element with
temperature sensor.
IMPORTANT :
Utiliser ce HE-67xx Humidity
Element with Temperature Sensor uniquement en
tant que dispositif de contrôle de fonctionnement.
Lorsqu'une défaillance ou un dysfonctionnement du
humidity element with temperature sensor risque de
provoquer des blessures ou d'endommager
l'équipement contrôlé ou un autre équipement, la
conception du système de contrôle doit intégrer des
dispositifs de protection supplémentaires. Veiller
dans ce cas à intégrer de façon permanente d'autres
dispositifs, tels que des systèmes de supervision ou
d'alarme, ou des dispositifs de sécurité ou de
limitation, ayant une fonction d'avertissement ou de
protection en cas de défaillance ou de
dysfonctionnement du humidity element with
temperature sensor.
The humidity elements are available in both a wall
mount or duct probe package to suit a variety of
sensing application needs. Refer to the Mounting
section for a complete list of the parts included and
tools required for installation.
Location Requirements
IMPORTANT:
To avoid damage to the circuit
board and components, do not mount the unit in a
location where high concentrations of corrosive
vapors are present.
© 2016 Johnson Controls, Inc.
Part No. 24-9527-7, Rev. C
T
RH™ Series
RUE
Wall Mount Humidity Element
Locate the humidity element on an inside wall, free
from drafts, out of direct sunlight, and where the
element is not exposed to excessive vibration. Be
careful not to drop the unit.
Mount the wall mount element at a height of 4 to 6 ft
(1.2 to 1.8 m) above the floor and with one of the
two mounting direction arrows on the circuit board
pointing up. (See Figure 1.) Improper orientation can
result in heat-induced error.
0 to 5
VDC
Duct Probe Humidity Element
Place the duct probe humidity element in a location
that complies with the following:
•
Position: Designed for duct mounting in any
position, except with the probe tip pointed up.
•
Duct Diameter: Recommended minimum
diameter (round ducts) or width (square ducts) is
12 in. (305 mm).
•
Air Stratification (when the unit is mounted on the
discharge side of the fan): Recommended location
is at least 8 ft (2.4 m) downstream from
humidification equipment, where duct air and
water vapor are sufficiently mixed. Avoid areas
where the probe may be exposed to condensation.
24- 9527- 7, Rev. C
Installation Instructions HE-67xx
Output
0 to 10
VDC

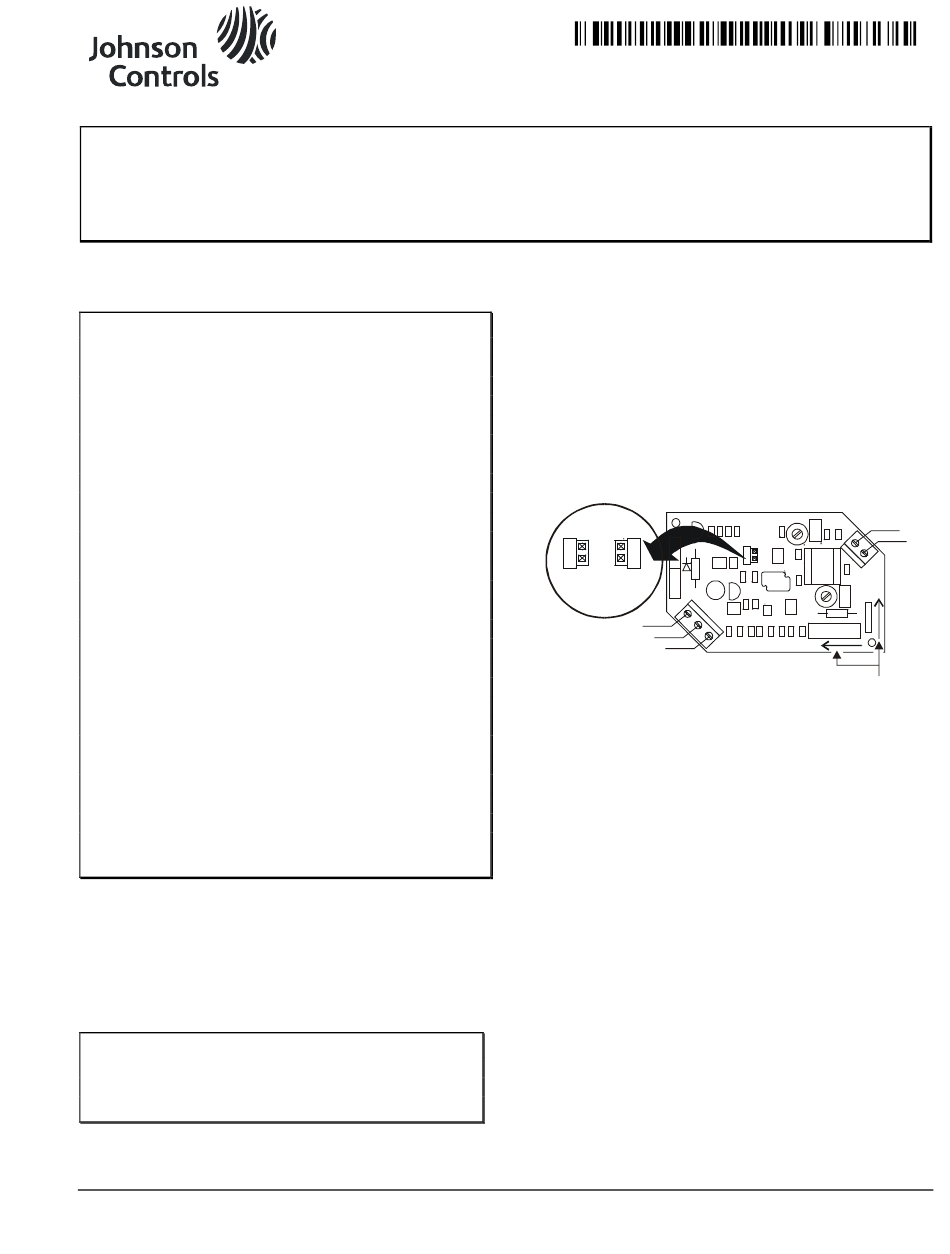

Figure 1: Mounting Direction Arrows
and Output Jumper Location
Issue Date March 2016
UP
Mounting Direction
Arrows
1
www.johnsoncontrols.com
