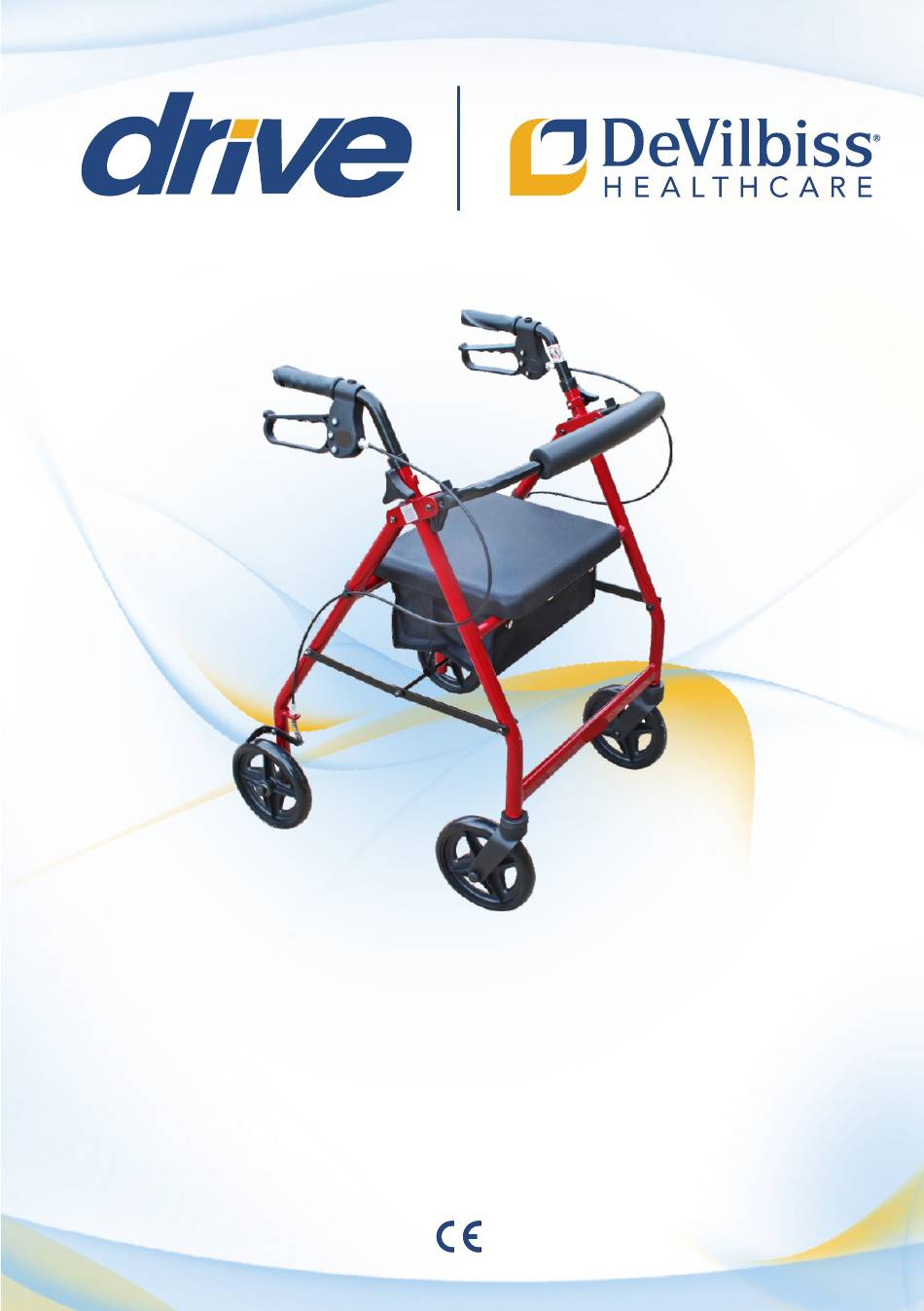

- Page 1 Rollator Instruction Manual Please read these instructions carefully before assembling or using this product. Ensure you are familiar with all of the safety and operating instructions.
- Page 2 • Padded Seat with Under-seat Bag • Non-marking solid tyres Weights and Dimensions R6RD-59 / R6BL-59 R8RD-59 / R8BL-59 Dimensions: 62 x 62 x 78 - 93cm 63 x 63 x 82 - 97cm (L x W x H) cm’s / inches 24.5”...
- Page 3 Important Safety Information Please read all of these instructions fully before assembly or use. • Unpack and check that you have all of the parts and attachments shown. • To avoid risk of suffocation to children or animals, dispose of the plastic bags correctly.
- Page 4 Parts Description The diagram below shows a four wheel Rollator. Handles / Brake Levers Backrest Seat Tightening (with Zip Handles pocket on underside) Underseat Front Castor Wheels Rear Wheels (with Brakes)
- Page 5 Assembling the Rollator Step 1 Remove packaging Remove the Rollator and all components from the packaging. Lay out the Rollator. Step 2 Unfolding the Rollator To unfold the Rollator, lift using the lifting strap which is located under the seat. Lower the Rollator down onto it’s wheels and push down on the central bar to fully open.
- Page 6 Assembling the Rollator Step 3 Fitting Handlebars Handlebar Brake Cable Tightening handle Insert the handlebar into the tubing ensuring the brake cable is to the outside of the Rollator frame. Select the required height and secure with the tightening handle supplied. Tighten Turn clockwise to tighten and anti- clockwise to unscrew.
- Page 7 Assembling the Rollator Step 4 Fitting Backrest Backrest Remove all packaging from the backrest. Button Position the backrest ends into both brackets, push in both backrest ‘buttons’ and fully insert into the brackets. Ensure the ‘pins’ are fully located in the holes (see picture on the right).
- Page 8 Adjusting Handlebar Height To adjust the height of the handlebars, unscrew the tightening handles on either side of the Rollator; turning anti-clockwise, and remove. Adjust the height of the handlebars to suit the user, re-insert the tightening handles and tighten by turning Unscrew clockwise to secure (as shown in the picture).
- Page 9 Brake Operation To operate the brakes: Brakes Squeeze the brake levers up and hold engaged in position to engage the brakes (as shown by the green arrow). Release the levers to release the brakes. To lock the brakes: Brakes Push down on the brake lever until it locked locks and stays in the down position (as shown by the green arrow).
- Page 10 Folding and Transporting To fold the Rollator for transporting: Whilst holding the Rollator handle, lift up the seat and lift the Rollator using the lifting strap. As you lift off the ground, the Rollator will fold. Note: It is recommended that the brakes are locked when folding and storing. Lifting strap Warning! Keep hands away...
- Page 11 Warranty To improve the safety and lifespan of your walker, it is recommended that you have it serviced on a regular basis. Recommended Service Schedules for walkers are available to service agents. There is a comprehensive twelve-month warranty from the date on which your new walker is delivered.
- Page 12 All figures, measurements and capacities shown in this manual are approximate and do not constitute specifications. Drive DeVilbiss Healthcare Ltd is an ISO 9001 certified company. For more details about our products please see your local dealer.
