Summary of Contents for Miele ProLine Teppanyaki CS 1327

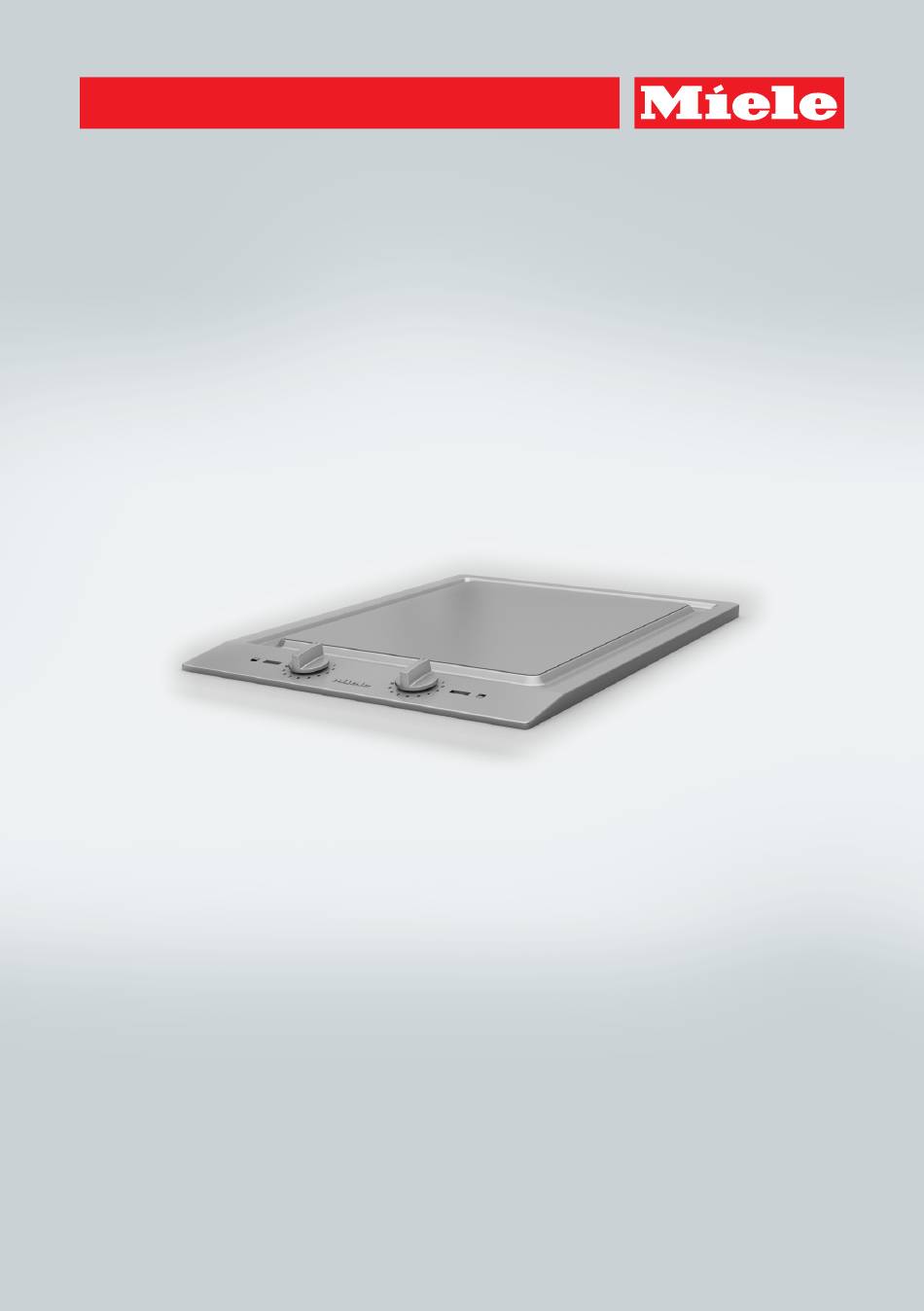

- Page 1 Operating and installation instructions ProLine Teppanyaki To prevent the risk of accidents or damage to the appliance, it is essential to read these instructions before it is installed and used for the first time. en-AU, NZ M.-Nr. 09 054 600...
-
Page 2: Table Of Contents
Contents Warning and Safety instructions................ 3 Caring for the environment ................ 12 Overview....................... 13 Teppanyaki ......................13 Indicators....................... 13 Before using for the first time ................ 14 Cleaning the ProLine appliance for the first time ..........14 Switching on the ProLine appliance for the first time ........... 14 Operation...................... -
Page 3: Warning And Safety Instructions
This prevents both personal injury and damage to the appliance. Miele cannot be held liable for damage caused by non-compliance with these instructions. Keep these instructions in a safe place and pass them on to any... - Page 4 Warning and Safety instructions Correct application This Teppanyaki is designed for domestic use and for use in similar environments by guests in hotel or motel rooms, bed & breakfasts and other typical living quarters. This does not include common/shared facilities or commercial facilities within hotels, motels or bed &...
- Page 5 Warning and Safety instructions Safety with children Young children must not be allowed to use this appliance. Older children may only use the Teppanyaki if its operation has been clearly explained to them and they are able to use it safely. They must be aware of the potential dangers caused by incorrect operation.
- Page 6 Unauthorised installation, maintenance and repairs can cause considerable danger for the user. Installation, maintenance and repairs must only be carried out by a Miele authorised technician. Damage to the Teppanyaki can compromise your safety. Check the appliance for visible signs of damage. Never use a damaged Teppanyaki.
- Page 7 Miele authorised service technician. Otherwise the warranty is invalidated. Faulty components must only be replaced by genuine Miele spare parts. The manufacturer can only guarantee the safety of the appliance when Miele replacement parts are used.
- Page 8 Warning and Safety instructions If the Teppanyaki is installed behind a furniture door, do not close the door while the appliance is in operation. Heat and moisture will build up behind the closed door, potentially causing damage to the appliance, the furniture unit and the flooring.
- Page 9 Warning and Safety instructions Correct use The Teppanyaki gets hot when in use and remains hot for quite a while after being switched off. There is a danger of burning until the residual heat indicators go out. Due to the high temperatures radiated, objects left near the Teppanyaki could catch fire.
- Page 10 Warning and Safety instructions You could burn yourself on the hot surface. Protect your hands with heat-resistant pot holders or oven gloves when using the Teppanyaki. Do not let them get wet or damp. This causes heat to transfer through the material more quickly with the risk of scalding or burning yourself.
- Page 11 Warning and Safety instructions Cleaning and care The steam from a steam cleaning appliance could reach electrical components and cause a short circuit. Do not use a steam cleaner to clean the Teppanyaki.
-
Page 12: Caring For The Environment
Caring for the environment Disposal of the packing Disposing of your old material appliance The transport and protective packaging Electrical and electronic appliances has been selected from materials which often contain valuable materials. They are environmentally friendly for also contain specific materials, disposal, and can normally be recycled. -
Page 13: Overview
Overview Teppanyaki a Rear Teppanyaki zone d Indicators b Front Teppanyaki zone e Control knob for the rear Teppanyaki zone c Symbol for Teppanyaki zone f Control knob for the front Teppanyaki zone Indicators g In-operation indicator h Temperature indicator light i Residual heat indicator... -
Page 14: Before Using For The First Time
Before using for the first time Please stick the extra data plate for Switching on the ProLine the appliance supplied with this appliance for the first time documentation in the space provided The metal components have a in the “Service” section of this protective coating which when heated booklet. -
Page 15: Operation
Operation The Teppanyaki is divided into two Residual heat indicator cooking zones that can be switched on If the Teppanyaki is still hot, the residual and controlled separately. The entire heat indicator will light up after it has area can be used when cooking large been switched off. -
Page 16: Tips On Cooking
Operation Tips on cooking Wipe the surface of the Teppanyaki before each use with a damp cloth to remove any dust or other soiling which may have settled on it since it was last used. – Always preheat the Teppanyaki for 8-10 minutes before use. -
Page 17: Cleaning And Care
Cleaning and care Allow the ProLine appliance to cool Risk of burning due to hot down before cleaning. surfaces! The surfaces will be hot after use. Clean the ProLine appliance and Switch off the Teppanyaki. accessories after each use. Allow the surfaces to cool down ... -
Page 18: Cooking Surface
Miele ceramic and stainless steel resoiling (see “Optional accessories”). cooktop cleaner (see “Optional Do not use a ceramic and stainless accessories”). -
Page 19: Problem Solving Guide
With the help of the following guide, minor faults in the performance of the appliance, some of which may result from incorrect operation, can be remedied without contacting Miele. This will save you time and money because you won't need a service call. -
Page 20: Optional Accessories
These products can be ordered from the Miele online shop. They can also be ordered directly from Removes heavy soiling, limescale Miele (see end of this booklet for deposits and aluminium residues. contact details). Original Miele all purpose microfibre cloth... -
Page 21: Safety Instructions For Installation
Safety instructions for installation Risk of damage from incorrect installation. Incorrect installation can cause damage to the ProLine appliance. The ProLine appliance must only be installed by a qualified and competent person in strict accordance with current national and local safety regulations. ... -
Page 22: Safety Distances
Safety distances Safety distance above the ProLine appliance A minimum safety distance must be maintained between the ProLine appliance and the rangehood above it. See the rangehood manufacturer's operating and installation instructions for details. If the rangehood manufacturer's instructions are not available or if flammable objects are installed above the ProLine appliance (e.g. - Page 23 Safety distances Safety distances to the sides and back of the appliance Ideally the ProLine appliance should be installed with plenty of space on either side. There may be a wall at the rear and a tall unit or wall on one side (right or left), taking into account the distances below.
-
Page 24: Installation Notes
Installation notes Sealing between the ProLine Tiled worktop appliance and the worktop Grout lines and the hatched area underneath the ProLine appliance frame must be smooth and even. If they are The ProLine appliance and the not, the ProLine appliance will not sit worktop may be damaged if the flush with the worktop and the sealing appliance needs to be removed after... -
Page 25: Building-In Dimensions
Building-in dimensions a Spring clamps b Front c Installation height d Mains connection box with mains connection cable, L = 2000 mm... -
Page 26: Installing Several Proline Appliances
Installing several ProLine appliances Example: 3 ProLine appliances a Spring clamps b Spacer bars c Gap between spacer bar and worktop d Cover strips e ProLine appliance width less 8 mm f ProLine appliance width g ProLine appliance width less 8 mm h Worktop cut-out... - Page 27 Installing several ProLine appliances Calculating the worktop cut-out The frames of the ProLine appliances overlap the worktop at the outside right and left by 8 mm on each side. Add up the widths of the ProLine appliances and subtract 16 mm from this sum. Example: 288 mm + 288 mm + 380 mm = 956 mm - 16 mm = 940 mm The ProLine appliances are 288 mm, 380 mm or 576 mm wide depending on...
-
Page 28: Installation
Installation Preparing the worktop Make the worktop cut-out as shown in “Building-in dimensions” or as calculated (see “Installing several ProLine appliances”). Remember to maintain the minimum safety distances (see “Safety distances”). Wooden worktops Seal the cut surfaces of wooden worktops with a suitable heat- resistant sealant to avoid swelling caused by moisture. - Page 29 Installation Granite and marble worktops You will need heavy-duty double- sided tape (not supplied) to secure the spring clamps and spacer bars. Apply silicone adhesive to the side edges and bottom edge of the spring clamps and spacer bars . ...
- Page 30 Installation Fitting several ProLine appliances Installation with a downdraft extractor Push the built-in ProLine appliance to the side until the holes in the spacer Please refer to the separate “Downdraft bar can be seen. extractor with ProLine appliances” instruction manual for details about installing a downdraft extractor with a ProLine appliance.
- Page 31 Installation Connecting the ProLine appliance Connect the ProLine appliance/ appliances to the electricity supply and, if applicable, to the gas supply (see “Electrical connection” and “Gas connection”). Check that each ProLine appliance is working. Removing a ProLine appliance If the ProLine appliance is not accessible from below, take hold of it with both hands at the back, pull it...
-
Page 32: Electrical Connection
Risk of damage from incorrect by a suitably qualified and competent connection. person in strict accordance with current Danger of injury! Miele cannot be local and national safety regulations. held liable for unauthorised Connection of the ProLine appliance to installation, maintenance and repair... - Page 33 Electrical connection Total power output See data plate. Connection AC 230 V, 50 Hz The voltage and rated load are given on the data plate. Please ensure these match the household mains supply. Residual current device For extra safety, it is advisable to protect the ProLine appliance with a suitable residual current device (RCD) with a trip range of 30 mA.
- Page 34 If the mains cable needs to be replaced, it must be replaced with a special connection cable, type H 05 VV-F (PVC insulated), available from Miele, by a Miele authorised service technician or suitably qualified and competent electrician in order to avoid a hazard.
-
Page 35: Service
Service Contact in case of fault In the event of any faults which you cannot remedy yourself, please contact Miele. Contact information for Miele can be found at the end of this booklet. Please quote the model and serial number of your appliance when contacting Miele. - Page 39 Miele Experience Centre South Melbourne: Freemans Bay, Auckland 1011 206-210 Coventry Street South Melbourne, VIC 3205 Miele Experience Centre Auckland: Miele Experience Centre and Office Sydney: 8 College Hill 3 Skyline Place Freemans Bay, Auckland 1011 Frenchs Forest, NSW 2086 Telephone:...
- Page 40 CS 1327 en-AU, NZ M.-Nr. 09 054 600 / 06...
