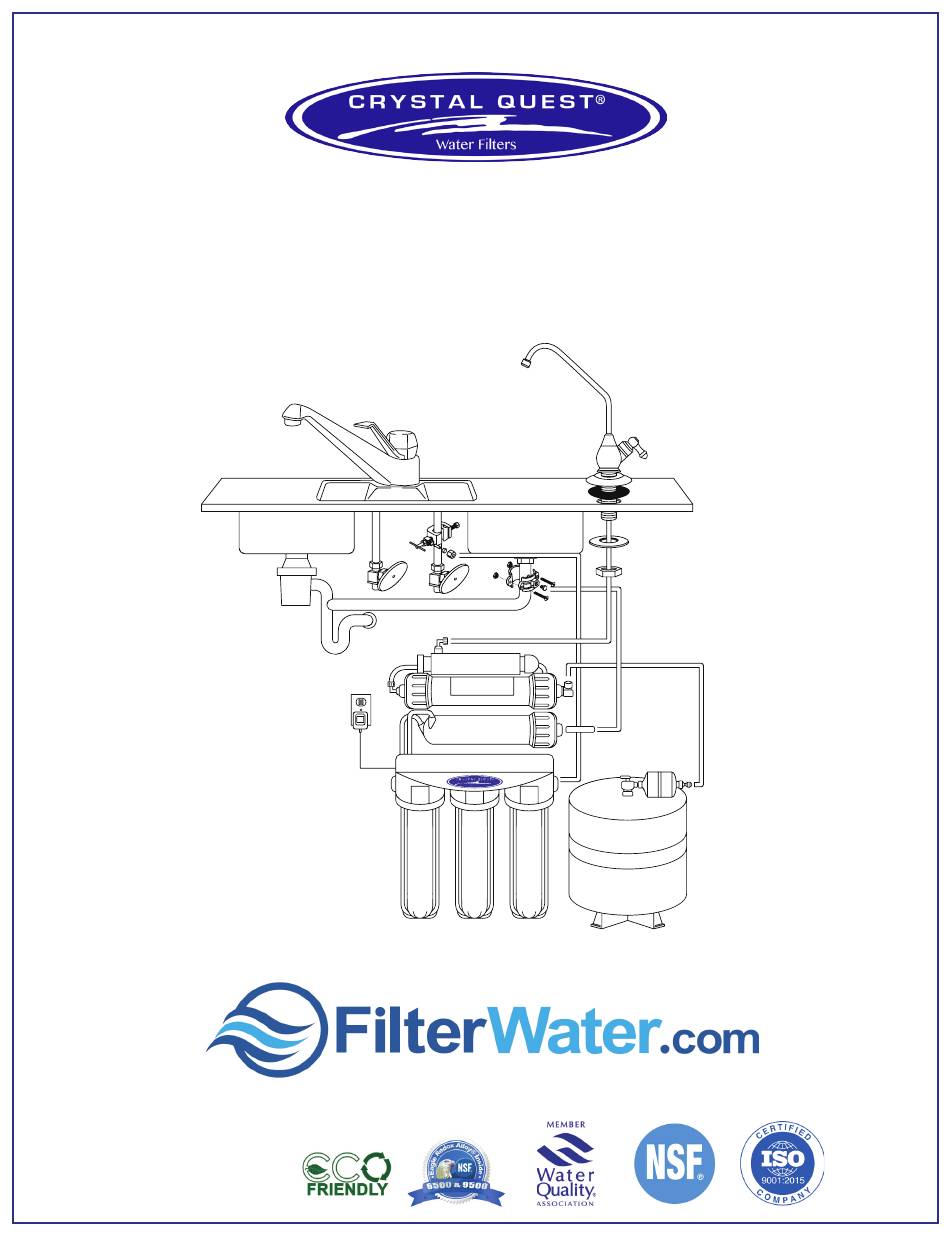

- Page 1 Crystal Quest THUNDER Series ® ® Reverse Osmosis Undersink Water Filter System INSTALLATION AND OPERATION GUIDE Copyright 2017 Crystal Quest ® All rights reserved MADE IN THE USA COMPONENT S...
-
Page 2: Tools And Materials
• Check that the air supply in the tank is approximately 7 psi. Adjust if necessary. • Read the instructions carefully and learn the specific details regarding installation and use. Failure to follow them could cause serious property damage. Crystal Quest accepts no liability for property damage. ® • The system should be installed to meet local, state, and federal plumbing codes, and health department rules and regulations. - Page 3 IMPORTANT INFORMATION The faucet to be used for your reverse osmosis system (RO) should be placed near the sink where drinking/cooking water is normally required. A 2” flat surface is required to mount the faucet if an existing hole for a second faucet is not available. The mounting thickness should not exceed 1-1/4”.
-
Page 4: Step 3: Install The Drain Connection
STEP 2: INSTALLING VALVE OPTIONS SADDLE VALVE INSTALLATION Tightening screw Valve body Choose the Valve Location: • Choose a location for the valve that is easily accessible. It is best to connect into the side of a vertical water pipe. When it is necessary to connect into a horizontal water pipe, make the connection to the top or side, Reversible rather than at the bottom, to avoid drawing off any sediment from the water pipe. -
Page 5: Make Final Tubing Connections
STEP 4: INSTALL THE STORAGE TANK Hand tighten tank ball shut-off valve to tank, connect tubing. Tank ball shut-off valve PREFILL AND SANITIZE THE STORAGE TANK Prefilling the tank is always recommended so there is pressure to check for leaks and several gallons of water to flush the carbon post-filter. Tanks are furnished with a special disinfectant and only require filling with water for 15 minutes to be completely sanitized. It is important to use a sanitizer when prefilling the tank so the solution can sanitize the tubing, fittings, and faucet at the time of installation and startup. 1. Insert free end of feedwater tubing into the fitting on the storage tank. 2. Open feedwater valve and tank valve and allow tank to fill (about 3 minutes). Turn off feed water valve and tank valve. Remove tank from tubing and set the tank aside (15 minutes minimum). -
Page 6: Starting Up The System
STARTING UP THE SYSTEM • Double check that all connections are secure. • Turn on feedwater valve and check for leaks. If any leaks are noted, turn off valve and correct before proceeding. • Turn on storage tank valve and open faucet until a steady stream of water flows. Close faucet. Wait at least 5 minutes and carefully check for leaks. FLUSH SYSTEM OF SANITIZING SOLUTION AND CHECK OPERATION • Lift faucet handle and allow tank to drain completely of sanitizing solution. DO NOT USE THIS WATER. When tank is empty, the faucet will steadily drip. This is the rate water is processed by the RO system. -
Page 7: Changing Cartridges
CHANGING POST FILTER & MEMBRANE CHANGING POST FILTER CARTRIDGES 1. Loosen the connector fitting counterclockwise (Fig 8). Pull the cartridge out of the main fold. 3. Wrap the connector fitting with thread seal tape and connect it to a new cartridge (Fig 9). (Fig. 9) CHANGING MEMBRANE 1. Loosen the connector fitting counterclockwise (Fig 10). Remove the membrane housing cap counterclockwise. 3. Remove the membrane with a pincer (Fig 11). Insert the membrane by carefully pushing the spigot and into the socket at the far end of (Fig. 8) the housing until completely seated (Fig 12). -
Page 8: To Order Replacement Cartridges
TO ORDER REPLACEMENT CARTRIDGES Item No. CQE-RC-04000 5-Micron Carbon Block Filter Cartridge Item No. CQE-RC-04006 2-7/8” x 9-3/4” Fluoride Filter Cartridge Item No. CQE-RC-04001 5-Micron Sediment Reusable Pleated Filter Cartridge Item No. CQE-RC-04049 2-7/8” x 9-3/4” SMART Fluoride Cartridge Item No. CQE-RC-04002 2-7/8” x 9-3/4” SMART PLUS Filter Cartridge Item No. CQE-RC-04007 2-7/8” x 9-3/4” Nitrate Filter Cartridge Item No. CQE-RC-04055 2-7/8” x 9-3/4” UF Membrane Filter Cartridge Item No. CQE-RC-04050 2-7/8” x 9-3/4” SMART Nitrate Cartridge Item No. CQE-RC-04038 Water Cooler/ Reverse Osmosis GAC Filter Cartridge Item No. CQE-RC-04008 2-7/8” x 9-3/4” Arsenic Filter Cartridge Item No. CQE-RC-04040 Water Cooler/ Reverse Osmosis SMART Filter Cartridge Item No. CQE-RC-04051 2-7/8” x 9-3/4” SMART Arsenic Cartridge Item No. CQE-RC-04054 Natural (Alkalizer) Ionizer, Mineralizer, and Oxidation Cartridge ONE-YEAR LIMITED WARRANTY CRYSTAL QUEST warrants your CRYSTAL QUEST... - Page 9 Commercial Water Purification System, please contact manufacturer’s Technical Support Department Monday through Friday, 9 AM to 5 PM Eastern Time, or your authorized CRYSTAL QUEST dealer: Mailing Address: FilterWater.com P.O. Box 968 Southampton, PA 18966 http://www.FilterWater.com...
