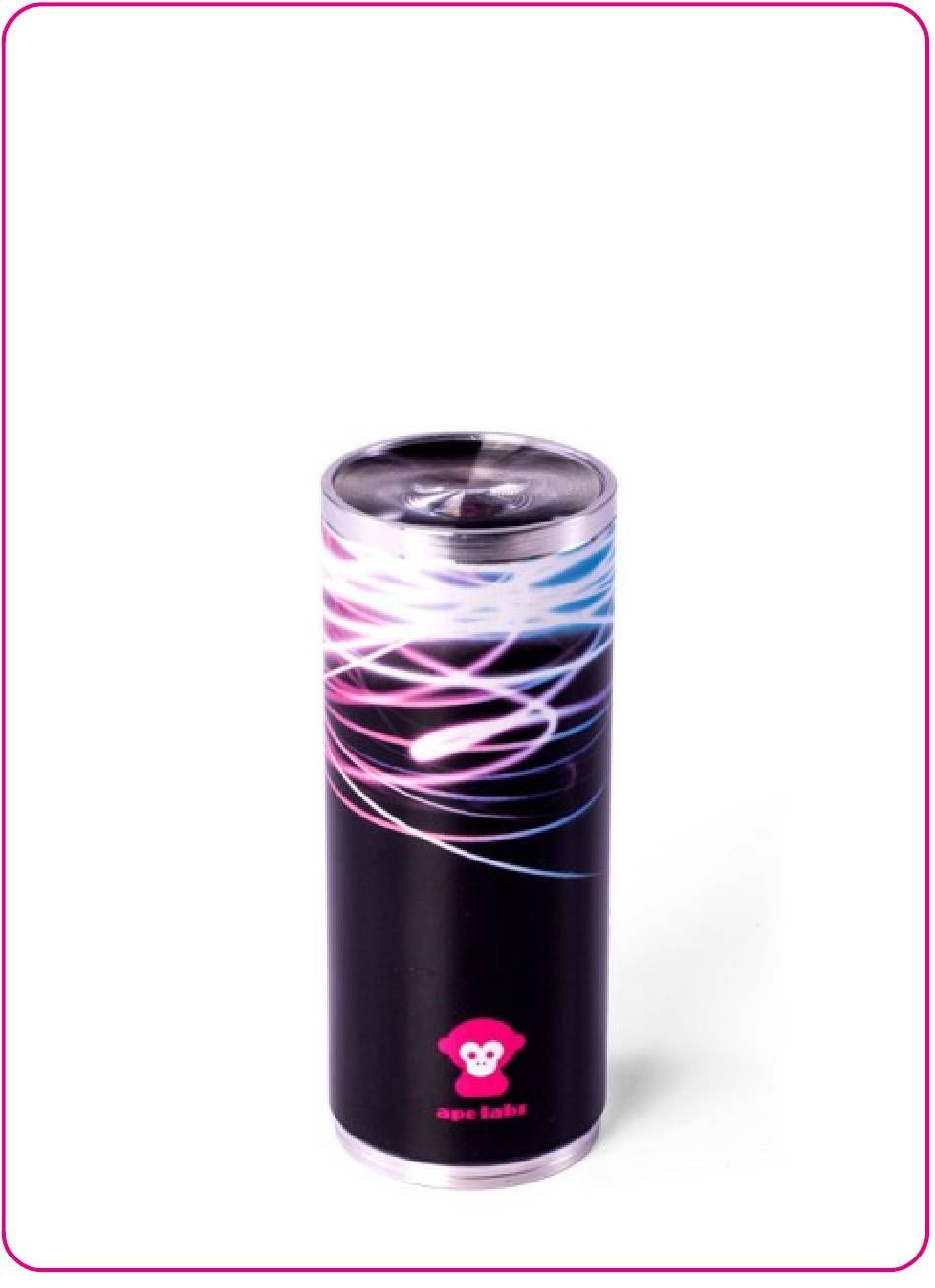

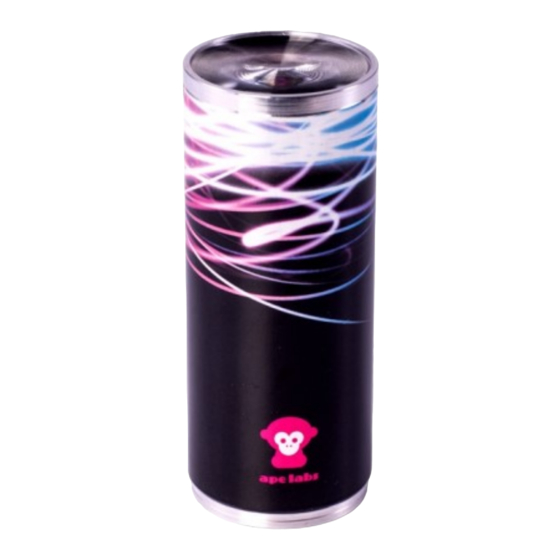

- Page 1 LIGHTCAN BEDIENUNGSANLEITUNG INSTRUCTION MANUAL...
-
Page 2: Safety Instructions
If you charge the LightCan in the Tourcase (optional), the LightCan Tourcase must remain open. › Do not use the LightCan in areas where the use of radio equipment is prohibited. › Do not look directly into the LED. This can cause damage to the eyes. - Page 3 › Open the device by unscrewing the housing from the bottom of the LightCan. › Pull the housing away from the unit. › Insert six NiMH cells (Mignon/AA, recommended capacity: 2700mAh) into the battery holder.
-
Page 4: Operation
Operation Turn on and off › Press the button on the bottom of the LightCan for about 1 second. The unit turns on and remembers the previously selected program/brightness. › To turn the device off, press the button again for about a second. - Page 5 Note: The remote control switches to a power-save mode after some minutes and will not detect the power-on event of a LightCan. Press any key of remote control to stop the power-save mode. Using the Remote Control › Press the "Group" button multiple times until the proper group LED is lit up.
- Page 6 English current Group brighter previous next program program dimmer blackout sound to speed up light slow down/ select stop group flashlight Hint: To control all groups at the same time, press and hold the "Group" button for about 2 seconds.
-
Page 7: List Of Programs
English List of Programs Program White Orange Yellow Lime Green Cyan Cyan-Blue Blue Blue-Magenta Magenta Red Pastel Green Pastel Blue Pastel Blue > Red Magenta > White White > Blue Red Pastel > Green Pastel > Blue Pastel Yellow > Magenta > Blue Rainbow Hint: A long press on ‹... -
Page 8: Battery State/Charging
English Battery State/Charging › If the brightness of the LightCan is reduced to zero (by "Blackout" or "Dimmer" button of the remote control), the device will show the battery state at low brightness: o LED glows green: battery level above 50%... - Page 9 › Select "Sound Master" as "Control Mode" at the W- APE-Transceiver. As soon as this mode is active, all LightCans within the same group will use that device as common source. › A LightCan will switch back to its internal microphone, if the transmitter is turned off.
- Page 10 Transceiver. As soon as this mode is active, all LightCans within the same group will use the DMX data. › If a LightCan does not receive any DMX data for more than 10 seconds, it will automatically switch back to the remote control mode.
- Page 11 English › If you do not press any key for some seconds, the W- APE Transceiver will switch back to the standard menu. › There are multiple DMX modes available (see at the end this manual for a full DMX sheet): o Off: No switch to W-APE/DMX-Mode - the device is only controllable by the remote control)
-
Page 12: More Functions And Updates
Instructions can be found at www.apelabs.com. Reset respectively update of firmware Press and hold the power button of the LightCan for about 10 seconds. The device will restart and stay for about 15 seconds in update mode (flashes red). Within this timespan an update can be started. -
Page 13: Troubleshooting
English Troubleshooting Possible Problem Reason Solution LightCan is Sound to Press the microphone dimmed and light mode button on the remote flashes is active. control, to deactivate the sometimes. sound to light mode. LightCan regular Long press (2s) on "Slow... - Page 14 Battery is Connect the 18V power deeply supply or charge the discharged. LightCan in the Tourcase. It may take some minutes until the charge will start. Alternatively remove the batteries from the device and charge them in a...
- Page 15 English Disposal If the LightCan is to be put out of operation definitively, take it to a local recycling plant for a disposal which is not harmful to the environment. Never throw exhausted batteries or defective rechargeable batteries into the household rubbish: Always take them to a special waste disposal (e.
-
Page 16: Dmx Modes/Dmx Sheets
DMX Sheets DMX Modes/DMX Sheets 3 Channel Mode: Dimmer, Program, Speed This mode can be used with many Ape Labs products, e.g. LightCan, MobiLight4, ApeStick4, ApeLight, ApeLight mini and ApeLight maxi. Function 0 .. 255 Dimmer 0 .. 100% 0 .. 5... - Page 17 4 Channel Mode: Red, Green, Blue, White / 8Bit (Default Mode) This is the default DMX mode. This mode can be used with many Ape Labs products, e.g. LightCan, ApeStick4, ApeLight mini and ApeLight maxi. If your lighting desk has no matching profile, use a "Generic/RGBW LED 8 Bit".
- Page 18 DMX Sheets 8 Channel Mode: Red, Green, Blue, White / 16Bit This mode can be used with many Ape Labs products, e.g. LightCan, ApeStick4, ApeLight mini and ApeLight maxi. If your lighting desk has no matching profile, use a "Generic/RGBW LED 16 Bit".
- Page 19 LSA Projects Ltd The Barn White Horse Lane Witham Essex CM8 2BU +44 (0)1376 501199 sales@LSAprojects.co.uk www.LSAprojects.co.uk f35fd8b813...
