Summary of Contents for Amico Overbed Table

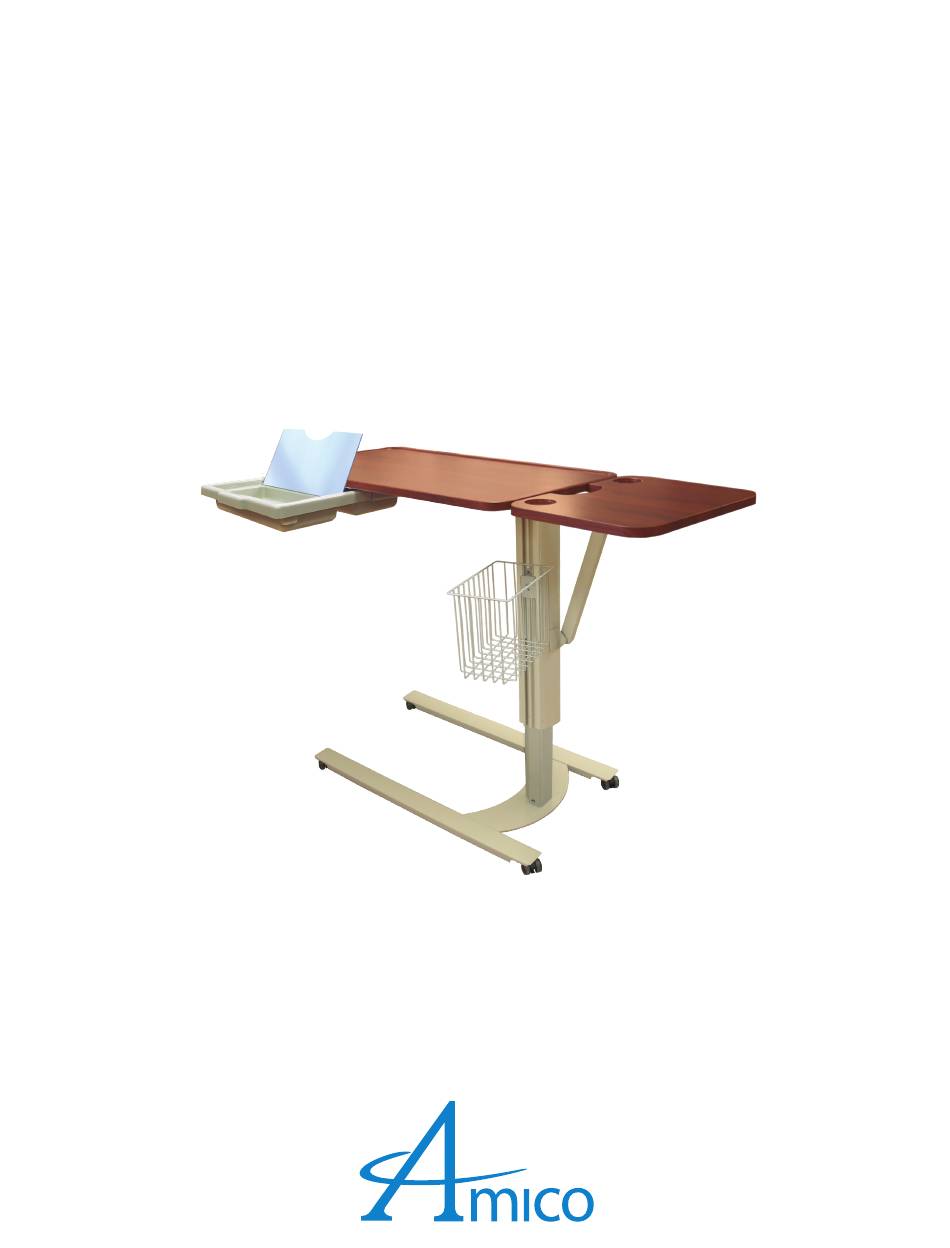

- Page 1 User Manual Overbed Table w w w . a m i c o . c o m...
-
Page 2: Table Of Contents
Warning / Caution / Note Definition Operations Instructions Single Top Flip Top Safe Usage Illustrations Raising the Table Lowering the Table Flip Top Overbed Table Assembly Parts List Part Numbers Part Numbers - Accessories Preventative Maintenance Checklist Cleaning Service Information... -
Page 3: Introduction
NOTE – This provides special information to make maintenance easier or important instructions clearer. www.amico.com... -
Page 4: Operations Instructions
3. Lift the secondary flip top surface all the way up and release. The flip top surface will now stay in its extended position. 4. To fold away the flip top surface, raise the secondary top all the way up and slowly release to let it flip down. Amico Patient Care Corporation... -
Page 5: Safe Usage Illustrations
WARNING: Ensure the overbed table is clear of the bed or any other piece of equipment before raising/lowering the table or the other piece of equipment to ensure the table does not react. -
Page 6: Flip Top Overbed Table Assembly
Flip Top Overbed Table Assembly Item Part Name Main Table Top Flip Top Butt Hinges Gas Spring Lock Nut Handle Bracket Release Handle Handle Support Pin Retaining Clip Support Bracket Column Guide Outer Column Outer Column Cap Flip Top Support... -
Page 7: Part Numbers
Flip Top Support OT-SPRING-S Gas Spring OT-INR-COLF Inner Column OT-SPR-PIN Gas Spring Support Pin N/A – PART OF PIN Retaining Clip Base Plastic Cover OT-BASE-CHNLX U BASE OT-BASE-HX H BASE T & U OT-CAS-LP Casters – Front & Back www.amico.com... -
Page 8: Part Numbers - Accessories
Part Numbers - Accessories Part Number Part Name OT-BSK-100609 Basket 10x6x9 with Adapter OT-BSK-090910 Basket 9x9x10 with Adapter OT-BSK-050504 Basket 5x5x4 with Adapter OT-BSK-ADA Basket Adapter - fits all baskets OT-VANITY Vanity Drawer and Mirror Amico Patient Care Corporation... -
Page 9: Preventative Maintenance
CAUTION: Do not apply any kind of lubricant to the gas spring. Lubricant will damage the gas spring. Cleaning Amico Patient Care recommends using a mild cleaning agent or detergent when cleaning this product. When a mild cleaning agent or soap is not adequate, follow the instructions provided by the cleaning product manufacturer for ammonia, bleach, isopropyl alcohol and ammonium chloride based cleaning solutions. -
Page 10: Service Information
3. Remove six #2 Philips screws under the table top holding the top to the support bracket. 4. Lift off the table top. 5. Remove six #2 Robertson screws from flip top side of the hinges to fully detach the dual flip top surface. 6. Reverse to install the new table top. Amico Patient Care Corporation... -
Page 11: Gas Spring
2. While maintaining a secure grip on the table, carefully flip it over or turn it on its side to allow access to the damaged caster. 3. Use the 13 mm wrench to remove the damaged casters and replace with new casters. www.amico.com... - Page 12 Amico Patient Care Corporation | www.amico.com 122 East Beaver Creek Road, Richmond Hill Ontario L4B 1G6, Canada Toll Free Tel: 1.877.462.6426 Toll Free Fax: 1.866.440.4986 Tel: 905.764.0800 Fax: 905.764.0862 Email: info@amico.com APC-MANUAL-OBT 12.02.2015...
