Summary of Contents for STUDIODUE White Balance ParLed 200 WB

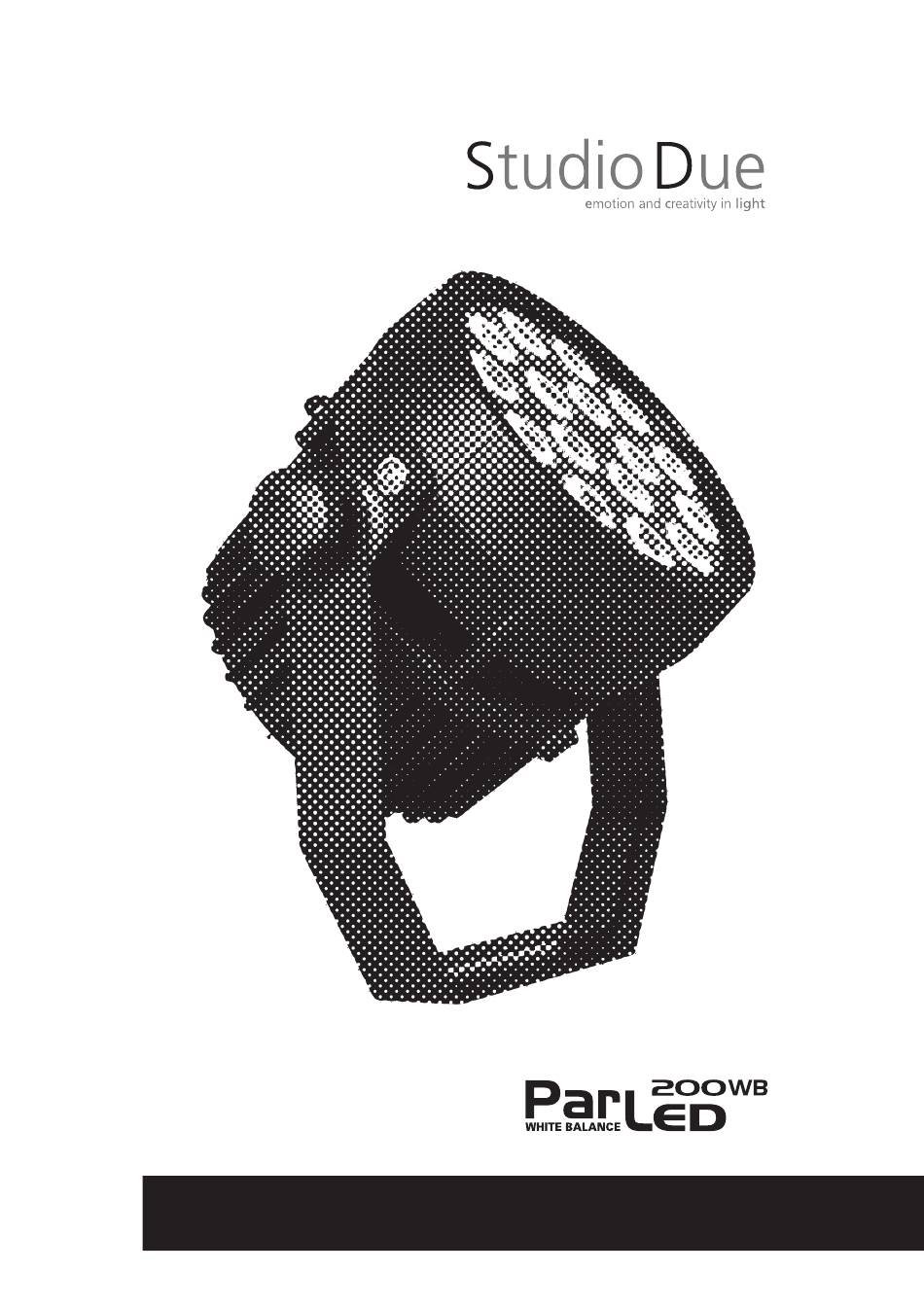

- Page 1 white balance User manual for art. 1511 Manuale d’uso per art. 1511...
- Page 2 INDEX Page 3 - Safety informations / Informazioni di sicurezza Page 4 - Introduction / Introduzione Page 5 - Technical features / Caratteristiche tecniche Page 6 - Main supply connection / Collegamento fonte di alimentazione Page 6 - DMX signal connection / Collegamento segnale DMX Page 7 - Example of connection DMX controller-spot / Esempio di collegamento centralina DMX-fari Page 8 - Control panel functions - Menu / Funzioni del pannello di controllo - Menu Page 12 - DMX Listing / Lista dei canali DMX...
- Page 3 WARNING SAFETY INFORMATION (service personnel) READ ALL CAUTIONS AND WARNINGS PRIOR TO OPERATE THIS EQUIPMENT. INSTRUCTION TO PREVENT INJURY OR DAMAGE DUE TO ELECTRIC SHOCK, FIRE, MECHANICAL HAZARDS, DANGEROUS MATTERS. This product at the end of its life, must be collected separately. It shouldn’t be thrown as urban waste and neither relea- sed in the environment.
- Page 4 Thanks for using ParLed 200WB (White Balance). PARLED 200/WB is our WHITE BALANCE flood projector. Suitable for touring, tv studios, venues, theatres and generally for the entertainment market. This fixture is wireless ready. Integral Wireless DMX control is available as an option (art. WI PCB-REC). The ParLed comes in the following versions: ParLed 200 WB To obtain the best performances and for a correct functioning of this unit for the years to come, we suggest you to read carefully this...
- Page 5 2900 K 6000 K n. 16 (2900K) warm white LEDs n. 16 (6000K) cool white LEDs Total out lumen: 11.000lm (6000 cool white + 2900 warm white) Total light power: 105W On request: n. 32 (3000K, 4000K, 5000K, 6000K white LEDs or red, green, blue, amber LEDs 25°...
- Page 6 This equipment must be earthed. Class I equipment. The power supply cord includes a protective earthing conductor as part of the cord. Questo apparecchio necessita di messa a terra. Apparecchio di Classe I. Il conduttore di protezione deve far parte del cavo di alimentazione. WARNING Always disconnect the mains supply before access to the connection area.
- Page 7 Example 1/ Esempio 1 DMX out Last spot/ Ultimo spot Termination resistor/ Terminale di linea Example 2 / Esempio 2 DMX 1 out DMX 2 out Last spot/ Ultimo spot Termination resistor/ line 1 / linea 1 Terminale di linea Last spot/ Ultimo spot Termination resistor/...
- Page 8 led DMX Switching on the fixture you can see the model and the software version. For example: All’accensione, viene visualizzato il modello di apparecchio e la versione software. Per esempio: --> STUDIO DUE PAR WHITE --> 2_10 --> DMX channel --> C001 than it’s shown the first DMX channel.
- Page 9 press ENTER for submenu / premere ENTER per i sottomenu (Mode) Set the DMX/SLAVE/MASTER mode / Imposta la modalità DMX/SLAVE/MASTER > Select the value no .. sl .. with the UP/DOWN buttons. Press ENTER. > Selezionate il valore desidarato no .. sl .. con i tasti UP/DOWN.
- Page 10 press ENTER for submenu / premere ENTER per i sottomenu (EnAb) Enable wireless Enable or disable the wireless reception / Consente o non consente la ricezione wireless The cable reception is disabled / La ricezione via cavo viene disabilitata > Select the value on .. off .. with the UP/DOWN buttons. When the written is flashing, press ENTER. >...
- Page 11 press ENTER for submenu / premere ENTER per i sottomenu (FrMt) Restore the factory setting (Require confirmation) Ripristina le impostazioni di fabbrica (Viene chiesta conferma) > Select the value off .. on whit the UP/DOWN buttons. Press ENTER. > Selezionate il valore desiderato off .. on con i tasti UP/DOWN. Premere ENTER. (tESt) Enables the fixture test and execute a factory program to check the right functioning.
- Page 12 CH1: White temperature CH2: Dimmer CH3: Strobe CH4: Led Fade Time CH1: White temperature CH2: Dimmer CH1: White temperature 0-15 16-255 White temperature normal Dimmer 2-255 Strobe Open 0=CUT LINEAR fade time FAST SLOW rel.1 - 06/15 - Studio Due...
- Page 13 Qui di seguito la lista dei 12 giochi presenti nell’apparecchio. DMX values warm white cool white STUDIODUE s.r.l. str. Poggino, 100 - 01100 VITERBO ITALY - tel. +39 0761 352520 - fax +39 0761 352653 http://www.studiodue.com E-Mail: info@studiodue.com - service@studiodue.com rel.1 - 06/15 - Studio Due...
- Page 14 Doc. 1511 REV 1 - 04/15 Studio Due light WHITE BALANCE s.r.l. PARLED 200 WB 04/2015 Dichiarazione di conformità Declaration of conformity La ditta: STUDIO DUE light s.r.l. The firm: Strada Poggino, 100 01100 VITERBO ITALY dichiara sotto la propria responsabilità che il prodotto: declare under our sole responsability that the product: PARLED 200/WB - White Balance IP20 code 1511...
-
Page 15: Warranty Card
Warranty CARD Company name: ..........................Mr./Mrs./Miss: ..........................Address: ............................Tel. or E-mail : ..........................Dealer: ..................... 1) Price quoted are not inclusive of lamp and package. Package charge is 2% on the net price for all the items, except for art. 0403 (CS4), that is 4%. These prices should be subject to possible variations for eventual rises of production costs or duties. - Page 16 Str. Poggino, 100 - 01100 Viterbo (Italy) tel. +39.0761.352520 fax +39.0761.352653 info@studiodue.com 3 Encon Court Owl Close Moulton Park Industrial Estate Northampton England UK - NN3 6 HZ tel. +44.1933.650.820 info@studiodue.co.uk Unit 8, 4/F, Harbour Centre Tower II, 8 Hok Cheung Street, Hunghom, Kowloon Hong Kong.
