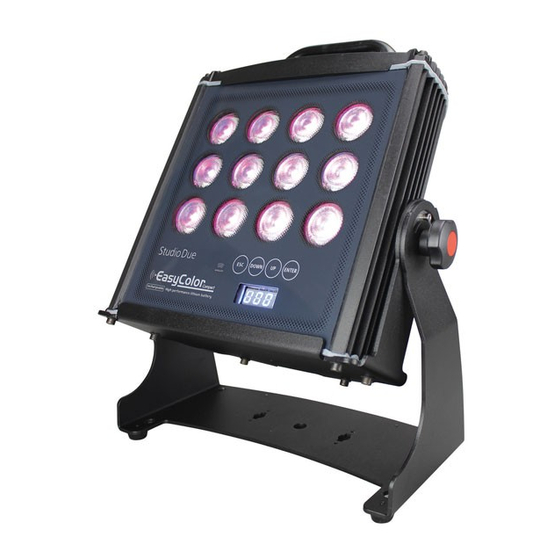

STUDIODUE EasyColor Compact User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
User manual for art. 1620
Manuale d'uso per art. 1620

Advertisement

loading
Need help?

Need help?

Do you have a question about the EasyColor Compact and is the answer not in the manual?

Questions and answers

Related Manuals for STUDIODUE EasyColor Compact

Summary of Contents for STUDIODUE EasyColor Compact

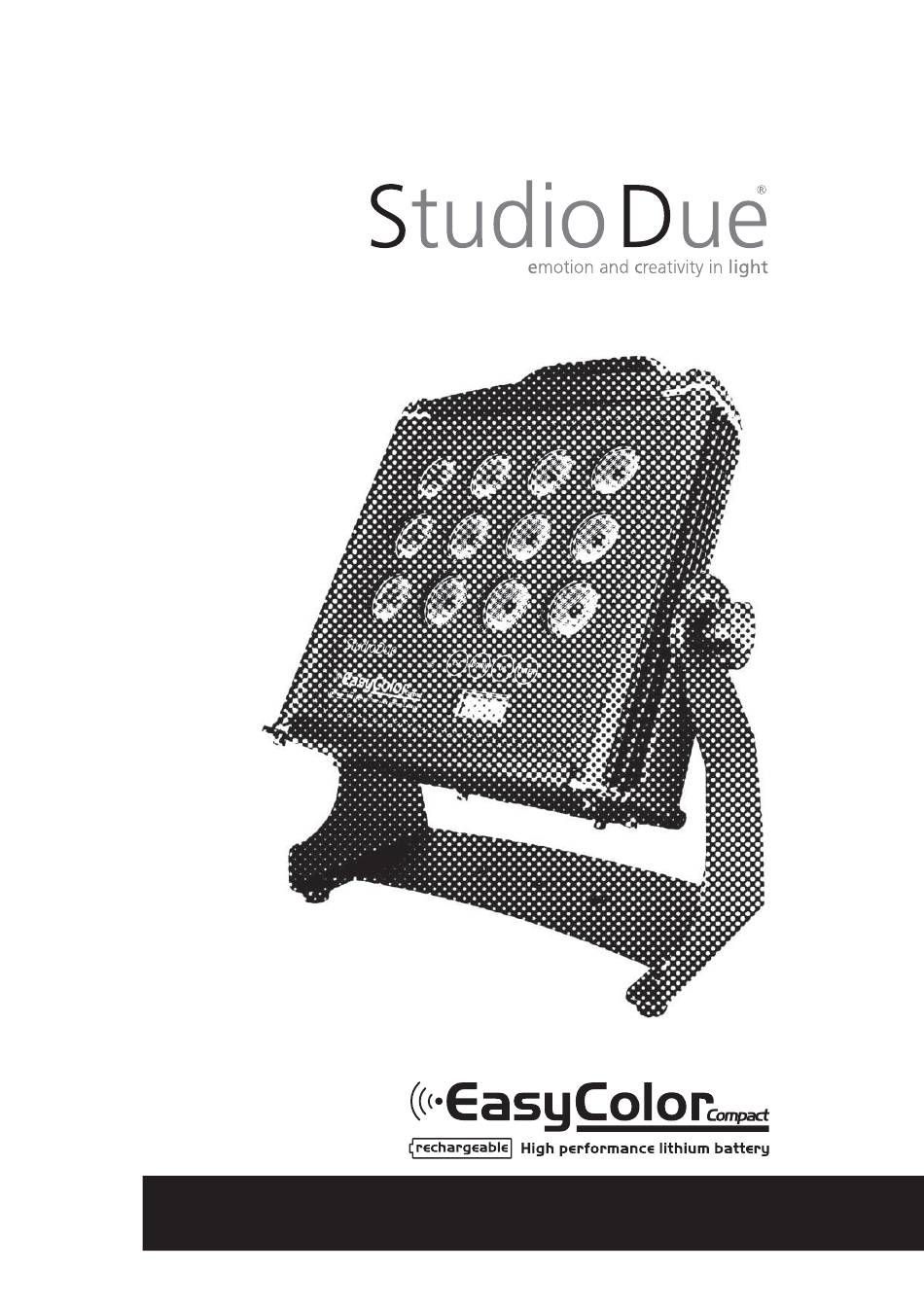

  • Page 1 User manual for art. 1620 Manuale d’uso per art. 1620...
  • Page 2 AMPHENOL connectors 4 or 4 or FEMALE MALE WARNING SIGNAL IMPORTANTE GROUND/RETURN/OV N.C. DATA COMPLEMENT ( -, INVERTED) DATA TRUE ( +, NON INVERTED) In questo connettore potete trovare il NUMBER 4 or the GROUND sign. NUMERO 4 o il simbolo della TERRA. IMPORTANTE WARNING Se volete utilizzare gli apparecchi...
  • Page 3 Page 11 - Control panel functions / Funzioni del pannello di controllo Page 14 - DMX Listing / Lista dei canali DMX Page 16 - CE standards / Certificazioni CE Page 17 - Warranty / Garanzia EasyColor Compact RGBW/fc rel.1 - 07/16 - Studio Due...
  • Page 4 WARNING SAFETY INFORMATION (service personnel) READ ALL CAUTIONS AND WARNINGS PRIOR TO OPERATE THIS EQUIPMENT. INSTRUCTION TO PREVENT INJURY OR DAMAGE DUE TO ELECTRIC SHOCK, FIRE, MECHANICAL HAZARDS, DANGEROUS MATTERS. This product contains an rechargeable battery pack. At the end of its life, must be collected separately. It shouldn’t be thrown as urban waste and neither released in the environment.
  • Page 5 WARNING Vi ringraziamo per l’ utilizzo del nostro EasyColor Compact RGBW/FC. EasyColor Compact RGBW/FC è un proiettore IP66 RGBW Full Color progettato per installazioni in ambienti interni come studi TV, teatri ed eventi di intrattenimento in genere EasyColor Compact viene prodotto nella versione: EasyColor Compact RGBW/FC (full color) Per ottenere il meglio delle prestazioni ed un corretto funzionamento negli anni di questa unità, Vi consigliamo di leggere...
  • Page 6 n.12x6W (4W in battery mode) RGBW LEDs for a total result of 48 LEDs 4680 total lms (lms: 900 R, 1620 G,360 B, 1800 W) with main supply 3120 total lms (lms: 600 R, 1080 G, 240 B, 1200 W) with battery supply 35mm lenses standard beam 20°...
  • Page 7 DMX out DMX out Connection controller-spot to 1 DMX 512 output over 150 mt. long Collegamento centralina-spot ad una sola linea di uscita DMX 512 lunga oltre 150 mt. SIGNAL AMPLIFIER AMPLIFICATORE LINE > 150 mt. (with microphonic or audio cable) DI SEGNALE LINEA >...
  • Page 8 This equipment must be earthed. Class I equipment. The power supply cord includes a protective earthing conductor as part of the cord. IMPORTANT: to ensure the IP66 protection rating, in case of replacement of the conductor cable, refer to the CONDUCTOR SIZE TABLE Questo apparecchio necessita di messa a terra.
  • Page 9 2) DMX IN Ingresso DMX 3) DMX OUT Uscita DMX 1) ON/OFF button Pulsante ON/OFF 4) MAIN IN Ingresso rete Art. AMPHENOL M/F connectors endowed with the fixture Art. connettori AMPHENOL M/F a corredo dell’apparecchio rel.1 - 07/16 - Studio Due...
  • Page 10 First of all, you must connect the fixture to the main power (4). The fixture automatically starts the charge. The display shown: for battery charging or for battery charged. 4) MAIN IN Ingresso rete (c001) If the fixture is connected to the DMX line with the cable / Se l’apparecchio è collegato alla linea DMX con il cavo.
  • Page 11 UNLOCK sequence DMX led DOWN ENTER 1° 2° 3° 4° 1--- / -2-- / --3- / ---4 For enable menù functions Per entrare nel menù ESC / DOWN / UP / ENTER led DMX Switching on the fixture you can see the model and the software version. For example: All’accensione, viene visualizzato il modello di apparecchio e la versione software.
  • Page 12 press ENTER for submenu / premere ENTER per i sottomenu (Mode) Set the DMX/SLAVE/MASTER mode / Imposta la modalità DMX/SLAVE/MASTER > Select the value no .. sl .. pr01 .. pr02 .. with the UP/DOWN buttons. Press ENTER. > Selezionate il valore desidarato no .. sl .. pr01 .. pr02 .. con i tasti UP/DOWN. Premere ENTER. (SPd) Set the preset execution speed / Imposta la velocità...
  • Page 13 press ENTER for submenu / premere ENTER per i sottomenu (FrMt) Restore the factory setting (Require confirmation) Ripristina le impostazioni di fabbrica (Viene chiesta conferma) > Select the value off .. on with the UP/DOWN buttons. Press ENTER. > Selezionate il valore desiderato off .. on con i tasti UP/DOWN. Premere ENTER. (tESt) Enables the fixture test and execute a factory program to check the right functioning.
  • Page 14 CH1: CH1: Cyan CH2: Green CH2: Yellow CH3: Blue CH3: Magenta CH4: White CH4: Not Used CH5: Strobe CH5: Strobe CH6: Dimmer CH6: Dimmer CH7: Led Fade Time CH7: Led Fade Time CH8: Rainbow CH8: Rainbow CH9: Fix White (Balanced White) CH9: Fix White (Balanced White) CH1:...
  • Page 15 GREEN BLUE WHITE Dimmer GREEN BLUE WHITE STUDIODUE s.r.l. str. Poggino, 100 - 01100 VITERBO ITALY - tel. +39 0761 352520 - fax +39 0761 352653 http://www.studiodue.com E-Mail: info@studiodue.com - service@studiodue.com rel.1 - 07/16 - Studio Due...
  • Page 16 Strada Poggino, 100 01100 VITERBO ITALY dichiara sotto la propria responsabilità che il prodotto: declare under our sole responsability that the product: EASYCOLOR COMPACT IP66 (rgbw/fc) code 1620 è conforme alle norme: is in conformity with the standard: Low Voltage Directive: 2014/35/EU...

  • Page 17: Warranty Card

    Warranty CARD Company name: ..........................Mr./Mrs./Miss: ..........................Address: ............................Tel. or E-mail : ..........................Dealer: ..................... 1) Price quoted are not inclusive of lamp and package. Package charge is 2% on the net price for all the items. These prices should be subject to possible variations for eventual rises of production costs or duties. Claims for possible damages during the freight, must be notified to the carrier.
  • Page 18 169,97 345,53 rel.1 - 07/16 - Studio Due...
  • Page 19 this page is intentionally left blank rel.1 - 07/16 - Studio Due...
  • Page 20 Str. Poggino, 100 - 01100 Viterbo (Italy) tel. +39.0761.352520 fax +39.0761.352653 info@studiodue.com 3 Encon Court Owl Close Moulton Park Industrial Estate Northampton England UK - NN3 6 HZ tel. +44.1933.650.820 info@studiodue.co.uk for technical info service@studiodue.com Studio Due - © The features on this brochure are not binding: they can be changed without notice.
