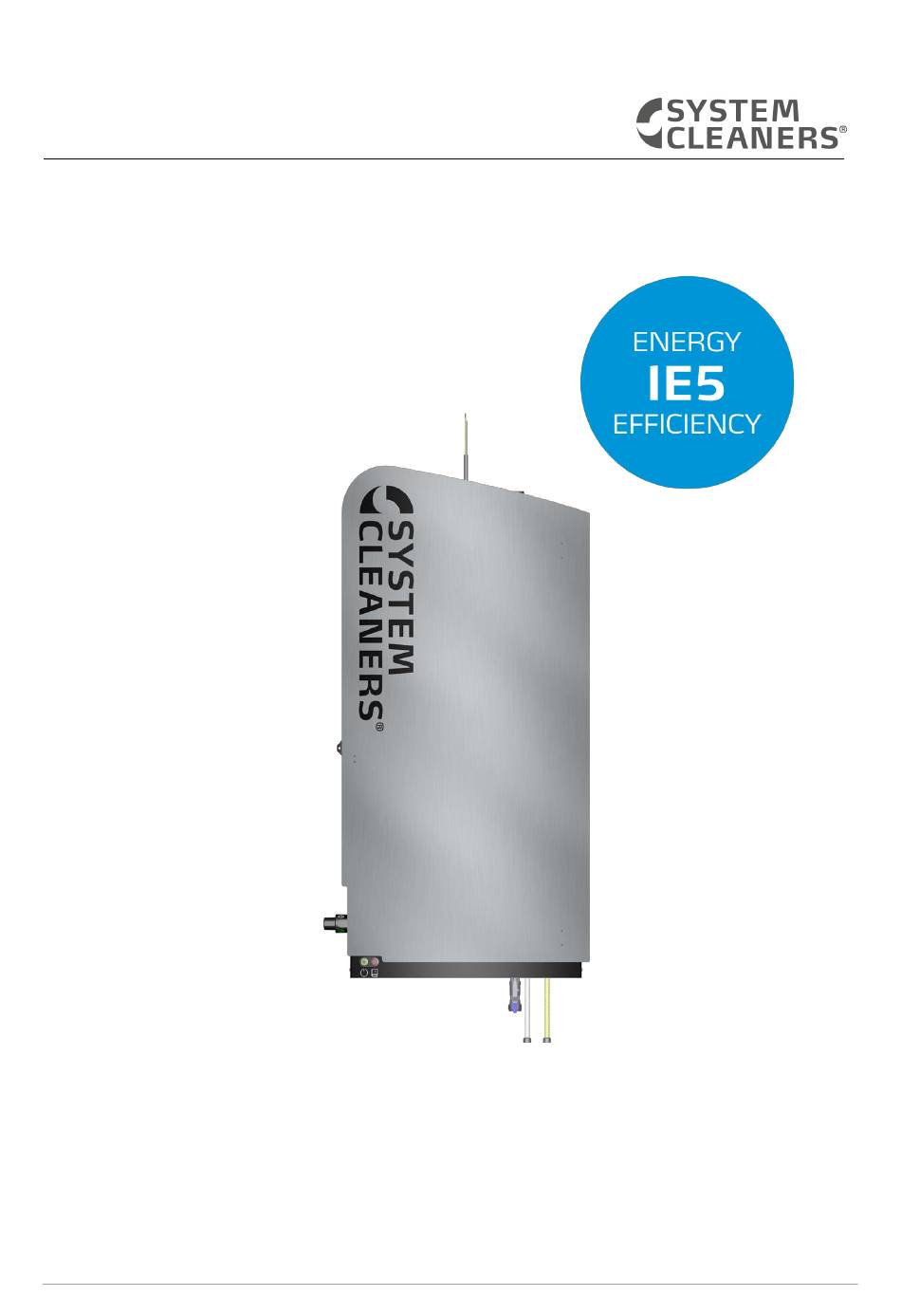

  • Page 1 MANUAL MS5 and MS7 PS1, PS3, PS5 and PS7 Version 9 (02.2018. EN)

  • Page 2: Warranty

    System Cleaners A/S cannot be held liable for consequential damage resulting from improper use of the equipment. Proper use includes the following: ...

  • Page 3: Declaration Of Conformity

    We declare that this product is in conformity with the following directives:  2006/42/EC Directive on Machinery  2014/35/EU Low Voltage Directive  2014/30/EU EMC Directive Per Kjøller Development Manager Version 9 (02.2018. EN) (MS5, MS7, PS1, PS3, PS5, PS7) Page 3 of 48...
  • Page 4 The pump is protected from dry running in case of insufficient water supply. The pump station is protected from excessive water temperatures by a switch in the pump. Version 9 (02.2018. EN) (MS5, MS7, PS1, PS3, PS5, PS7) Page 4 of 48...
  • Page 5 Outlet 1.1/2” Air connection ø8 Temperature switch Pressure switch Filter Input pressure Flow switch Pneumatic assembly Non-return valve Outlet pressure Pressure transmitter Injector system Start/Stop Pump Version 9 (02.2018. EN) (MS5, MS7, PS1, PS3, PS5, PS7) Page 5 of 48...

  • Page 6: Installation

    In order to facilitate maintenance of the equipment, it is recommended to fit a shut-off valve in the pipelines immediately at the connections for water. Pipe supports Always use pipe supports designed for the pipe size and material and maximum working pressure and temperature. Version 9 (02.2018. EN) (MS5, MS7, PS1, PS3, PS5, PS7) Page 6 of 48...
  • Page 7 Version 9 (02.2018. EN) (MS5, MS7, PS1, PS3, PS5, PS7) Page 7 of 48...

  • Page 8: Operation

    When the low-pressure gun or valve is opened, the water jet will result in a certain amount of counter-pressure. Therefore make sure that you hold the handle firmly and have a firm foothold. Before removing the cabinet, the power supply must be switched off. Version 9 (02.2018. EN) (MS5, MS7, PS1, PS3, PS5, PS7) Page 8 of 48...

  • Page 9: Flow Switch

    The system must not be used together with solvents or volatile liquids that pose a health risk or are inflammable. In the event that the system is used with non-approved soaps, chemicals or solvents, System Cleaners A/S disclaims all liability.

  • Page 10: Air Filter

    Depending on the water quality it may be necessary to de-scale the water side of the injector on a regular basis following the chemical supplier’s guidelines. Version 9 (02.2018. EN) (MS5, MS7, PS1, PS3, PS5, PS7) Page 10 of 48...
  • Page 11 Inlet water pressure less than 1.5 Increase inlet pressure to between 1.5 The device will not start bar (23 psi) and 10 bar (23 and 145 psi) Version 9 (02.2018. EN) (MS5, MS7, PS1, PS3, PS5, PS7) Page 11 of 48...
  • Page 12 Spare parts machine Version 9 (02.2018. EN) (MS5, MS7, PS1, PS3, PS5, PS7) Page 12 of 48...
  • Page 13 Spare parts Cabinet Version 9 (02.2018. EN) (MS5, MS7, PS1, PS3, PS5, PS7) Page 13 of 48...
  • Page 14 Outlet pipe 1.1/4"/1.1/2" BSP AISI 304 25-250021 Outlet pipe 1.1/2" BSP AISI 304 MS7, PS7, BSP MS5, PS1, PS3, PS5 25-250026 Outlet pipe 1.1/4"/1.1/2" NPT AISI 316 Version 9 (02.2018. EN) (MS5, MS7, PS1, PS3, PS5, PS7) Page 14 of 48...
  • Page 15 Blind plug ø32,5 black Plastic PS1, PS3, PS5, PS7 04-000012 Blind plug ø15 black polyethylene PS1, PS3, PS5, PS7 010-200200 Plastic plug ø23xø20mm Nylon PS1, PS3, PS5, PS7 Version 9 (02.2018. EN) (MS5, MS7, PS1, PS3, PS5, PS7) Page 15 of 48...
  • Page 16 Injector concentrated MS5 and MS7 Version 9 (02.2018. EN) (MS5, MS7, PS1, PS3, PS5, PS7) Page 16 of 48...
  • Page 17 Injector Pre-diluted MS5 and MS7 Version 9 (02.2018. EN) (MS5, MS7, PS1, PS3, PS5, PS7) Page 17 of 48...
  • Page 18 AISI 316 Pre-diluted 15-020081 Air fitting M7x4 elbow Nickel-plated brass/Plastic Pre-diluted 20-000810 Chemical valve, pneumatic Viton AISI 316/Viton Pre-diluted 17-020055 O-ring 10x2 70 shore EPDM Pre-diluted Version 9 (02.2018. EN) (MS5, MS7, PS1, PS3, PS5, PS7) Page 18 of 48...
  • Page 19 Spare parts Functions (MS5 and MS7) Function F Function F D Version 9 (02.2018. EN) (MS5, MS7, PS1, PS3, PS5, PS7) Page 19 of 48...
  • Page 20 Function F F Function F F D Version 9 (02.2018. EN) (MS5, MS7, PS1, PS3, PS5, PS7) Page 20 of 48...
  • Page 21 Function F F F Version 9 (02.2018. EN) (MS5, MS7, PS1, PS3, PS5, PS7) Page 21 of 48...
  • Page 22 Function PF Version 9 (02.2018. EN) (MS5, MS7, PS1, PS3, PS5, PS7) Page 22 of 48...
  • Page 23 Function PF PD Version 9 (02.2018. EN) (MS5, MS7, PS1, PS3, PS5, PS7) Page 23 of 48...
  • Page 24 Function PF PF Version 9 (02.2018. EN) (MS5, MS7, PS1, PS3, PS5, PS7) Page 24 of 48...
  • Page 25 Function PF PF PD Version 9 (02.2018. EN) (MS5, MS7, PS1, PS3, PS5, PS7) Page 25 of 48...
  • Page 26 Function PF PF PF Version 9 (02.2018. EN) (MS5, MS7, PS1, PS3, PS5, PS7) Page 26 of 48...
  • Page 27 Function PF D Version 9 (02.2018. EN) (MS5, MS7, PS1, PS3, PS5, PS7) Page 27 of 48...
  • Page 28 Function PF F Version 9 (02.2018. EN) (MS5, MS7, PS1, PS3, PS5, PS7) Page 28 of 48...
  • Page 29 Function PF F D Version 9 (02.2018. EN) (MS5, MS7, PS1, PS3, PS5, PS7) Page 29 of 48...
  • Page 30 Function PF PF D Version 9 (02.2018. EN) (MS5, MS7, PS1, PS3, PS5, PS7) Page 30 of 48...
  • Page 31 Function PF PF F Version 9 (02.2018. EN) (MS5, MS7, PS1, PS3, PS5, PS7) Page 31 of 48...
  • Page 32 Function PF PD D Version 9 (02.2018. EN) (MS5, MS7, PS1, PS3, PS5, PS7) Page 32 of 48...
  • Page 33 Function PF PD F Version 9 (02.2018. EN) (MS5, MS7, PS1, PS3, PS5, PS7) Page 33 of 48...
  • Page 34 Separate F- injector Version 9 (02.2018. EN) (MS5, MS7, PS1, PS3, PS5, PS7) Page 34 of 48...
  • Page 35 Separate D-injector Version 9 (02.2018. EN) (MS5, MS7, PS1, PS3, PS5, PS7) Page 35 of 48...
  • Page 36 Handle, PF D PF D 20-304014 Handle, PF F PF F 20-304015 Handle, PF F D PF F D 20-304016 Handle, PF PF D PF PF D Version 9 (02.2018. EN) (MS5, MS7, PS1, PS3, PS5, PS7) Page 36 of 48...
  • Page 37 55-200051 Suction hose 1/4" red, m 55-200061 Suction hose 1/4" yellow 55-600015 Hose nipple M12x7,5 AISI 316 55-600016 Hose nipple 1/4"x7,5 AISI 316 55-700102 Hose 1/4"x1155 Version 9 (02.2018. EN) (MS5, MS7, PS1, PS3, PS5, PS7) Page 37 of 48...
  • Page 38 With manual function 53-015301 Rinse nozzle System 15/30 BR With manual function 53-502000 Foam nozzle System 50/200 BR With manual function 52-160300 Disinfection nozzle KS60/30 With manual function Version 9 (02.2018. EN) (MS5, MS7, PS1, PS3, PS5, PS7) Page 38 of 48...

  • Page 39: Recommended Spare Parts

    Dosing valve conc. AISI 316/Viton 20-400054 Dosing valve conc. AISI 316/Viton 20-000283 Ball valve 1/2" 20-200175 Non-return valve DN 20 PPO-GF/EPDM 15-010161 Air fitting ø2,0 Nickel-plated brass/Plastic Version 9 (02.2018. EN) (MS5, MS7, PS1, PS3, PS5, PS7) Page 39 of 48...
  • Page 40 Replacement of the flow switch Pos. Part no. Description Material 20-510040 Filter insertion 1.1/2" 800 µm AISI 304 20-200201 Piston Non-return valve 1.1/2" AISI 316/EPDM 21-000025 Flow switch 1.1/2" Version 9 (02.2018. EN) (MS5, MS7, PS1, PS3, PS5, PS7) Page 40 of 48...

  • Page 41: Fitting Kit

    Ball valve 1/4" SS (blue) AISI 316 20-000243 Ball valve 1/4" SS NPT (blue) AISI 316 15-000021 Air fitting 1/4"x8 (inside) Nickel-plated brass/Plastic 55-100040 Air hose 8mm black PA12 Version 9 (02.2018. EN) (MS5, MS7, PS1, PS3, PS5, PS7) Page 41 of 48...

  • Page 42: Technical Specifications

    TECHNICAL SPECIFICATIONS Version 9 (02.2018. EN) (MS5, MS7, PS1, PS3, PS5, PS7) Page 42 of 48...
  • Page 43 4 x 1.5 mm² / 4 x AWG16 4 x 1.5 mm² / 4 x AWG14 Chemical Dosing range Dimensions 125 kg / 150 kg / Weight 276 lbs 331 lbs Version 9 (02.2018. EN) (MS5, MS7, PS1, PS3, PS5, PS7) Page 43 of 48...
  • Page 44 Dosing range 0.2–6%* 0.2–6%* Dimensions 125 kg / 135 kg / 150 kg / 160 kg / Weight 276 lbs 298 lbs 331 lbs 353 lbs Version 9 (02.2018. EN) (MS5, MS7, PS1, PS3, PS5, PS7) Page 44 of 48...
  • Page 45 Pump curve MS5 and MS7 USgal/min Liter/min Version 9 (02.2018. EN) (MS5, MS7, PS1, PS3, PS5, PS7) Page 45 of 48...
  • Page 46 Pump curve PS1, PS3, PS5 and PS7 USgal/min USgal/min liter/min Liter/min Version 9 (02.2018. EN) (MS5, MS7, PS1, PS3, PS5, PS7) Page 46 of 48...

  • Page 47: Wiring Diagram

    Wiring diagram Version 9 (02.2018. EN) (MS5, MS7, PS1, PS3, PS5, PS7) Page 47 of 48...
  • Page 48 Tel.: +45 96 34 04 04 Fax.: +45 98 79 19 42 info@systemcleaners.com www.systemcleaners.com Please note: We reserve the right to make alterations to the technical specifications without notice. Version 9 (02.2018. EN) (MS5, MS7, PS1, PS3, PS5, PS7) Page 48 of 48...
