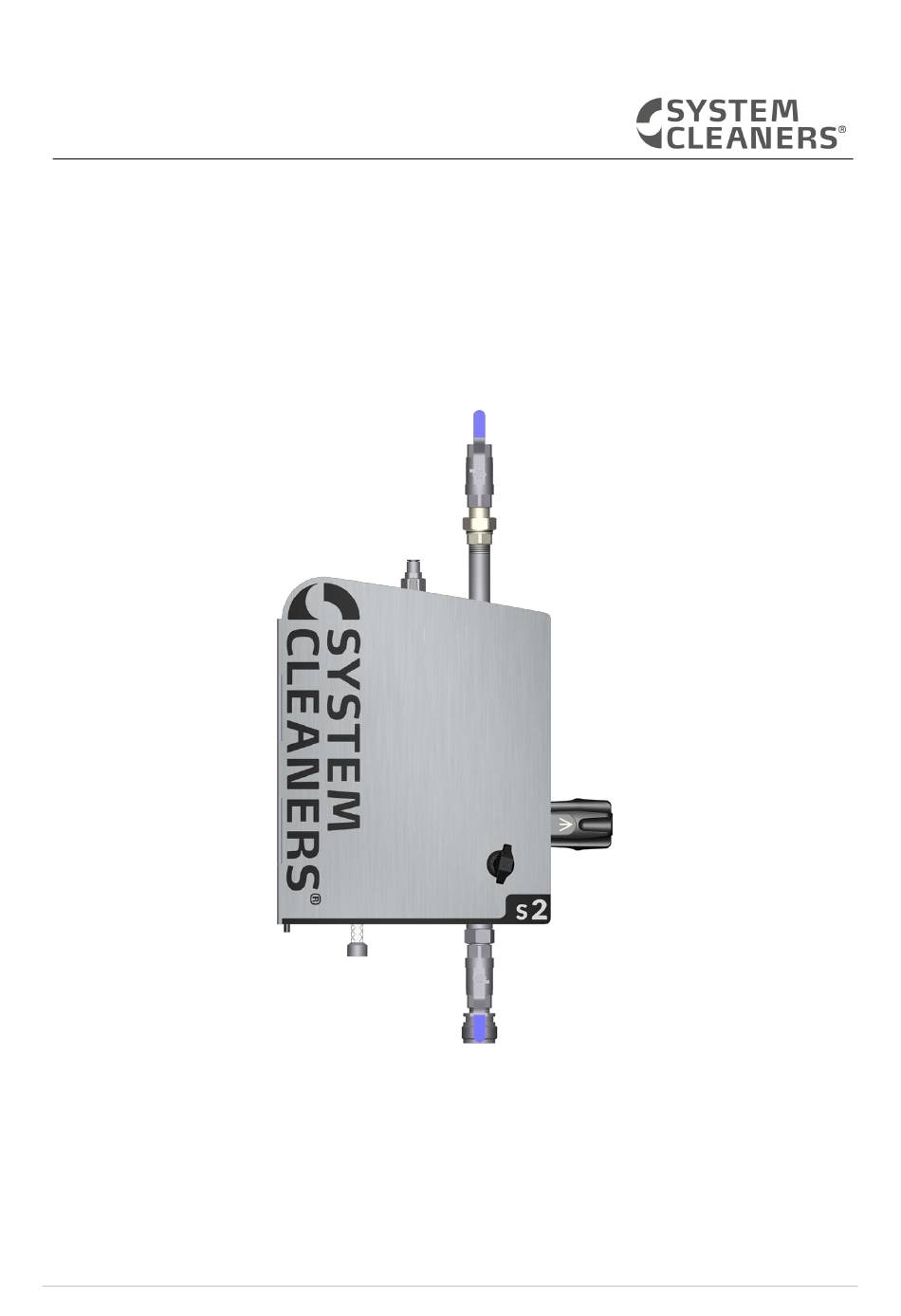

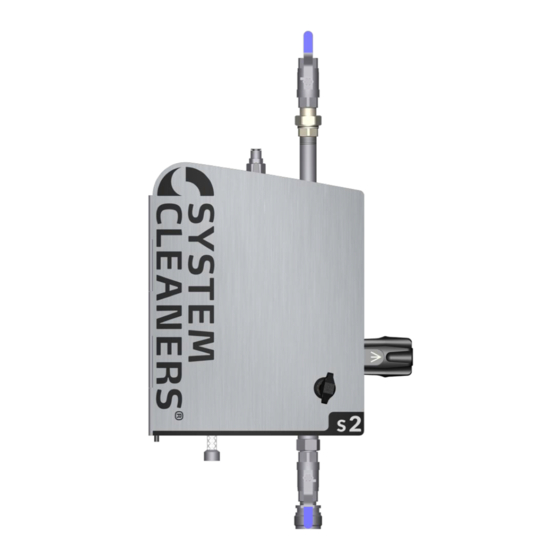

MANUAL
S2
Version 13 (08.2018. EN)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for System Cleaners S2

Summary of Contents for System Cleaners S2

  • Page 1 MANUAL Version 13 (08.2018. EN)
  • Page 2 System Cleaners A/S cannot be held liable for consequential damage resulting from improper use of the equipment. Proper use includes the following: ...
  • Page 3 The type plate is located on a fixed part of the system. Declaration of conformity We declare that this product is in conformity with the following directives:  2006/42/EC Directive on Machinery Per Kjøller Development Manager Version 13 (08.2018. EN) (S2) Page 3 of 48...
  • Page 4 Using a satellite it is possible for one operator to rinse, foam or disinfect (depending on model). Pos. Description Inlet water Strainer Inlet air Air regulator Dosing valve chemical Suction tube chemical Air unit Outlet Function selector Injector system Version 13 (08.2018. EN) (S2) Page 4 of 48...
  • Page 5 In order to facilitate maintenance of the equipment, it is recommended to fit a shut-off valve in the pipelines immediately at the connections for water. Pipe supports Always use pipe supports designed for the pipe size and material and maximum working pressure and temperature. Version 13 (08.2018. EN) (S2) Page 5 of 48...
  • Page 6 Version 13 (08.2018. EN) (S2) Page 6 of 48...
  • Page 7 When the low-pressure gun or valve is opened, the water jet will result in a certain amount of counter-pressure. Therefore make sure that you hold the handle firmly and have a firm foothold. System Cleaners low-pressure systems may only be used in conjunction with soaps and chemicals that are approved for cleaning within the food or transport industries.
  • Page 8 The system must not be used together with solvents or volatile liquids that pose a health risk or are inflammable. In the event that the system is used with non-approved soaps, chemicals or solvents, System Cleaners A/S disclaims all liability.
  • Page 9 Water pressure is too low Make sure that the water supply is as described in the technical specifications Air pressure too low Increase air pressure Non-original foam nozzle fitted Replace with original white foam nozzle Version 13 (08.2018. EN) (S2) Page 9 of 48...
  • Page 10 SPARE PARTS Version 13 (08.2018. EN) (S2) Page 10 of 48...
  • Page 11 Outlet nipple 1/2"x37 E/I AISI 304 02-160170 Injector system 15-000010 Adapter ø8x1/4" NPT SS AISI 304 05-010040 Assembly pneumatic S2 15-800032 Union 1/2" with packing, e/i AISI 316/PTFE 15-800033 Union 1/2" with packing, NPT AISI 316/PTFE Version 13 (08.2018. EN)
  • Page 12 Cabinet Pos. Material Part no. Description 46-500110 Housing S2 AISI 304 72-000011 Lock WITHOUT handle AISI 304/Plastic 72-000030 Nut for lock Nylon 72-100010 Key for housing Plastic 04-000172 Spacer ø8 08-100801 Coach screw M8x60 08-900010 Rawlplugs S 10 Version 13 (08.2018. EN)
  • Page 13 Injector system Version 13 (08.2018. EN) (S2) Page 13 of 48...
  • Page 14 AISI 303 20-000541 Bushing for valve stem POM/C 08-100501 Screw button head M5x10 20-302000 Handle 08-300602 Disc washer ø6 08-200606 Set screw M6x16 010-200200 Plastic plug ø23xø20mm Nylon 08-800807 Cheese-head screw M8x50 Version 13 (08.2018. EN) (S2) Page 14 of 48...
  • Page 15 Nickel-plated brass/Plastic 55-110040 Air hose ø6mm black PA12 20-300042 Regulator with filter without gauge 15-010081 Air fitting 1/4"x6 elbow Nickel-plated brass/Plastic 17-000072 Gasket 1/8" Nylon 22-000071 Gauge ø20 0-10 bar AISI 304/brass/glycerine Version 13 (08.2018. EN) (S2) Page 15 of 48...
  • Page 16 Function F Version 13 (08.2018. EN) (S2) Page 16 of 48...
  • Page 17 Plastic 15-901400 End cap 1/4" Nickel-plated brass 15-010161 Air fitting ø2,0 Nickel-plated brass/Plastic 55-110080 Air hose ø4mm black PA12 55-110040 Air hose ø6mm black PA12 15-020070 Air fitting 4x6 elbow Plastic Version 13 (08.2018. EN) (S2) Page 17 of 48...
  • Page 18 Option F mix Version 13 (08.2018. EN) (S2) Page 18 of 48...
  • Page 19 Suction hose 1/4" red, m 55-200041 Suction hose 12x6 blue, m 15-010161 Air fitting ø2,0 Nickel-plated brass/Plastic 55-110080 Air hose ø4mm black PA12 55-110040 Air hose ø6mm black PA12 15-020070 Air fitting 4x6 elbow Plastic Version 13 (08.2018. EN) (S2) Page 19 of 48...
  • Page 20 Funktion PF Version 13 (08.2018. EN) (S2) Page 20 of 48...
  • Page 21 PA12 55-110080 Air hose ø4mm black PA12 15-020070 Air fitting 4x6 elbow Plastic 15-600020-04 Housing for Chemical angle AISI 316 20-200031 Non-return valve 1/4" chemical (0) 15-200084 Socket 1/4"x1/8" AISI 316 Version 13 (08.2018. EN) (S2) Page 21 of 48...
  • Page 22 Funktion PF + PD Version 13 (08.2018. EN) (S2) Page 22 of 48...
  • Page 23 AISI 316 17-020056 O-ring 11x1,5 70 shore EPDM 20-000221 Ball valve 1/2" (Yellow) AISI 316 20-000241 Ball valve 1/4" SS (Yellow) AISI 316 20-000245 Ball valve 1/4" SS NPT (Yellow) AISI 316 Version 13 (08.2018. EN) (S2) Page 23 of 48...
  • Page 24 Funktion PF + PF Version 13 (08.2018. EN) (S2) Page 24 of 48...
  • Page 25 Plastic 20-302030 Handle 20-400012 Needle valve 1/4" 25-050050 Inlet pipe 1/2"x290mm AISI 316 30-000050 Outlet coupling 1/2" Special stainless 55-110040 Air hose ø6mm black PA12 55-110080 Air hose ø4mm black PA12 Version 13 (08.2018. EN) (S2) Page 25 of 48...
  • Page 26 Funktion PF + D Pos. Material Version Part no. Description 010-200200 Plastic plug ø23xø20mm Nylon 04-000193 Washer ø18/ø10,4x5 PTFE 046-000630 Tailstock screw M6x30mm 08-100026 Allen screw M6x18 CH RFA2 08-200606 Set screw M6x16 Version 13 (08.2018. EN) (S2) Page 26 of 48...
  • Page 27 30-000050 Outlet coupling 1/2" Special stainless 15-100150 Hexagon nipple 1/2" SS AISI 316 15-600020-04 Housing for Chemical angle AISI 316 20-200031 Non-return valve 1/4" chemical (0) 15-200084 Socket 1/4"x1/8" AISI 316 Version 13 (08.2018. EN) (S2) Page 27 of 48...
  • Page 28 Nickel-plated brass 17-000012 Gasket 1/4" PA12 16-400010 Extension nipple 1/4"x50 Nickel-plated brass 20-200020 Non-return valve 1/4" air AISI 316/NBR 15-010081 Air fitting 1/4"x6 elbow Nickel-plated brass/Plastic 55-110040 Air hose ø6mm black PA12 Version 13 (08.2018. EN) (S2) Page 28 of 48...
  • Page 29 15-010071 Air fitting 1/4"x6 Nickel-plated brass/Plastic 20-300039 Regulator with filter with gauge Plastic 15-600020-04 Housing for Chemical angle AISI 316 20-200031 Non-return valve 1/4" chemical (0) 15-200084 Socket 1/4"x1/8" AISI 316 Version 13 (08.2018. EN) (S2) Page 29 of 48...
  • Page 30 Separate F-injector Version 13 (08.2018. EN) (S2) Page 30 of 48...
  • Page 31 PA12 15-010041 Air fiting 6/4/4 Y Plastic 15-010120 Air fitting 6x6 elbow Plastic 55-110045 Air hose ø6x200 black PA12 15-010040 Air fitting ø6 Y Plastic 55-110036 Air hose 6x40 black PA12 Version 13 (08.2018. EN) (S2) Page 31 of 48...
  • Page 32 Separate D-injector Version 13 (08.2018. EN) (S2) Page 32 of 48...
  • Page 33 Clamping ring fitting 1/8"x6 AISI 316 15-300012 Hose clip for 1/4" 04-000082 Diaphragm nipple EPDM 55-200060 Suction hose 1/4"x1650 yellow 27-300040 Suction filter ø6,5 AISI 316 20-400056 Dosing valve concentrated AISI 316/Viton Version 13 (08.2018. EN) (S2) Page 33 of 48...
  • Page 34 Fixed dosing Version 13 (08.2018. EN) (S2) Page 34 of 48...
  • Page 35 Suction hose 1/4"x1650 blue 55-200052 Suction hose 1/4"x1650 red 55-200060 Suction hose 1/4"x1650 yellow 15-600341 Elbow 1/8" 90°, i/i AISI 316 294-100000 Set of chemical limiter (7) 17-000072 Gasket 1/8" Nylon Version 13 (08.2018. EN) (S2) Page 35 of 48...
  • Page 36 AISI 316 27-400014-01 Chemical limiter ø1,4 SS AISI 316 27-400016-01 Chemical limiter ø1,6 SS AISI 316 20-200111 Non-return valve for dosing valve VITON Viton/AISI 316 15-600030-01 Housing for Chemical angle AISI 316 Version 13 (08.2018. EN) (S2) Page 36 of 48...
  • Page 37 Pos. Material Part no. Description 27-300040 Suction filter ø6,5 AISI 316 04-000082 Diaphragm nipple EPDM 15-300012 Hose clip for 1/4" 20-400056 Dosing valve concentrated AISI 316/Viton 55-200060 Suction hose 1/4"x1650 yellow Version 13 (08.2018. EN) (S2) Page 37 of 48...
  • Page 38 Base - Trolley Version 13 (08.2018. EN) (S2) Page 38 of 48...
  • Page 39 AISI 304 30-400040 Air nipple, 1/4" external thread Chrome-plated brass 15-600350 Elbow 1/2" SS 45° E/I AISI 316 05-010040 Assembly pneumatic S2 30-000010 Outlet coupling 1/2", internal AISI 303 30-000070 Insert 1/2" external thread 16-2-XH 20-500060 Strainer 1/2" brass 300 µm...
  • Page 40 Trolley Version 13 (08.2018. EN) (S2) Page 40 of 48...
  • Page 41 Wheel with lock ø125mm Rubber/Plastic/AISI 304 08-800850 Screw M12x30 countersunk head (hexagon) 97-100340 Allen key 5mm Steel 04-000092 Plastic knob ø25mm White PP 08-200808 Set screw M8x16 08-000805 Lock nut M8 Version 13 (08.2018. EN) (S2) Page 41 of 48...
  • Page 42 20-200020 Non-return valve 1/4" air AISI 316/NBR 20-200021 Non-return valve 1/4" chemical (0) 20-200175 Non-return valve DN 20 PPO-GF/EPDM 20-400056 Dosing valve concentrated AISI 316/Viton 20-000284 Ball valve 1/2" without flange Version 13 (08.2018. EN) (S2) Page 42 of 48...
  • Page 43 TECHNICAL SPECIFICATIONS WALL Version 13 (08.2018. EN) (S2) Page 43 of 48...
  • Page 44 TECHNICAL SPECIFICATIONS WALL S2 PF + PF Version 13 (08.2018. EN) (S2) Page 44 of 48...
  • Page 45 TECHNICAL SPECIFICATIONS TROLLEY Version 13 (08.2018. EN) (S2) Page 45 of 48...
  • Page 46 Water pressure 3-8 bar / 44-116 psi 3/4", 10-15 m / 33-49 ft Water pressure 15-40 bar / 44-580 psi 1/2", 10-35 m / 33-115 ft Dimensions Weight 10 kg / 22 lbs Version 13 (08.2018. EN) (S2) Page 46 of 48...
  • Page 47 The chemical limit nozzle must be screwed off the suction filter and another nozzle can be mounted instead. Version 13 (08.2018. EN) (S2) Page 47 of 48...
  • Page 48 System Cleaners A/S Halkjærvej 17 DK-9200 Aalborg SV Denmark Tel.: +45 96 34 04 04 Fax.: +45 98 79 19 42 info@systemcleaners.com www.systemcleaners.com Please note: We reserve the right to make alterations to the technical specifications without notice. Version 13 (08.2018. EN)
