Smartrise SRU Programming Instructions Manual

Boards
Hide thumbs Also See for SRU:

Advertisement

Quick Links

Download this manual

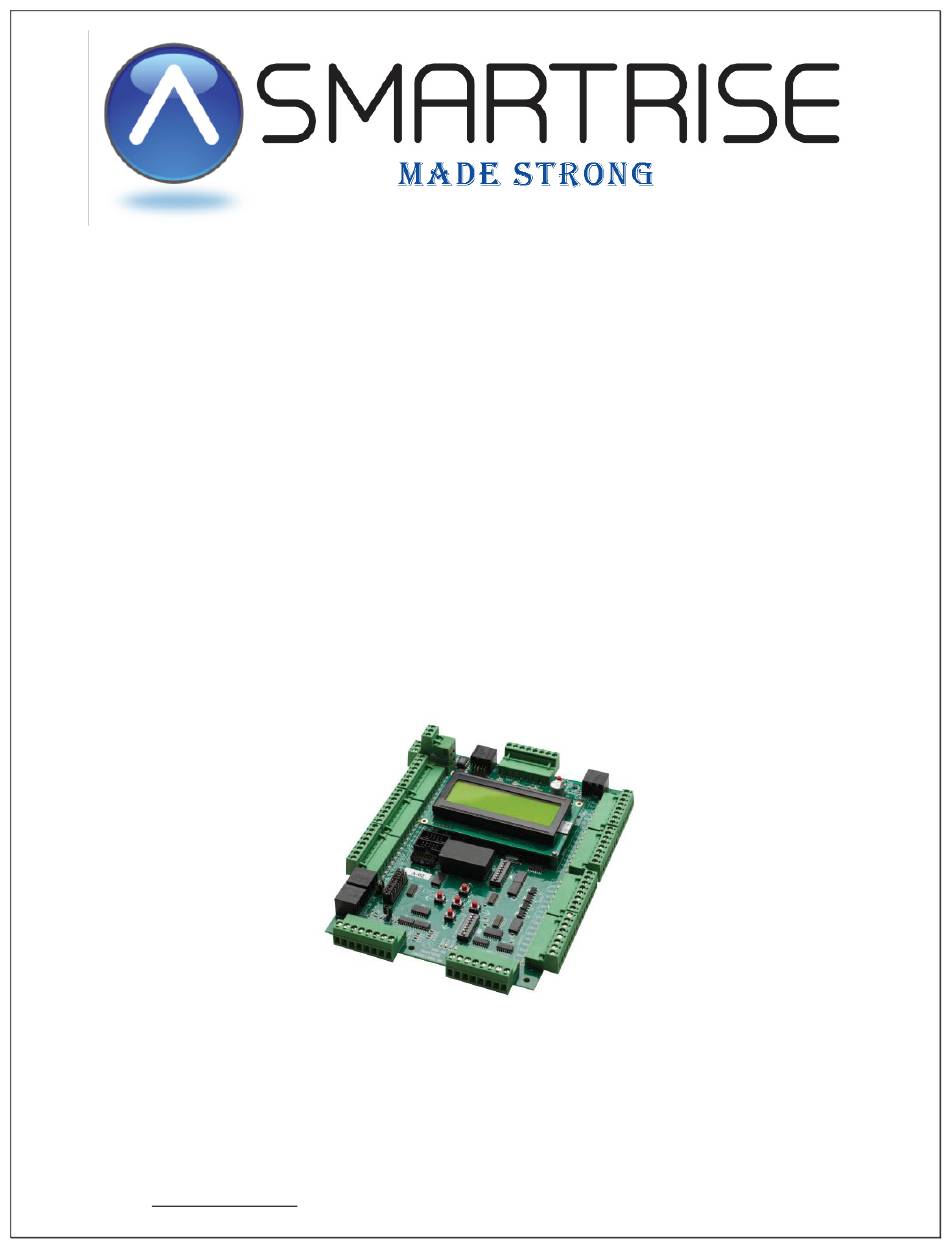

P
I
ROGRAMMING
NSTRUCTIONS
for
SRU Boards
www.smartrise.us | 1235 N. Union Bower Rd, Irving, TX 75061 | 916.457.5129

Advertisement

loading
Need help?

Need help?

Do you have a question about the SRU and is the answer not in the manual?

Questions and answers

Related Manuals for Smartrise SRU

Summary of Contents for Smartrise SRU

  • Page 1 ROGRAMMING NSTRUCTIONS SRU Boards www.smartrise.us | 1235 N. Union Bower Rd, Irving, TX 75061 | 916.457.5129...
  • Page 2 SRU Board Revision Layouts Revision 5-7 Board Drive Port POWER TERMI AUX Port Inputs 525-532 DIP SWITCH LCD SCREEN Dip Switch 1 Inputs 517-524 JTAG PROGRAMMING PORTS Outputs 601-608 LCD NAVIGATION NET Ports Outputs 601-608 Inputs Inputs 509-516 501-508...
  • Page 3 Revision 8 Board AUX Port Drive Port Inputs POWER TERMINAL 549-552 Inputs 525-532 Inputs 533-540 LCD SCREEN Inputs JTAG PROGRAMMING 517-524 Inputs PORTS 541-548 SWITCH Outputs Outputs 601-608 617-624 LCD NAVIGATION Outputs NET Ports SWITCH 601-608 sSWITC Inputs Inputs 509-516 501-508...

  • Page 4: Enter Access Code

    Access Code Some software versions required an access code to be inputted when powering up a SRU board for the first time. The access code is “xFFFF” and when prompted, press and hold the UP arrow button on the SRU board until the display reads “xFFFF”, then press the enter key.
  • Page 5 Step 1 - Software Extraction to Laptop Software provided by online download link If an update was made to the job OR the CDs are missing, Smartrise can send an e-mail with a link to a downloadable zip file for the software. For example: http://smartrise.info/Software_packages/Smartrise_Job_(111112-001).zip...
  • Page 6 2. Open the 1 – Programmer Installer Folder 3. Install the Smartrise Programmer 4. Once the Smartrise Programmer is installed go back to the index of folders (shown below) and open the: (1) Controller Software folder with the JCF Software file inside shown below:...
  • Page 7 5. Open the Software Folder, in this example the version is 2.20h, the version will vary on how recent the job is. 6. Open the JCF file by double clicking on it. If it doesn’t open then the Smartrise Programmer might not be correctly installed. Please see previous page for installation instructions.
  • Page 8 If no menu appears then open “My Computer” and click on the CD ROM drive. 2. Click on the “Open folder to view files” option to explore the Smartrise CD folders. A list of folders with the software will appear. The software is located in the “(1) – Controller Software”...
  • Page 9 Warning: Your laptop needs to be fully charged for this process, plugging in your laptop to an AC source while installing software could result in damage to the SRU Board. Also, do not disconnect the programmer pod from the SRU board while the controller is being programmed.
  • Page 10  Plug in the programming pod into the J21 port first. Select the correct J21 checkbox on the Smartrise programming application for the corresponding controller.  Next, click the “Begin Programming” button on the bottom of the programming interface to begin programming the board.
  • Page 11 3. Plug in the programming pod into the J21 port first. Select the J21 checkbox on the Smartrise programming application show below. 4. Next, click the “Begin Programming” button on the bottom of the programming interface to begin programming the board.
