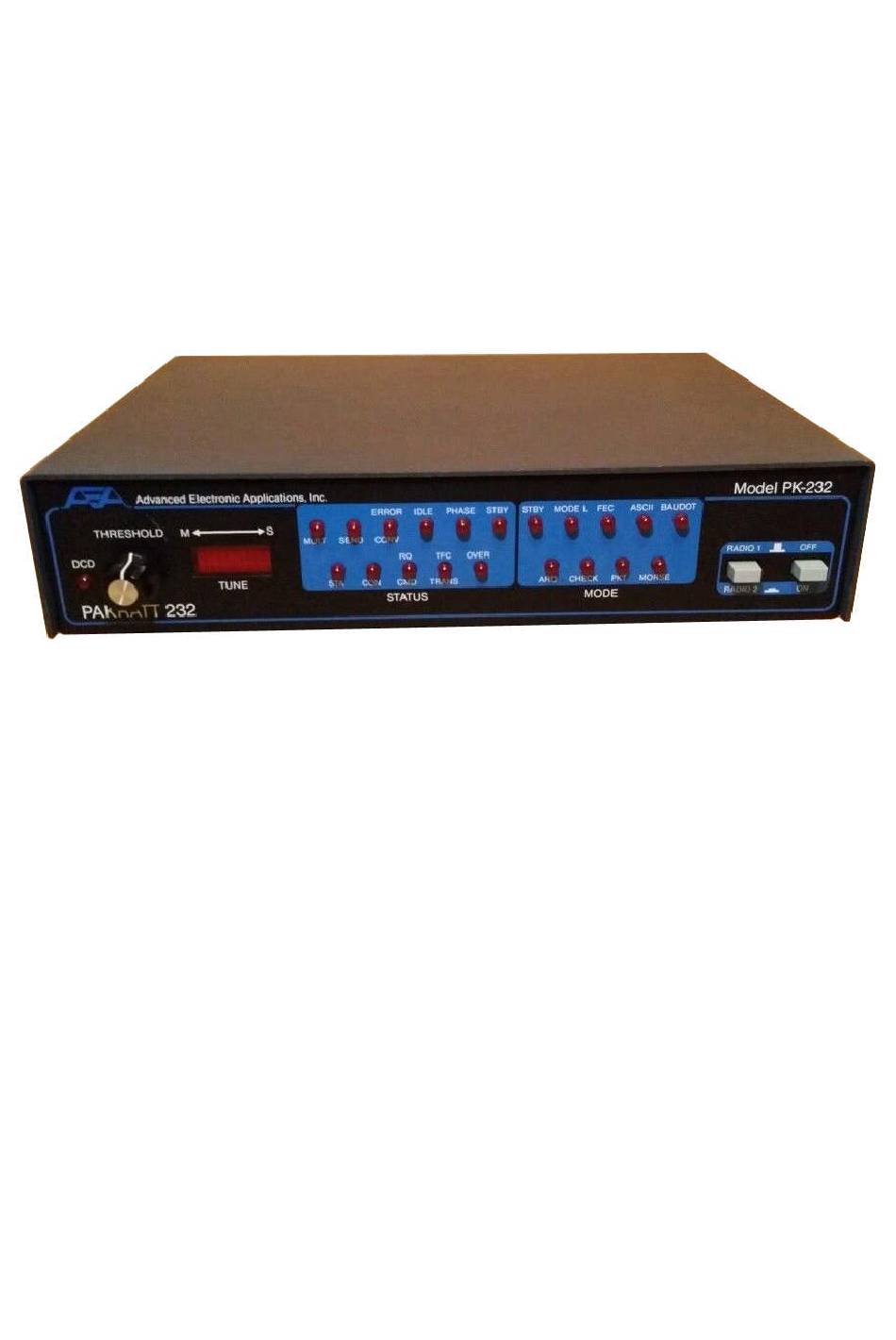

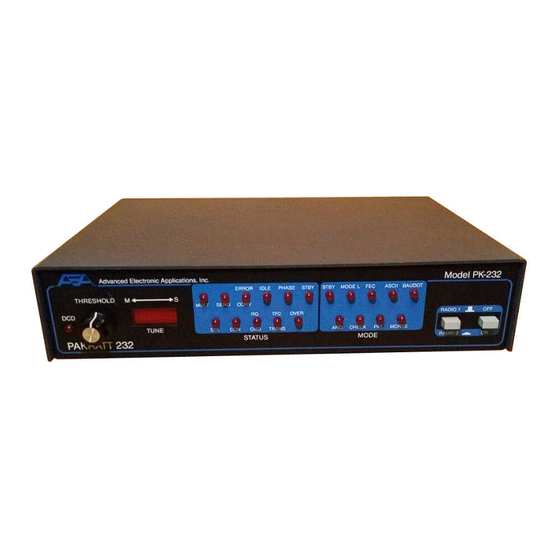

Page 1 ADVANCED ELECTRONIC APPLICATIONS, INC. PAKRATT ™ MODEL PK-232 Multi-Mode Data Controller Operating Manual REVISION G 7/89...
Page 2 Software Release 25. JUN 87 Checksum $E3 Copyright 1986, 1987 by Advanced Electronic Applications, Inc. FIFTH ISSUE (JUNE 1987)
Page 3 PK-232 OPERATING MANUAL PREFACE Welcome Congratulations!! You've purchased another fine AEA product. PLEASE, before we go any further, may we ask you to FILL OUT AND RETURN the Warranty Regis- tration Card, which has been packed with your PK-232 system. WE WILL NOT BE ABLE TO FURNISH YOU WITH ANY UPDATES TO THE SOFTWARE IF YOU DO NOT RETURN THE ABOVE DOCUMENT.
Page 4 PK-232 OPERATING MANUAL PREFACE If you send us the PK-232 by UPS it must be sent to the street address - not the post office box number. The street address is: AEA. Inc. 206 196th St. SW Lynnwood, WA 98036 We will need YOUR street address for UPS return - be sure and send it.
Page 5 PK-232 OPERATING MANUAL PREFACE INTRODUCTION Welcome to the exciting world of digital Amateur Radio! You've joined the ranks of the fastest growing modes in Amateur Radio since the FM repeater. Your AEA PK-232 Data Controller is the connection between your computer and radios. The PK-232 performs all the 'magic' of establishing data and text communications between your station and many other communication facilities equipped for digital communications.
Page 6 PK-232 OPERATING MANUAL PREFACE BATTERY BACK-UP NOTE: Your PK-232 uses to batteries to back up the user-programmable values in the system. If you don't install batteries, you'll have to re-enter all of your personal system settings each time you turn on the PK-232. Your PK-232 will operate normally in all modes but will not re- tain your personalized parameters such as your call sign, until you install three AA-size bat- teries in the battery holder inside the chassis cover.
Page 7: Table Of Contents
PK-232 OPERATING MANUAL TABLE OF CONTENTS TABLE OF CONTENTS Paragraph Page CHAPTER 1 – INTRODUCTION Introduction ....................1-1 Scope ......................1-1 General ....................... 1-1 1.3.1 Application ..................1-1 1.3.2 Specifications ..................1-1 1.3.2.1 Description ................1-1 1.3.2.2 Modem Characteristics ............1-2 1.3.2.3 Processor System ..............
Page 8: Paragraph Page
PK-232 OPERATING MANUAL TABLE OF CONTENTS Paragraph Page 2.6.9 Display Morse/RTTY/AMTOR Parameters ..........2-15 2.6.10 Display Timing Parameters ..............2-15 Immediate Commands ................. 2-16 Detailed Connections for Specific Computers ..........2-16 2.8.1 Available Serial Interfaces ..............2-17 2.8.2 Computers with Specific Serial Interfaces ..........2-17 2.8.3 Commodore 64, 64C, 128, Vic 20 ............
Page 9 PK-232 OPERATING MANUAL TABLE OF CONTENTS Paragraph Page 3.4.1.2 Invert Transmitted Data (TXREV) ..........3-13 3.4.1.3 Return to Receive Mode <CTRL-D> ......... 3-13 3.4.1.4 Send Time of Day <CTRL-T> ........... 3-13 3.4.1.5 CW Identifier <CTRL-F> ............3-14 3.4.1.6 Wideshift (WIDESHFT) ............3-14 3.4.1.7 Answerback (AAB) ..............
Page 10 PK-232 OPERATING MANUAL TABLE OF CONTENTS Paragraph Page 4.5.2 Speed Change Not Permitted ............. 4-12 4.5.3 SELCAL (Selective Call) ..............4-12 4.5.3.1 First SELCAL Installation ............4-13 4.5.3.2 Prevent Duplicate SELCALs ............4-13 4.5.4 Mode A (ARQ) Call - Start the Contact (ARQ Command) ....... 4-14 4.5.4.1 LED Status and Mode Indicators ..........
Page 11 PK-232 OPERATING MANUAL TABLE OF CONTENTS Paragraph Page 4.6.12.1 The MFROM Command ............4-33 4.6.12.2 The MTO Command ..............4-34 4.6.12.3 The MCON Command ............. 4-35 4.6.12.4 The MFILTER Command ............4-35 4.6.12.5 The MHEARD Monitor Buffer ........... 4-35 4.6.12.6 MSTAMP - The Monitor Time-Stamp Command ......
Page 12 PK-232 OPERATING MANUAL TABLE OF CONTENTS Paragraph Page 5.4.1.3 Special Characters in Converse Mode ........5-6 5.4.1.4 Display Features in Converse Mode .......... 5-6 5.4.2 Transparent Mode ................5-6 5.4.2.1 Input Editing and Packet Timing ..........5-7 5.4.2.2 Display Features in Transparent Mode ........5-7 5.4.2.3 Escape or Exit from Transparent Mode ........
Page 13 PK-232 OPERATING MANUAL TABLE OF CONTENTS Command Page 8BITCONV ............6-13 AAB ..............6-13 / P-2 133 / 265 ABAUD ............. 6-13 ACHG ............... 6-14 ACRDISP ............6-14 / P-2 134 / 265 ACRPACK ............6-15 ACRRTTY ............6-15 ADELAY ............6-16 AFILTER ............
Page 14 PK-232 OPERATING MANUAL TABLE OF CONTENTS Command Page CTEXT............... 6-37 CUSTOM ............P-3 CWID..............6-37 DAYTIME............6-38 / P-4 158 / 267 DAYSTAMP............6-39 DCDCONN............6-39 DELETE............. 6-40 DFROM.............. 6-40 DIGIPEAT............6-41 DIDDLE ............P-4 DISCONNE............6-41 DISPLAY............. 6-41 / M-10 161 / 236 DWAIT...............
Page 15 PK-232 OPERATING MANUAL TABLE OF CONTENTS Command Page MYALIAS ............6-58 MYALTCAL ............6-58 MYCALL ............6-58 / P-6 178 / 269 MYSELCAL ............6-59 NAVMSG ............O-6 NAVSTN ............O-6 NAVTEX ............O-7 NEWMODE ............6-60 NOMODE ............6-60 NUCR ...............
Page 16 PK-232 OPERATING MANUAL TABLE OF CONTENTS Command Page TXDELAY ............6-75 TXFLOW ............6-75 TXREV .............. 6-76 UNPROTO ............6-76 USERS .............. 6-77 USOS ............... 6-77 VHF ..............6-77 WHYNOT ............P-6 WIDESHFT ............6-78 WORDOUT ............6-78 WRU ..............6-78 / P-7 198 / 270 XFLOW .............
Page 17 PK-232 OPERATING MANUAL TABLE OF CONTENTS Page APPENDICES APPENDIX A PK-232 COMMAND LIST ..............201 APPENDIX B BIBLIOGRAPHY APPENDIX C INTERNATIONAL HF AMTOR CALLING FREQUENCIES ......205 APPENDIX D AMTOR OPERATING SUGGESTIONS FROM G3PLX ....... 206 APPENDIX E AMTOR THEORY ................212 APPENDIX F ASYNCHRONOUS VERSUS SYNCHRONOUS TRANSMISSION ....
Page 18: Chapter 1 - Introduction
PK-232 OPERATING MANUAL INTRODUCTION CHAPTER 1 – INTRODUCTION Introduction The User's Guide to the PK-232 describes the general characteristics and operation of your AEA PK-232 Data Controller. Your User's Guide will help you to install, adjust and operates the system. Scope Your User's Guide provides general information on installation and operation of the PK-232.
Page 19: Modem Characteristics
PK-232 OPERATING MANUAL INTRODUCTION 1.3.2.2 Modem Characteristics Demodulator: Limiter-discriminator type, preceded by an eight-pole Cheby- shev 0.5 db-ripple bandpass filter. Receive Bandpass: Automatically switched by operating mode. VHF Packet: Center frequency 1700 Hz, Bandwidth 2600 Hz HF (except CW): Center frequency 2210 Hz, Bandwidth 450 Hz Center frequency 800 Hz, bandwidth 200 Hz Modulator: Low-distortion AFSK sine wave function generator, phase-con-...
Page 20: Controls And Indicators
PK-232 OPERATING MANUAL INTRODUCTION 1.3.2.5 Controls and Indicators Front Panel Controls: Power Switch Radio Selector Switch Threshold Adjust Indicators: Ten-segment discriminator-type bargraph indicator for HF tuning. DCD LED (Data Carrier Detect) Status and Mode Indicators: Mode Group Status Group BAUDOT STBY ASCII PHASE...
Page 21: System Components
PK-232 OPERATING MANUAL INTRODUCTION System Components Your PK-232 Data Controller package contains the following items: One PK-232 Data Controller Cables to connect your PK-232 to two separate radios PK-232 Operating Manual NOTE: A special 'Y' Facsimile cable is supplied for connecting the PK-232 to a computer or Terminal and optionally to a graphics printer.
Page 22: Chapter 2 - Installation
PK-232 OPERATING MANUAL INSTALLATION CHAPTER 2 – INSTALLATION 'Quick Start' Installation You'll probably want to get your PK-232 connected and operating as soon as possible. This section contains instructions for a 'generic' installation and system checkout to install and verify your PK-232's operation. Information on specific computer interfaces is presented in section 2.9 at the end of this chapter.
Page 23: Computer Connections
PK-232 OPERATING MANUAL INSTALLATION Computer Connections (See Table 2-2) IMPORTANT NOTE Do NOT use an RS-232-C cable with all 25 wires in it. DO NOT CONNECT any pins other than pins 1 through 8 and pin 20! Connection of all 25 wires will cause improper operation of, and may damage your PK-232.
Page 24: System Quick-Check
PK-232 OPERATING MANUAL INSTALLATION Figure 2-2 PK-232 Rear Panel Connections and Controls System Quick-Check Verify that you've done these initial steps before going any further: the ROM backup batteries are installed in the PK-232 your PK-232 is connected to your computer via the RS-232-C cable; ONLY PINS 1 THROUGH 8 and PIN 20 are connected;...
Page 25 LEDs will be lit. Your screen will then display the sign-on message: PK-232 is using default values. AEA PK-232 Data Controller Copyright (C) 1986, 1987 by Advanced Electronic Applications, Inc. Release DD.MMM.YY Checksum $nn cmd: 9. Type MY AAA followed by a <RETURN>...
Page 26: Radio Connection
PK-232 OPERATING MANUAL INSTALLATION 18. Type followed by a <RETURN>. Your monitor should respond with: *** DISCONNECTED: (AAA) If you've done all the above steps successfully, you've completed the system quick- check and are ready to begin operating. If you have problems with the steps shown above, return to step 1 AFTER checking all cables and connectors.
Page 27: Positive Ptt
PK-232 OPERATING MANUAL INSTALLATION NOTE: This is especially useful if you want to configure one radio port for positive PTT and the other for negative PTT. 2.2.1.1 Positive PTT Place the slip-on jumper across the center pin and the pin nearest the front of the unit. Replace the cover and six screws.
Page 28: Ssb Installation And Adjustment
PK-232 OPERATING MANUAL INSTALLATION Rotate the AFSK Output Level adjustment screw counterclockwise (CCW) un- til the audio signal on the monitoring receiver is slightly but noticeably re- duced from the maximum level. Type to return to receive mode. Type to 'Quit' (exit) the calibration routine. You've now set your FM transmitter's deviation to an approximate level which will be adequate for initial operation.
Page 29 PK-232 OPERATING MANUAL INSTALLATION NOTE: Make all connections with all power off. 1. Connect your PK-232 and SSB radio as shown in Figure 2-3. 2. Turn on your PK-232 and your computer and start your terminal program. 3. Connect your SSB radio to a dummy load. 4.
Page 30: Connections For Direct Fsk Operation On Rtty
PK-232 OPERATING MANUAL INSTALLATION You have now set the PK-232's transmit audio output level and your SSB radio's mi- crophone gain control to an approximate correct level for all operating modes. NOTE: For CW, Mode A (ARQ) AMTOR and Packet-Radio operation, the radio's microphone gain control can be adjusted to produce the full-power output plate current recommended by the radio manufacturer.
Page 31: Cw Installation And Adjustment
PK-232 OPERATING MANUAL INSTALLATION NOTE: When using FSK for Baudot and ASCII RTTY, and AMTOR FEC (Mode B), the same power and duty cycle restrictions apply as cited earlier for AFSK opera- tion. Some radios provide lower output power when in FSK mode. Consult your radio's operating manual.
Page 32: Set Your Identifiers
PK-232 OPERATING MANUAL INSTALLATION Figure 2-5 Connector J7 Tuning Scope Connections NOTE: If your Oscilloscope cannot be AC coupled, you must place a 0.1 µF disc ca- pacitor in series with your connections to both pin-3 and pin-5 of J7. Set Your Identifiers Packet-Radio and AMTOR require that your PK-232 know exactly WHO you are in order to operate properly.
Page 33: Commands And Displays
PK-232 OPERATING MANUAL INSTALLATION Commands and Displays Type the command word display. Your screen will show: DISPLAY A,C,F,I,L,M,R,T,Z 2.4.1 Display Complete Command List cmd: At the prompt, type the command word DISPLAY Z. The PK-232 displays the entire list as shown in APPENDIX A. DISPLAY Z command shows the complete command list and the ROM default values installed at time of manufacture, assigned to those parameters that take values.
Page 34: Display Special Characters
PK-232 OPERATING MANUAL INSTALLATION TRFLOW Terminal flow control - Transparent TXFLOW PK-232 flow control - Transparent XFLOW Software flow control 2.4.4 Display Special Characters cmd: disp c BKONDEL Send <BS> <SP> <BS> for DELETE character CANLINE $18 CTRL-X LINE DELETE character CANPAC $19 CTRL-Y PACKET DELETE character...
Page 35: Display Link Parameters
PK-232 OPERATING MANUAL INSTALLATION MYCALL PK232 Your call sign for packet address MYSELCAL (empty) Your AMTOR SELCAL MYALTCAL (empty) Alternate AMTOR SELCAL Turn on answerback 2.4.7 Display Link Parameters cmd: disp l CONNECT Link state is: DISCONNECTED ACRPACK Add <CR> to Packet ALFPACK Send <LF>...
Page 36: Display Morse/Rtty/Amtor Parameters
PK-232 OPERATING MANUAL INSTALLATION 2.4.9 Display Morse/RTTY/AMTOR Parameters cmd: disp r ABAUD ASCII baud rate ACRRTTY Auto <CR> column in RTTY ADELAY AMTOR transmit delay (×10 ms) ALFRTTY Send <LF> after <CR>, RTTY ARQTMO AMTOR ARQ SELCAL timeout in secs. BITINV Baudot Bit inversion mask (SIAM) CCITT...
Page 37: Immediate Commands
PK-232 OPERATING MANUAL INSTALLATION Immediate Commands The 'immediate' commands do not have default values. These commands take effect as soon as you type them (and a <RETURN>), to start, stop or activate a specific PK-232 function. NOTE: Like all other PK-232 commands, the immediate commands can be typed using a short mnemonic or abbreviated form.
Page 38: Available Serial Interfaces
PK-232 OPERATING MANUAL INSTALLATION 2.6.1 Available Serial Interfaces Most manufacturers of personal and desktop computers can provide optional serial inter- face boards that can be installed by the user. Here is a partial list of these makes and models: MANUFACTURER MODEL Apple Macintosh ™...
Page 39: Ibm Pcjr
PK-232 OPERATING MANUAL INSTALLATION internal TTL voltage levels to the proper RS-232-C voltage levels and polarities. Unless you are very familiar with the inner working of your computer, you should purchase a lev- el converter rather than trying to 'do it yourself'. 2.6.4 IBM PCjr The PCjr uses standard RS-232-C voltage levels;...
Page 40: Other Computers With Non-Standard Serial Ports
PK-232 OPERATING MANUAL INSTALLATION Some computers require pin 5 of the computer's serial port connector to be connected to an appropriate signal. Others may require connections for pin 8 and pin 20. You can use the computer's output signals on pin 4 and 6 as indicated below: PK-232 COMPUTER 2 ......
Page 41: Apple Macintosh
PK-232 OPERATING MANUAL INSTALLATION 2.7.1 Apple Macintosh MacTerminal Apple dealers sell a communication program called that will work well with the PK-232. Set the program options as listed below: COMPATIBILITY: 1200 bauds, 7 bits/character, even parity, Handshake XON/XOFF, Modem connection, 'telephone' port. TERMINAL: VT100, ANSI, UNDERLINE, US, 80 columns, ON LINE, AUTOREPEAT.
Page 42: Packet Bulletin Board Program Compatibility
PK-232 OPERATING MANUAL INSTALLATION A partial list of PC programs tested successfully with the PK-232 includes: CROSSTALK-XVI, SMARTCOM, RELAY, PROCOMM, BITCOM, QMODEM, PC-TALK, CTERM, HAMCOM, PACKCOM, PACKTALK, HAMPAC and YAPP. Packet Bulletin Board Program Compatibility The PK-232 is used successfully with PBBS (Packet Bulletin Board) program written for the PC/MS-DOS computers by W0RLI and VE3GYQ, WA7MBL and KA2BQE.
Page 43: Chapter 3 - Basic Operation
PK-232 OPERATING MANUAL BASIC OPERATION CHAPTER 3 – BASIC OPERATION Exploring the PK-232 Program This chapter shows you how to use your PK-232 in each of its operating modes, describes the keyboard commands you'll use to 'talk' to your PK-232, and the answers, prompts and error messages you'll receive from your PK-232.
Page 44: Mode Indicator Leds
PK-232 OPERATING MANUAL BASIC OPERATION 3.2.2 Mode Indicator LEDs STBY ARQ/FEC Standby Lit when AMTOR ARQ or FEC Mode MODE L ARQ - Listen Lit when system is in AMTOR Listen Mode FEC - Mode B Lit when system is in AMTOR FEC Mode ASCII ASCII Code Lit when system is in ASCII RTTY Mode...
Page 45: Pk-232 Commands
PK-232 OPERATING MANUAL BASIC OPERATION In FM, tones are set by the sending station and can't be changed by the received station. Figure 3-1 Bar-graph Tuning Indicator Display PK-232 Commands The PK-232 Data Controller is a command driven system. All control functions are are per- formed by typing single- and multiple-character command from your computer's keyboard.
Page 46: Error Messages
PK-232 OPERATING MANUAL BASIC OPERATION and XFLOW was ON you'll see the display XFLOW was ON This message tells you that the value has been changed successfully. 3.3.3 Error Messages If your PK-232 can't understand what you've typed, you'll get an error message in English telling you the nature of the error.
Page 47: Command Names
PK-232 OPERATING MANUAL BASIC OPERATION 3.3.4 Command Names The command name is the full word you can type to tell your PK-232 to execute this com- mand. You can also give instructions to your PK-232 by typing a minimum abbreviation called a 'mnemonic' instead of the full word.
Page 48 PK-232 OPERATING MANUAL BASIC OPERATION Boolean Parameters Boolean parameters have only two possible values, such as ON and OFF, YES or NO, or EVERY and AFTER. When a parameter is Boolean, its two possible choices are shown separated by a vertical bar. Numeric Parameters A parameter designated as is a numeric value.
Page 49: Using Commands Without Arguments
3.3.8.1 General Messages AEA PK-232 Data Controller Copyright (C) 1986 by Advanced Electronic Applications, Inc. Release DD.MMM.YY Checksum $nn cmd: This is the sign-on message that appears when you turn on your PK-232 with batteries RESTART...
Page 50: Command Mode Error Messages
PK-232 OPERATING MANUAL BASIC OPERATION given for the firmware version you are using. Checksum information for each specific firmware release can be obtained from AEA. PK-232 is using default values. This message appears along with the sign-on message above if the bbRAM checksum verification fails at power-on time, causing the PK-232 to load the default parameters from the ROM.
Page 51: Link Status Messages
PK-232 OPERATING MANUAL BASIC OPERATION ?clock not set DAYTIME You gave the command to display the date and time, but you haven't previ- DAYTIME ously set the clock. sets the clock if it is given with the daytime parameters and displays the date and time if its given without parameters. ?not enough You didn't give enough arguments for a command that expects several parameters.
Page 52 PK-232 OPERATING MANUAL BASIC OPERATION CONNECT The following messages appear in response to the command. Link state is: CONNECTED to call1 [VIA call2[,call3...,call9]] Your station is connected to a distant station – you'll see the digipeater path in use, if any. The call sign sequence is the same sequence you would type to initiate the connection.
Page 53: Special Keyboard Control Codes
PK-232 OPERATING MANUAL BASIC OPERATION message may be preceded by a message explaining the reason for the disconnect, as shown below. *** Retry count exceeded *** DISCONNECTED: <call sign> Your PK-232 has been disconnected because of a retry failure, rather than a discon- nect request from one of the stations.
Page 54: Baudot And Ascii Rtty
PK-232 OPERATING MANUAL BASIC OPERATION 3.3.9.3 Baudot and ASCII RTTY In Baudot RTTY: From Command Mode: Forces LETTERS case Switches system to receive mode, forces LETTERS case. Switches system to transmit mode. Enters Converse mode to preload Transmit buffer (Type Ahead) Embedded in transmitted text: <CTRL-O>...
Page 55: General Operating Information
PK-232 OPERATING MANUAL BASIC OPERATION meaning, use and effects of each command, its parameters, default values and argu- ments. Examples of command usage are included. General Operating Information Before we discuss the specifics of each your PK-232's five operating modes, we'll present some ideas and command concepts that apply to all of the operating modes.
Page 56: Cw Identifier
PK-232 OPERATING MANUAL BASIC OPERATION TIME CTEXT o Note: The command cannot be embedded in the message. 3.4.1.5 CW Identifier <CTRL-F> In the Baudot and ASCII RTTY modes, you can insert the character specified by the CWID command (default <CTRL-F>) as you type 'live' into the PK-232's transmit buffer, or you can write <CTRL-F>...

Page 57: Formatting Commands
PK-232 OPERATING MANUAL BASIC OPERATION matic answerback feature. The default value is OFF. If WRU? is set ON, your PK-232 send your answerback on receipt of a distant station's WRU? request character 'FIGS D' or '$' in Baudot and AMTOR, or <CTRL-E>...
Page 58: Carriage Return
PK-232 OPERATING MANUAL BASIC OPERATION You can insert <CTRL-J> in any text where you need an isolated line feed function with- out an associated carriage return. This is known as an 'index' function in word process- ing, and can be useful when formatting text files in your buffers. 3.4.2.5 Carriage Return <CTRL-M>...

Page 59: Escape Functions
PK-232 OPERATING MANUAL BASIC OPERATION DELETE o If is ON, typing <BACKSPACE> erases the characters from the screen and from the transmit buffer as well. 3.4.2.9 Escape Functions <ESC> The echoed ESCAPE character can be either your keyboard's ESCAPE ($1B, ASCII 27) key, or the '$' dollar sign character ($24, ASCII 36).

Page 60: Automatic Carriage Returns
PK-232 OPERATING MANUAL BASIC OPERATION 3.4.3 Summary of Automatic Carriage Return and Line Feed Commands The PK-232's text and display formatting commands provide great flexibility in text and message handling. The following paragraphs summarize the various combinations of for- mat commands available and describe their effects on typed text and messages. ACRDSIP ACRRTTY ACRPACK...
Page 61: Pk-232-To-Tnc2 Command Cross-Reference
PK-232 OPERATING MANUAL BASIC OPERATION ILFPACK OFF (default) – all LFs are passed without modification. ILFPACK ON – all LFs from the terminal are ignored; this would be useful for send- ing computer files that contain LFs. ALFPACK ILFPACK ON overrides ALFPACK ILFPACK Action: CR...
Page 62: Chapter 4 - Operating Modes
PK-232 OPERATING MANUAL OPERATING MODES CHAPTER 4 – OPERATING MODES General Information Five modes of operation are available with the PK-232. Morse Code Baudot RTTY ASCII RTTY AMTOR Packet-Radio 4.1.1 Morse Code Morse is still the foundation of amateur radio operation. Morse contacts are greatly im- proved by computer-based operation.
Page 63: Amtor
PK-232 OPERATING MANUAL OPERATING MODES The PK-232 provides RTTY operation in the ASCII code at 110, 150, 200 and 300 bauds, corresponding to approximately 100, 150, 200 and 300 words per minute (WPM). 4.1.4 AMTOR The PK-232 provides AMTOR operation in accordance with FCC Part 97.69 and CCIR Re- commendations 476-2/476-3, Mode A (ARQ) and Mode B (FEC) in normal, semiautomatic and fully automatic modes.
Page 64 PK-232 OPERATING MANUAL OPERATING MODES Type to turn on your transmitter. Type to enter the Converse Mode and begin the contact. Type <CTRL-D> to shut off your transmitter and return to Command Mode or, Type <CTRL-C> to return to the Command Mode. Type to shut down your transmitter and end the contact.
Page 65: Transmit/Receive Function Keys
PK-232 OPERATING MANUAL OPERATING MODES Disconnect your microphone cable from from the PK-232 to the radio so that the ra- dio does not hang in transmit. Place your transceiver in VOX or QSK mode. WORDOUT to OFF. Start a CW transmission by typing as above.
Page 66: Speed Lock
PK-232 OPERATING MANUAL OPERATING MODES 4.2.3 Speed Lock LOCK command locks the system to the speed of the received signal. Reception of Morse code in the presence of noise can be enhanced this way. To unlock the speed, type or MO, followed by a <RETURN>. 4.2.4 Special Morse Characters The PK-232's Morse program contains special keystrokes that you can use to make trans-...
Page 67: Baudot Rtty Operating Tips
PK-232 OPERATING MANUAL OPERATING MODES Type to turn on your transmitter. Type to enter the Converse Mode and begin the contact. Type <CTRL-D> to shut off your transmitter and return to the Command Mode, or type <CTRL-F> to send your callsign in Morse and shut off your transmitter and re- turn to Command Mode, or type <CTRL-C>...
Page 68: Transmit/Receive Function Keys
PK-232 OPERATING MANUAL OPERATING MODES Type to key your transmitter and start the PK-232 sending. Call the other station by giving his call followed by your call (KZ7G DE N7BIT). You can start the transmission with a line of RYs as a tuning signal for the distant sta- tion.
Page 69: Baud Rate (Speed) Change
PK-232 OPERATING MANUAL OPERATING MODES 4.3.4 Baud Rate (Speed) Change RBAUD Use the command to change the Baudot data rate. Type RBAUD<RETURN> RB<RETURN> to read the present baud rate. The PK-232 re- sponds with: RBAUD Type RBAUD followed two or three digits and a <RETURN>. The PK-232 responds with the new baud rate: RBAUD was 45...
Page 70: Unshift-On-Space
PK-232 OPERATING MANUAL OPERATING MODES USOS 4.3.6 Unshift-On-Space ( Unshift on space automatically changes the received Baudot/Murray code characters to the LETTERS or lower case condition after the 'space' character is received. When operating Baudot RTTY under poor HF receiving conditions, a received LETTERS- SHIFT character can be garbled, or another character can be wrongly interpreted as a FIGURES-SHIFT character.
Page 71: A Typical Ascii Rtty Contact
PK-232 OPERATING MANUAL OPERATING MODES Follow the general operating procedure shown in section 4.3.1 for Baudot RTTY. As in Baudot operation, you can step the system through all the available receiving speeds. Assume you've been receiving at 110 bauds and wish to increase the baud rate in steps. From the Command Mode, type AB U followed by a <RETURN>.
Page 72: General Use Of Control Key Functions
PK-232 OPERATING MANUAL OPERATING MODES The number you enter becomes the new data rate and replaces the value previously stor- ed in the program. You can also change the baud rate one step up or down one step at a time by typing (up) or AB D (down).
Page 73: Amtor Operation
PK-232 OPERATING MANUAL OPERATING MODES AMTOR Operation From the Command Mode, type AMTOR or AM, followed by <RETURN> to enter the AMTOR mode. The PK-232 will respond with the previous mode: OPMODE was ASCII OPMODE now AMTOR Your PK-232's front panel will show both STBY LEDs lit.
Page 74: Selcal (Selective Call)
PK-232 OPERATING MANUAL OPERATING MODES Some call sign groupings now in use are: GROUP CALL SELCAL GROUP CALL SELCAL 1 by 2 W1AB WWAB 2 by 1 AB1Z AABZ 1 by 3 W1ABC WABC 2 by 2 AB1YZ ABYZ 2 by 3 KA1XYZ KXYZ For '1 by 2' call signs, the first letter is doubled, e.g., 'N7ML' becomes 'NNML'.
Page 75: Mode A (Arq) Call - Start The Contact (Arq Command)
PK-232 OPERATING MANUAL OPERATING MODES 4.5.4 Mode A (ARQ) Call - Start the Contact ( Command) Type ARQ<SELCAL> to start the AMTOR selective calling sequence or answer a Mode B (FEC) CQ call from a distant station. Type <CR> after you've typed the fourth letter (a valid SELCAL must have four charac- ters) –...
Page 76: Mode A (Arq) Changeover (+? Command)
PK-232 OPERATING MANUAL OPERATING MODES If the link fails and you lose synchronization with the distant station, your PK-232 auto- matically tries to re-establish synchronization with the distant station. The LEDs change to show: STATUS: SEND lit, PHASE lit, ERROR alternately lit MODE: 4.5.4.2...
Page 77: End The Mode A (Arq) Contact, Return To Amtor Standby
PK-232 OPERATING MANUAL OPERATING MODES 4.5.4.4 End the Mode A (ARQ) Connect, Return to AMTOR Standby When you've finished you 'final finals' to the distant station and both stations are ready to end the Mode A (ARQ) contact, you can end the contact and terminate the link in several different ways: o Type <CTRL-C>...
Page 78: Led Status And Mode Indicators
PK-232 OPERATING MANUAL OPERATING MODES Type to start the AMTOR Mode B call or transmission, or answer a Mode B (FEC) CQ call from a distant station. You don't have to type a SELCAL. Your transmitter will be turned on and kept on continuously, sending synchronous idle control characters. Mode B (FEC) is recommended for calling CQ in AMTOR.
Page 79: End The Mode B (Fec) Contact, Return To Arq Standby
PK-232 OPERATING MANUAL OPERATING MODES Except for the short delay in starting before sending your traffic, you can operate FEC using the same typing and receiving techniques as in CW or conventional Baudot and ASCII RTTY. The FEC mode does not use interaction or 'handshaking' between your sta- tion and the distant station.
Page 80: Amtor Switching-Time Considerations
PK-232 OPERATING MANUAL OPERATING MODES 4.5.8 AMTOR Switching-Time Considerations For operation in AMTOR Mode A (ARQ), your transceiver or transmitter-receiver combina- tion must be able to change between transmit and receive within 20 milliseconds. Most semiconductor-based radios can easily meet this specification. Many older tube-type ra- dios that use electromechanical relays operate very well in AMTOR Mode A (ARQ).
Page 81: Packet Radio Operation
PK-232 OPERATING MANUAL OPERATING MODES Improve power supply decoupling, especially in audio stages. Do not use squelch. In case you can't solve your radio's switching-time problems, please call AEA Customer Service telephone (see front of this manual) for further helpful suggestions. NOTE: AMTOR Mode B (FEC) operation is similar to conventional RTTY in its duty cycle;...
Page 82: Station Identification
PK-232 OPERATING MANUAL OPERATING MODES The PK-232 accepts the new baud rate and responds with the old baud rate: HBAUD was 1200 HBAUD now 300 The number you enter becomes the new data rate and replaces the value previously stor- ed in the program.
Page 83: Set Up Loopback Test Circuit
PK-232 OPERATING MANUAL OPERATING MODES When you shut down, you can command a final ID with the command. The PK-232 sends these ID packets only if it has been digipeating. 4.6.3 Set Up Loopback Test Circuit Do these steps in the exact order shown: Get the shielded radio cable you set aside in Chapter 2.
Page 84: System Quick-Check - Loopback Test Connection
PK-232 OPERATING MANUAL OPERATING MODES 4.6.6 System Quick-Check – Loopback Test Connection Try this using your own call sign. Type CONNECT {MYCALL}. cmd: CONNECT {MYCALL} *** CONNECTED to {MYCALL} The LEDs change to show your PK-232 in Packet Mode, in CONNECTED state and in CON- VERSE Mode.
Page 85: Return To Converse Mode
PK-232 OPERATING MANUAL OPERATING MODES 4.6.6.4 Return to Converse Mode Type CONVERSE to return to Converse Mode. <CTRL-C> cmd: CONVERSE Whatever I type in Converse Mode is transmitted. Whatever I type in Converse Mode is transmitted. <CTRL-C> cmd: 4.6.6.5 Terminate the Link – Disconnect Type DISCONNE (or D) to terminate the link or connection.
Page 86: What If
PK-232 OPERATING MANUAL OPERATING MODES *** CONNECTED to WX6FFF You've begun your first QSO! Both you and your partner will be automatically switched to Converse Mode. Your partner will see: *** CONNECTED to WX2BBB Exchange several messages to get the feel of Packet-Radio. Watch your radio's transmit indicators and if possible, listen to the audio from both radios;...
Page 87: Automatic Operation
PK-232 OPERATING MANUAL OPERATING MODES 4.6.8 Automatic Operation Your PK-232 offers a variety of automatic operating features including beacon operation, digipeater function and auto-answer messages. Your Packet station can be a digipeater for relaying packets to a more remote destination. Functions like the 'connect message' take care of situations not readily solved in modes other than Packet.
Page 88 PK-232 OPERATING MANUAL OPERATING MODES CFROM works with four arguments: ALL/NONE or YES(list)/NO(list). 'ALL' and 'NONE' are used alone and work this way: o ALL – your PK-232 accepts connect requests from any callers; o NONE – your PK-232 rejects connect requests from all callers. 'ALL' and 'NONE' work with a list of call signs: o ALL –...
Page 89: Are You Available To Chat
PK-232 OPERATING MANUAL OPERATING MODES W2JUP , any combination W2JUP, W2JUP-1,...W2JUP-15 will be matched and processed. CFROM yes W2JUP-1 no W2JUP-1 is set to , then 4.6.8.3 Are You Available to Chat? CMSG CTEXT ON (default is OFF) and use the command to enter the sort of mes- sage you might put in a telephone answering-machine.
Page 90: Are You A Digipeater
PK-232 OPERATING MANUAL OPERATING MODES WX1AAA_____/ \_____WX3CCC · · · · WX4DDD ... . WX5EEE WX2BBB has turned off his station, but you can still contact WX3CCC by going around the mountain through WX4DDD and WX5EEE.
Page 91: Unsuccessful Connections And Retries
PK-232 OPERATING MANUAL OPERATING MODES o ALL – your PK-232 will repeat packets from any station; o NONE – your PK-232 will not repeat packets from any station. YES and NO work with a list of call signs: o YES (list) – call signs of up to eight stations whose packets will be repeated; o NO (list) –...
Page 92: Monitoring Activity On The Channel
PK-232 OPERATING MANUAL OPERATING MODES 232 doesn't get an ACK within a specific time, it sends the same packet again and in- RETRY crements the retry count. If the count set by is exceeded, your PK-232 discon- nects and displays: *** Retry count exceeded *** DISCONNECTED: (call sign) The automatic disconnect feature avoids excessive retransmission of unless packets.
Page 93: Monitoring Digipeaters - The Mrpt Command
PK-232 OPERATING MANUAL OPERATING MODES 6 Poll/Final bit and sequence number are also displayed. Before this next step, verify that your loopback test cable is still connected to the PK- 232's RADIO 2 rear-panel receptacle, and that the front-panel RADIO 1/Radio 2 switch is still set to RADIO 2 Type:...
Page 94: Selective Monitoring
PK-232 OPERATING MANUAL OPERATING MODES ing and confusion caused by the mixture of everyone else's packets and those of your partner. MCON You might use set to 1 to monitor the 'mail list' beacons from a PBBS while hold- ing connected conversations with your partners on the channel. Whenever a beacon is sent, that message is displayed while you're connected to another station.
Page 95: The Mto Command
PK-232 OPERATING MANUAL OPERATING MODES Clear the MFROM field by typing %, & as arguments. Error messages result from invalid commands. Here are some examples: cmd: mfrom all w2jup ?too many (calls not allowed with ALL or NONE) cmd: mfrom no ?not enough (NO and YES require call sign list) cmd:...
Page 96: The Mcon Command
PK-232 OPERATING MANUAL OPERATING MODES cmd: mto all w2jup ?too many (calls not allowed with ALL or NONE) cmd: mto no ?not enough (NO and YES require call sign list) cmd: mto w2jup ?need ALL/NONE/YES/NO (Calls must follow YES or NO) MCON 4.6.12.3 Command...
Page 97: Mstamp - The Monitor Time-Stamp Command
PK-232 OPERATING MANUAL OPERATING MODES Entries in the 'heard' report are also time stamped if the date and time has been set. The PK-232's time is updated continuously as long as it is powered. MSTAMP 4.6.12.6 – The Monitor Time-Stamp Command DAYTIME Monitored packets can be time-stamped if has been set.
Page 98: Paclen - Long Or Short
PK-232 OPERATING MANUAL OPERATING MODES these features to suit you and your computer. Most of the special input characters are ac- tive in both Command and Converse Modes; any exceptions will be noted. Some of your PK-232's command parameters affect how your packets are formatted – how your typing appears to the rest of the world.
Page 99: Redisplay
PK-232 OPERATING MANUAL OPERATING MODES cmd: CONVERSE Hi, John, how are you? 4.6.13.4 Redisplay If you've erased and retyped lots of characters, you may want to see 'fresh' input, espe- BKONDEL cially if . Your PK-232 shows the line you're entering when you type <CTRL-R>: cmd: CONNECT KB7\\\WA7<CTRL-R>\...
Page 100: Multiple Connects
PK-232 OPERATING MANUAL OPERATING MODES Multiple-connection capability is a very powerful addition to your PK-232's 'bag of tricks' that can be very useful for traffic net operation, multi-user bulletin board and host com- puter systems, path checking and just plain 'round-table' ragchews. Multiple connects work with 'logical channels', that are created or simulated by com- puter logic and don't really exist in the same way that a 'radio channel' exists.
Page 101: Display Multiple-Connect Call Signs - The Chcall Command
PK-232 OPERATING MANUAL OPERATING MODES CHSWITCH characters must not be one of the channel numbers (0 to 9). CHSWITCH Your PK-232's default value for is $00, which disables the function. This de- fault was selected to prevent conflicts with the characters frequently found in packet network maps.
Page 102: The Cstatus Command
PK-232 OPERATING MANUAL OPERATING MODES The CHSWITH character is active in both Converse and Command Modes. You don't have to return to the Command mode to change channels. Let's choose the CHSWITCH character '@' by typing the ASCII value, decimal or hex, of '@' to CHSWITCH.
Page 103: The Mult Led
PK-232 OPERATING MANUAL OPERATING MODES also happens to be the channel you are using. CSTATUS command shows: CH 0- CONNECTED TO KZ7G; V2; 3 UN ACKED CH 1- CONNECT IN PROGRESS CH 2- DISCONNECTED CH 3- I/O DISCONNECT IN PROGRESS CH 4- DISCONNECTED CH 5-...
Page 104: The Connect Command
PK-232 OPERATING MANUAL OPERATING MODES In all cases, the <> or [ ] indicates the version of the protocol in use by the station send- ing the packets. Monitor 6 sets your PK-232 to display and identify ten different types of packet frames: Connect Command (also known as a 'SABM' frame) Disconnect Command Information Command and Response...

Page 105: The Receive Ready (Acknowledge) Frame
PK-232 OPERATING MANUAL OPERATING MODES Information looks like this: KZ7ON7BTI <I;0,0>: Hi John! o The indicates an Information Frame containing KZ7G's typed data; o The first number is the number of the frame that KZ7G's System expects to receive next from N7BTI's System; o The second number is the number of this specific frame that KZ7G is now sending to N7BTI.
Page 106: The Reject Command Frame
PK-232 OPERATING MANUAL OPERATING MODES 4.6.16.5 The <RJ> Reiect Command Frame Let's assume that some other Station sends a packet that collides with KZ7G's acknowl- edge packet and N7BTI misses the acknowledgment. N7BTI's system would send the packet again because it has not heard an acknowledgment packet: N7BTI>KZ7G <I;2,2>: 'TEXT OR INFORMATION' KZ7G's system has already seen and acknowledged this specific frame.
Page 107: Reception Of Non-Amateur Rtty Signals
PK-232 OPERATING MANUAL OPERATING MODES N7BTI>CQ <UI> CQ de John The 'UI' in the above packet indicates this is an unnumbered Information frame. This type of frame does include a packet number. Reception of Non-Amateur RTTY Signals One of the most interesting uses for your PK-232 is looking for and monitoring stations out- side the amateur bands.
Page 108 PK-232 OPERATING MANUAL OPERATING MODES WIDESHFT your radio after toggling between WIDESHFT If the sending station's shift is unknown, start with OFF and try to tune the station to the display similar to Figure 2-1. If you can't get that display, the station is probably using a wider shift than the WIDESHFT WIDESHFT OFF position can handle.
Page 109: Chapter 5 - Advanced Packet Operation
PK-232 OPERATING MANUAL ADVANCED PACKET OPERATION CHAPTER 5 – ADVANCED PACKET OPERATION 5.1. Introduction This chapter describes special aspects and advanced concepts not used in everyday conver- sational operation. Read this chapter carefully if you intend to use your PK-232 for: A Packet bulletin board system (PBBS) Binary file transfer A 'host' program...
Page 110: Display Control In Command Mode
PK-232 OPERATING MANUAL ADVANCED PACKET OPERATION COMMAND DESCRIPTION CANLINE Cancel current line CANPAC Cancel packet output DELETE Delete character with destructive backspace PASS Insert after special character REDISPLA Re-display current typed line START, STOP Computer flow control characters (sent to PK-232) XOFF, XON PK-232 flow control characters (sent to computer 5.2.1.2.
Page 111: Data Flow Control
PK-232 OPERATING MANUAL ADVANCED PACKET OPERATION Some computers find it difficulty to send and receive characters over the serial port simul- taneously. This is most commonly the case for computers with 'software UARTs'. Type-in flow control improves the operation of such computers with your PK-232. 5.3.2.
Page 112: Hardware Flow Control
PK-232 OPERATING MANUAL ADVANCED PACKET OPERATION STOP/START character sent to your PK-232 will be ignored when the PK-232 is al- STOP START ready stopped/started. If the characters are identical, that character 'toggles' the output, turning it off when it is on and on when it is off. You can disable XON/XOFF flow control in one direction only by setting the appropriate flow control characters to 0 (zero).
Page 113: Converse Mode
PK-232 OPERATING MANUAL ADVANCED PACKET OPERATION Any text sent to your PK-232 is queued into packets waiting for a successful connection be- fore being sent. If the connect attempt fails, your system returns to Command Mode. The system also automatically returns to Command Mode when either station disconnects and ends the QSO.
Page 114: Special Characters In Converse Mode
PK-232 OPERATING MANUAL ADVANCED PACKET OPERATION 5.4.1.3. Special Characters in Converse Mode The following commands set special characters which are active in Converse Mode. See the detailed descriptions of the commands in the "Command Summary" chapter. COMMAND DESCRIPTION –––––––––––––––––––––––––– CANLINE Cancel current line CANPAC Cancel current packet...
Page 115: Input Editing And Packet Timing
PK-232 OPERATING MANUAL ADVANCED PACKET OPERATION 5.4.2.1. Input Editing and Packet Timing Transparent Mode does not permit input editing. The send-packet character does not exist. Packets are sent at specific regular intervals, or when a full packet of information PACLEN = 128 bytes) is ready.
Page 116: Unproto Who
PK-232 OPERATING MANUAL ADVANCED PACKET OPERATION AX25L2V2 ON to operate in Version 2.0. AX25L2V2 OFF to operate in Version 1.0. Digipeating may not work if a Version 2.0 packet is sent through a digipeater using an older TNC. The CHECK command controls a timing function that depends on the protocol version se- lected.
Page 117: Axdelay And Axhang
PK-232 OPERATING MANUAL ADVANCED PACKET OPERATION o Time delay between the moment that your PK-232 keys your transmitter's PTT line and your transmitter delivers power to your antenna. o Time required for the distant station's receiver to recover full sensitivity and over- come squelch/AGC rise-time characteristics.
Page 118: Dwait
PK-232 OPERATING MANUAL ADVANCED PACKET OPERATION FRACK You may want to increase several seconds when using HF. Bear in mind that the FRACK time is really counted from the instant when your PK-232 begins sending a frame and that your data rate is four times slower when using HF at 300 bauds. RETRY command sets the maximum number of re-transmissions before the origi- nating station abandons further retries and terminates the connection.
Page 119: Maxframe
PK-232 OPERATING MANUAL ADVANCED PACKET OPERATION MAXFRAME 5.5.4.5. The AX.25 protocol permits the transmission of several packets without waiting for an acknowledgment. The number of packets that can be sent before acknowledgment is known as the 'window'. The window concept permits more efficient channel use if large amounts of data are being transferred.
Page 120: Packet Bulletin Board Operation
PK-232 OPERATING MANUAL ADVANCED PACKET OPERATION 5.6. Packet Bulletin Board Operation Your PK-232 can be used as the TNC or Data Controller with several of the PBBS (Packet Bul- letin Board System) programs presently available in the Amateur Radio community. Your PK- 232's system compatibility has been field-proven with the following programs: W0RLI's Version 11.6 CP/M-based PBBS for the Xerox 820 Systems WA7MBL's Version 2.04 PBBS for the IBM PCs and compatibles...
Page 121: Chapter 6 - Command Summary
PK-232 OPERATING MANUAL COMMAND SUMMARY CHAPTER 6 – COMMAND SUMMARY 6.1. Introduction Chapter 6 explains and illustrates all the PK-232's commands. You'll use certain commands to affect the PK-232's performance under specific conditions, and other s to specify the val- ues of parameters used during the PK-232's general operation.
Page 122: Error Messages
PK-232 OPERATING MANUAL COMMAND SUMMARY 6.1.3. Error Messages If your PK-232 can't understand what you've typed, you'll get an error message in English reporting the nature of the error. If you type a command your PK-232 can't understand – you'll see: ?What? If you type a correct command with a wrong argument: ?bad...
Page 123: Command List
PK-232 OPERATING MANUAL COMMAND SUMMARY 6.2. Command List Commands are listed alphabetically in the following command descriptions. Each command entry contains several sections: Command name Command abbreviation or mnemonic Default value Parameters 6.2.1. Command Names The command name at the beginning of the description is the full word you can type in order to have your PK-232 execute this command.
Page 124: Parameters
PK-232 OPERATING MANUAL COMMAND SUMMARY CONNECT Some commands such as have optional parameters. If you type CONNECT without an argument, the PK-232 displays the current status of the link. However, if you type CONNECT N7ML, the PK-232 issues the connect request and tries to establish the link to N7ML.
Page 125: Text Or String Parameters
PK-232 OPERATING MANUAL COMMAND SUMMARY 6.3.1.3. Text or String Parameters BTEXT A text parameter such as the argument or 'message' for (your 'beacon' mes- sage) or CTEXT (your 'connect' message), can be typed in upper or lower case. o A text parameter can include numbers, spaces and punctuation. o The text is accepted exactly as you type it.
Page 126: Controller Messages
This section describes your PK-232's messages and the circumstances under which they can appear. 6.4.1. General Sign-On Message AEA PK-232 Data Controller Copyright (C) 1986, 1987 by Advanced Electronic Applications, Inc. Release DD-MM-YY Checksum $nn cmd: The sign-on message appears when you turn on your PK-232 or when you type RESTART RESET and after system and autobaud routine.
Page 127: Command Mode Error Messages
PK-232 OPERATING MANUAL COMMAND SUMMARY Whenever you change one of the PK-232's parameter, the previous value will be dis- played. This confirm that the PK-232 properly interpreted your command and reminds you of what you have done. too many packets outstanding CONVERS TRANS This message appears in response to the...
Page 128: Link Status Messages
PK-232 OPERATING MANUAL COMMAND SUMMARY You typed a command line that is too long, so the line is ignored. For example, if you try BTEXT CTEXT to type too long a message, you'll receive this message. When you get this specific error message, the previous text entry is not changed. ?too many You typed too many arguments for a command that expects several parameters.
Page 129 PK-232 OPERATING MANUAL COMMAND SUMMARY Your station is connected to a distant station – you'll see the digipeater path in use, if any. The call sign sequence is the same sequence you would type to initiate the connection. Link state is: CONNECTED to call1; v2; 2 unACKed [VIA call2[,call3...,call9]] You are connected to a station using version 2;...
Page 130: Special Keyboard Control Codes
PK-232 OPERATING MANUAL COMMAND SUMMARY *** DISCONNECTED: {call sign} Your PK-232 has switches to the disconnected state from any other link state. This mes- sage may be preceded by a message explaining the reason for the disconnect, as shown below. *** Retry count exceeded *** DISCONNECTED: {call sign} Your PK-232 has been disconnected because of a retry failure, rather than a disconnect...
Page 131: Baudot And Ascii Rtty
PK-232 OPERATING MANUAL COMMAND SUMMARY 6.5.2. Baudot and ASCII RTTY From Command Mode: Forces LETTERS case (Baudot only). Switches system to receive mode, forces LETTERS (if Baudot) case. Switches system to transmit mode and forces immediate entry into Converse Mode. Enters Converse Mode for Entering data into Transmit buffer.
Page 132: Specific Commands
PK-232 OPERATING MANUAL COMMAND SUMMARY 6.6. Specific Commands The following section contains detailed descriptions of the meaning, use and effects of each command, its parameters, default values and arguments. Examples of command usage are included. Type to turn on your transmitter and enter Converse Mode. Type <CTRL-D>...
Page 133: 8Bitconv
PK-232 OPERATING MANUAL COMMAND SUMMARY 8BITCONV ON|OFF Mnemonic: 8B Default: OFF Mode: Packet Parameters: ON - The high-order bit IS NOT stripped in Converse Mode. OFF - The high-order bit IS stripped in Converse Mode. 8BITCONV permits packet transmission of 8-bit data in Converse Mode. 8BITCONV When is OFF, the high-order bit (bit seven) of characters received from the terminal is...
Page 134: Achg
PK-232 OPERATING MANUAL COMMAND SUMMARY As a general rule, the higher the baud rate, the greater the probability of data errors caused by in- terference and noise. Best results in the worst-case conditions will usually be obtained at lower baud rates. The modem in the PK-232 cannot handle data rates faster than 1200 bauds. NOTE: The term 'WPM' is generally considered obsolete.
Page 135: Acrpack
PK-232 OPERATING MANUAL COMMAND SUMMARY ACRPACK ON|OFF Mnemonic: ACRP Default: ON Mode: Packet Parameters: ON - The send-packet character, normally <CR>, IS added to all packets sent in Converse Mode. OFF - The send-packet character is NOT added to packets. ACRPACK When is ON, all packets sent in Converse Mode include, as the last character of the...
Page 136: Adelay
PK-232 OPERATING MANUAL COMMAND SUMMARY The same ACRRTTY function is used in AMTOR, except that AMTOR, like SITOR, is limited by inter- national telex practices to a maximum of 69 characters per line. (If ACRRTTY is set to 71, in AM- TOR the automatic carrage return function operates after 69 characters.) ADELAY Mnemonic: AD...
Page 137: Alfdisp
PK-232 OPERATING MANUAL COMMAND SUMMARY ALFDISP ON|OFF Mnemonic: ALFD Default: ON Mode: All Parameters: ON - A line feed character <LF> is sent to the terminal after each <CR>. OFF - A <LF> is not sent to the terminal after each <CR>. ALFDISP controls the display of carriage return characters received in packets as well as echoing those that are typed in.
Page 138: Alist
PK-232 OPERATING MANUAL COMMAND SUMMARY The received text already contains the necessary line-ending sequence characters. If this option is enabled, your transmission will have double, perhaps even triple line feeds and look very strange at the distant station. Many stations using the older electromechanical teleprinter and Teletype machines habitually send a traditional line-ending sequence consisting of <CR><CR><LF><LTRS>, which was needed to al- low the older, slow machines to return to the left margin.
Page 139: Arqtmo
PK-232 OPERATING MANUAL COMMAND SUMMARY To begin the Mode A (ARQ) selective call: Type followed by the other station's four-character SELCAL. The distant station's SELCAL code is normally seen as part of the his/her CQ call sequence. As soon as a <CR>...
Page 140: Ax25L2V2
PK-232 OPERATING MANUAL COMMAND SUMMARY All eight data bits of each character must be retained to send executable files or other special da- AWLEN to 8 and use Transparent Mode. AWLEN 8BITCONV You can also use Converse Mode and set 8 and ON.
Page 141: Axhang
PK-232 OPERATING MANUAL COMMAND SUMMARY AXHANG Mnemonic: AXH Default: 0 Mode: Packet Parameters: 0 to 20 specifies voice repeater 'hang time' in 100-millisecond intervals. The numeric value can be used to increase channel efficiency when an audio repeater has a hang time greater than 100 milliseconds.
Page 142 PK-232 OPERATING MANUAL COMMAND SUMMARY The beacon is sent only once until further activity is detected. This mode can be used to send announcements or test messages only when Packet stations are on the air. Proper choice of avoids cluttering a busy channel with lots of unnecessary transmissions. MONITOR Beacon frames from other Packet stations can be monitored by setting in the range 1-6.
Page 143: Calibrat
PK-232 OPERATING MANUAL COMMAND SUMMARY BTEXT Don't use to tell the world that your 'DIGIPEAT IS ON' and 'BUFFER SAVE TO DISK IS CTEXT ENABLED' - put this information in your message so that it is seen by the station that connects to you - the only station that really can use that information.
Page 144: Canline
PK-232 OPERATING MANUAL COMMAND SUMMARY Calibration of the modem tones and adjustment of the PK-232's tone output levels for proper transmitter modulation are described in the modem calibration section of AEA's Technical Manual for the PK-232. NOTE: OFF to transmit a continuous mark or space tone. CANLINE Mnemonic: CAN Default: $18...
Page 145: Casedisp
PK-232 OPERATING MANUAL COMMAND SUMMARY PACTIME CPACTIME Once you have typed the send-packet character, or waited is enabled), the packet cannot be canceled even if it has not been transmitted. Like other input editing features, packet cancellation is disabled in Transparent Mode. The CANCEL-PACKET character also cancels the display output in Command Mode.
Page 146: Ccitt
PK-232 OPERATING MANUAL COMMAND SUMMARY CCITT ON|OFF Mnemonic: CC Default: ON Mode: Baudot RTTY Parameters: ON - Characters typed on the keyboard or loaded from disk files are translated in- to CCITT International Telegraph Alphabet #2 before being sent. OFF - Characters sent to the PK-232 are not translated into CCITT ITA #2, but re- main in the American standard Baudot format (typically Western Union).
Page 147: Cfrom
PK-232 OPERATING MANUAL COMMAND SUMMARY CFROM all,none,yes/no call1[,call2..] Mnemonic: CF Default: all Mode: Packet Parameters: call - all, none, YES list, NO list. List of up to eight call signs, separated by commas. CFROM uses arguments to determines how your PK-232 responds to connect requests – which CFROM calls are accepted and which calls are rejected.
Page 148: Chcall
PK-232 OPERATING MANUAL COMMAND SUMMARY CHCALL ON|OFF Mnemonic: CHC Default: OFF Mode: Packet Parameters: ON - Call sign of the distant station IS displayed in multiple connection Packet operation. OFF - Call sign of the distant station is NOT displayed (default). CHCALL displays the call sign of the 'connected to' station after the channel identifier.
Page 149: Chdouble
PK-232 OPERATING MANUAL COMMAND SUMMARY CHDOUBLE ON|OFF Mnemonic: CHD Default: OFF Mode: Packet Parameters: ON - Received CHSWITCH characters appear twice (doubled). OFF - Received CHSWITCH characters appear once (not doubled). CHDOUBLE ON displays received CHSWITCH characters as doubled characters. CHDOUBLE CHSWITCH In the following example...
Page 150: Chswitch
PK-232 OPERATING MANUAL COMMAND SUMMARY The 'check' packet frame contains no information, but is interpreted by the distant station's TNC to see if it is still connected. If the distant station's TNC is still connected, the distant station sends an appropriate response packet.
Page 151: Cmsg
PK-232 OPERATING MANUAL COMMAND SUMMARY COMMAND The Command Mode entry characters is set by Three Command Mode entry characters must be entered less than seconds apart, with no in- tervening characters, after a delay of seconds following the last characters typed. After a final delay of seconds, the PK-232 exits Transparent Mode and enters Command Mode.
Page 152: Conmode
PK-232 OPERATING MANUAL COMMAND SUMMARY Type <CTRL-C>. The Command Mode prompt appears, indicating successful exit to Command Mode. The display might look like this: cmd: CONVERSE Hello World! I'm on the air on Packet-Radio! [type <CTRL-C>] cmd: CMDTIME or the discussion of Transparent Mode for instructions on the Command Mode entry character to escape from Transparent Mode.
Page 153: Conok
PK-232 OPERATING MANUAL COMMAND SUMMARY If the distant station doesn't 'ack' your connect request after the number of tries specified by CONNECT , the command is canceled. Your monitor displays: cmd:*** Retry count exceeded DISCONNECTED: (call sign) To connect directly to WX1AAA, you would type: CONNECT WX1AAA WX1AAA) To connect to WX1AAA using WX2BBB (with whom you can easily connect) and WX3CCC (who is...
Page 154: Constamp
PK-232 OPERATING MANUAL COMMAND SUMMARY Certain networking applications Meteor scatter Other noisy, less reliable links CONPERM ON may be advantageous when using full-duplex continuous mail forwarding or traffic links. CONSTAMP ON|OFF Mnemonic: CONS Default: OFF Mode: Packet Parameters: ON - Connect status messages are time stamped.
Page 155: Cpactime
PK-232 OPERATING MANUAL COMMAND SUMMARY CPACTIME ON|OFF Mnemonic: CP Default: OFF Mode: Packet Parameters: ON - Packet transmit timer IS used in Converse Mode. OFF - Packet transmit timer is NOT used in Converse Mode. CPACTIME activates automatic, periodic transmission of packets while in the Converse Mode. CPACTIME may be used for several types of computer communications such as bulletin board or host computer operation when full Transparent Mode features are not desired.
Page 156: Cstatus
PK-232 OPERATING MANUAL COMMAND SUMMARY CSTATUS Mnemonic: CS Immediate Command Mode: Packet CSTATUS is an immediate command used in multiple connections. When CSTATUS is typed, your monitor displays: The number of each logical channel. The link state of all ten logical channels. The current input/output channel –...
Page 157: Ctext
PK-232 OPERATING MANUAL COMMAND SUMMARY text CTEXT Mnemonic: CT Default: See sample Mode: Packet text Parameters: - Any combination of characters up to a maximum of 120 characters. CTEXT is the 'automatic answer' text you type into a special section of the PK-232's memory. The default text says 'Please leave a message, then disconnect.' CMSG is set ON:...
Page 158: Daytime
PK-232 OPERATING MANUAL COMMAND SUMMARY Type CWID followed by either the decimal or hexadecimal value of the new character you wish to use the CWID trigger command. cmd: cwid 27 CWID was $06 CTRL-F cmd: Type CWID again to verify the new command character: cmd: cwid CWID...
Page 159: Daystamp
PK-232 OPERATING MANUAL COMMAND SUMMARY The format for entering the day&time is: yymmddhhmm cmd: daytime 8607080659 where: yy is the last two digits of the year mm is the two-digit month code (01-12) dd is date (01-31) hh is the hour (00-23) mm is the minutes after the hour (00-59) cmd: Example:...
Page 160: Delete
PK-232 OPERATING MANUAL COMMAND SUMMARY DELETE ON|OFF Mnemonic: DEL Default: OFF Mode: All Parameters: ON - The <DELETE> ($7F) key is used for editing your typing. OFF - The <BACKSPACE> ($08) key is used for editing your typing. DELETE Use the command to select the key to use for deleting while editing.
Page 161: Digipeat
PK-232 OPERATING MANUAL COMMAND SUMMARY DIGIPEAT ON|OFF Mnemonic: DIG Default: ON Mode: Packet DFROM Parameters: ON - The PK-232 will digipeat packets from all other stations if is set to ALL. DFROM OFF - The PK-232 will NOT digipeat packets from other stations if is set to ALL or NONE.
Page 162: Dwait
PK-232 OPERATING MANUAL COMMAND SUMMARY When DISPLAY is typed without a parameter, the PK-232 responds with: DISPLAY A,C,F,I,L,M,R,T,Z cmd: You can display subgroups of related system parameters by specifying the optional class parame- ter: cmd: disp a 8BITCONV OFF ACRDISP ALFDISP AWLEN ECHO...
Page 163 PK-232 OPERATING MANUAL COMMAND SUMMARY DWAIT Recommended settings of for different types of Packet station operation are: TYPE OF OPERATION TIME (in ms) DWAIT VALUE Digipeaters Local keyboards 16 (default) PBBSe, Hosts File transfers EAS ON|OFF Mnemonic: EAS Default: OFF Mode: Baudot/ASCII RTTY, AMTOR and Morse Parameters: ON -...
Page 164 PK-232 OPERATING MANUAL COMMAND SUMMARY ECHO ON|OFF Mnemonic: E Default: ON Mode: All Parameters: ON - Characters received from the terminal ARE echoed by the PK-232. OFF - Characters are NOT echoed. ECHO command controls local echoing by the PK-232 when it is in Command or Converse Mode.
Page 165: Flow
PK-232 OPERATING MANUAL COMMAND SUMMARY command. You still have to un-key your transmitter manually as you would in conventional RTTY. You can terminate your FEC transmission several ways: Type the RCVE (R) command; Type the AMTOR (AM) command; RECEIVE Insert the command (default <CTRL-D>) character in your typing or disk file.
Page 166: Hbaud
PK-232 OPERATING MANUAL COMMAND SUMMARY FULLDUP ON|OFF Mnemonic: FU Default: OFF Mode: Packet Parameters: ON - Full duplex mode is ENABLED. OFF - Full duplex mode is DISABLED. When full-duplex mode is disabled, the PK-232 makes use of the DCD (Data Carrier Detect) signal from its modem to avoid collisions;...
Page 167: Help
PK-232 OPERATING MANUAL COMMAND SUMMARY HEADERLN When is ON (default), the address is shown, followed by a <CR><LF> that puts the packet text on a separate line: WX1AAA>WX2BBB: Go ahead and transfer the file. MRPT MSTAMP HEADERLN are ON, set ON;...
Page 168: Host
PK-232 OPERATING MANUAL COMMAND SUMMARY HOST ON|OFF Mnemonic: HOST Default: OFF Mode: Packet Parameters: ON - The PK-232 operates with a host computer or other special application program. OFF - The PK-232 operates as a normal TNC. HOST command permits the PK-232 to operate in the Host Mode, a 'computer-friendly' com- munication mode, over the RS-232 link between the PK-232 and a host computer.
Page 169: Lock
PK-232 OPERATING MANUAL COMMAND SUMMARY KISS ON|OFF Mnemonic: KI Default: OFF Mode: Packet Parameters: ON - The PK-232 operates as a KISS TNC. OFF - The PK-232 operates as a normal AX.25 Level 2 TNC KISS TNC protocol permits more efficient use of your PK-232 with host computers. The PK-232 converts synchronous HDLC used on the half-duplex radio channel to and from a special asynchro- nous, full-duplex frame format spoken on the host/PK-232 link.
Page 170 PK-232 OPERATING MANUAL COMMAND SUMMARY MAXFRAME Mnemonic: MAX Default: 4 Mode: Packet Parameters: 1 to 7 signifies a number of packet frames. MAXFRAME sets an upper limit on the unacknowledged packets your PK-232 permits on the radio MAXFRAME link at any one time. also sets maximum number of contiguous packets your PK-232 will send during any given transmission.
Page 171: Mbx
PK-232 OPERATING MANUAL COMMAND SUMMARY As another example, if you wish to detect the presence of packets addressed to CQ or BEACON, simply enter the following commands: MBELL ON MONITOR 4 MFROM NONE MTO yes CQ,BEACON BELL Now, only packets addressed to CQ and BEACON will cause the character to be output to the MBELL MFROM...
Page 172: Mcon
PK-232 OPERATING MANUAL COMMAND SUMMARY MCON Mnemonic: MC Default: 0 (zero) Mode: Packet Parameters: 0 to 6 signifies various levels of monitor indications. MCON for selective monitoring of other packet traffic while connected to a distant station. MCON MONITOR works in similar fashion to , but affects your display only while in the connected state.
Page 173: Mfilter
PK-232 OPERATING MANUAL COMMAND SUMMARY MDIGI to see why your transmitter is being keyed when you're not actively involved in a com- munication session or when your system is more active than you would expect. MDIGI When is OFF you'll see those frames that include your station as one of the digipeaters, if your monitor modes have been set this way.
Page 174: Mheard
PK-232 OPERATING MANUAL COMMAND SUMMARY MFROM When contain different types of arguments, to avoid any possible conflict, the arguments take the following priority: 1. ALL, 2. NO list, 3. YES list, 4. NONE Clear MFROM with %, & as arguments. MHEARD Mnemonic: MH Immediate Command...
Page 175: Monitor
PK-232 OPERATING MANUAL COMMAND SUMMARY MONITOR Mnemonic: M Default: 4 Mode: Packet Parameters: 0 to 6 signifies various levels on monitor indications. MONITOR As the value of settings is increased, additional functions are included in the monitoring sequence. The meanings of the parameter values are: All packet monitoring functions are disabled.
Page 176: Mrpt
PK-232 OPERATING MANUAL COMMAND SUMMARY MRPT ON|OFF Mnemonic: MR Default: ON Mode: Packet Parameters: ON - Show digipeater in the header.; stations heard directly are marked with aste- risk. OFF - Show packets only originating and destination stations. MRPT affects the way monitored packets are displayed. MRPT When is OFF, only packets from the originating station and the destination stations are dis-...
Page 177: Mto
PK-232 OPERATING MANUAL COMMAND SUMMARY MSTAMP DAYSTAMP When is ON and is OFF, the display looks like this: 22:51:33 W2JUP-4*>KA2EYW-1>AI2Q <I;2,2>: MSTAMP DAYSTAMP When both are ON, the display looks like this: 10-Jul-86 22:54:25 W2JUP-4*>KA2EYW-1>AI2Q <I;2,2>: DAYTIME Set the date and time with the command.
Page 178: Myalias
PK-232 OPERATING MANUAL COMMAND SUMMARY MYALIAS call[- Mnemonic: MYA Default: empty Mode: Packet Parameters: call - Alternate identity of your PK-232 0 to 15, an optional substation ID (SSID) MYALIAS MYCALL specifies an alternate call sign (in addition to the call sign specified in ) for use as a digipeater only.
Page 179: Myselcal
PK-232 OPERATING MANUAL COMMAND SUMMARY Two or more stations cannot use the same call sign (including SSID) on the air at the same time. Use the SSID to distinguish two stations with the same amateur call. The SSID will be 0 (zero) unless explicitly set to another value. Although there is no standardization of SSIDs at present, most Packet operators use SSID 0 (zero) for manual or local keyboard operation of their main station, and SSID of (-1) or (-2) for a secon- dary station or dedicated digipeater under their responsibility.
Page 180 PK-232 OPERATING MANUAL COMMAND SUMMARY Let's assume that your call sign is N7ML. You discover that there is another station with the call N?ML. Change your SELCAL to NUML, according to the following table: 1 = Q 3 = E 5 = T 7 = U 9 = O...
Page 181: Nulls
PK-232 OPERATING MANUAL COMMAND SUMMARY NUCR ON|OFF Mnemonic: NU Default: OFF Mode: All Parameters: ON - <NULL> characters ARE sent to the terminal following <CR> characters. OFF - <NULL> characters ARE NOT sent to the terminal following <CR> charac- ters. Some of the older electromechanical terminals (Teletype™...
Page 182: Opmode
PK-232 OPERATING MANUAL COMMAND SUMMARY OPMODE Mnemonic: O Immediate Command Mode: Command OPMODE is an immediate command that shows the PK-232's current mode of operation and sys- tem status. OPMODE Use the command ('O') at any time when your PK-232 is in the Command Mode to dis- play the present operating mode.
Page 183: Pactime
PK-232 OPERATING MANUAL COMMAND SUMMARY PACLEN The lower the value of , the greater the probability of getting packets though the link without 'hits' or retries. PACLEN Increase to 256 if transferring files to a nearby station over a high quality path. PACLEN Reduce to 64, or even 32 when working 'difficult' HF radio paths.
Page 184 PK-232 OPERATING MANUAL COMMAND SUMMARY PASS Mnemonic: PAS Default: $16 <CTRL-V> Mode: Packet Parameters: 0 to $7F (0 to 127 decimal) specifies an ASCII character code. PASS selects the ASCII character used for the 'pass' input editing commands. The parameter is the numeric ASCII code for the character you'll used to signal that the charac- ter immediately following it is to be included in a packet or text string.
Page 185: Pass
PK-232 OPERATING MANUAL COMMAND SUMMARY PASSALL (sometimes called 'Garbage Mode') may be useful for testing a marginal RF link or during operation under other unusual conditions or circumstances. PASSALL When you set ON while monitoring a moderately noisy channel, 'packets' are displayed periodically because there is no basis for distinguishing between actual packets and random noise.
Page 186 PK-232 OPERATING MANUAL COMMAND SUMMARY PPERSIST ON|OFF Mnemonic: PP Default: OFF Mode: Packet PERSIST SLOTTIME Parameters: ON - The PK-232 uses parameters in executing p-persis- tent CSMA (Carrier Sense Multiple Access). DWAIT OFF - The PK-232 uses for TAPR-type 1-persistent CSMA. PPERSIST PERSIST SLOTTIME...
Page 187: Receive
PK-232 OPERATING MANUAL COMMAND SUMMARY RECEIVE Mnemonic: REC Default: $04 <CTRL-D> Mode: Baudot/ASCII/Morse/AMTOR Parameters: 0 to $7F (0 to 127 decimal) specifies an ASCII character code. RECEIVE command allows you to insert a character (default <CTRL-D>) in your typed text or disk file;...
Page 188: Relink
PK-232 OPERATING MANUAL COMMAND SUMMARY RESET Mnemonic: RESET Immediate Command Mode: Command RESET is an immediate command that resets all parameters to default settings and reinitializes the PK-232. WARNING: All parameters customizing and monitor lists are lost. To reinitialize the PK-232 using the parameter values in bbRAM, turn the PK-232 OFF then ON, or use the RESTART command.
Page 189: Rfec
PK-232 OPERATING MANUAL COMMAND SUMMARY If you are not in Transparent Mode, the following message is displayed: *** Retry count exceeded *** DISCONNECTED: {call sign} RFEC ON|OFF Mnemonic: RF Default: ON Mode: AMTOR Parameters: ON: - Mode B (FEC) signals are displayed in AMTOR Standby. OFF - Mode B (FEC) signals are not displayed in AMTOR Standby.
Page 190: Sendpac
PK-232 OPERATING MANUAL COMMAND SUMMARY SENDPAC Mnemonic: SE Default: $0D <CTRL-M> Mode: Packet Parameters: 0 to $7F (0 to 127 decimal) specifies an ASCII character code. SENDPAC Use the command to select the character used to force a packet to be sent in Converse Mode.
Page 191: Srxall
PK-232 OPERATING MANUAL COMMAND SUMMARY SRXALL ON|OFF Mnemonic: SRX Default: OFF Mode: AMTOR Parameters: ON - Receive ALL selective (SELFEC) transmissions. OFF - Receive only SELCALL-addressed SELFEC transmissions. SRXALL permits the reception of selectively-coded inverse FEC signals normally not available for decoding.
Page 192: Tbaud
PK-232 OPERATING MANUAL COMMAND SUMMARY TBAUD Mnemonic: TB Default: 1200 bauds Mode: All Parameters: Specifies the rate or signaling speed, in bauds, on the serial I/O port. TBAUD displays the baud rate set by the auto-baud routine when you first apply power to the PK- 232, or after typing RESET.
Page 193: Trace
PK-232 OPERATING MANUAL COMMAND SUMMARY TRACE ON|OFF Mnemonic: TRAC Default: OFF Mode: Packet, FAX Parameters: ON - Trace function is activated. OFF - Trace function is disabled. TRACE TRACE command activates the AX.25 protocol display. If is ON all received frames are displayed in their entirety, including all header information.
Page 194: Trflow
PK-232 OPERATING MANUAL COMMAND SUMMARY TRFLOW ON|OFF Mnemonic: TRF Default: OFF Mode: All Parameters: ON - Software flow control for the computer or terminal can be activated in Trans- parent Mode. OFF - Software flow control for the computer or terminal is disabled in Transparent Mode.
Page 195: Txdelay
PK-232 OPERATING MANUAL COMMAND SUMMARY TXDELAY Mnemonic: TXD Default: 30 (300 msec.) Mode: Packet Parameters: 0 to 120 specifies ten-millisecond intervals. TXDELAY command tells your PK-232 how long to wait before sending packet frame data after keying your transmitter's PTT line. All transmitters need some amount of start-up time to put a signal on the air;...
Page 196: Txrev
PK-232 OPERATING MANUAL COMMAND SUMMARY TXREV ON|OFF Mnemonic: TXR Default: OFF Mode: Baudot/ASCII/AMTOR Parameters: ON - Transmit data polarity is reversed (mark-space reversal). OFF - Transmit data polarity is normal. TXREV Use the Command to invert the polarity of the data sent to the PK-232's AFSK tone genera- tor, thus reversing mark and space in the transmitted AFSK and FSK signals.
Page 197: Users
PK-232 OPERATING MANUAL COMMAND SUMMARY USERS Mnemonic: US Default: 1 MODE: Packet Parameters: 0 to 10 specifies the number of active simultaneous connections that can be established with your PK-232. USERS only affects the way that incoming connect requests are handled. It does not affect the number of connections you initiate with your PK-232.
Page 198: Wideshft
PK-232 OPERATING MANUAL COMMAND SUMMARY WIDESHFT ON|OFF Mnemonic: WI Default: OFF Mode: Baudot/ASCII RTTY Parameters: ON - RTTY tones are shifted 1000 Hz. OFF - RTTY tones are shifted 200 Hz (emulates 170-Hz shift). WIDESHFT command permits you to use the PK-232 on VHF or HF with either wide (1000 Hz) or narrow (200 Hz) shifts.
Page 199: Xflow
PK-232 OPERATING MANUAL COMMAND SUMMARY In AMTOR ARQ operation, your answerback will automatically send the +? changeover command to the distant station and maintain the link. These related features can be used in message handling in either direction, to confirm that you are sending to the proper station and the distant station is probably receiving your traffic successfully.
Page 200: Xoff
PK-232 OPERATING MANUAL COMMAND SUMMARY XOFF Mnemonic: XO Default: $13 <CTRL-S> Mode: All Parameters: 0 to $7F (0 to 127 decimal) specifies an ASCII character code XOFF to select the Stop character to be used to stop input from the computer or terminal. You can enter the code in either hex or decimal.
Page 201: Appendix A Pk-232 Command List
PK-232 OPERATING MANUAL COMMAND LIST APPENDIX A – PK-232 COMMAND LIST COMMAND MNEMONIC DEFAULT FUNCTION 8BITCONV Strip bit 7 in CONVERSE PK-232 0-17 character answerback (WRU?) ABAUD 110 bauds ASCII baud rate ACHG Immediate Command Force AMTOR ARQ Changeover ACRDISP ACRD Screen width ACRPACK...
Page 202 PK-232 OPERATING MANUAL COMMAND LIST COMMAND MNEMONIC DEFAULT FUNCTION DAYTIME None Set/read PK-232 internal clock DCDCONN RS-232 Pin 8 follows DCD/CON DELETE Use BS ($08), not DEL ($7F) DFROM Empty; enter calls Digipeat call sign list DIGIPEAT Allow digipeating (TAPR) DISCONNE Immediate Command Send DISC to distant station...
Page 203 PK-232 OPERATING MANUAL COMMAND LIST COMMAND MNEMONIC DEFAULT FUNCTION OPMODE Immediate Command Display current operating mode PACKET Immediate Command Start Packet Mode PACLEN PACL of user-typed bytes in Packet PACTIME PACT AFTER 10 Packet transmit timer (×100 ms) PARITY 3 (even) Terminal program parity (0-3) PASS <CTRL-V>...
Page 204: Appendix B Bibliography
USER'S GUIDE BIBLIOGRAPHY APPENDIX B – BIBLIOGRAPHY...
Page 205: Appendix C International Hf Amtor Calling Frequencies
PK-232 OPERATING MANUAL INTERNATIONAL HF AMTOR CALLING FREQUENCIES APPENDIX C – INTERNATIONAL HF AMTOR CALLING FREQUENCIES Since the earliest days of AMTOR (around 1977), AMTOR operators around the world have agreed on the use of certain informal, internationally recognized calling channels. This is similar to the conventional operating methods of the commercial stations using SITOR the ancestor of AMTOR.
Page 206: Appendix D Amtor Operating Suggestions From G3Plx
PK-232 OPERATING MANUAL AMTOR OPERATING SUGGESTIONS FROM G3PLX APPENDIX D - AMTOR OPERATING SUGGESTIONS FROM G3PLX Introduction The following text is reproduced verbatim from a letter from Peter Martinez, G3PLX, dated 9/24/84, on the subject of good AMTOR operating practices. This paper is reproduced here by ex- press permission of the author and is offered as a guide to AMTOR operation from the one man most responsible for bringing AMTOR into the amateur radio fraternity.
Page 207 PK-232 OPERATING MANUAL AMTOR OPERATING SUGGESTIONS FROM G3PLX 2.5. Finally, make an ARQ call to the distant station and attempt an ARQ contact with your sta- tion as master rather than, as in 2.4, as a slave. If no contact results, yet the distant station indicates that he was replying to the call, then the problem is that the radio is too slow to change from transmit to receive.
Page 208 PK-232 OPERATING MANUAL AMTOR OPERATING SUGGESTIONS FROM G3PLX 3.2.2. If tail-ending on a previous contact, and the intention is to call one station on ARQ and his SELCAL code is not known, then there are two ways to proceed. 3.2.2.1. There is a convention in operation amongst AMTOR operators in respect of the way to choose the station SELCAL code from the station call sign.
Page 209 PK-232 OPERATING MANUAL AMTOR OPERATING SUGGESTIONS FROM G3PLX station will have 'netted' onto that. It often happens that an offset at either station will then result in the signal from the slave received at the master being a bit off tune. If the master station then readjusts his transceiver main tuning dial to remedy this error, he will also offset his transmitter, probably putting his signal off tune in the distant slave's receiv- er.
Page 210 PK-232 OPERATING MANUAL AMTOR OPERATING SUGGESTIONS FROM G3PLX 3.4.3. Fixed-channel working Since it is possible to leave an AMTOR station in 'standby' mode on a channel, and for any other station to make a specific call to that station, a common practice in AMTOR is to monitor such a specific frequency.
Page 211 PK-232 OPERATING MANUAL AMTOR OPERATING SUGGESTIONS FROM G3PLX exists to abort the later transmission of any unsent text which would be inappropriate to the new context of the break-in. 3.4.5. The AMTOR alphabet, like the RTTY alphabet, consists of two sets of 30 characters, with a switch made between them by two 'shift' or 'case' codes.
Page 212: Appendix E Amtor Theory
PK-232 OPERATING MANUAL AMTOR THEORY APPENDIX E – AMTOR THEORY 1.1. Definition and Standards References AMTOR (Amateur Teleprinting Over Radio) is a microprocessor-controlled, error-correcting data communications system. AMTOR is derived directly from the commercial practice known as SITOR (Simplex Telex Over Radio), as described in Recommendations 476-2 and 476-3 of the CCIR (International Consultative Committee on Radio, an agency of the International Telecommunications Un- ion, and in turn, of the United Nations.
Page 213 PK-232 OPERATING MANUAL AMTOR THEORY A third control code is used to command the direction of sending to be reversed, allowing the receiving station to reply. If there is no data waiting to be sent, Station A fills the three- character blocks with Idle characters.
Page 214 PK-232 OPERATING MANUAL AMTOR THEORY If both appearances of the same character are mutilated and fail the polarity-ratio test, no data are printed or displayed. Because the second appearance of the character occurs 280 milliseconds after the first appearance, the mathematical probabilities are that noise bursts will not destroy both appearances of the character.
Page 215: Appendix F Asynchronous Versus Synchronous Transmission
PK-232 OPERATING MANUAL ASYNCHRONOUS VERSUS SYNCHRONOUS TRANSMISSION APPENDIX F – ASYNCHRONOUS VERSUS SYNCHRONOUS TRANSMISSION Since the beginning of electromechanical telegraphy and teleprinting, the problem of maintaining the proper timing relationship between the sender and the receiver has been resolved by mechani- cal synchronization methods.
Page 216: Appendix G Data Transmission Codes
PK-232 OPERATING MANUAL DATA TRANSMISSION CODES APPENDIX G – DATA TRANSMISSION CODES MYTHS AND MISUNDERSTANDINGS 'RTTY' Means 'Baudot' – Not True! 'RTTY' does not mean 'Baudot'. 'RTTY' is a simple abbreviation for 'RadioTeleTypewriter.' Baudot, ASCII, AMTOR and packet radio are not exactly different modes. They are different languages and methods within the same mode –...
Page 217 PK-232 OPERATING MANUAL DATA TRANSMISSION CODES Some newcomers to digital radio are unsure which digital code is best to use on a given band un- der given conditions. This brief tutorial outlines some differences between Baudot and ASCII and explains some of the advantages and disadvantages of both codes. BAUDOT CODE History The Baudot/Murray code dates from about 1874, when Emile Baudot, a Lieutenant in the French...
Page 218 PK-232 OPERATING MANUAL DATA TRANSMISSION CODES Applications Baudot/Murray code is still the most widely used RTTY code in amateur radio, and this will proba- bly continue for some years to come. Even with its limitations, Baudot still has some advantages for the amateur operator.
Page 219 PK-232 OPERATING MANUAL DATA TRANSMISSION CODES quential code with upper and lower case characters. So, while parity could detect errors and pro- voke repeats, the sequential nature of the code made its efficiency rate less than desirable. EBCDIC Extended Binary-Coded Decimal Interchange Code was developed in 1962. It uses 8 bits which makes it capable of transmitting 256 characters.
Page 220 PK-232 OPERATING MANUAL SCHEMATIC DIAGRAMS...
Page 221 PK-232 OPERATING MANUAL SCHEMATIC DIAGRAMS...
Page 222: Appendix Iparts Pictorial
PK-232 OPERATING MANUAL PARTS PICTORIAL APPENDIX I – PARTS PICTORIAL...
Page 223: Parts List
PK-232 OPERATING MANUAL PARTS LIST APPENDIX J – PARTS LIST PK-232 PCB DESCRIPTION REF. DESIG. DESCRIPTION REF. DESIG. CAP MY 103P, 10%, 50V C20, C21 RES ¼W 5% 680.00 R151, R152 CAP MY 104P, 10%, 50V C18, C41, C45 RES ¼W 5% 8.20K CAP MY 562P, 10%, 50V RES ¼W 5% 10.00K R46, R57, R66, R76, R87,...
Page 224 PK-232 OPERATING MANUAL PARTS LIST DESCRIPTION REF. DESIG. DESCRIPTION REF. DESIG. LED RED MV5025 DS1-DS20, DS22 DIP SOCK 20 PIN DS21 LED 10 SEG BARGRAPH DS21 DIP SOCK 28 PIN U2, U3, U4, U5 DIP SOCK 40 PIN U1, U6, U7 XISTOR NPN 2N39114 Q6, Q7, Q10, Q11 XISTOR NPN MPSA42...
Page 225 PK-232 OPERATING MANUAL SPECIFIC RADIO CONNECTIONS APPENDIX K – SPECIFIC RADIO CONNECTIONS RADIO PIN OUT NOTES ICOM 4 pin AFSK 1 8 pin AFSK 1 RX audio available on pin 8 of some radios. 6, 7 RX audio available on tip of large conn. YAESU 4 pin AFSK 2...
Page 226 PK-232 OPERATING MANUAL SPECIFIC RADIO CONNECTIONS TEN-TEC 4 pin AFSK 1 1/4" stereo AFSK ring sleeve AZDEN 12 pin AFSK 12 2, 11 8 pin AFSK 1 DRAKE 4 pin AFSK 1 1/4" stereo AFSK ring sleeve ALINCO ALR 206T Brown and Shield to Pin 7.
Page 227: Appendix M Facsimile Operation
PK-232 OPERATING MANUAL FACSIMILE OPERATION FACSIMILE OPERATION Overview Weather Facsimile (WEFAX) is transmitted throughout the Short-Wave radio spectrum, primarily to provide information to ships at sea. Typical stations you may find broadcast weather maps showing current as well as predicted weather conditions and satellite photographs showing the cloud cover over a large area.
Page 228 PK-232 OPERATING MANUAL FACSIMILE OPERATION Finding Fax Frequencies The following is a list of frequencies that seem to broadcast on a regular schedule. A few of these stations transmit 24-hours/day. We suggest you try the weather FAX frequencies listed below while you are becoming familiar with the commands.
Page 229 PK-232 OPERATING MANUAL FACSIMILE OPERATION After the cover of the PK-232 is removed, reconnect the power connector and the RS-232 cable to cmd: your computer and turn the PK-232 on. When you see the prompt, type to enter the AFSK-tone calibration mode. The screen should now be continuously displaying the VHF Mark-tone (approximately 1200 Hz) followed by R167 which indicates the variable resistor that adjusts the tone frequency.
Page 230 PK-232 OPERATING MANUAL FACSIMILE OPERATION Compatible Printers In the latest release of the PK-232 firmware we have tried to include most of the common graphics formats supported by printer manufacturers. Supported in this release are Epson, IBM, Tandy/Ra- dio Shack, Okidata, and Apple, as well as a few others. PRTYPE Before you can continue, you must set the command for your make and model of printer.
Page 231 PK-232 OPERATING MANUAL FACSIMILE OPERATION To correct for this, a justification command has been included that allows the user to shift the en- tire image to the left in ½ inch increments. For example if the left-edge of the picture appears roughly 4-½...
Page 232 PK-232 OPERATING MANUAL FACSIMILE OPERATION use for WEFAX, but other services may require using other values to print pictures without aspect ratio distortions. If your terminal program allows you to save non-ASCII files to disk for later transmission or print- ing, you can route the Facsimile data to the RS-232 port instead of the parallel printer by using the PRFAX PRFAX OFF...
Page 233 PK-232 OPERATING MANUAL FACSIMILE OPERATION Second; typing a <CTRL-F> will do the same as a <CTRL-D>, only adding a CW ID before return- ing to receive. Third; typing an while in Command Mode will force an immediate receive, sending neither an end of picture signal, nor a CW ID.
Page 234 PK-232 OPERATING MANUAL FACSIMILE OPERATION 5. Tune-in and start printing a strong facsimile signal. Let it print a few lines to observe the angle at which the facsimile picture deviates from vertical. 6. With a small screwdriver adjust C53 no more than 1/8 of a turn and then let the printer print a few more lines of the picture.
Page 235 PK-232 OPERATING MANUAL FACSIMILE OPERATION Command Summary The following commands have been added to the PK-232 firmware for use in the Facsimile Mode. Some existing commands that function in the Facsimile Mode are also listed here. Mnemonic: ASP Default: 2 ASPECT Mode: FAX Parameters:...
Page 236 PK-232 OPERATING MANUAL FACSIMILE OPERATION DISPLAY (Class) Mnemonic: DISP Immediate Command Mode: Command Parameters: Class - A new parameter identifier has been added: (F)ax displays the FAX related parameters DISPLAY is an immediate command. When DISPLAY is typed without a parameter, the PK-232 responds with: DISPLAY A, C, F, I, L, M, R, T, Z cmd:...
Page 237 PK-232 OPERATING MANUAL FACSIMILE OPERATION GRAPHICS Mnemonic: GR Default: 1 (960 dots) Mode: FAX Parameters: 0 to 6 selects the FAX horizontal graphics dot density printed on the printer from the table below GRAPHICS PRTYPE Density in dots/inch as a function of GRAPHICS PRTYPE 12-19...
Page 238 PK-232 OPERATING MANUAL FACSIMILE OPERATION GRAPHICS determines the horizontal print density of the parallel printer. Changing the GRAPHICS setting in the middle of an image causes the unit to print a few lines of garbage while it adjusts to the new setting. JUSTIFY Mnemonic: JU Immediate Command...
Page 239 PK-232 OPERATING MANUAL FACSIMILE OPERATION OPMODE Mnemonic: O Immediate Command Mode: Command OPMODE is an immediate command that shows the PK-232's current mode of operation and sys- OPMODE tem status. The four following indications have been added to the command to display facsimile related status: OPMODE STBY RCVE...
Page 240 PK-232 OPERATING MANUAL FACSIMILE OPERATION PROUT ON|OFF Mnemonic: PRO Default: OFF Mode: All Parameters: ON - All text characters including terminal echoes are sent to the parallel printer if PRCON is also ON. Keyboard input is still accepted. OFF - All text and data is sent to the terminal through the serial port. This command is useful for any text mode where the user wants to get a printed copy of what is being received by the PK-232.
Page 241 PK-232 OPERATING MANUAL FACSIMILE OPERATION PRTYPE 0-3, Epson: Typical graphics code: <ESC>'K' n1 n2 New-line code (7 bits): <ESC>'A' 7 LF New-line code (8 bits): <ESC>'A' 8 LF Printer reset code: <ESC>'@' CR LF PRTYPE 40 (Note: Epson MX-80 with Graftrax-80 uses Dot density GRAPHICS PRTYPE 0, 2 PRTYPE 1, 3 Code...
Page 242 PK-232 OPERATING MANUAL FACSIMILE OPERATION PRTYPE 8-9, Radio Shack (Tandy): Typical graphics code: <ESC>19 18 New-line code: CR 30 Printer reset code: <ESC> 19 CR LF PRTYPE Note that the Radio Shack DMP-130 printer may be used with 4 (IBM) if these DIP PRTYPE 8 switches are ON: 1-1, 1-3 and 1-6.
Page 243 PK-232 OPERATING MANUAL FACSIMILE OPERATION PRTYPE 12-15, Apple (G): Typical graphics code: <ESC> 'N' <ESC> 'G0640' New-line code (7 bits): <ESC> 'T14' LF CR New-line code (8 bits): <ESC> 'T16' LF CR Printer reset code: <ESC> 'N' CR LF The "G" refers to the graphics escape code used. Most Apple printers respond to both the Escape- G and Escape-S codes in exactly the same way.
Page 244 PK-232 OPERATING MANUAL FACSIMILE OPERATION PRTYPE 20-21, Old Okidata: Typical graphics code: 30 3 New-line code: 3 14 3 2 Printer reset code: 24 CR LF Okidata 82A and 83A: Okigraph I EPROMs must be installed. GRAPHICS: Code: Density, dpi: Okidata ML 82A: ·...
Page 245 PK-232 OPERATING MANUAL FACSIMILE OPERATION GRAPHICS dots/inch: Okidata 82A: Okidata 83A: Okidata 92: Okidata 93: Okidata 192: Okidata 193: PRTYPE 28-29, Star Gemini: Typical graphics code: <ESC> 'K' n1 n2 New-line code: <ESC> '1' Printer reset code: <ESC> '@' CR LF PRTYPE 28 and 29 are for the older Star Gemini 10 and 15.
Page 246 PK-232 OPERATING MANUAL FACSIMILE OPERATION GRAPHICS PRTYPE 32, 34 PRTYPE 33, 35 Code 60 dpi 60 dpi ESC 'K' 120 dpi 120 dpi ESC 'L' fast 120 dpi fast 120 dpi ESC 'y' 240 dpi ESC 'z' 80 dpi 80 dpi ESC 'g' 4 72 dpi 72 dpi...
Page 247 PK-232 OPERATING MANUAL FACSIMILE OPERATION PRTYPE 44-47, Genicom: Typical graphics code: <ESC> 'K' n1 n2 New-line code (7 bits): <ESC> 'A' 7 <ESC> '2' LF New-line code (8 bits): <ESC> 'A' 8 <ESC> '2' LF Printer reset code: CR LF Genicom 3310 and 3320 in IBM-GP Mode.
Page 248 PK-232 OPERATING MANUAL FACSIMILE OPERATION TRACE ON|OFF Mnemonic: TRAC Default: OFF Mode: Packet and FAX TRACE OPMODE command has been enhanced to include Facsimile mode. When the is FAX, TRACE PRFAX is ON, and is OFF, the graphics escape sequences and dot data are sent to the ter- minal with each byte expanded to two Hexadecimal characters.
Page 249 PK-232 OPERATING MANUAL FACSIMILE OPERATION M-23...
Page 250: Appendix N Siam Operation
PK-232 OPERATING MANUAL SIAM OPERATION SIAM ™ Appendix Overview As you tune across the High-Frequency bands these days you find an ever increasing number of digital signals. These signals range from the simple Murray Baudot code, to ASCII and even packe- tized data communication.
Page 251 PK-232 OPERATING MANUAL SIAM OPERATION SIAM can identify and copy ASCII, ARQ and FEC AMTOR, and Baudot signals. To begin printing one of these signals, all that must be done is to type the command OK after the analysis has been completed.
Page 252 PK-232 OPERATING MANUAL SIAM OPERATION SIAM Commands The following commands have been added to the PK-232 firmware for use in the SIAM mode. A few of these commands have different functions in other modes. Mnemonic: BI Default: $00 BITINV Mode: RTTY Parameters: 0 to $1F, (0 to 31 decimal) specifies a number to be exclusive-ORed with ev- ery received Baudot character.
Page 253 PK-232 OPERATING MANUAL SIAM OPERATION CODE 0: International In Morse, this means the International or Continental Morse Code. For Baudot and AMTOR, this means the ITA #2 teleprinter code, which is internationally recommended for Baudot and TOR communications. CODE 1: US Teleprinter In Morse, this has no effect.
Page 254 PK-232 OPERATING MANUAL SIAM OPERATION Character CODE 2 English pronunciation FIGS-G $5E ^ FIGS-H $51 Q SHCH FIGS-F $40 @ FIGS-J $5D ] 3rd-Q $5B [ You can tell if a transmission is in Russian if several words end in "OJ", "OW" or "OGO". There is no separate Baudot combination for the CH character, the Russians use a "4"...
Page 255 PK-232 OPERATING MANUAL SIAM OPERATION Mnemonic: OK Immediate Command Mode: SIGNAL SIGNAL This command normally follows the command after it has determined the class and speed RXREV RBAUD ABAUD of the station being monitored. Typing will change the commands OPMODE to their proper value.
Page 256: Appendix O Firmware Revision Supplement 23-Feb-88
PK-232 OPERATING MANUAL Firmware Revision 23-FEB-88 PK-232 Firmware Revision Supplement 23-FEB-88 To keep the PK-232 the best multimode data controller available, A.E.A. constantly works on the software to add the features you the users request the most. The following pages describe changes and enhancements we have made in the 23-FEB-88 firmware release for the PK-232.
Page 257 PK-232 OPERATING MANUAL Firmware Revision 23-FEB-88 The NAVTEX Mode: NAVTEX is an international system which stands for NAVIGATIONAL TELEX. It is a direct printing service designed to distribute navigational and meteorological warnings and other urgent informa- tion to ships. Since NAVTEX is a relatively new service, it not fully operational in all areas of the world at this time.
Page 258 PK-232 OPERATING MANUAL Firmware Revision 23-FEB-88 PK-232 COMMAND SUMMARY ADDENDUM The following is the list of commands that are either new or have changed in the 23-FEB-88 re- lease of PK-232 firmware. AFILTER ON|OFF Mnemonic: AF Default: OFF Mode: ALL Host: AZ Parameters: ON -...
Page 259 PK-232 OPERATING MANUAL Firmware Revision 23-FEB-88 CBELL ON|OFF Mnemonic: CB Default: OFF Mode: Packet Host: CU Parameters: ON - Three BELL characters <CTRL-G> ($07) are sent to your terminal with the *** CONNECTED to *** DISCONNECTED from {call sign} message'. OFF - BELLS are NOT sent with the CONNECTED or DISCONNECTED message.
Page 260 PK-232 OPERATING MANUAL Firmware Revision 23-FEB-88 KISS ON|OFF Mnemonic: KI Default: OFF Mode: Packet HOST: KI Parameters: ON - The PK-232 operates as a KISS TNC. OFF - The PK-232 operates as a normal AX.25 Level 2 TNC. In KISS and Raw HDLC Modes, communication activity on the RS-232 link is shown by illumination LEDs as follows: Host to TNC Communication: LED illuminated.
Page 261 PK-232 OPERATING MANUAL Firmware Revision 23-FEB-88 NAVMSG all, none, Yes|No (letters) Mnemonic: NAVM Default: All Mode: NAVTEX HOST: NM Parameters: letters - all, none, YES List, NO List. List of up to 13 letters which may or may not be separated by spaces, commas or TABs. NAVMSG NAVTEX uses Letter arguments to determine which type of...
Page 262 PK-232 OPERATING MANUAL Firmware Revision 23-FEB-88 As an example, let's say that you are only interested in NAVTEX stations E, G, and C, because they are near you. You should enter the following command: NAVSTN YES EGC This will cause the PK-232 to monitor only messages from NAVTEX transmitters C, E, and G and ig- nore messages from all others.
Page 263 PK-232 OPERATING MANUAL Firmware Revision 23-FEB-88 PRTYPE 48-51 (Miscellaneous): Supports the HP ThinkJet printer as well. PRTYPE Printer "Enter graphics" sequence Citizen CHR$(27) K n1 n2 CHR$(27) > CHR$(27) M CHR$(27) S0960 Anadex CHR$(28) PRTYPE The new values of that have been added are as follows: PRTYPE 52-55: Citizen Same as PRTYPE 0-3 (Epson), except: New-line code (7 bits):...
Page 264: Appendix P Firmware Revision Supplement 30-Dec-88
PK-232 OPERATING MANUAL Firmware Revision 30-DEC-88 PK-232 Firmware Revision Supplement 30-DEC-88 The following briefly describes the changes that we have made in the PK-232 firmware since the 23-FEB-88 release. A more detailed description follows in the Command Summary. WHYNOT Added the command .
Page 265 PK-232 OPERATING MANUAL Firmware Revision 30-DEC-88 PK-232 COMMAND SUMMARY ADDENDUM The following is the list of commands that are either new or have changed in the 30-DEC-88 re- lease of the PK-232 firmware. text Mnemonic: A Default: none Mode: Baudot, ASCII, AMTOR Host: AU Parameters: text...
Page 266 PK-232 OPERATING MANUAL Firmware Revision 30-DEC-88 nnnn CUSTOM Mnemonic: CU Default: $0015 Mode: Packet Host: Cu Parameters: 0 to $40 (0 to 64 decimal) specifies a four digit hex value, where each bit controls a different function. Bit 0, position $0001: If bit 0 is set to 1 (default setting), then the PK-232 will discard a received packet if the signal is too weak to cause the LED to light.
Page 267 PK-232 OPERATING MANUAL Firmware Revision 30-DEC-88 Looking at just the setting row in the chart, the binary number 00010101 becomes evident. The binary number 00010101 equals the decimal number 21, and the hexadecimal equivalent is $0015 CUSTOM hence the reason the default setting for is $0015.
Page 268 PK-232 OPERATING MANUAL Firmware Revision 30-DEC-88 To exit KISS, you must type three <CTRL-C> all within one second. Also, no data can be received by the PK-232 during this operation or it will not work, and you will remain in KISS Mode. HOST OFF (3×...
Page 269 PK-232 OPERATING MANUAL Firmware Revision 30-DEC-88 HDLC command has now changed. If is ON, ID will cause the ID to be transmitted im- mediately, which is the same as before. If is set to a value other than 0, will force a Morse ID immediately.
Page 270 PK-232 OPERATING MANUAL Firmware Revision 30-DEC-88 Bit residue: The frame ended in the middle of a byte. A weak packet signal might cause this, or, more likely, random noise that triggered the start of packet reception. Also, this may occur after a genuine frame has been received. PASSALL PASSALL: The received packet frame had errors, and...
Page 271 PK-232 OPERATING MANUAL Firmware Revision 30-DEC-88 PRTYPE PK-232 Settings for Facsimile Printing with Various Printers PRTYPE The following is a list of printers by brand, with the corresponding (s) we have determined should print Facsimile with the PK-232. Please note that not all these printers have actually been PRTYPE tested, but according to the best available data, the indicated setting(s) of should work.
Page 272 PK-232 OPERATING MANUAL Firmware Revision 30-DEC-88 Brother M-1709 PRTYPE 0, 2 Brother Twinwriter 5 PRTYPE 0, 2 Cal-Abco Legend 800 PRTYPE 0, 2 Canon A1200 PRTYPE 12, 14 Canon PW-1156A PRTYPE 0-3 Centronics GLP PRTYPE 0, 2 Centronics H-80 PRTYPE 0, 2 Centronics H136A PRTYPE 0, 2 Centronics 351...
Page 273 PK-232 OPERATING MANUAL Firmware Revision 30-DEC-88 Epson MX-80 with Graftrax 80 PRTYPE 40, 42 Epson MX-85 PRTYPE 0, 2 Epson MX-100 PRTYPE 0-3 Epson MX-185 PRTYPE 0, 2 Epson P-80 PRTYPE 0, 2 Epson RX-70 PRTYPE 0, 2 Epson RX-80 PRTYPE 0, 2 Epson RX-85 PRTYPE 0, 2...
Page 274 PK-232 OPERATING MANUAL Firmware Revision 30-DEC-88 Mannesmann Tally MT-290 (Epson) PRTYPE 0. 2 Mannesmann Tally MT-290 (IBM) PRTYPE 4, 6 Mannesmann Tally MT-490 PRTYPE 0, 1, 4, 5 Mannesmann Tally Spirit 80 PRTYPE 48, 50 Mannesmann Tally 1602 PRTYPE 0, 2? Mannesmann Tally 1605 PRTYPE 0.
Page 275 PK-232 OPERATING MANUAL Firmware Revision 30-DEC-88 Radio Shack CGP-220 PRTYPE 8 Sakata SP-1000 PRTYPE 0, 2 Sakata SP-1500 PRTYPE 0, 2 Seikosha GP-100 PRTYPE 36 Seikosha GX-100 PRTYPE 36 Seikosha SP-1000 A PRTYPE 0, 2 Seikosha SP-1000 VC (E-64) PRTYPE 36 Seikosha SP-1000 IBM PRTYPE 4, 6 Seikosha SP-1000 AS...
Page 276 PK-232 OPERATING MANUAL Firmware Revision 30-DEC-88 Star Radix 15 PC PRTYPE 4-7 Star Radix 10 Plus PRTYPE 0, 2 Star Radix 15 Plus PRTYPE 0-3 Texas Instruments 850 (DP mode) PRTYPE 40-43 Texas Instruments 855 (DP mode) PRTYPE 40-43 Transtar T315 PRTYPE 12, 14 P-13...
Page 277: To Pc-Pakratt And Com Pakratt Users
PK-232 OPERATING MANUAL APPENDIX Q ANSWERS TO COMMONLY ASKED QUESTIONS AND SPECIAL NOTES TO PC-PAKRATT AND COM PAKRATT USERS The PK-232 can be used with a multitude of computers, and computer programs. This can lead to some confusion as to how to properly connect, access certain features and configure the PK-232. The following questions and answers may help you without having to make a long-distance phone call to AEA's Technical Support, QUESTION:...
Page 278 PK-232 OPERATING MANUAL QUESTION: Do I connect the green wire AND the Rx-IN audio input to my radio? ANSWER: No! The green wire, and the Rx-IN jack are the same thing. They are directly wired together inside the PK-232. You use one OR the other. A cable is supplied with the PK-232 that allows you to connect the Rx-IN jack easily.
Page 279 PK-232 OPERATING MANUAL turned it off. See Question 2 in "SPECIAL NOTES FOR COM PAKRATT WITH FAX USERS." QUESTION: How do I find the DATECODE and CHECKSUM Of my PK-232 firmware? ANSWER: You must always be in the terminal mode to find this. First, whatever program you are using, escape to the terminal mode so you are displaying a command prompt cmd: ).
Page 280 PK-232 OPERATING MANUAL Even though the computer is turned off, the PK-232 will still perform as a digipeater. This is especially nice because you do not have to leave the entire system on to function as a packet station. * NOTE * Unattended operation is presently restricted below 50 MHz. While it is al- lowed above 50 MHz, third party traffic is not allowed on any frequency without the station operator present to control the system.
Page 281 PK-232 OPERATING MANUAL wires. If it does not key your radio, your cable is bad, or your radio is bad. Check MIC operation. If the microphone keys your radio, check the configuration of the PTT jumpers inside the PK-232 for proper configuration. This is covered on pages 2- 6 through 2-7 of the manual.
Page 282 PK-232 OPERATING MANUAL SPECIAL NOTES FOR PC-PAKRATT WITH FAX USERS 1. PC-PAKRATT contains a file named README.DOC that includes information and application notes that may be useful. To create a hardcopy of this file to your printer, type the following command at the DOS prompt followed by a carriage return: copy readme.doc prn You can obtain information on this file or a hardcopy by contacting AEA's Technical Support.
Page 283 PK-232 OPERATING MANUAL SPECIAL NOTES FOR COM PAKRATT WITH FAX USERS 1. Always use your keyboard overlays that came with the package! Channel 0 on the top (upper) overlay lines up with the left-reading arrow key on the computer keyboard, and Channel 1 lines up over the "1"...
Page 284 PK-232 OPERATING MANUAL DECEMBER 30, 1988, FIRMWARE At this time, the most recent release of firmware for the PK-232 is dated 30 DEC 1988. With this release, Packet Operation has changed slightly. When running this firmware in its default state, low level packets that are received by the PK-232, but too low to light the LED, will NOT be displayed to the screen.
