Lotus Maximus EVO Series Instructions

Downloaded from www.watergardeningdirect.com
UL
Please Keep Instructions
for Future Reference.

ELECTRICAL CONNECTIONS

The pump comes complete with 10 mtrs of 3 core cable, however, should any additional cable be
required then the use of an approved waterproof cable connector is essential.
The power supply must be protected by a residue circuit device (RCD), earthed and fused at 3
l
amps.
Regularly inspect the cable for damage and deterioration
l
For permanent installation to the mains supply, it is necessary to comply with the regulations
l
of the Local Electricity Authority.
Consult a qualified electrician if in doubt about any aspects of wiring.
l

SAFETY

You must disconnect the mains electricity supply before attempting any installation/maintenance or
l
handling of any kind.
The pump should never be run dry as this will cause the unit to overheat and damage it.
l
Do not attempt to modify this unit in any way and only use the recommended parts for replacement.
l
Do not place in liquids other than water.
l
All connections must be Earthed.
l
Do not connect to any voltage other than that stated on the pump.
l
Do not use in water above 90°f / 30°C.
l

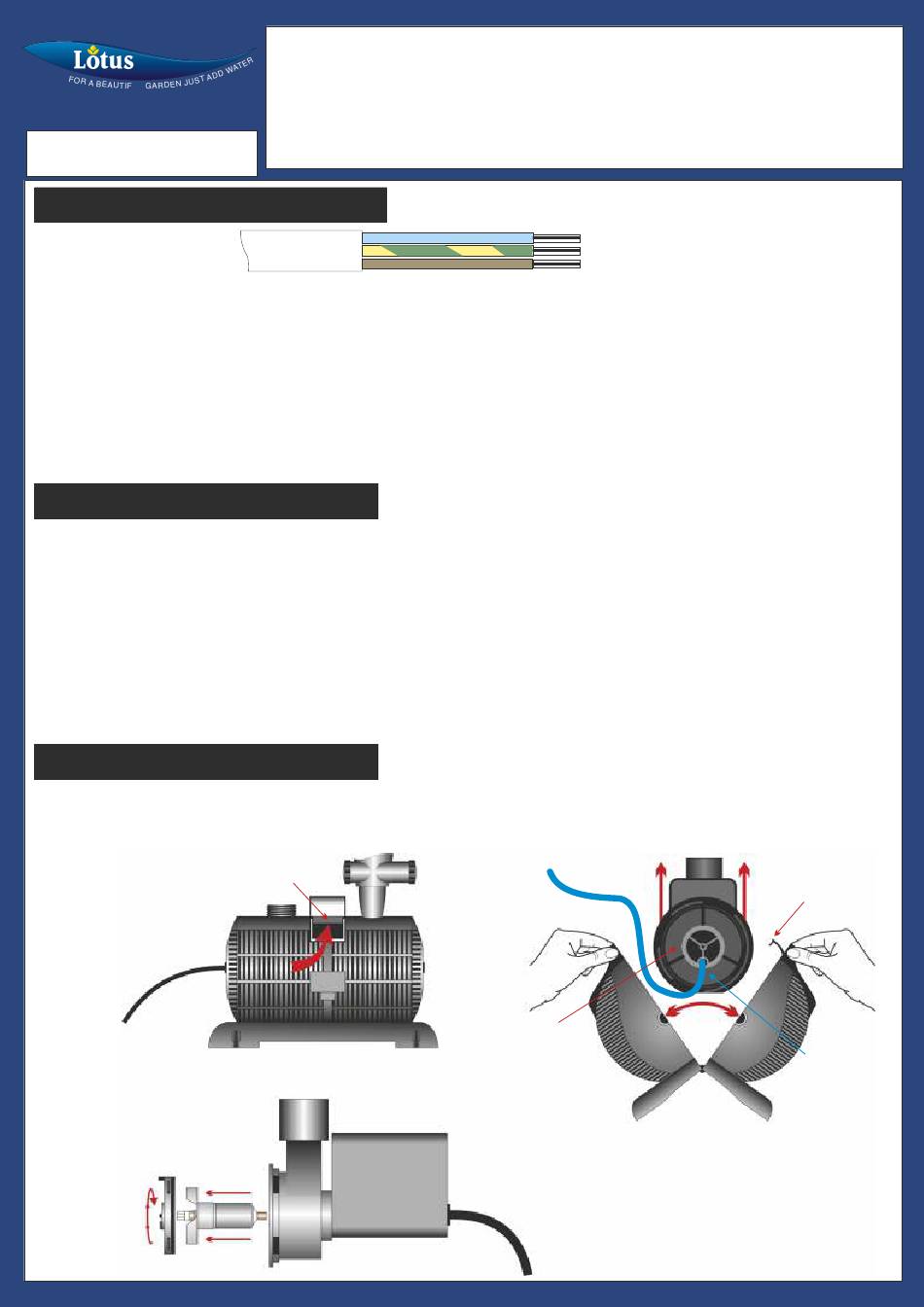

INSTALLATION

The pump should be sited on a firm base, raised from the bottom of the pond. Connect a suitable length
and diameter of hose pipe. If using the optional Air Mix system, ensure the air line is attached to the front
of the rotor housing leading through the front of the cage, and the other end is secured out of the water
allowing air to be drawn in.
Figure 1.
Release retaining Catch
by lifting part 'A'.
Figure 3.
Twist the rotor housing 1/4 turn
anticlockwise to access rotor.
Remove rotor for cleaning or
inspection.
Please clean
if dirty or
replace if
damaged.
LOTUS Maximus EVO
Pump Instructions
A
NEUTRAL = BLUE N
EARTH = GREEN & YELLOW
LIVE = BROWN L
Optional Air
Mix Airline
Rotor Housing
Figure 2.
Pull pump cage apart as shown in diagram
and remove pump - Please note notch for
cable in cage for relocating the cable during
re-assembly.
Make sure Catch 'A' is not pushed all the
way to the top as this will interfere with the
opening and closing of the cage.
Retaining catch
'A'
Air Mix Inlet
