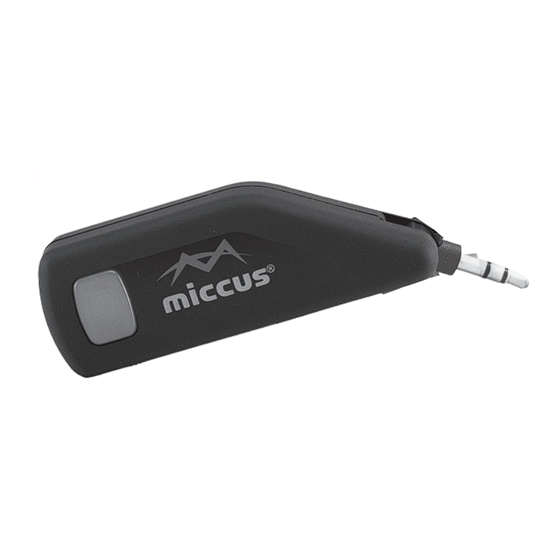

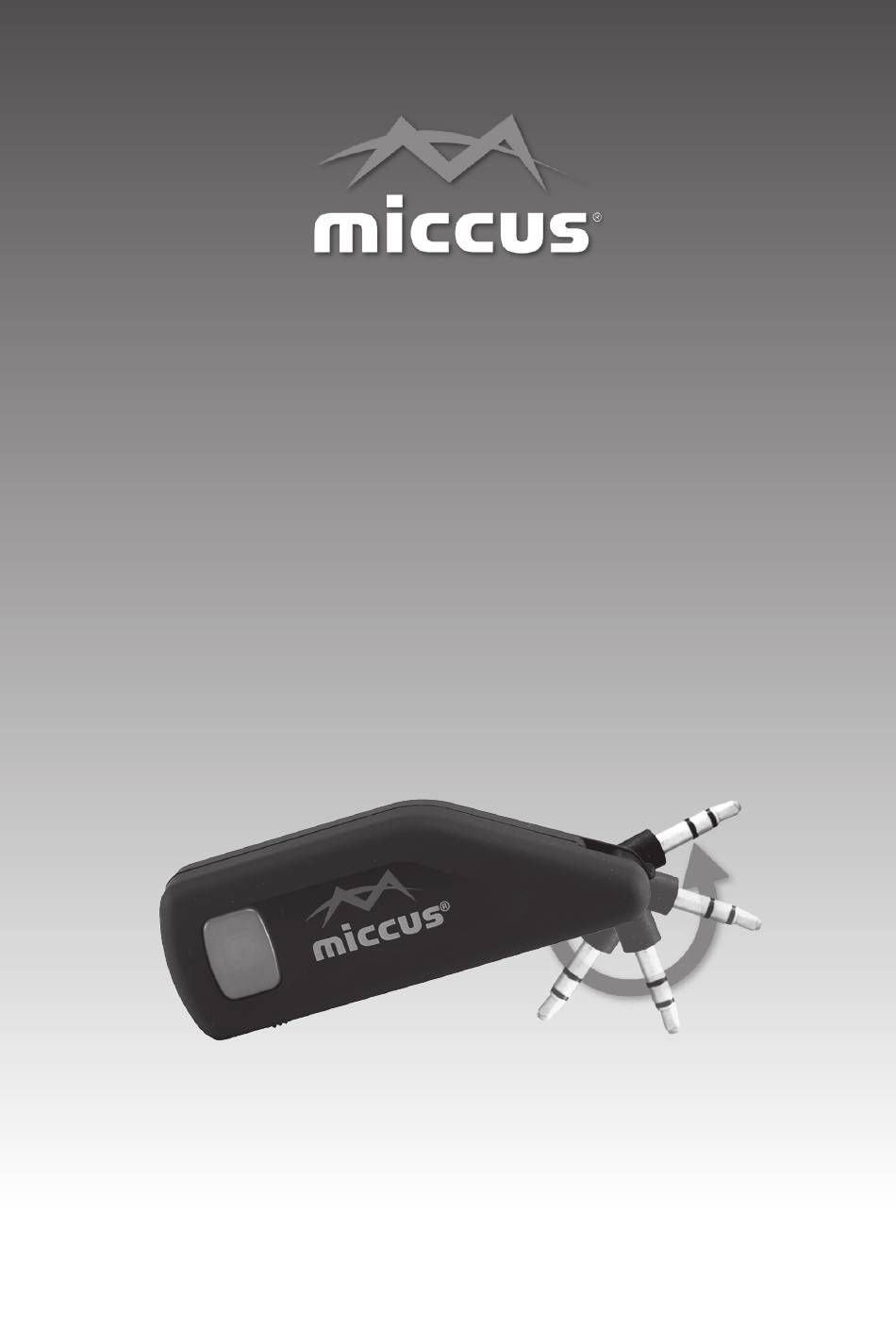

- Page 1 Miccus® Swivel Jack RTX Portable, Long Range Wireless Transmitter or Receiver Model No.: MSMSH-50...
-
Page 3: Table Of Contents
Contents: Quick Start Guide ......... About the Swivel Jack RTX and What’s in the Box . -
Page 5: Quick Start Guide
Quick Start Guide: Charge the Battery/Supply Power: Power either by provided micro-USB cable or by internal Lithium Ion battery. Fully charge the battery before use for optimal results, approximately 4 hours. Power On/Off: Power ON the Swivel Jack RTX by holding down the multi-function button (MFB) for 3 seconds or by connecting to USB power. -
Page 6: About The Swivel Jack Rtx And What's In The Box
Stream audio to Bluetooth® enabled headphones or speakers, connect 2 simultaneously for road trips, home use and more. The Miccus® Swivel Jack RTX supports(duallink)2streamsoflowlatencyaudio;Eachlistenercantake advantage of crystal-clear, HD sound with no lip-sync or delay. Use the Swivel jack as either a Bluetooth®... -
Page 7: Product Overview And System Requirements
Receiving a Bluetooth® wireless audio signal (A2DP), including Bluetooth® speakers or headphones like the Miccus SR-71 Stealth, or adapters such as the Miccus® Home RTX 2.0 or the Swivel-jack RTX. Receive Mode (RX): Use the Swivel Jack RTX with any device capable of Transmitting a Bluetooth®... -
Page 8: Aptx Low Latency & Led Indicator Light Guide
SBC codec with a slight delay. If TV or video audio is your primary use, consider purchasing Bluetooth headphones that support aptX Low Latency like the Miccus SR-71 Stealth Headphones. True Dual Stream: aptX Low Latency codec... -
Page 9: Detailed Instructions
LED LIGHT FUNCTION Both Channels 1 and 2 connected Blue 1 and Blue 2 Solid with either SBC, AAC or aptX codecs Blue 1 or Blue 2, Blinks every 5 Connected in aptX Low Latency seconds codec (no audio delay) Charging, or Standby mode (no pairing detected) Detailed Instructions for Use... -
Page 10: Pairing To 2 Devices & Troubleshooting
NOTE: ThemicroUSBjackprovidespoweronly,notaudioconnection unless used with a PC NOTE: If connected to the USB port on a TV, the Swivel Jack RTX will automaticallypoweronandoffwiththeTV. Connect to Your Audio Device The Swivel Jack RTX has a patented built-in 3.5mm male swivel-jack that can be used to connect to either a 3.5mm auxiliary input or output. - Page 11 Tips for quicker, easier pairing. Fully charge the Swivel Jack RTX first. • Bring the Swivel Jack RTX and your Bluetooth® device physically • close together, no more than 3ft apart. Turn off any previously paired devices, Bluetooth headphones, • speakers, adaptors so the Swivel Jack RTX is ready to look for a NEW device to pair to.
- Page 12 4. Once the second set is paired, the indicator light will change to either solid blue or blink blue every 5 seconds, if connected in aptX Low Latency. 5. W hen2transmittingdevicesarepaired,bothoftheblueLEDs underneaththemulti-functionbuttonwillbelighted. USB Mode:TheSwivelJackRTXhasaspecialfunction,wheninTXmode andpluggedintoaPCUSBport,theSwiveljackRTXwillfunctionasa long-range USB dongle allowing you to use your Bluetooth Headphones orspeakersfor2-waycommunicationinGamingandVoIPcalls. 1.
-
Page 13: Reconnection
To begin streaming music wirelessly, simply press the play button on your audio source, adjust the volume as needed and enjoy! 10. If you want to pair to a second device: 1. P airyourfirstphoneortablettotheMiccus®SwivelJackRTX, (steps 1-7 above) 2. P resstheSwivelJack’smulti-functionbuttonfor3seconds untilthelightbeginsrapidlyflashinggreen.... -
Page 14: Factory Reset
Jack RTX does Jack RTX is fully charged. not turn on 3. M akesuretopressandholdthepowerbuttonfor 3 seconds. 1. Move the Miccus Swivel Jack RTX away from Audio breaks other2.4GHzequipmentsuchasWi-firouters up or wireless and microwaves, and make sure the Swivel Jack is... - Page 15 PROBLEM SOLUTION 1. Use the supplied USB cable. TV, stereo, or PC USB ports sometimes can introduce noise into the signal. The supplied USB cable features a ferrite core to help eliminate radio frequency interference. 2. Move the Swivel Jack RTX away from any amplifiers or powered speakers.
- Page 16 Don’t use abrasive cleaning solvents to clean the Miccus® Swivel • Jack RTX. Do not dispose of the Miccus® Swivel Jack RTX in fire as it will • result in an explosion. Avoid contact with sharp objects. They may scratch or damage or •...
-
Page 17: Specifications And Support
Further details and answers to common questions are found at http://miccus.com/pages/support If your question is not answered via the support page, feel free to email us at support@miccus.com;pleaseincludeaproductnamein your email subject line. For live technical assistance please call 1 (616) 604-4449 Monday-Friday, 11am-4pm EST. - Page 18 © 2019 Miccus, Inc. All rights reserved. Bluetooth® is a trademark of the Bluetooth SIG and used under license. The apX® and aptX Low Latency®...
