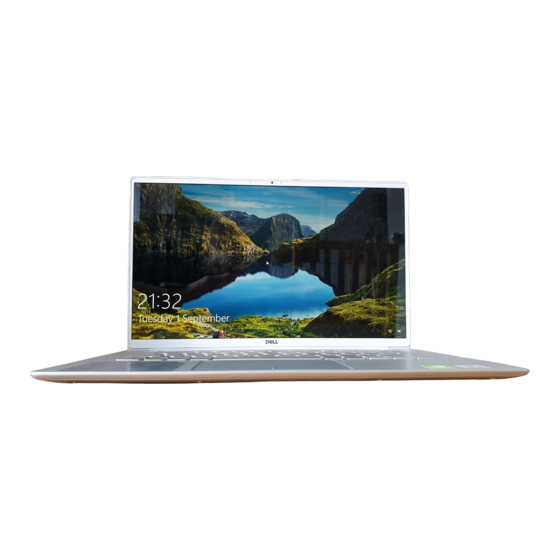

Dell Inspiron 14 7000 Setup And Specifications
Hide thumbs
Also See for Inspiron 14 7000:
- Service manual (90 pages) ,
- Setup and specifications (21 pages) ,
- Quick start manual (2 pages)
Related Manuals for Dell Inspiron 14 7000
Summary of Contents for Dell Inspiron 14 7000
- Page 1 Inspiron 14 7000 Setup and Specifications Computer Model: Inspiron 14-7472 Regulatory Model: P74G Regulatory Type: P74G001...
- Page 2 A WARNING indicates a potential for property damage, personal injury, or death. © 2017-2018 Dell Inc. or its subsidiaries. All rights reserved. Dell, EMC, and other trademarks are trademarks of Dell Inc. or its subsidiaries. Other trademarks may be trademarks of their respective owners.
-
Page 3: Table Of Contents
Intel Optane memory (optional)............................14 Media-card reader................................14 Keyboard.................................... 14 Camera....................................15 Touchpad................................... 15 Touchpad gestures..............................15 Battery....................................15 Display....................................16 Power adapter...................................16 Video....................................16 Computer environment..............................16 5 Keyboard shortcuts............................18 6 Getting help and contacting Dell........................20 Self-help resources................................20 Contacting Dell.................................20 Contents... -
Page 4: Set Up Your Inspiron 14-7472
Set up your Inspiron 14-7472 Connect the power adapter and press the power button. Finish operating system setup. For Windows: Connect to a network. NOTE: If you are connecting to a secured wireless network, enter the password for the wireless network access when prompted. - Page 5 Table 1. Locate Dell apps Resources Description My Dell Centralized location for key Dell applications, help articles, and other important information about your computer. It also notifies you about the warranty status, recommended accessories, and software updates if available. SupportAssist Pro-actively checks the health of your computer’s hardware and software.
-
Page 6: Create A Usb Recovery Drive For Windows
Connect the USB recovery drive to your computer. Restart your computer. Press F12 after the Dell logo is displayed on the screen to access the boot menu. A Preparing one-time boot menu message appears. After the boot menu loads, select the USB recovery device under UEFI BOOT. -
Page 7: Views Of Inspiron 14-7472
Views of Inspiron 14-7472 Front Power and battery-status light/hard-drive activity light Indicates the battery-charge status or the hard-drive activity. NOTE: Press Fn+H to toggle between the power and battery-status light, and hard-drive activity light. Hard-drive activity light Turns on when the computer reads from or writes to the hard drive. Power and battery-status light Indicates the power and battery-charge status. -
Page 8: Right
Connect to a TV or another HDMI-in enabled device. Provides video and audio output. USB 3.1 Gen 1 port with PowerShare Connect peripherals such as external storage devices and printers. Provides data transfer speeds up to 5 Gbps. PowerShare enables you to charge your USB devices even when your computer is turned off. -
Page 9: Base
Press to put the computer in sleep state if it is turned on. Press and hold for 4 seconds to force shut-down the computer. NOTE: You can customize the power-button behavior in Power Options. For more information, see Me and My Dell at www.dell.com/support/manuals. Display Views of Inspiron 14-7472... -
Page 10: Bottom
Bottom Right speaker Provides audio output. Service Tag label The Service Tag is a unique alphanumeric identifier that enables Dell service technicians to identify the hardware components in your computer and access warranty information. Left speaker Provides audio output. Views of Inspiron 14-7472... -
Page 11: Specifications Of Inspiron 14-7472
Specifications of Inspiron 14-7472 Computer model Table 2. Computer model Computer model Inspiron 14-7472 System information Table 3. System information generation Intel Core i5/i7 Processor Chipset Integrated in the processor Operating system Table 4. Operating system Operating systems supported • Ubuntu •... -
Page 12: Memory
Memory Table 6. Memory specifications Slots One SODIMM slot Type DDR4 Speed 2400 MHz Configurations supported: Per memory module slot 4 GB, 8 GB, and 16 GB Total memory 4 GB, 8 GB, and 16 GB Ports and connectors Table 7. External ports and connectors External: Network One RJ-45 port... -
Page 13: Wireless Module
Wireless module Table 10. Wireless module specifications Transfer rate Up to 867 Mbps Frequency bands supported Dual band 2.4 GHz/5 GHz Encryption • 64-bit and 128-bit WEP • TKIP • AES-CCMP Audio Table 11. Audio specifications Controller Realtek ALC3246 with Waves MaxxAudio Pro Speakers Speaker output Average... -
Page 14: Intel Optane Memory (Optional)
Intel Optane memory (optional) Intel Optane memory functions only as a storage accelerator. It neither replaces nor adds to the memory (RAM) installed on your computer. NOTE: Intel Optane memory is supported on computers that meet the following requirements: • Generation or higher Intel Core i3/i5/i7 processor •... -
Page 15: Camera
Camera Table 16. Camera specifications Resolution • Still image: 1 megapixel • Video: 1280 x 720 (HD) at 30 fps Diagonal viewing angle 74.6 degrees Touchpad Table 17. Touchpad Resolution • Horizontal: 1228 • Vertical: 748 Dimensions • Width: 105 mm (4.14 in) •... -
Page 16: Display
Display Table 19. Display specifications Type 14-inch FHD non-touch screen IPS (In-plane switching) panel Resolution (maximum) 1920 x 1080 Viewing angle (Left/Right/Up/Down) 85/85/85/85 Pixel pitch 0.161 mm Refresh rate 60 Hz Operating angle 85 degrees Controls Brightness can be controlled using shortcut keys Dimensions Height (excluding bezel) 173.95 mm (6.85 in) - Page 17 Table 22. Computer environment Operating Storage Temperature range 0°C to 35°C (32°F to 95°F) –40°C to 65°C (–40°F to 149°F) Relative humidity (maximum) 10% to 90% (non-condensing) 0% to 95% (non-condensing) Vibration (maximum) 0.66 GRMS 1.30 GRMS † ‡ Shock (maximum) 110 G 160 G Altitude (maximum)
-
Page 18: Keyboard Shortcuts
Keyboard shortcuts NOTE: Keyboard characters may differ depending on the keyboard language configuration. Keys used for shortcuts remain the same across all language configurations. Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perform secondary functions. - Page 19 Table 24. List of keyboard shortcuts Function key Behavior Turn off/on wireless Pause/Break Sleep Toggle scroll lock Toggle between power and battery-status light/hard-drive activity light System request Open application menu Toggle Fn-key lock Page up Page down Home Keyboard shortcuts...
-
Page 20: Getting Help And Contacting Dell
Getting help and contacting Dell Self-help resources You can get information and help on Dell products and services using these self-help resources: Table 25. Self-help resources Self-help resources Resource location Information about Dell products and services www.dell.com My Dell Tips Contact Support In Windows search, type Contact Support, and press Enter.
