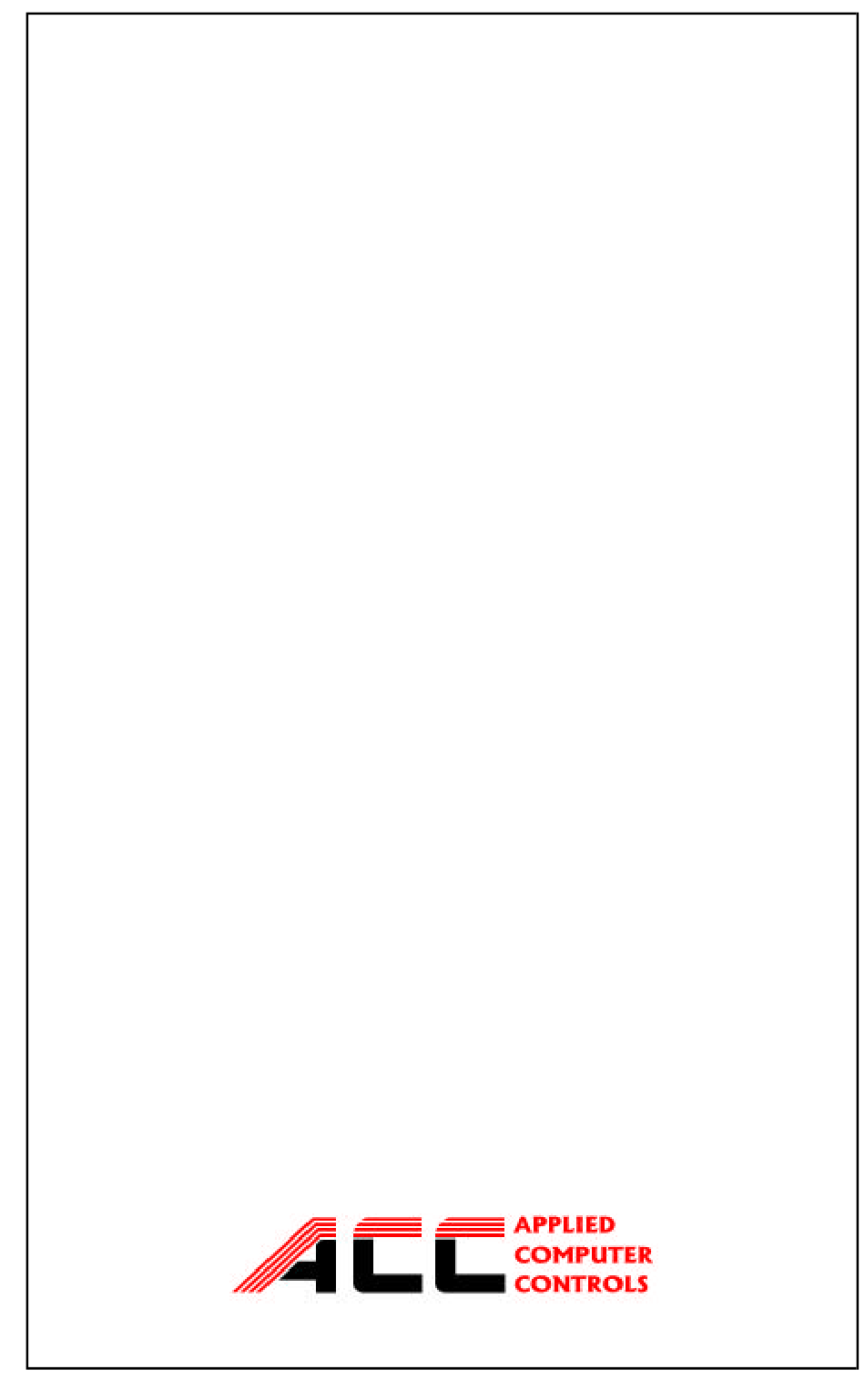

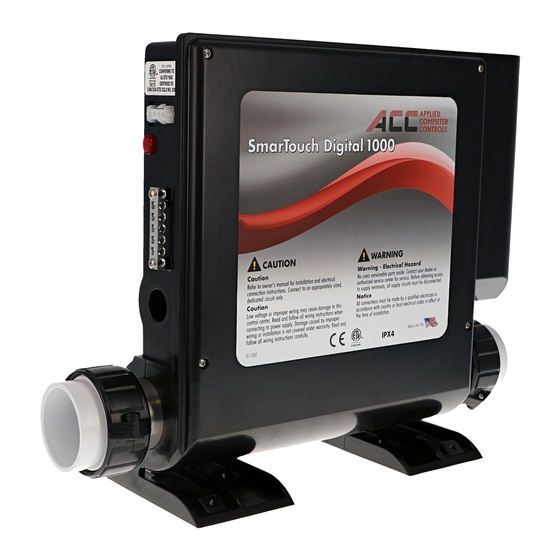

- Page 1 SMARTOUCH DIGITAL Series 1000 & 2000 USER & PROGRAMMING MANUAL 701 W. Foothill Blvd Azusa CA 91702 (626) 969 - 9655 Fax (626) 334 - 4809...
- Page 2 SmarTouch Digital controls are microprocessor based electronic spa control systems and as such are susceptible to static discharge and high levels of humidity. To prevent premature control failure do not hose down, flood or allow water to enter the control box enclosure. CAUTION High voltage levels exist inside the control box, they can cause injury and even electrocution.
-
Page 3: Table Of Contents
TABLE OF CONTENTS INTRODUCTION IN A HURRY Setting Temperature The SET Key Time Of Day TOD Setting TOD THE CONTROL PANEL DEVICE CONTROL GROUP Primary Water Pump Air Blower Auxiliary Pump(s) Spa Light Summary of Device Functions STATUS CONTROL GROUP The TEMP key The TIME key The SET key... -
Page 4: Introduction
INTRODUCTION Thank you for buying a spa equipped with a SmarTouch Digital control systems. Many years of experience went into the design of this family of controls. You can be assured your spa control system is the most advanced, it is highly reliable and will serve you for many years to come. -
Page 5: In A Hurry
3 hour Auto Filtration cycle before your next spa use. SmarTouch Digital Series 1000 and 2000 is a family of intelligent, spa control systems. These systems are rich with features and can be extensively programmed to fit just about any need. -
Page 6: Time Of Day Tod
Time Of Day (TOD) SmarTouch Digital maintains a 12 hour AM / PM internal real time clock TOD (Time Of Day). The clock based on the line frequency. There is no battery backup and whenever the power is turned off, TOD is no longer correct. -
Page 7: The Control Panel
THE CONTROL PANEL The control panel is normally installed on the lip of the spa for easy and convenient access. Within the panel housing is a 4 digit LED display used to communicate to the user spa temperature, TOD, elapsed user time, programming, status - diagnostic and error codes and messages. -
Page 8: Air Blower
The JETS key (switch) on the control panel is a 3 position switch : Low Pump, High Pump, Off. Each time the key is pressed, the next function is executed. If your primary pump is a single speed pump then only the high pump will be activated. 2 LED indicators, LO & HI inform you which speed is on. -
Page 9: Summary Of Device Functions
SUMMARY OF FUNCTIONS FOR EACH DEVICE Key Device Single speed pump JETS Dual speed pump HIGH Dual speed with Circ pump HIGH Circ pump is independent Single speed air blower One single Speed pump One dual speed pump HIGH Two Single speed pumps P1&2 ALL OFF Spa light... -
Page 10: Status Control Group
STATUS CONTROL KEYS The keys in this group are used to communicate to the controller system settings and option selection(s). There are 3 keys in this group and 3 functions that are combinations of these keys: Key Press Function TEMP (up arrow) Prog Temp, + or Next TIME (down arrow) Prog TOD, - or Previous... -
Page 11: The Time Key
The TIME key , which is also the DOWN ARROW key, is also a repeat key. Think of it as “ - or previous”. Use it to : ♦ Press and hold for 2 seconds then release it to start setting the real time clock (TOD) ♦... -
Page 12: Programming The Sc-1000 & Sc-2000
PROGRAMMING SC1000 & SC2000 Parameter Programming is a means by which the spa owner / user can change the various timing elements and calibrate temperature. The process is simple and intuitive. Only 3 keys are used: UP, DOWN and SET. To program one or more parameters follow the outlined this procedure: 1.Press SET and DOWN keys together. -
Page 13: Programming Example
Example: program filtration period 2 to start at 5:45 PM Press Display Explanation SET & UP Start programming the display first message is Filtration Period 1. Scroll up to Filtration Period 2. 12:00 Select FP2. The display shows the current FP2 start time with the hour portion flashing 1:00 Increase the hour value by 1. - Page 14 PARAMETER MENU LIST Detail 12:00 Start time of filtration period 1 12:00 Start time of filtration period 2 12:00 Start time of filtration period 3 12:00 Start time of filtration period 4 Note : If filtration periods overlap, the most recent period (last) is in effect. 12:00 Start time of the silence period.
- Page 15 Detail CLDN 30 Cool Down cycle in seconds. Whenever the heater is turned off the pump keeps running the extra seconds to even the temperature of the heater element and the surrounding water to prevent scale build up and premature heater failure. Economy Cycle Length.
- Page 16 108°F. When you calibrate the spa temperature you are doing so at your own risk. Obtain an accurate medical thermometer to check against. Please contact ACC for proper procedure or if you do not feel confident. Page 16...
-
Page 17: Programming System Options
PROGRAMMING SYSTEM OPTIONS System Options Programming is a means of setting the various system options. The U and P options are of the ON / OFF or 1 / 0 type; the option is either 1 or ON or it is a 0 or OFF. The D options can only be displayed. - Page 18 0 = Low pump on demand. The low pump will come on to sample temperature, heat or filter the spa as needed. 1 = The low pump runs all the time. 0 = Auto Filtration is one 3 hour long period. This length of this period is fixed and cannot be changed.
-
Page 19: Protected Options
Only trained service personnel should make changes. If unsure please contact ACC for more information. 0 = There is no additional circulating pump. The primary pump is usually 2 speed. The low speed is the filtering and heating pump 1 = A circulating pump is attached to the system. -
Page 20: Diagnostic Values
It can also cause the controller's printed circuit board to catch fire. Only trained service personnel should carry out changes.If unsure please contact ACC for more information. DIAGNOSTIC VALUES The D options are internal diagnostic values and may not be changed from the control panel. -
Page 21: Error Messages
ERROR MESSAGES There are 9 error message that a SmarTouch may generate. Here is a list of these messages and what they indicate: CoLd Temperature in the spa heater housing is below 40* Fahrenheit. Because spa temperature should never get this low, the status of the heater element is unknown. -
Page 22: Seop,Sesh,Psoc,Psol,Psoh
SEoP Sensor Open or disconnected and SmarTouch cannot determine the spa temperature. The heater is disables but the spa is operational. The sensor must be replaced or reconnected for this message to go away. SESH Sensor Short. The sensor is shorted and is non functional. Temperature cannot be determined, the heater is disabled, but the spa is still operational. -
Page 23: Electrical Coonection Instructions
ELECTRICAL CONNECTION INSTRUCTIONS. NOTICE : All spa electrical wiring must be performed by a qualified licensed electrician and must meet all NEC (National Electrical Code) and state and local codes and requirements. DANGER - RISK OF ELECTRIC SHOCK 1. The lines carrying power to the spa must be dedicated to the spa and should not be shared with any other appliance(s). -
Page 24: Branch Circuit Breaker Requirements
BRANCH CIRCUIT BREAKER REQUIREMENTS 240 Volts 4 Wire System 30/50 Amp 2 Pole Breaker 240 Volt 3 Wire System 30/50 Amp 2 Pole Breaker 120 Volt 3 Wire System 20 Amp 1 Pole breaker CAUTION : A new breaker must be used for a new spa installation. Do not use an existing or used breaker. - Page 25 SmarTouch Digital Typical view - exploded 1. Enclosure Box 2. GFCI Flange 3. Cover Plate 4. GFCI (optional) - 120 volt 20 amp or 240 volt 50 amp 5. Terminal Block - 2 position or 3 position 6. Printed circuit control board - SC2000, SC1000, SC1100Jr 7.
- Page 26 SC-1000 Control Board SC-2000 Control Board Page 26...
- Page 27 Control Ground Board Conduit Top Side Feed Thru Connector Two lug Heater On terminal Indicator Pressure Heater Switch Contactor Heater Union Sensors Heater Cover Manifold SmarTouch 1000 Control Integrated GFCI SC-2000 Controller 3 Terminal Top Side Block Connector Heater Contactor Heater On Indicator Conduit...
- Page 28 SmarTouch Digital Temp To Set Press And Hold 2 Seconds Time FILT KP 1000 Spa Side Panel SmarTouch Digital ™ Heating Temp OverHeat To Set Press & Hold 2 Seconds Program Time Filtering Jets Light KP 2000 Spa Side Panel 2000 1000 1100...
