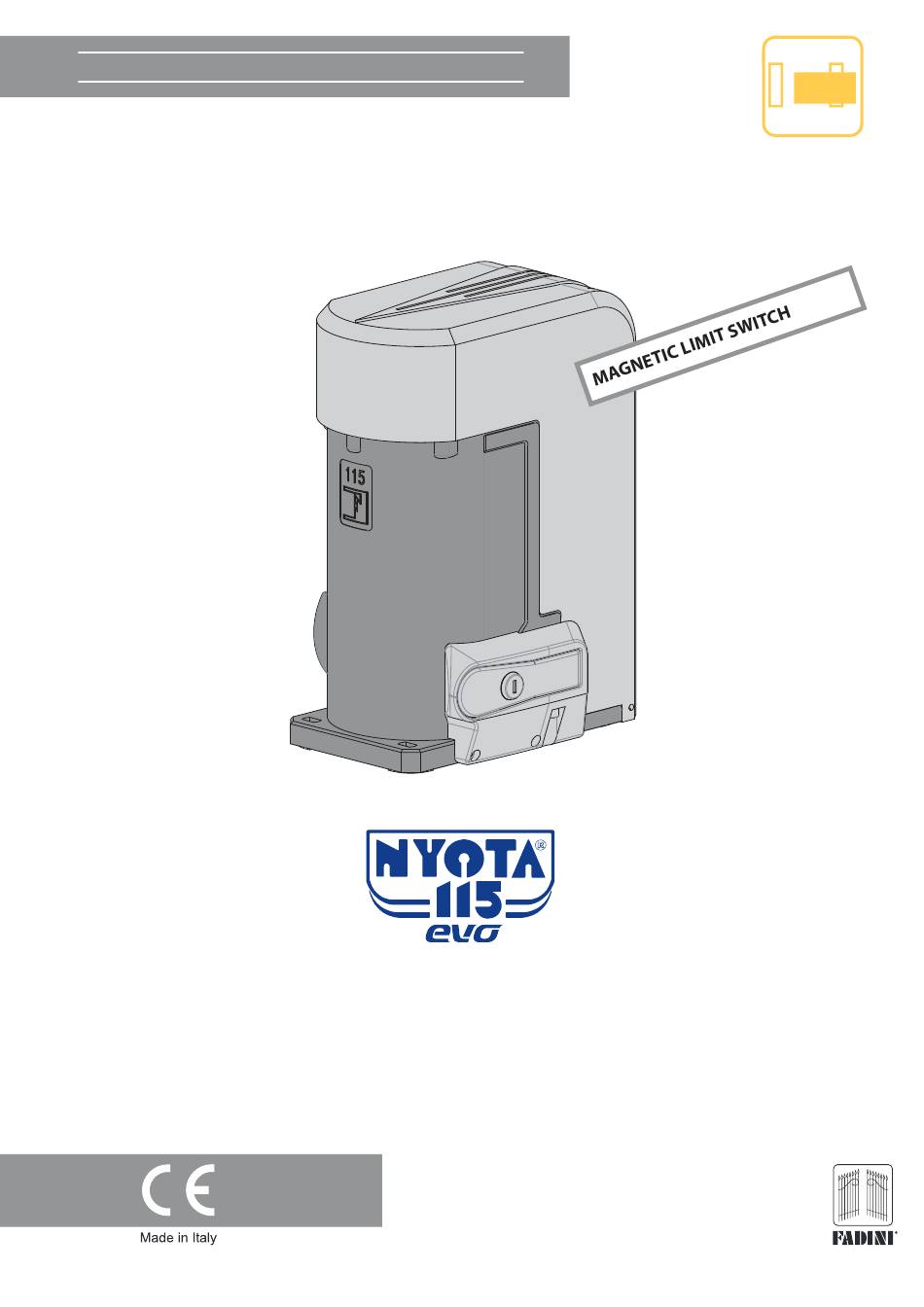

- Page 1 GB Instructions manual 11 - 20 pages Electromechanical operator for sliding gates up to 1.250 kg 0,5 HP version 1.850 kg 1,0 HP version EN 13241 EN 12453 EN 12445 the gate opener...
-
Page 2: Installation
CE DECLARATION OF CONFORMITY of the manufacturer: Meccanica Fadini snc (Via Mantova, 177/A - 37053 Cerea - VR - Italy) declares under own responsibility that: Nyota 115 evo complies with the 2006/42/CE Machinery Directive, and also that it is sold to be installed in an “automatic system”, along with original accessories and components as indicated by the manufacturing company. - Page 3 Nyota 115 evo electromechanical operator for sliding gates GENERAL DESCRIPTION OF THE PRODUCT Nyota 115 evo is an electromechanical operator to open and close sliding gates of any design and size up to a maximum weight of 1.850 kg. Two distinct voltage versions are available, single- and three-phase, both include 0,5 HP and 1,0 HP motors. The Nyota 115 evo operators have steel-bronze mechanical coupling ie.
- Page 4 Nyota 115 evo electromechanical operator for sliding gates CEMENTING THE ANCHOR BRACKET Distances in Pic. 3 are to be followed in this step. Once satis ed that concrete has rmly set all around the the bracket, Nyota 115 evo can be mounted onto it. Pipes for the electric Anchor bracket...
- Page 5 Nyota 115 evo electromechanical operator for sliding gates FIXING THE GEAR RACK TO THE GATE Before moving to the next step, gear rack xing, it is required that the engaging pinion is released and be able to turn free. This will facilitate the xing of the gear rack modules. Use the coded key to unlock the ap cover (release handle), then rotate it beyond 90°...
- Page 6 Nyota 115 evo electromechanical operator for sliding gates ELECTRICAL CONNECTIONS TO THE CONTROL BOARD Nyota 115 evo is available either in the version with Elpro 12 evo control board incorporated or Elpro 37/37 DS stand alone. The electrical connections are to be made following the instructions in the respective controller’s manual. NOTE WELL: Nyota 115 evo is supplied with electric power when the safety micro-switch (positioned on the upper part of the geared motor) is pressed and held down by the aluminium operator cover when this is tted and rmly xed.
- Page 7 Nyota 115 evo electromechanical operator for sliding gates MOUNTING THE MAGNETIC LIMIT SWITCH BRACKETS NOTE WELL: DO NOT OPEN THE BRACKETS TO REVERSE THE ARRAY OF THE INNER MAGNETS; THEY ARE PROPERLY PRE-ARRANGED FOR THE LOGIC CONTROL BOARD TO IDENTIFY THEM. Limit switch 5 mm right-hand...
- Page 8 Nyota 115 evo electromechanical operator for sliding gates ELECTRICAL CONNECTIONS TO THE MAGNETIC LIMIT SWITCH NOTE WELL: rst of all identify the position of Nyota Evo in relation to the opening direction of the gate view from inside (on the left or right). Depending on this, properly connect the brown and green wires of the limit switch and the wires of the electric motor.
-
Page 9: Maintenance Record
Nyota 115 evo electromechanical operator for sliding gates MAINTENANCE RECORD hand over to the end user of the installation the gate opener Installation address: Maintainer: Date: Installation type: Operator model: Quantity of models installed: Sliding gate Folding door Dimensions per gate leaf: Swinging gate Road barrier Over-head door... -
Page 10: Technical Data
Nyota 115 evo electromechanical operator for sliding gates TECHNICAL DATA ELECTRIC MOTOR 1-phase 0,5 HP 3-phase 0,5 HP 1-phase 1,0 HP 3-phase 1,0 HP 0,37 kW 0,73 kW 0,73 kW Power output 0,37 kW 575 W 1.130 W 1.030 W Absorbed power 600 W 230/400 Vac - 50 Hz...
Need help?
Do you have a question about the Nyota 115 evo 3-phase 0,5 HP and is the answer not in the manual?
Questions and answers
نقشه سیم کشی موتوررامیخواستم
For the Meccanica Fadini Nyota 115 evo 3-phase 0.5 HP motor:
1. Power Supply: 230/400 Vac, 50 Hz.
2. Absorbed Power: 575 W.
3. Absorbed Current: 2.1 A / 1.2 A.
4. Motor Speed: 1380 rpm.
5. Magnetic Limit Switch Wiring:
- First, determine gate opening direction from inside.
- Factory pre-wired for left-side installation.
- If installing on the right, wiring changes are needed.
- Swap connections at terminals 8–10 and 16–18 based on gate position.
- Connect brown and green wires of the limit switch according to side of installation.
6. Terminals:
- Terminal 8 and 10: Green wire (right-side installation adjustment).
- Terminal 16 and 18: Used for swapping when installing on left or right.
7. Important: Ensure proper grounding and use differential circuit breaker (0.03 A) for safety.
This setup includes the Elpro 12 Evo control board.
