SD Card

The SD card is a data transfer medium that allows the input of data (turn points, tasks, flight info) and
the export of flight log that are stored in the flight recorder. The flights are written to the card in .IGC
format allowing immediate flight evaluation and validation.
will not be listed on task list. Example of task line in CUP format (500km is a name of task):
"500km","000SZEGEDAPT","099SZATYMAZAPT","016SZEGED16","124MORAHALM","000SZEGEDAPT"
LOAD INFO: Transfers header (declaration) files from SD to device. Pressing the enter button will show
a list of all *.hdr formatted files in LX/FLINFO directory. Select the file from which you wish to transfer
the declaration header.
SD INIT: Creates all needed directories on the SD card. (LX/TP, LX/FLINFO, LX/FLIGHTS)
FORMAT: Will format your micro SD card and create all necessary folders.
If the TP file has more than 500 points only the first 500 will be transferred, the rest will be cut off.
Colibri II – Flight recorder and navigation instrument

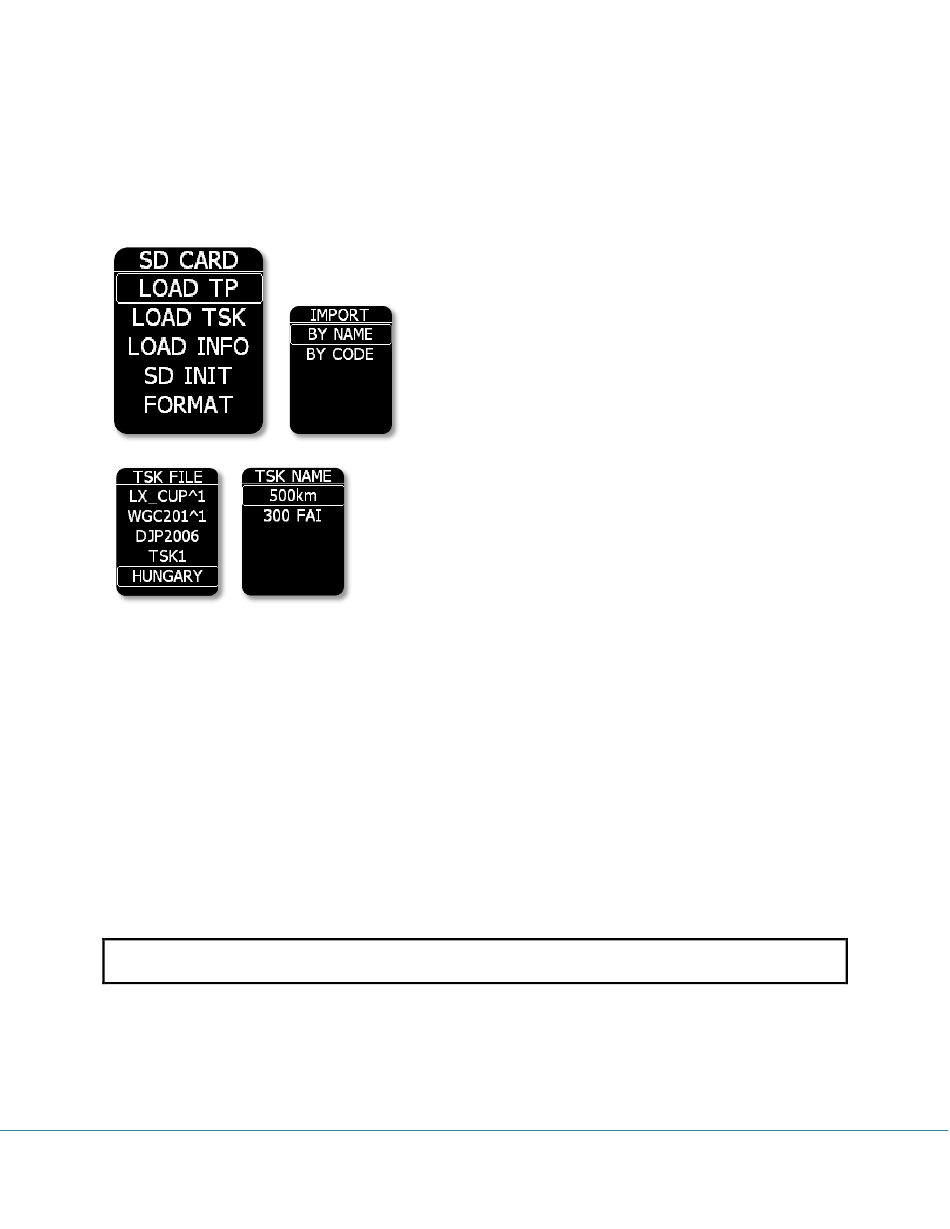

LOAD TP: Transfers turn point data from SD to device. Pressing the enter
button will show a list of first 20 *.cup formatted files in the LX/TP directory on
the card. Select the file of interest and start the transfer
with enter.
TP can be imported form CUP file by NAME or CODE.
LOAD TSK: Transfers task from SD to device. Pressing enter button
will show a list of first 20 *.cup formatted files in the LX/TP
directory on the card. Selecting file of interest will then give you a
list of first 20 listed tasks in selected cup file. Select task which you
wish to upload and the transfer of task is completed. Task must
have name in CUP file (1
Important!
st
parameter). If task doesn't have name, it
Page 14
