2 Getting started

The Call Recorder VoIP is set up in a sequence of steps. The following
paragraphs will describe the steps involved. They are:
•
Connecting the CR-VoIP unit to the network
•
Connecting the CR-VoIP unit to the PC by USB
•
Software installation
•
Set up of the software

2.1 Hardware installation

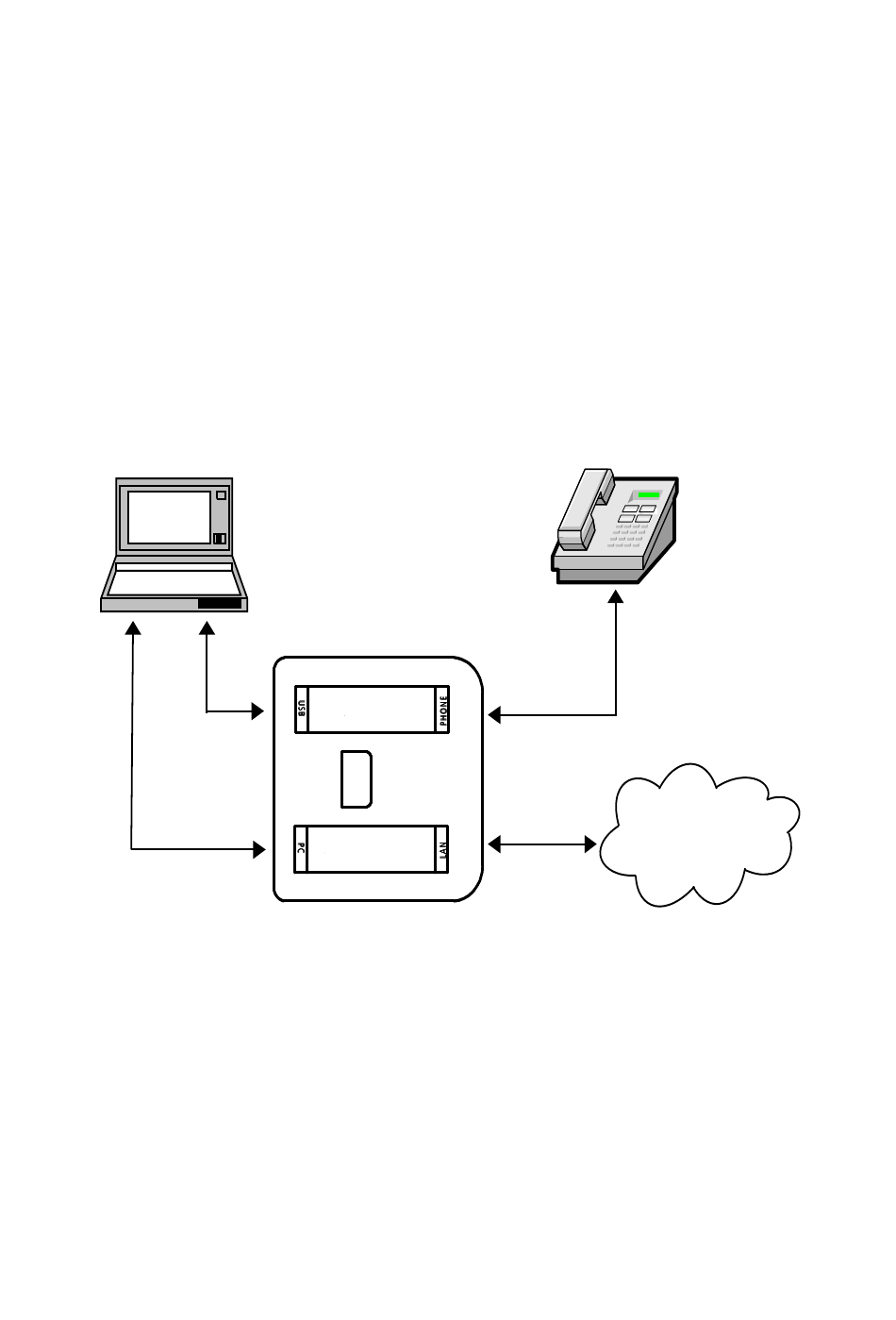

PC
D
B
A: A: A: A: Connect the LAN cable coming from the Telephone to the CR-VoIP
port marked "Phone".
B: B: B: B: Connect the LAN cable coming from the PC to the CR-VoIP port
marked "PC".
C: C: C: C: Connect the "WALL" VoIP/DATA-LAN to the CR-VoIP port marked
"LAN".
D: D: D: D: Connect the PC-USB to the CR-VoIP port marked "USB" (with cable
supplied).
