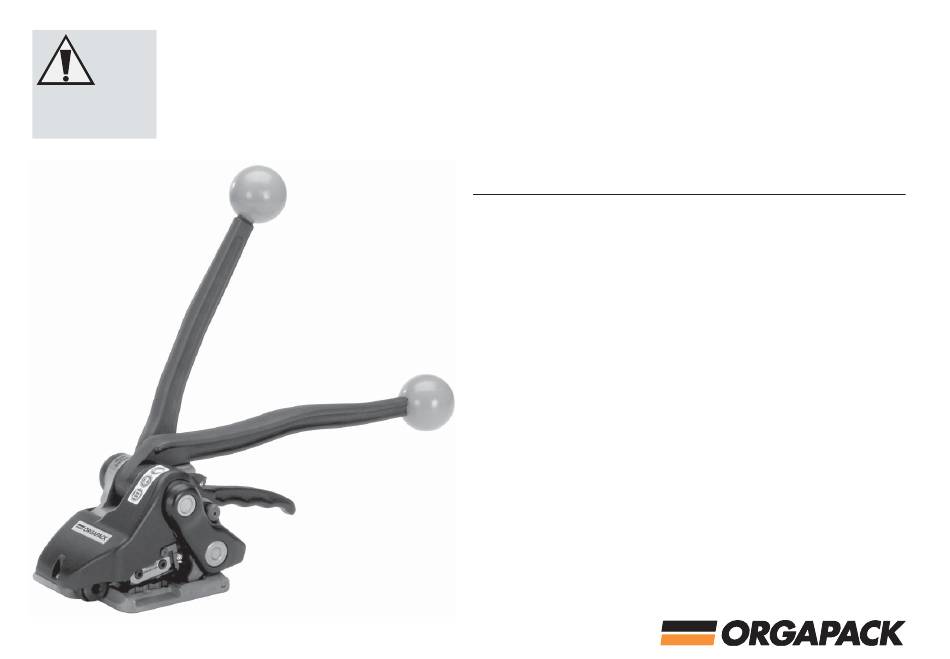

- Page 1 Before using the tool, read the operating instructions carefully. H-1067 OR-H 47 Hand tool for steel strapping 09/07...
-
Page 2: Table Of Contents
This tool is manufactured with no physi- tension wheel area. cal or chemical substances that could joint be dangerous to health. 7. Original ORGAPACK spare parts! ORGAPACK For disposal of all the parts, the Only original ORGAPACK spare Steel strap governmental instructions must be parts may be used. -
Page 3: Construction
ORGAPACK OR-H 47 Fig. a Construction 1. T ensioning lever 2. Sealing lever 3. Rocker lever 4. T ension wheel and tension plug 5. Strap guide pawl 6. Cutter knife 7. Die 8. Punch 9. Adjusting screw (cutting depth) Page 3 of 7... -
Page 4: Operating
ORGAPACK OR-H 47 Operating Fig. 1 – Place strap round packed goods (Fig. 1/1), so that the straps lie above each other on top of the package. Fig. 2 – Hold tool in right hand and raise rocker lever (Fig. 2/1) against sealing lever (2/2). - Page 5 ORGAPACK OR-H 47 Fig. 4 – When the strap tension is reached, move sealing lever (Fig. 4/1) to the stop.The right hand remains on the tensioning lever to resist the oppo- sing force. The strap is sealed and cut. If the strap cut is incorrect (see chapter 6.2).
-
Page 6: Maintenance
ORGAPACK OR-H 47 c)Replacing cutter knife Maintenance 6.3 Replacing wearing parts 6.2 Setting the cutting depth – Release tallow-drop screw (8/8) and remove and replace cutter knife a) Replacing die The setting of the cutting depth must (8/20).Adjust the setting depth after 6.1 Cleaning the tool... - Page 7 ORGAPACK OR-H 47 e) Replacing tension wheel – Release shoulder screw (9/64). – Lift rocker lever and remove bearing cover (9/61). – Remove distance washer (9/58), strap guide pawl (9/59) and dis tance washer (9/58). – Remove and replace tension wheel (9/57).
