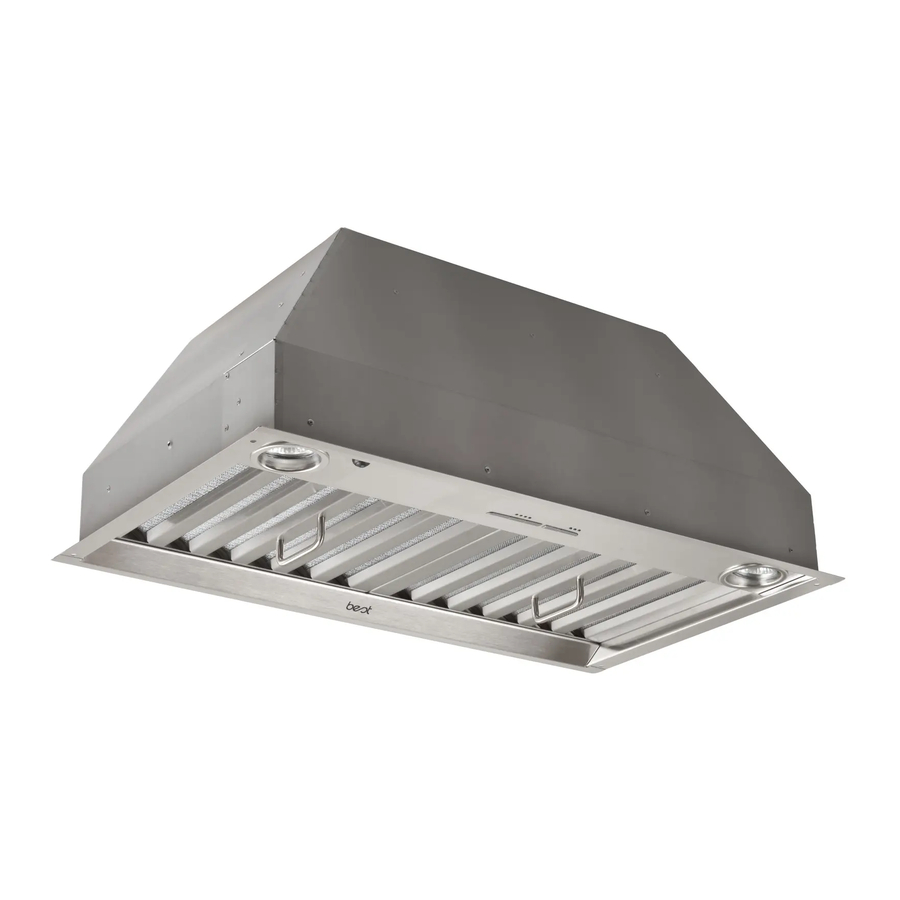

PK22

RANGE HOOD

Specially designed to be installed in custom canopy
hoods for use over residential commercial-style
cooking surfaces.

FEATURES

Italian design
Cabinet mount – custom application
Finish: 304 Stainless Steel #3 Brushed
Widths: 29-13/16", 38-7/16"
8" round duct connector/backdraft damper
Halogen lighting (2 bulbs included on 29-13/16" hood or 4
bulbs on 38-7/16" hood; Type GU10, MR16 shielded, 120
volt, 50 watts max.)
Slide controls: on-off, 3-speed
Quiet, dual centrifugal blowers with two high-efficiency
motors produce 1000 CFM
Easily accessible, dishwasher-safe aluminum/stainless
steel filters
Heat Sentry
- automatically turns blower to high speed
TM
when excess cooking heat is detected

OPTIONS

Stainless liner (Model Nos. L2936, L2942, L3848, L3854,
L3860)
Ambient light panel (Model Nos. ALP36, ALP42, ALP48,
ALP54, ALP60)
Exterior blower version (PKEX22) available, providing
600, 900, 1200, or 1500 CFM exhaust

SPECIFICATIONS

VOLTS
AMPS
CFM
120
6.23/7.06
1000
REFERENCE
QTY.
SONES
DUCT
10.5
8" round
BEST BY BROAN P.O. BOX 140 HARTFORD, WISCONSIN 53027
REMARKS
SPECIFICATION SHEET
Mount range hood so bottom of hood is
24" to 30" above cooking surface.
HVI-2100 CERTIFIED RATINGS comply with new
testing technologies and procedures prescribed by
the Home Ventilating Institute, for off-the-shelf
products, as they are available to consumers. Product
performance is rated at 0.1 in. static pressure, based
on tests conducted in AMCA's state-of-the-art test
laboratory.
Sones are a measure of humanly-
perceived loudness, based on laboratory
measurements.
Project
Location
Architect
Engineer
Contractor
Submitted by
60H
Date
99042853H
