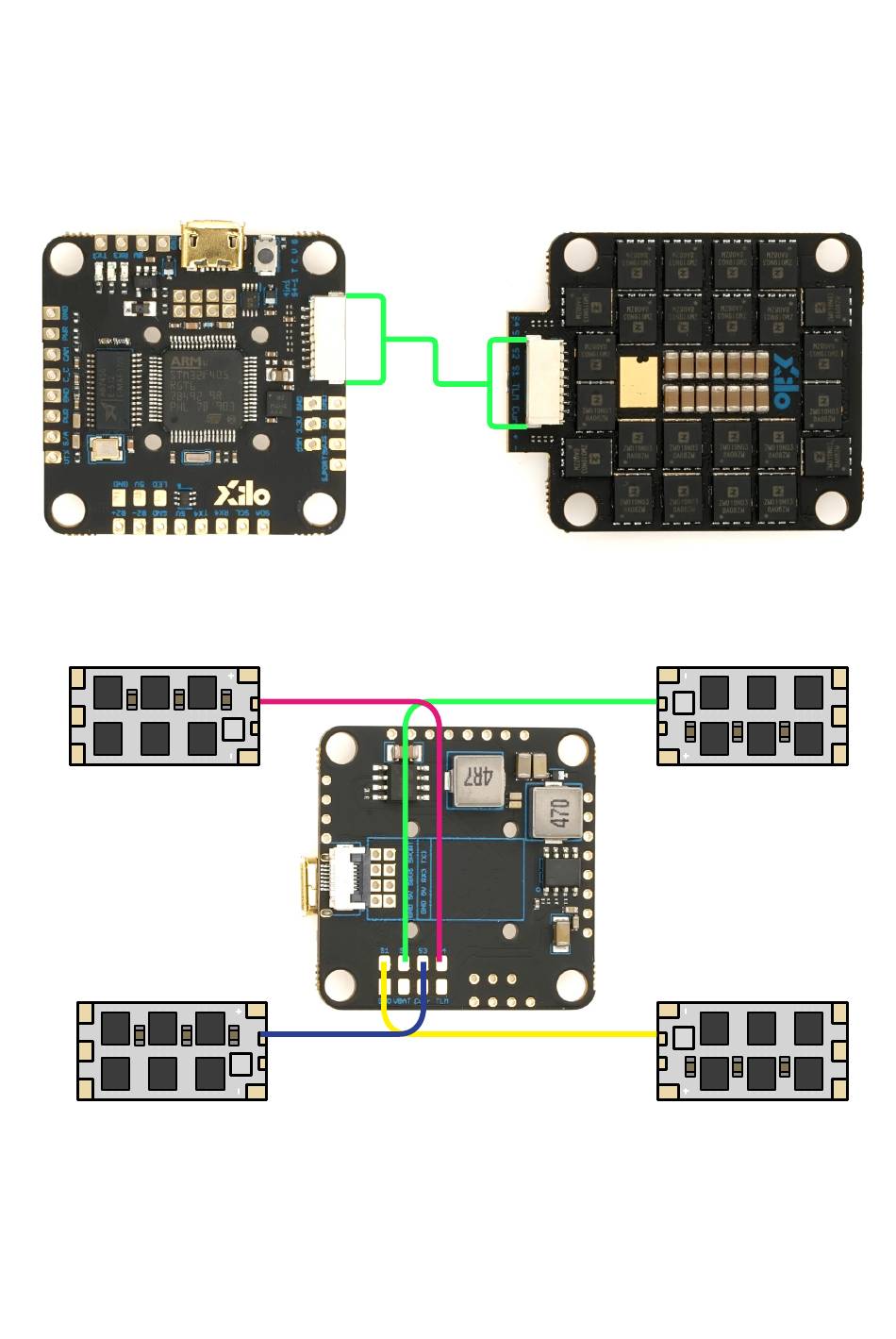

Wiring - ESC
4in1 ESC
The XILO 4in1 designed to support TLM(RPM/Voltage) and Current ADC, the Current Scale should be setted to 118
•
Single ESC
If the ESC supports TLM function, please connect all 4 ESC TLM wires together, solder on the TLM pads
•
If you are using PDB with current sensor(analog ADC), connect to the Curr pad
•
