Wiring - Receiver

The XILO FC supports these Receivers:
SBUS
•
SBUS+S.port
•
F.port
•
DSM2 Receiver
•
Crossfire
•
These receivers are not supported any more, if you need, with patched firmware, it could be used:
Stand PWM receiver
•
PPM receiver
•

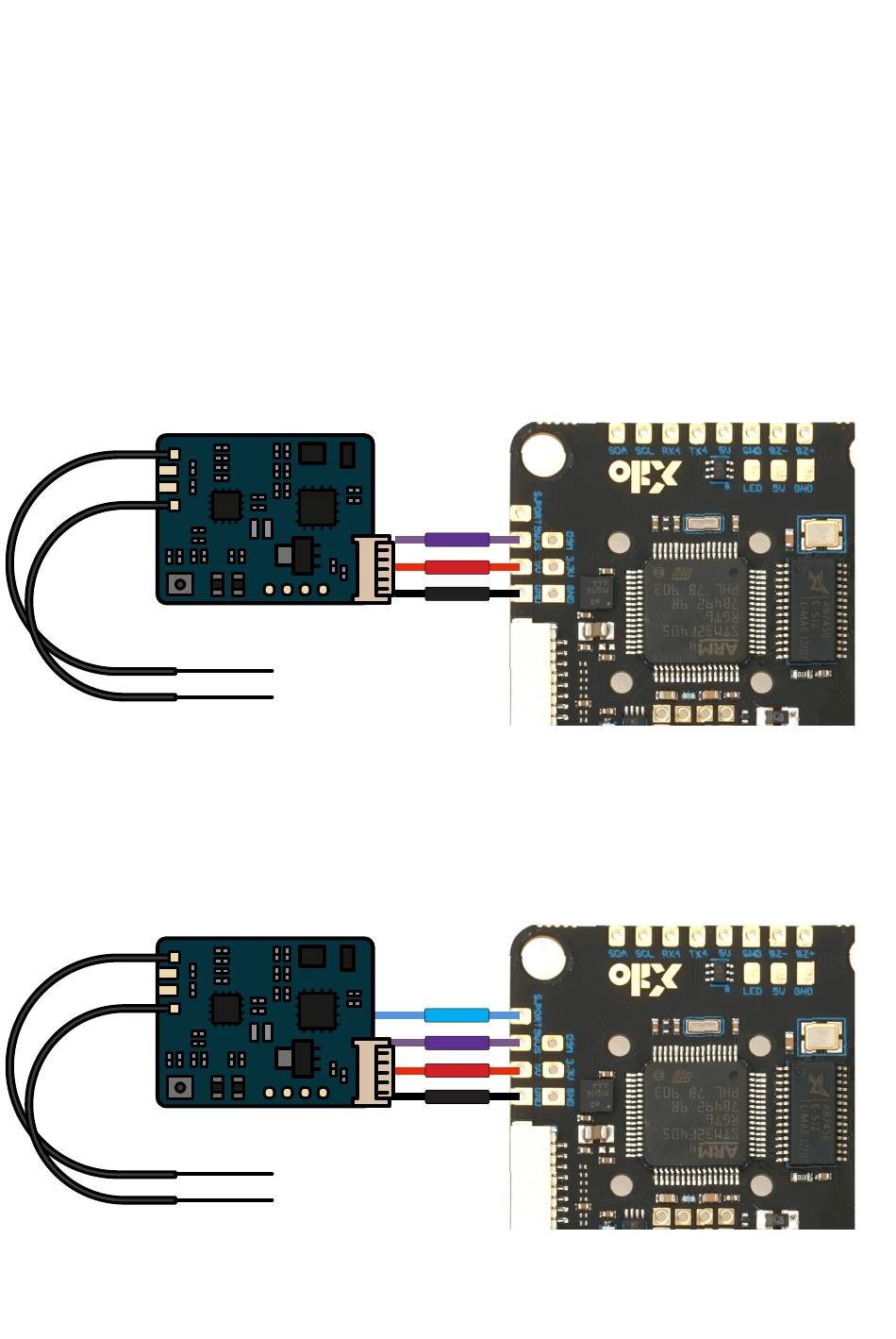

SBUS Receiver wiring:

Initialize CLI:

SBUS + S.Port Receiver wiring:

SBUS
5V
GND
S.port
SBUS
5V
GND
