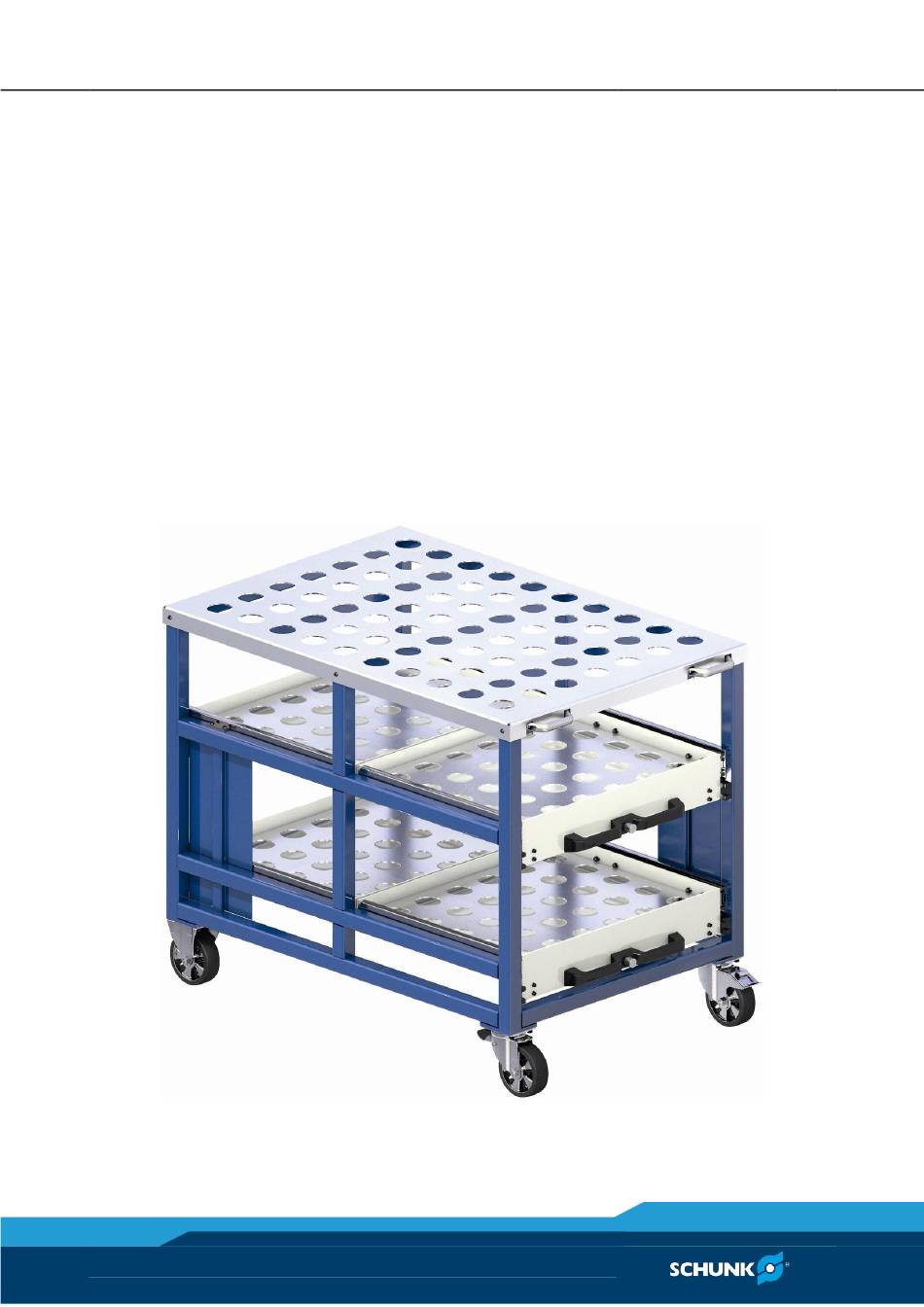

- Page 1 Translation of Original Operating Manual VERO-S Setup cart Assembly and operating manual Superior Clamping and Gripping...
- Page 2 Imprint Copyright: This manual remains the copyrighted property of SCHUNK GmbH & Co. KG. It is solely supplied to our customers and operators of our products and forms part of the product. This documentation may not be duplicated or made accessible to third parties, in particu- lar competitive companies, without our prior permission.
-
Page 3: Table Of Contents
Table of contents Table of contents 1 General ........................4 1.1 Warnings ........................4 1.2 Applicable documents ....................5 2 Basic safety notes ..................... 6 2.1 Intended use ......................6 2.2 Not intended use ...................... 6 2.3 Notes on particular risks ................... 6 2.4 Instructions for safe operation ................. -
Page 4: General
General General This operating manual is an integral component of the product and contains important information on safe and proper assembly, commissioning, operation, care, maintenance and disposal. This manual must be stored in the immediate vicinity of the product where it is accessible to all users at all times. Before using the product, read and comply with this manual, especially the chapter “Basic safety notes”.(... -
Page 5: Applicable Documents
General NOTICE Material damage Information about avoiding material damage. Applicable documents General terms of business Catalog data sheet of the purchased product The documents listed here, can be downloaded on our homepage www.schunk.com 01.01|Setup cart |en... -
Page 6: Basic Safety Notes
Only original SCHUNK spare parts may be used. Intended use This product is used to store devices and tools as well as other suitable technical facilities. - Page 7 Basic safety notes WARNING Risk of injury due to falling parts when setting up, operating, dismantling, and transporting the setup cart. Parts that have not been properly secured or incorrectly positioned parts can come loose and fall down. • Use suitable lifting equipment and means of transport. •...
-
Page 8: Instructions For Safe Operation
Basic safety notes CAUTION Risk of injury from parts which are under spring force (drawer locking, drawer pull-out safety device) • Wear protective gloves during assembly, operation and disassembly. CAUTION There is a risk of crushing when loading and unloading the setup cart. -
Page 9: Constructional Changes, Attachments, Or Modifications
• Make sure the clamping pin holder is positioned correctly. 2.4.1 Constructional changes, attachments, or modifications Additional threads, bore holes or attachments which are not supplied as accessories by SCHUNK may affect safety. They may only be applied after obtaining the prior consent of SCHUNK. Personnel qualification Only qualified specialist personnel with the relevant safety training may commission and operate the setup cart. -
Page 10: Using Personal Protective Equipment
Only allow specialists to remedy malfunctions. Spare parts Only use original SCHUNK spare parts. Environmental regulations Comply with the applicable legal norms when disposing of waste. Using personal protective equipment... -
Page 11: Warranty
Not covered by the warranty are clamping pin holders, storage racks and rack inserts, screw connections, springs, bearings, screws and wearing parts. Scope of delivery 1 VERO-S setup cart (RWA) 1 Assembly and operating manual Accessories (see catalog or data sheets when ordering separately) -
Page 12: Technical Data
Technical data Technical data Total height 904 mm Overall width 1151.5 mm Overall depth 765.6 mm Total weight 181.4 kg Max. load rating per drawer 180 kg Max. load rating of the storage rack 400 kg Full pull-out drawer 482.5 mm Clear height in the drawer 213.5 mm Storage height in the drawer... -
Page 13: Functional Description And Operation
Functional description and operation Functional description and operation The item numbers specified for the corresponding individual components relate to chapter drawings.( 12, Page 25) Carefully lift the product (e.g. using suitable lifting gear) from the packaging. CAUTION Danger of injury due to sharp edges and rough or slippery surfaces Use personal protective gear, especially safety gloves. -
Page 14: Drawers
Functional description and operation For more information on transporting, please see chapter "Transport" ( 6.3, Page 16). When sliding the setup cart, the stopping distance needs to be taken into consideration according to the load. The holding brakes are not suitable for decelerating the setup cart. The holding brake is used to prevent it from moving of its own accord after already stopping. - Page 15 Functional description and operation Here, take the center of gravity position of the drawer loading into consideration. Maximum load rating of the storage rack and the four drawers of the setup cart Maximum load of the upper drawers with otherwise unloaded setup cart Maximum load of the lower drawers with otherwise unloaded setup cart 01.01|Setup cart |en...
-
Page 16: Transport
Functional description and operation Transport When sliding the setup cart over longer distances, the following notes must be taken into account depending on the means of transport: • Sliding using manpower: The setup cart does not have a brake which would make deceleration possible when sliding. -
Page 17: Clamping Pin Holder
Clamping pin holder Clamping pin holder The item numbers specified for the corresponding individual components relate to chapter drawings.( 12, Page 25) CAUTION There is a danger of crushing during assembly and disassembly of the clamping pin holders. • Use assembly aid. •... - Page 18 Clamping pin holder The storage rack and the rack inserts have a gauge for bore holes of 100 mm in both directions. Gauge for bore holes of 100 mm of the storage rack and the insert racks Assembly steps: Positioning the clamping pin holders centrally above the bore hole of the storage rack or rack insert.
-
Page 19: Disassembly
Clamping pin holder Using a soft-blow hammer is recommended for the assembly. A turned part with collar can be used to make assembly easier. This can be inserted into the holding bore hole of the clamping pin and thus provides a central introduction of mating force. For example, a turned part with collar For example, a turned part with collar as an assembly aid for the clamping... -
Page 20: Maintenance And Care
Maintenance and care Maintenance and care Maintenance The improper use of the setup cart, in particular the drawer pull- out safety device, can lead to restrictions in the functionality. The bracket (item 9) below the drawer's underside can change direction (parallel to the guide part) if the drawer is jerked open or closed. -
Page 21: Care
Maintenance and care Activation of the drawer pull-out safety device: The drawers must be closed. Under each drawer, the pin (item 3) must be located within the groove of the guide part (item 10). Position the cover plate (item 7) and fasten with the two screws (item 25). - Page 22 Maintenance and care • With stubborn contamination, like greasy or oily substances, aroma-free gasoline hydrocarbons can be used. • Do not use any scouring or abrasive materials. • Do not use any acidic or strongly alkaline cleaning or surface- active agents. •...
-
Page 23: Trouble Shooting
• Disassemble the mounted clamping pin holders (plastic) and dispose of them properly in line with the statutory provisions. • Dispose of the setup cart's metal parts as scrap metal. Alternatively, you can return the setup cart to SCHUNK for proper disposal. 01.01|Setup cart |en... -
Page 24: Spare Parts
Spare parts Spare parts When ordering spare parts, it is indispensable that the exact designation of the spare parts be indicated. Generally not covered by the warranty are clamping pin holders, storage racks and rack inserts, screw connections, springs, bearings, screws and wearing parts. Item Designation Quantity... -
Page 25: Drawings
Drawings Drawings 01.01|Setup cart |en... - Page 26 Drawings 01.01|Setup cart |en...
- Page 27 Drawings 01.01|Setup cart |en...
