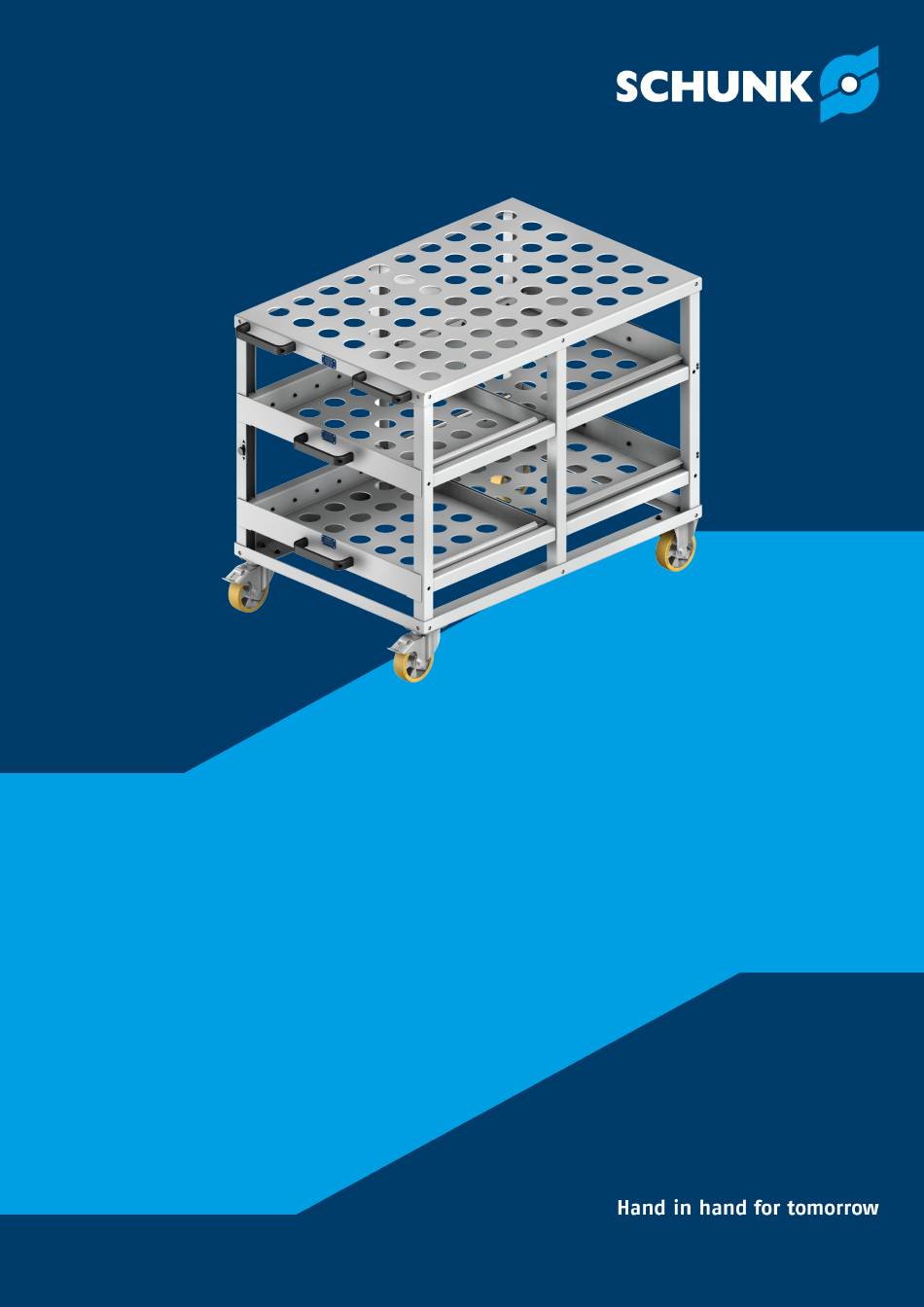

- Page 1 VERO-S setup cart RWA2 Assembly and operating manual Translation of Original Operating Manual...
- Page 2 Imprint Imprint Copyright: This manual is protected by copyright. The author is SCHUNK SE & Co. KG. All rights reserved. Technical changes: We reserve the right to make alterations for the purpose of technical improvement. Document number: 1551792 Version: 01.00 | 10/05/2023 | en...
-
Page 3: Table Of Contents
Table of contents Table of Contents 1 General ..................... 4 Presentation of Warning Labels .............. 1.2 Applicable documents ................2 Basic safety notes................. 5 2.1 Intended use..................2.2 Not intended use ................2.3 Notes on particular risks ............... 2.4 Instructions for safe operation ............... 2.4.1 Constructional changes, attachments, or modifications ...... -
Page 4: General
Information about avoiding material damage. 1.2 Applicable documents General terms of business * Catalog data sheet of the purchased product * The documents labeled with an asterisk (*) can be downloaded from schunk.com. 01.00 | RWA2 | VERO-S setup cart | en | 1551792... -
Page 5: Basic Safety Notes
Only original SCHUNK spare parts may be used. 2.1 Intended use This product is used to store devices and tools as well as other suitable technical facilities. - Page 6 Basic safety notes WARNING Risk of injury as a result of the setup cart tilting if loading of the storage rack or the drawers is uneven or top-heavy. Load the setup cart evenly. Observe the maximum load weight. WARNING Risk of injury due to crushing or hitting when moving the setup cart.
-
Page 7: Instructions For Safe Operation
Basic safety notes CAUTION Risk of slipping or falling if the operational environment of the setup cart is not clean (e.g. contaminated with cooling lubricants or oil). Ensure that the working environment is clean before starting assembly, disassembly and de-installation work. Wear suitable safety boots. -
Page 8: Constructional Changes, Attachments, Or Modifications
Basic safety notes 2.4.1 Constructional changes, attachments, or modifications Additional threads, bore holes or attachments which are not supplied as accessories by SCHUNK may affect safety. They may only be applied after obtaining the prior consent of SCHUNK. 2.5 Personnel qualification Only qualified specialist personnel with the relevant safety training may commission and operate the setup cart. -
Page 9: Warranty
Warranty 3 Warranty If the product is used as intended, the warranty is valid for 24 months from the ex-works delivery date under the following conditions: Observe the applicable documents, } 1.2 [/ 4] Observe the ambient conditions and operating conditions Observance of the permitted load rating of the individual drawers and the storage rack. -
Page 10: Scope Of Delivery
Scope of delivery 4 Scope of delivery 1 VERO-S setup cart 2 (RWA2) 1 Assembly and operating manual 4.1 Accessories (see catalog or data sheets when ordering separately) Clamping pin holder (RWH mini 74-25) Clamping pin holder (RWH mini 74-45) Clamping pin holder (RWH plus 74-25) Clamping pin holder (RWH plus 74-45) 01.00 | RWA2 | VERO-S setup cart | en | 1551792... -
Page 11: Technical Data
Technical data 5 Technical data Total height [mm] Overall width [mm] 1239.8 Overall depth [mm] Total weight [kg] Max. load rating per drawer [kg] 115 / 150 Max. load rating of the storage rack [kg] Full pull-out drawer [kg] Clear height in the drawer [mm] 199 / 239,5 Storage height in the drawer [mm] 279 / 319,5... -
Page 12: Functional Description And Operation
Functional description and operation 6 Functional description and operation The item numbers specified for the corresponding individual components relate to the chapter Drawings, } 12 [/ 24] Carefully lift the product (e.g. using suitable lifting gear) from the packaging. CAUTION Danger of injury due to sharp edges and rough or slippery surfaces Use personal protective gear, especially safety gloves. -
Page 13: Drawers
Functional description and operation The setup cart is for the quick access to devices and tools as well as other suitable technical facilities directly on the machine. It is not intended for the transport of objects over long distances. For more information on transporting, please see chapter "Transport"... - Page 14 Functional description and operation Maximum loading of the drawers and avoiding the risk of tilting Every drawer has a max. load rating of 150 kg. If loading is uneven or if the setup cart is unloaded, the max. loading of a drawer reduces to 115 kg.
- Page 15 Functional description and operation Maximum load of the upper drawers with otherwise unloaded setup cart Maximum load of the lower drawers with otherwise unloaded setup cart Centre of gravity Centre of gravity Observation of the drawer's centre of gravity position with otherwise unloaded setup cart 01.00 | RWA2 | VERO-S setup cart | en | 1551792...
-
Page 16: Transport
Functional description and operation 6.3 Transport When sliding the setup cart over longer distances, the following notes must be taken into account depending on the means of transport: Sliding using manpower: The setup cart does not have a brake which would make deceleration possible when sliding. -
Page 17: Clamping Pin Holder
Clamping pin holder 7 Clamping pin holder The item numbers specified for the corresponding individual components relate to the chapter Drawings, } 12 [/ 24] CAUTION There is a danger of crushing during assembly and disassembly of the clamping pin holders. Use assembly aid. Wear personal protective equipment. - Page 18 Clamping pin holder Assembly steps: Positioning the clamping pin holders centrally above the bore hole of the storage rack or drawer. Positioning of the clamping pin holder centrally above the bore hole Move the clamping pin holder to its end position with soft hammer blows.
-
Page 19: Disassembly
Clamping pin holder 7.2 Disassembly The clamping pin holders for holding SPx 20 or SPx 40 clamping pins can be loosened again with light hammer blows along the length. Hammer blows along the length of the clamping pin holder for disassembly 01.00 | RWA2 | VERO-S setup cart | en | 1551792... -
Page 20: Maintenance
Maintenance 8 Maintenance 8.1 Maintenance The setup cart is maintenance-free. 8.2 Care The frame and the drawers of the setup cart are powder-coated. The storage rack and rack inserts are stainless steel. Cleaning recommendation for powder-coated surfaces: (check on non-visible surfaces first, e.g. on the underside of the drawer) Use cleaning towels or cloths / natural or plastic sponges. -
Page 21: Trouble Shooting
Trouble shooting 9 Trouble shooting Drawer does not open / close correctly. Check that the drawer locking moves freely. The parking brake of the guide roller can no longer be operated. Check that the brake works properly and replace the guide roll if necessary. -
Page 22: Disposal
Dispose of the setup cart's metal parts as scrap metal. Alternatively, you can return the setup cart to SCHUNK for proper disposal. 01.00 | RWA2 | VERO-S setup cart | en | 1551792... -
Page 23: Spare Parts
Spare parts 11 Spare parts When ordering spare parts, it is indispensable that the exact designation of the spare parts be indicated. Generally not covered by the warranty are clamping pin holders, screw connections, springs, bearings, screws and wearing parts. Item Designation Quantity Order Number... -
Page 24: Drawings
Drawings 12 Drawings 01.00 | RWA2 | VERO-S setup cart | en | 1551792... - Page 25 Drawings 01.00 | RWA2 | VERO-S setup cart | en | 1551792...
- Page 26 Drawings 01.00 | RWA2 | VERO-S setup cart | en | 1551792...
- Page 27 01.00 | RWA2 | VERO-S setup cart | en | 1551792...
- Page 28 H.-D. SCHUNK GmbH & Co. Spanntechnik KG Lothringer Str. 23 D-88512 Mengen Tel. +49-7572-7614-0 Fax +49-7572-7614-1099 info@de.schunk.com schunk.com Folgen Sie uns I Follow us Wir drucken nachhaltig I We print sustainable...
