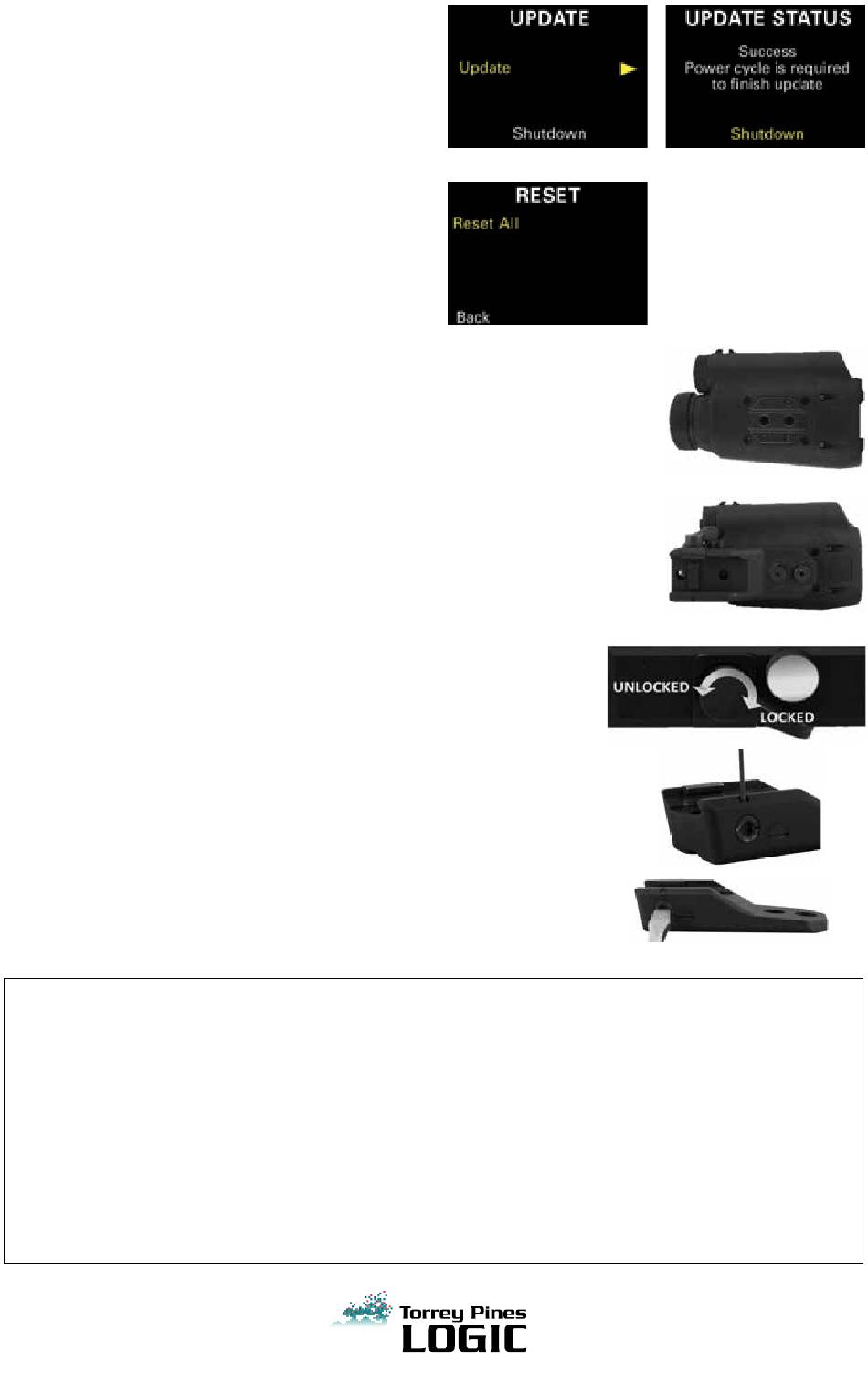

Torrey Pines Logic T15 User Manual page 4

After the update file is loaded into the above
'T15 Drive' directory, the T15 screen indicates
an 'Update' option. Select 'Update' to begin.
A 'Success' update status message appears
when complete. Select Shutdown and power
the T15 back on to finish the update.
RESET MENU
The T15 settings can be restored to factory
defaults if desired. Select Reset All and T15
settings will be restored to factory defaults.
MOUNT OPTIONS
The T15 has a threaded ¼"-20 mounting base for using the T15 with
hand grips, tripods and other standard mounts. Additionally, a Picatinny
rail mount is supplied with the T15.
RAIL MOUNT INSTALLATION
Attach the quick release rail mount onto the T15 with the two supplied
¼"-20 fasteners and 1/8" Allen wrench. Tighten the fasteners until
secure.
RAIL MOUNT ADJUSTMENT
The quick release mount can be adjusted for any rail.
If the mount does not firmly lock onto the rail or the unit wiggles
on the rail after locked, an adjustment should be made.
Loosen the grub set screw on the bottom of the rail mount with the
supplied .050 Allen wrench as shown.
After the grub screw is loose, use a flathead screwdriver to adjust
rail preload. Adjust the screw clockwise to increase arm preload or
counterclockwise to reduce arm preload.
When the mount attaches to the rail correctly, retighten the grub set
screw back down until snug.
COPYRIGHTS AND OTHER NOTICES
DISCLAIMER: TORREY PINES LOGIC, INC. RESERVES THE RIGHT TO MAKE CHANGES IN SPECIFICATIONS AT ANY TIME AND WITHOUT NOTICE. THE
INFORMATION PROVIDED BY THIS DOCUMENT IS BELIEVED TO BE ACCURATE AND RELIABLE. HOWEVER, NO RESPONSIBILITY IS ASSUMED BY
TORREY PINES LOGIC, INC. FOR ITS USE; OR FOR ANY INFRINGEMENTS OF PATENTS OR OTHER RIGHTS OF THIRD PARTIES FROM ITS USE. NO
LICENSE IS GRANTED UNDER ANY PATENTS OR PATENT RIGHTS OF TORREY PINES LOGIC, INC.
THIS DEVICE MAY CONTAIN COMMODITIES, TECHNOLOGY OR SOFTWARE SUBJECT TO EXPORT LAWS AND REGULATIONS FROM THE US AND
OTHER COUNTRIES. DIVERSION CONTRARY TO LAW IS PROHIBITED.
FCC STATEMENT
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY
NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY
CAUSE UNDESIRED OPERATION.
WARRANTY
TPL, INC. WARRANTS THIS PRODUCT AGAINST DEFECTS IN MATERIAL/WORKMANSHIP FOR 60 DAYS FROM PURCHASE. IF THE PRODUCT IS
DEFECTIVE, CONTACT TPL TO OBTAIN AN RMA NUMBER AND RETURN INSTRUCTIONS. TPL IS NOT RESPONSIBLE FOR WARRANTY SERVICE AS A
RESULT OF MISUSE, ABUSE, NEGLECT OR BY DAMAGE FROM ANY DISASTERS SUCH AS FIRE OR FLOOD. THE T10 SYSTEM IS NOT WATERPROOF.
ANY SIGNS OF WATER SUBMERSION OR TAMPERING WILL VOID THIS WARRANTY.
10505 Roselle Street, #100 • San Diego, CA 92121 • 1.858.755.4549 • www.tplogic.com
12/05/16A
