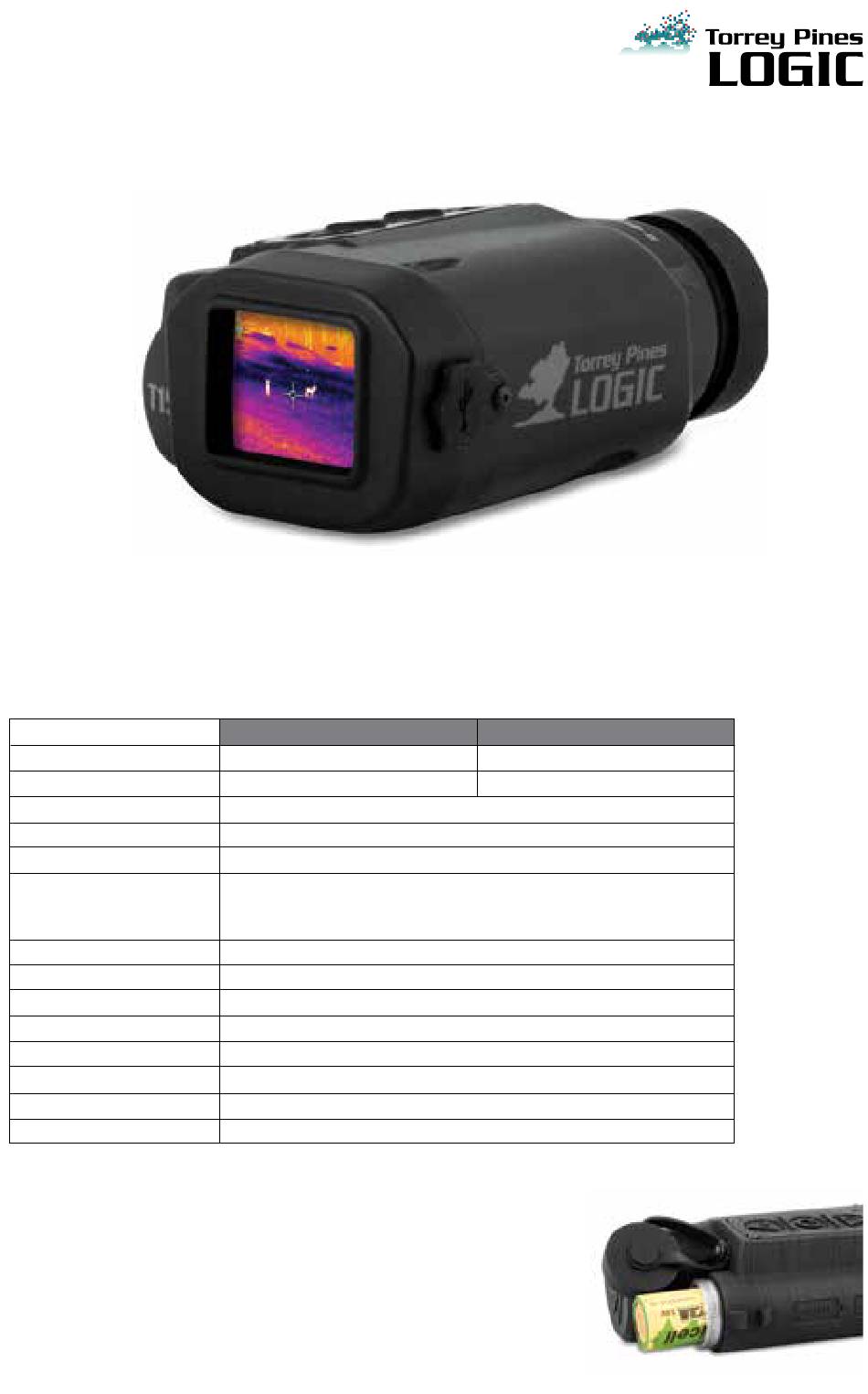

T15
USER'S GUIDE
T15 | T15-C
KIT CONTENTS

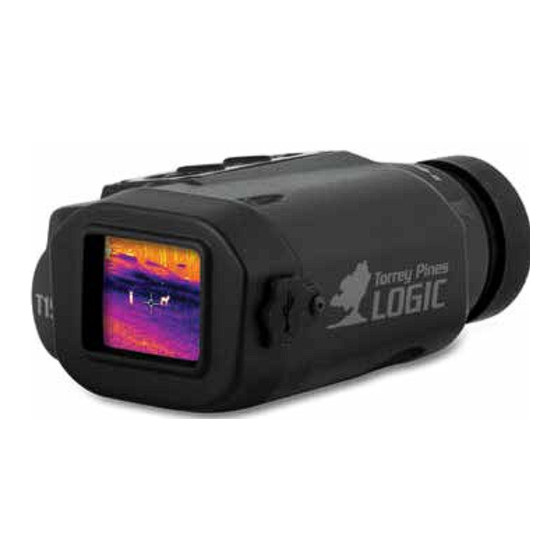

T15 Thermal Imager
CR123 lithium battery (2)
UNIT SPECIFICATIONS
Weight w/o battery
Zoom
Field-of-View
Minimum Focus Distance
Range Performance
Focus
Spectral Range
Power
Resolution
Display
Operating Temperature
Frame Rate/Shutter
Accessories
INSTALLING CR123 BATTERIES
The T15 uses two 3 volt CR123 batteries. Quality photo lithium
batteries are recommended for optimal unit performance.
1. Remove the threaded battery cap and install the batteries
according to unit markings.
2. Replace the battery cap.
Quick Release Rail Mount
¼-20" rail mount fastener (2)
T15-C
Size
4.1"x 2.7"x 1.7" (105 x 70 x 44mm) 4.5"x 2.7"x 2.5" (114 x 79 x 70mm)
225g
3-8x Continuous optical zoom with auto focus adjustment
Human Detection Range: 162m @ 3x – 436m @8x
Human Recognition Range: 81m @ 3x - 218m @ 8x
Human Identification Range: 40m @ 3x - 109m @ 8x
Optional 2x afocal adapter; Optional Clip-On adapter
from 18.7° to 7°
2 meters
Focus free
8-14 micron
2 CR123, 3V – 8+ hours of operation
160x120 pixels FLIR Lepton 3
1.5" OLED
-10° to +45° C
9Hz with Shutter
Allen wrenches: .050" and 1/8"
USB cable
T15
310g w/ mount
Advertisement
Subscribe to Our Youtube Channel
Summary of Contents for Torrey Pines Logic T15
- Page 1 Accessories Optional 2x afocal adapter; Optional Clip-On adapter INSTALLING CR123 BATTERIES The T15 uses two 3 volt CR123 batteries. Quality photo lithium batteries are recommended for optimal unit performance. 1. Remove the threaded battery cap and install the batteries according to unit markings.
- Page 2 Note: A light ring may appear in the center of the display when no thermal return is on screen. This is normal. OPTICAL ZOOM CONTROL The T15 has 3-8x optical zoom control. Turn the lens clockwise to reduce image zoom and counter-clockwise to increase image zoom. COLOR MODE SELECTION The T15 has 4 color modes.
- Page 3 Shutoff - Power Down; Off (never), 1, 5, 10 minutes SLEEP OPTIONS The T15 will exit Dim and Standby modes after a slight unit movement. The unit fully powers down if a unit shutoff activates. The deeper sleep mode will have higher priority if two or more sleep modes are set to the same timer.
- Page 4 INFORMATION PROVIDED BY THIS DOCUMENT IS BELIEVED TO BE ACCURATE AND RELIABLE. HOWEVER, NO RESPONSIBILITY IS ASSUMED BY TORREY PINES LOGIC, INC. FOR ITS USE; OR FOR ANY INFRINGEMENTS OF PATENTS OR OTHER RIGHTS OF THIRD PARTIES FROM ITS USE. NO LICENSE IS GRANTED UNDER ANY PATENTS OR PATENT RIGHTS OF TORREY PINES LOGIC, INC.
