Torrey Pines Logic T15 User Manual page 3

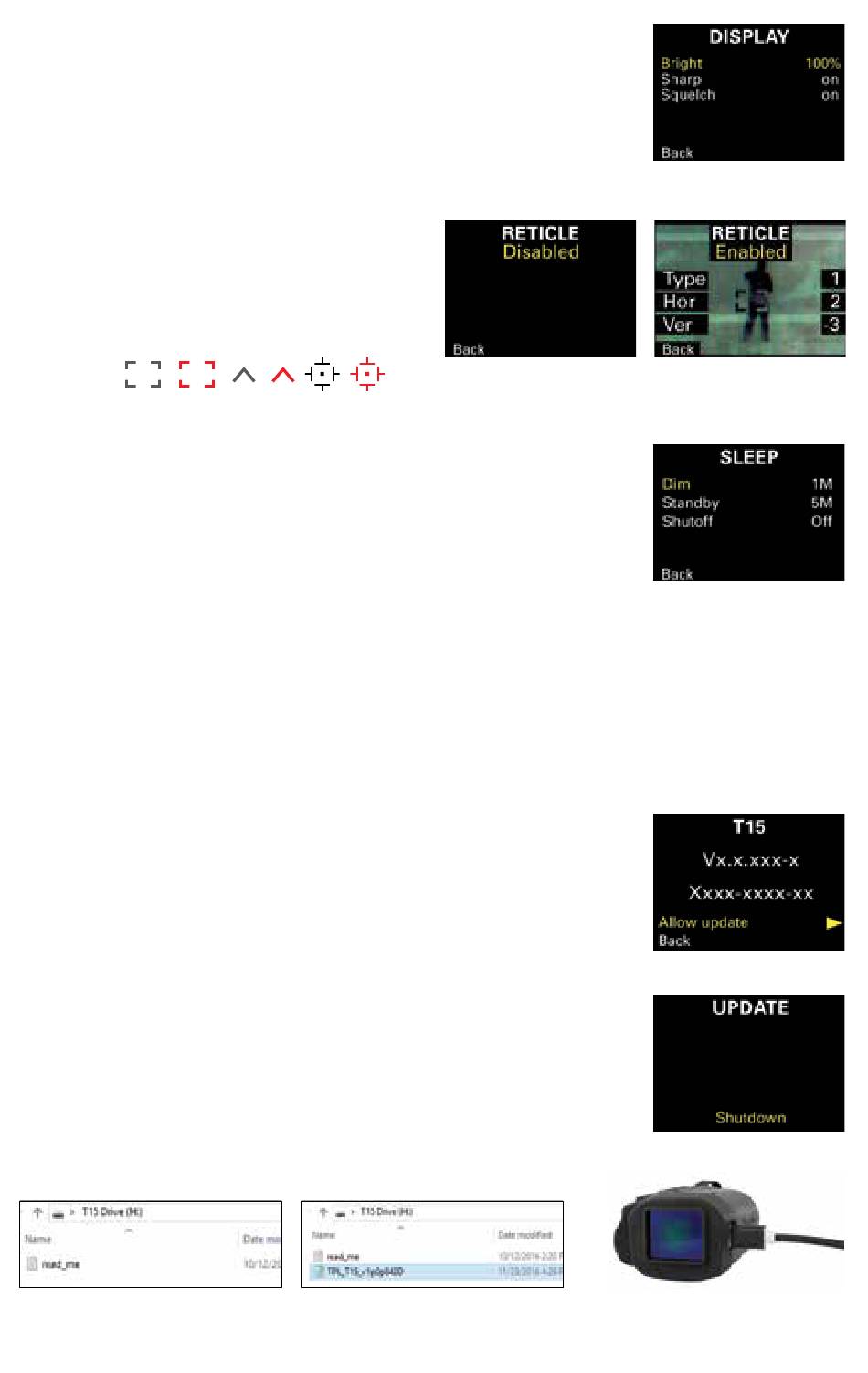

DISPLAY MENU
Display brightness (Bright) can be optimized for different conditions.
Brightness can be adjusted between 5 settings, ranging from 20%
(darkest) to 100% (brightest).
Sharp toggles the image sharpness filter On/Off. Squelch minimizes
display noise when no thermal return is present.
RETICLE MENU
The T15 reticle can be enabled or disabled.
There are six reticle types. The reticle can be
sighted using horizontal (Hor) and vertical (Ver)
offsets between +/-9 pixels.
Reticle Types
1
SLEEP MENU
The sleep menu offers battery saving options. Each sleep mode
(Dim, Standby, Shutoff) can individually be set to 1, 5, or 10 minute
timers.
Dim - Screen Dims; Off (never), 1, 5, 10 min..
Standby - System Standby; Off (never), 1, 5, 10 min.
Shutoff - Power Down; Off (never), 1, 5, 10 minutes
SLEEP OPTIONS
The T15 will exit Dim and Standby modes after a slight unit movement. The unit fully powers
down if a unit shutoff activates. The deeper sleep mode will have higher priority if two or more
sleep modes are set to the same timer. Timer order of priority is (highest to lowest):
Shutoff > Standby > Dim
VERSION/UPDATE SCREEN
When selected from the main menu, the version screen provides
T15 unit version information. Select Allow Update to begin a
firmware update process. A MAC or PC with the updated firmware
file is required.
T15 UPDATE
Connect the T15 to a PC or MAC with the supplied USB cable while the
T15 is on the UPDATE screen. NOTE: The only way to exit the UPDATE
screen is to Shutdown the unit and power the unit back on.
While the T15 is connected to a PC/MAC in the update mode, the T15
will mount to the computer like an SD card as 'T15 Drive'. Download the
new T15 firmware file and copy the file into the 'T15 Drive' directory.
2 3 4 5
Reticle disabled
6
3
Reticle enabled with
adjustments
To PC / Mac
