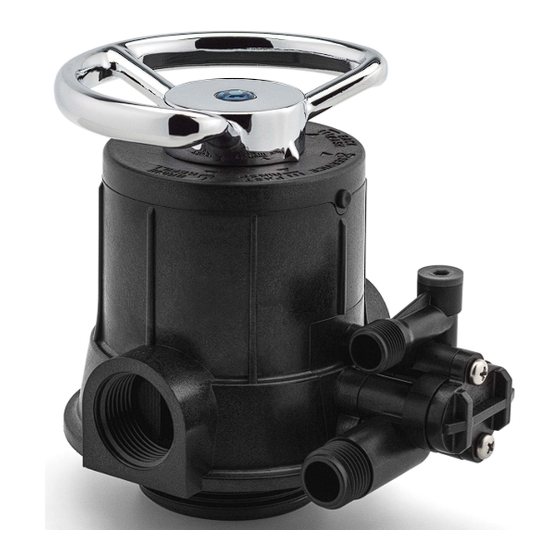

- Page 1 AQT-MSV-1 OPERATIONAL MANUAL WWW.AQUATROLTECH.COM...
-
Page 2: Specifications
CON TROL VALVES SPECIFICATIONS DIAGRAM AQUATROL P.O. Box 2235 Chino Hills, CA 91709 •... - Page 3 Brine Refill. FAST RINSE Raw water enters the valve and flows through the resin (down-flow), then 5 minutes. upward the riser pipe to the valve body and finally exit through drain valve. AQUATROL P.O. Box 2235 Chino Hills, CA 91709 •...
- Page 4 CON TROL VALVES OPERATION 1. SERVICE 2. BACKWASH AQUATROL P.O. Box 2235 Chino Hills, CA 91709 •...
- Page 5 CONT ROL VA LV ES OPERATION 3.1 BRINE DRAW 3.2 SLOW RINSE (same position as brine draw after brine is finished) AQUATROL P.O. Box 2235 Chino Hills, CA 91709 •...
- Page 6 CON TROL VALVES OPERATION 4. BRINE TANK REFILL 5. FAST RINSE AQUATROL P.O. Box 2235 Chino Hills, CA 91709 •...
-
Page 7: Troubleshooting
1. Change valve CONTINUALLY 1. Readjust pressure to the 1. Excess pressure in pipeline TANK recommended operating pressure 2. Pipeline blocked or plugged OR VALVE LEAKS 2. Check pipelines and change if necessary AQUATROL P.O. Box 2235 Chino Hills, CA 91709 •... - Page 8 INJECTORS FOR AQT-MSV-1 Use the following table to choose the correct injector depending on the tank size. TANK SIZE VALVE INJECTOR 7” -12” AQT-MSV-1 BLACK 13” -14” AQT-MSV-1 16” AQT-MSV-1 GREEN AQT-MSV-1 Specifications: Temp Range: 41 F (5 C) – 113 F (45 º...
