GitHub: AD8232 Heart Rate Monitor/.../Heart_Rate_Display_Arduino.ino
and open the file. Make sure to select the correct board (i.e. Arduino Pro Mini
You can cut and paste the code straight from GitHub or clone the repository
3.3V/8MHz) and COM port. When you are ready, hit the upload button to upload the code to your board.

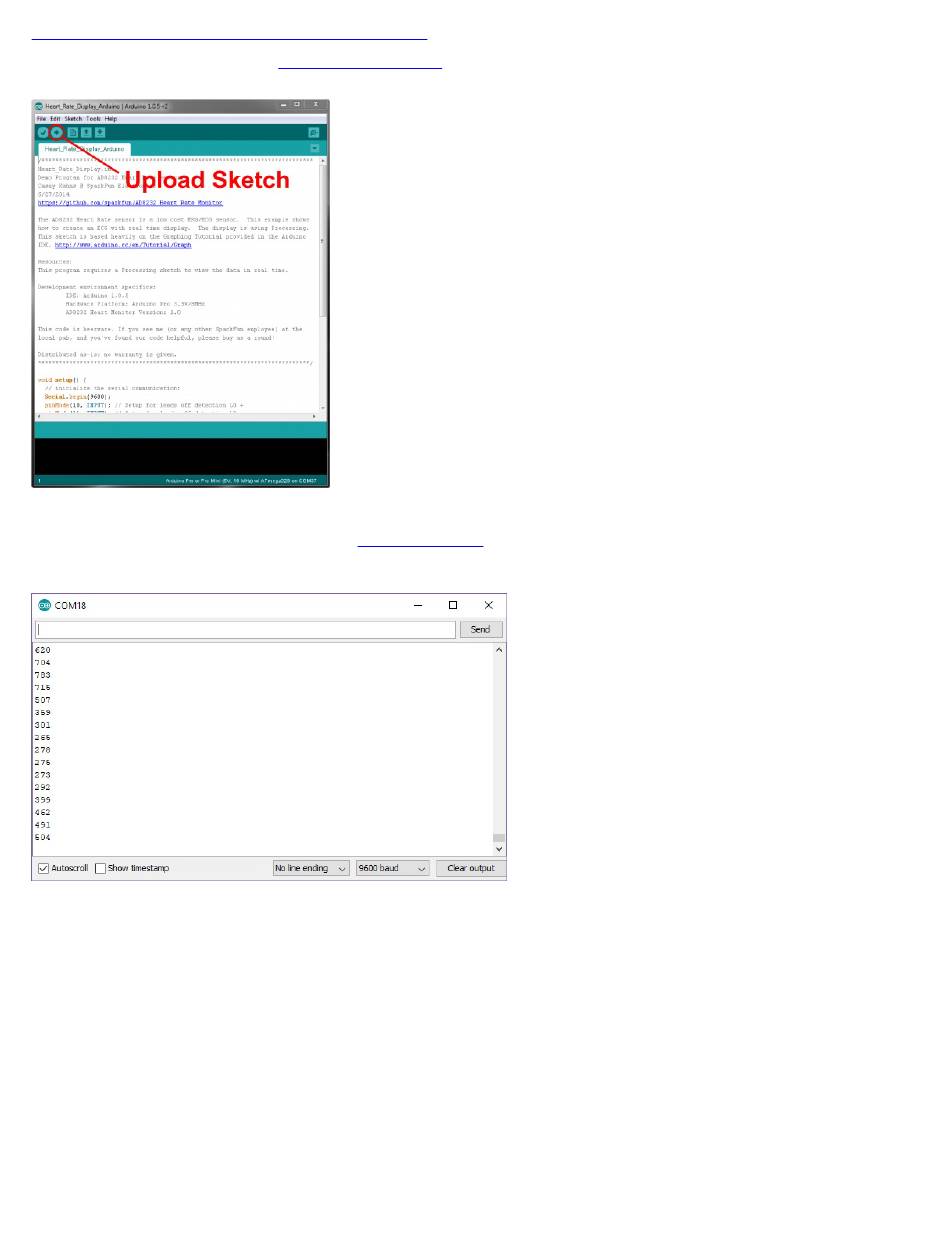

Upload Sketch to Arduino Pro Mini 3.3V/8MHz
at 9600 baud. You should see values printed on the screen. Below is an
To verify that the heart rate monitor is working as expected, open the serial monitor
example output with the sensors connected on the forearms and right leg. Your serial output should spike between +300/-200 around the center value of about
~500.
The serial data is hard to visualize if you are just viewing the values. If you are using Arduino IDE v1.6.6+, there is an option to view the data on a graph using
the Arduino Serial Plotter as one option. In the Arduino IDE, select Tools > Serial Plotter. You should see a waveform similar to the image below when the
sensors are placed correctly and not moving.
