Sparkfun Electronics AD8232 Hook-Up Manual page 5

breadboard and jumpers to make our connections.

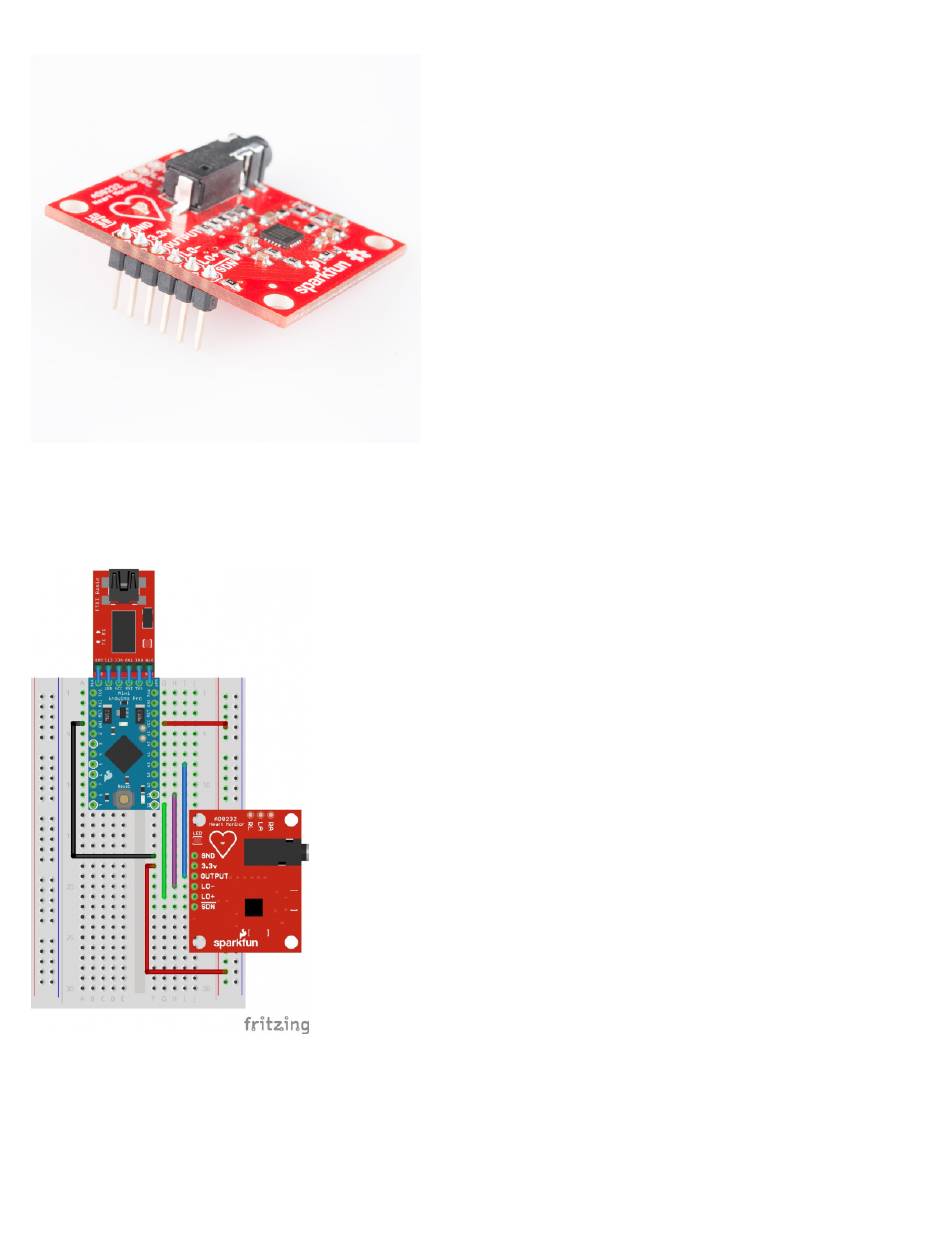

Headers installed
Circuit Diagram
Follow the diagram below, to make necessary connections. The SDN pin is not used in this demo. Connecting this pin to ground or "LOW" on a digital pin will
power down the chip. This is useful for low power applications.
Connection Diagram
Sensor Pad Placement
Now that the electronics are complete, let's look at sensor pad placement. It is recommended to snap the sensor pads on the leads before application to the
body.
