JOOLA Infinity Instruction Manual page 4

Part Description
Table Surface
Part #:11101-01
Net and Post Set
Part #:11101-02
Chassis
Part #:11101-03
Chassis
Part #:11101-04
Angled Track Bar
Part #:11101-05
4" Caster
Part #:11101-06
Logo Side Panel
Part #:11101-07
Straight Crossmember Bar
Part #:11101-08
Curved Crossmember Bar
Part #:11101-09
Logo 'H' Legs
Part #:11101-10
LEG LEVELER
Part #:11101-11
Track Cover
Part #:11101-12
Nylon Locking Nut
Part #:11101-13
17mm Washer
Part #:11101-14
5mm Spacer
Part #:11101-15
15mm Spacer
Part #:11101-16
6mm x 45mm Screw
Part #:11101-17
8mm x 25mm Bolt
Part #:11101-18
8mm x 50mm Bolt
Part #:11101-19
10mm x 60mm Bolt
Part #:11101-20
8mm x 80mm Bolt
Part #:11101-21
8mm x 90mm Bolt
(Partial or Fully Threaded
Part #:11101-22
REORDERING PARTS
Please contact JOOLA North America, LLC
and have the following information ready:
• Product Name
• Part number (from assembling
instructions)
• Credit card information (number,
expiration date, CVC code, billing
name and address) for payment
processing (if after warranty)
• Shipping address for replacement
parts
JOOLA Consumer Service Department
15850 Crabbs Branch Way Suite 170
Rockville, MD 20855
1-877-US-JOOLA or (301) 816 – 3060
info@joolausa.com
www.joolausa.com
Qty
2
1
2
2
4
4
2
4
4
2
4
4
28
56
8
12
4
4
4
4
TOP VIEW SIDE VIEW
12
)
4
TOP VIEW SIDE VIEW
Part #:11101-01
Part #:11101-02
Part #:11101-03
Part #:11101-04
Part #:11101-05
Part #:11101-06
Track Covers
Part #: 11101-12
Nylon Locking Nuts
Part # 11101-13
17mm Metal Washer
Part #: 11101-14
5mm Spacer
Part #: 11101-15
15mm Spacer
Part #: 11101-16
6mm x 45mm
Part #: 11101-17
8mm x 25mm
Part #: 11101-18
8mm x 50mm Bolt
Part #:11101-19
10mm x 60mm Bolt
Part #:11101-20
8mm x 80mm Bolt
Part #:11101-21
8mm x 90mm Bolt
Part #:11101-22
3

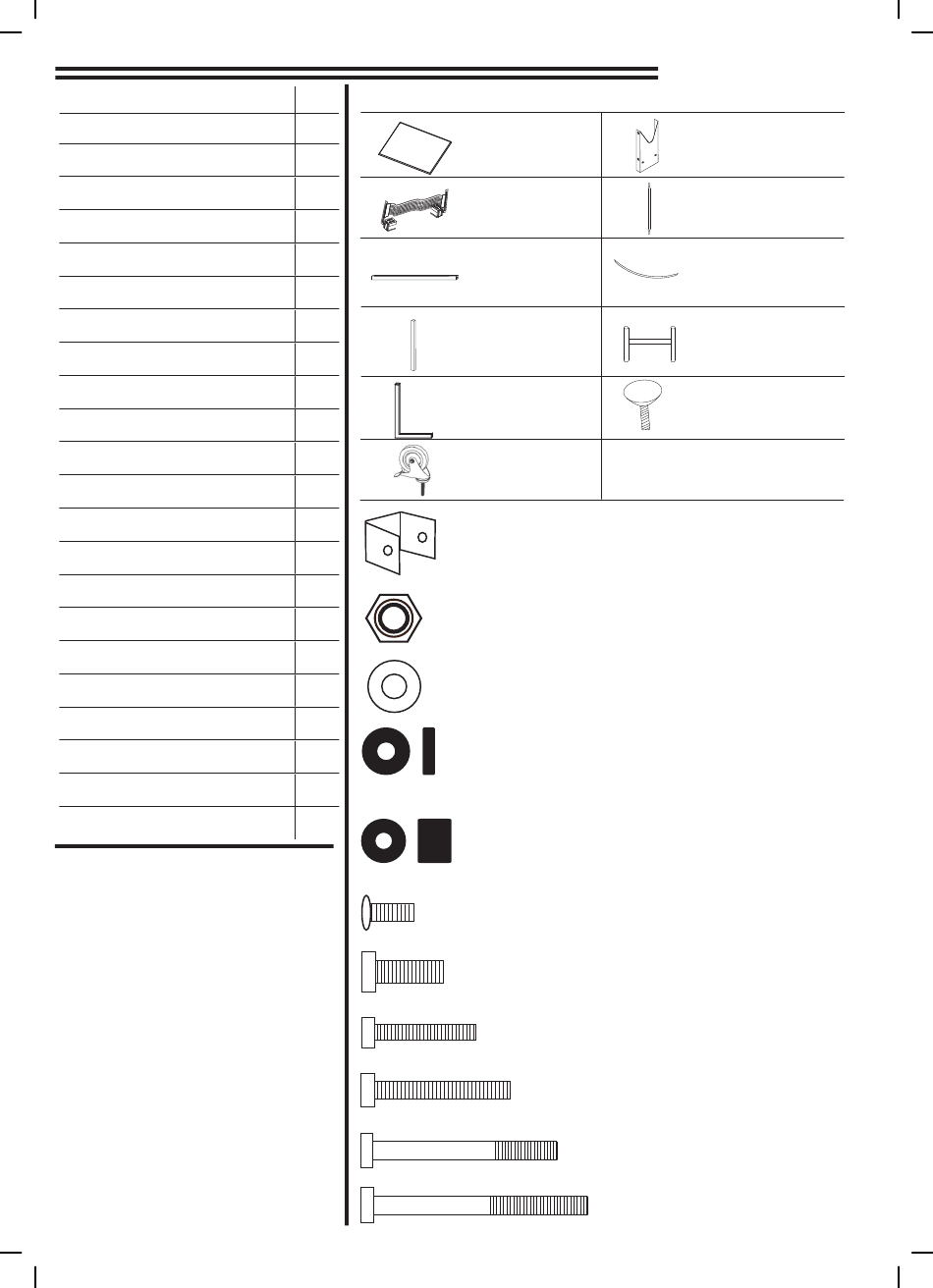

PARTS LIST
Part #:11101-07
Part #:11101-08
Part #:11101-09
Part #:11101-10
Part #:11101-11
(Partial or Fully Threaded
)
