ASSEMBLY INSTRUCTIONS

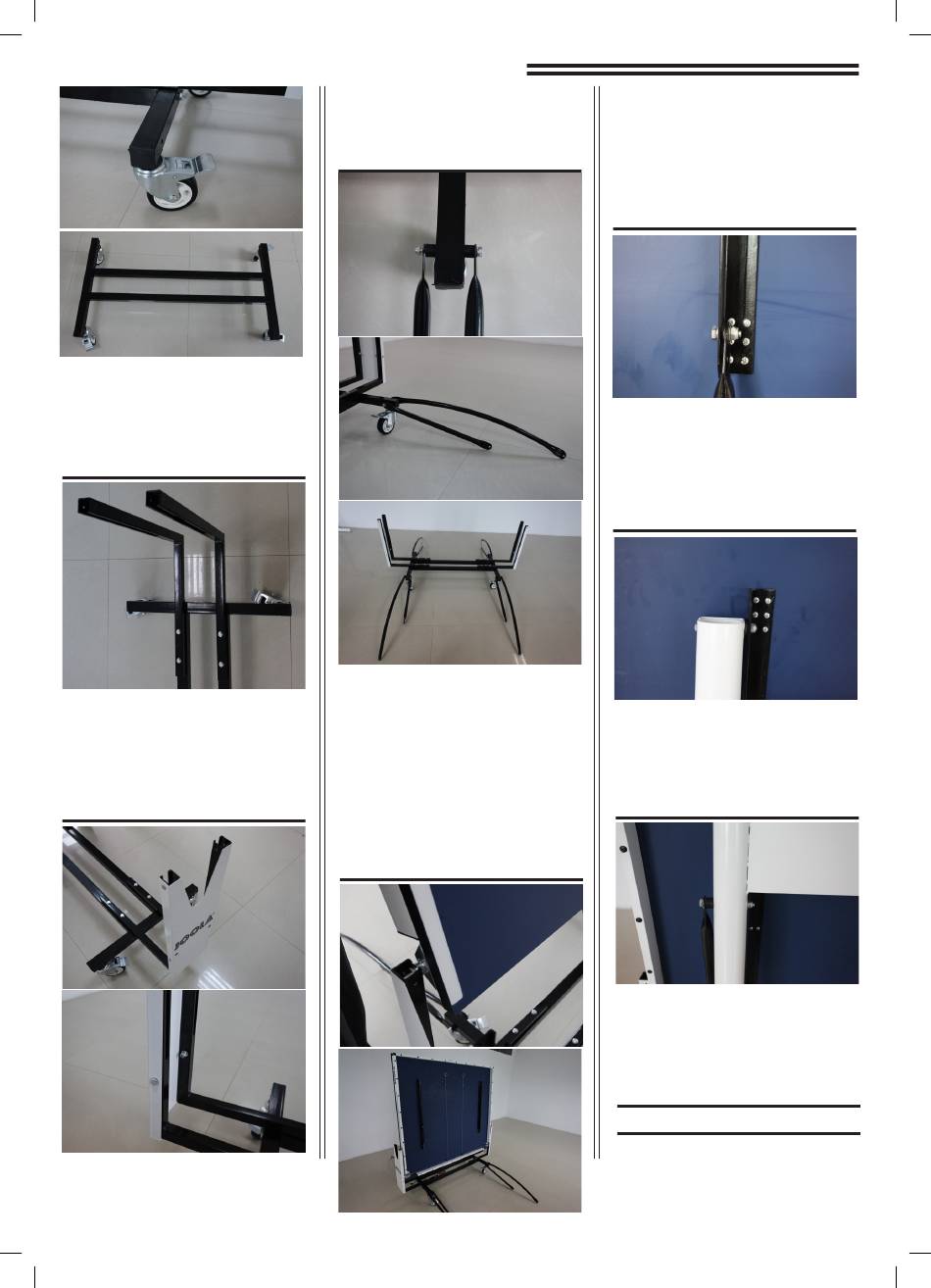

1. Assemble the support chassis - install 10mm
x60mm (12 qty) bolt with metal washer into
chassis end bar to connect the chassis cross-
bars (make sure that holes are face up on the
chassis crossbars). Install the casters (4 qty) by
twisting them into the base of the chassis. Lock
the casters to prevent the chassis from moving
around during assembly.
2.
Install angled track bars (4 qty) on upward-
facing holes of the chassis using 8mm x 80mm
(8 qty) bolts and tighten with 17mm washers
(16 qty) and nylon locking nuts (8 qty) DO NOT
tighten completely; simply secure them by hand
for now (Tightening will occur at the end of step
3). Order Of Hardware: 8mm x 80mm bolt,
17mm washer, chassis, 17mm washer, nylon
locking nut.
3.
Attach the logo side panels (2 qty) ONLY on
the bottom two holes using 8mm x 50mm bolts
(4 qty), 17mm washers(8 qty) and nylon locking
nuts (4 qty). Order of Hardware: 8mm x 50mm
bolt, 17mm washer, logo side panel, angled
track bar, 17mm washer, nylon locking nut.
Once the side panels are secure on the angled
track bars, make sure they are perpendicular
to the chassis end bar and tighten the bolts
connecting the angled track bars to the chassis.
4.
Attach crossmember bars (longer curved
one (4 qty) and shorter straight one (4 qty)
using 8mm x 90mm bolt (4 qty), 17mm washers
(8 qty), 15mm spacer (8 qty), nylon locking
nuts (4 qty) in the horizontal hole above the
casters and going through the end bars. The
curved crossmember bar goes on the outside
while the straight bar goes on the inside. See
top picture above for reference.
Hardware: From the outside inwards, the
order of hardware should be 8mm x 90mm bolt,
17mm metal washer, curved crossmember bar,
15mm spacer, chassis, 15mm spacer, straight
crossmember bar, 17mm washer, nylon locking
nut.
5.
With two people lifting the table half and one
person pulling the locking rings (to pull locking
plungers), place the track bolt portion of the
table into the angled track bar. Make sure that
the table surface is facing inward. Slowly slide
the track bolt down the track making sure that
both sides are inserted down the track at the
same pace. Not doing so could cause damage
to the track, the track bolt, or the side surface of
the table frame.
6.
Connect the straight crossmember bars so
they are on the inside of the corner bracket
(already attached to table) using the 8mm x
25mm bolts (2 qty), 17mm washers (4 qty), 5mm
spacer (2 qty), nylon locking nut (2 qty). Order
of Hardware: From the outside inward, 8mm
x 25mm bolt, 17mm washer, corner bracket,
5mm spacer, straight crossmember bar, 17mm
washer, nylon locking nut.
7.
Attach the logo 'H' leg (1 qty) to the angle
braces on the top hole by using the 8mm x
80mm bolts (2 qty), 17mm washers (4 qty),
5mm spacer (2 qty), nylon locking nut (2 qty).
Order of Hardware: From the outside inward,
8mm x 80mm bolt, 17mm washer, "H" Leg, 5mm
Order of
spacer, corner bracket, 17mm washer, nylon
locking nut.
8.
Connect the other end of the curved cross-
member bars to outside of the logo 'H' leg using
the 8mm x 90mm bolts (2 qty), 17mm washers
(4 qty), 15mm spacers (2 qty), nylon locking
nut (2 qty). Order of Hardware: From the out-
side inward, 8mm x 90mm bolt, 17mm washer,
curved crossmember bar, 15mm spacer, 'H'
Leg,17mm washer, nylon locking nut.
9.
Repeat steps 5-8 for the other table half.
