- Page 1 DL9110 DL9118 Multifunction installation tester Operating Instructions Revision 1...

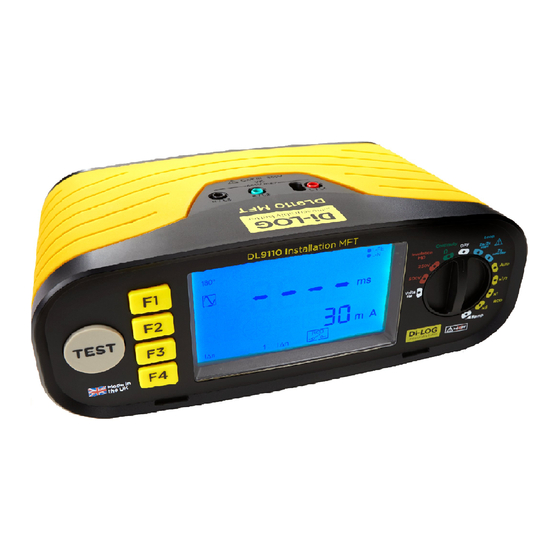

- Page 2 DL9110 / DL9118 Operating Instructions Figure 1 DL9110 / DL9118 Overview - 2 -...
- Page 3 DL9110 / DL9118 Operating Instructions Figure 2 Earth Continuity/Insulation Measurement Figure 3 Voltage measurement using test probes - 3 -...
- Page 4 DL9110 / DL9118 Operating Instructions Figure 4 Voltage, RCD, Zs and line impedance measurement at a mains outlet Figure 5 Voltage, RCD, Zs, Ze and line impedance measurement at a distribution board - 4 -...
- Page 5 DL9110 / DL9118 Operating Instructions Figure 6 Phase to phase impedance/PSC measurement (DL9118 only) Figure 7 Phase rotation (DL9118 only) - 5 -...
-
Page 6: Limited Warranty & Limitation Of Liability
DL9110 / DL9118 Operating Instructions Limited Warranty & Limitation of Liability DI-LOG Test Equipment guarantees this product to be free from defects in material and workmanship under normal use and service for a period of 2 year. The period of warranty will be effective at the date of purchase. -
Page 7: Table Of Contents
6.6 Voltage/Frequency Measurement ..........30 7 Environmental Conditions ..............31 8 Maintenance ..................32 8.1 Preparing to work on the DL9110 / DL9118......32 8.2 Securing the DL9110 / DL9118 ..........32 8.3 Cleaning ..................32 8.4 Battery Replacement ..............33 8.6 Service and Calibration. - Page 8 DL9110 / DL9118 Operating Instructions Disposal of Old Product This product has been designed and manufactured with high quality materials and components that can be recycled and reused. Please familiarise yourself with the appropriate local separate collection system for electrical and electronic products.
-
Page 9: Introduction
DL9110 / DL9118 Operating Instructions Introduction The DL9110 / DL9118 is a hand held, battery powered, multi-function electrical installation test instrument capable of performing a comprehensive range of tests, including: Earth Continuity @ 200mA Insulation Resistance at 250V, 500V and 1000V (1000V in DL9118 only) -
Page 10: User Notes
This instrument and its operating instructions are intended for use by adequately trained personnel. The following symbols are used in these operating instructions and on the DL9110 / DL9118. Warning of electrical danger! Indicates instructions must be followed to avoid danger to persons. -
Page 11: Safety Notes
Prior to any resistance measurement, always ensure that the circuit under test is electrically isolated. Where safe operation of the DL9110 / DL9118 is no longer possible it should be immediately shut down and secured to prevent accidental operation. -
Page 12: Accessories
DL9110 / DL9118 Operating Instructions 3 Accessories 3.1 Standard Accessories The DL9110 / DL9118 is supplied with the following items: DL9110 or DL9118 unit Padded neck strap Professional carry case DI-LOG mains lead 1.2 M black test lead 1.2 M red test lead 1.2 M green test lead... -
Page 13: Unit Description
DL9110 / DL9118 Operating Instructions 4 Unit Description The DL9110 / DL9118 is a hand held, multi-function electrical installation test instrument, capable of performing all of the required electrical tests. Tests are selected using the colour coded rotary switch. 4.1 Identifying parts of the unit The numbering below refers to figure. -
Page 14: Lcd Display
DL9110 / DL9118 Operating Instructions 4.2 LCD display 1. Icons for function key F1. These icons are used to display the available options for the selected test. Repeatedly pressing function key F1 cycles through the available options. 2. Icons for function key F2. These icons are used to display the available options for the selected test. - Page 15 13. Warning Icons. These icons are used to inform the user of the potential of any hazard or warning which may restrict the operation of the DL9110 / DL9118. Details are provided in the relevant parts of these operating instructions.
-
Page 16: Using The Dl9110 / Dl9118
Operating Instructions 5 Using the DL9110 / DL9118 5.1 Power On To turn the DL9110 / DL9118 on simply rotate the rotary switch to the required test position. 5.2 Battery Health Check The DL9110 / DL9118 will automatically perform battery health checks periodically or when a new test type is selected. - Page 17 DL9110 / DL9118 Operating Instructions Buzzer Not used Lead Zero Auto start Buzzer (F1) When enabled, the Buzzer will sound when the continuity measurement is less than 20 ohms. Lead Zero (F3) The instrument can automatically compensate for the resistance of the...
-
Page 18: Insulation Resistance Tests
1Mohm. Test Lock (F2) The Test Lock is used to ‘lock’ the DL9110 / DL9118 in a continuous measurement mode, with a single press of the TEST key. When Test Lock is enabled the LCD shows the padlock icon. When Test Lock is active the TEST key is locked until the option is disabled or the rotary switch is moved to another position. -
Page 19: Voltage Measurement And Phase Rotation
5.6 Voltage Measurement and Phase Rotation Rotate the rotary switch until the V test is selected. The DL9110 / DL9118 will automatically measure any voltage present on the test probes. The TEST key is not required. - Page 20 DL9110 / DL9118 is connected to correct mains supply via a mains plug or the test probes. The Auto Start function remains enabled if the switch position is changed or the DL9110 / DL9118 is powered off. To disable the Auto Start function press F4.
-
Page 21: Three Phase Line Impedance (Dl9118 Only)
DL9110 / DL9118 Operating Instructions Note: A Line Impedance measurement is automatically made as part of the Earth Loop Impedance test. The Line Impedance measurement (L-N) and Prospective Short-circuit Current (PSC) can be viewed by simply pressing function key F1, without the need to repeat the test. -
Page 22: Non Trip Earth Loop Impedance / Line Impedance
DL9110 / DL9118 is connected to correct mains supply via a mains plug or the test probes. The Auto Start function remains enabled if the switch position is changed or the DL9110 / DL9118 is powered off. To disable the Auto Start function press F4. -
Page 23: Auto Rcd Test Sequence
Note: The DL9110 / DL9118 will determine the fault voltage that may appear on the protective conductor during the test. If the fault voltage is greater than 25V the DL9110 / DL9118 will indicate >25V on the LCD, but the user may proceed with the test. - Page 24 RCL (F3) The RCL (Recall) key is used to recall the results of the last automatic RCD test performed by the DL9110 / DL9118. The LCD will update to show all of the relevant parameters for the result displayed. Continue to press the F3 key to rotate through the results.
-
Page 25: Rcd Trip Time Tests
Note: The DL9110 / DL9118 will determine the fault voltage that may appear on the protective conductor during the test. If the fault voltage is greater than 25V the DL9110 / DL9118 will indicate >25V on the LCD, but the user may proceed with the test. - Page 26 RCD types. Each time the F2 key is pressed the next option is selected During selective tests the DL9110 / DL9118 will display a delay timer which counts down from 30s to 0s. Pressing the Test key or turning the rotary switch while the DL9110 / DL9118 is counting will terminate the count.
-
Page 27: Rcd Trip Current (Ramp) Tests
DL9110 / DL9118 Operating Instructions 10mA 30mA 100mA 300mA 500mA Please note that the DL9110 / DL9118 is not capable of performing all of the different test currents for all of the different manual RCD settings. 10mA 30mA 100mA 300mA 500mA ½... - Page 28 RCD types. Each time the F2 key is pressed the next option is selected During selective tests the DL9110 / DL9118 will display a delay timer which counts down from 30s to 0s. Pressing the Test key or turning the rotary switch while the DL9110 / DL9118 is counting will terminate the count.
-
Page 29: Electrical Specifications
DL9110 / DL9118 Operating Instructions 6 Electrical Specifications 6.1 Earth Continuity Test Voltage Open Circuit >4V Test Current into 2Ω >200mA Display Range 0.00Ω - 199Ω Measuring Range 0.01Ω – 199Ω (EN 61557-4) Resolution 0.01Ω maximum Accuracy ±2% ±5 digits... -
Page 30: Line Impedance
DL9110 / DL9118 Operating Instructions 6.4 Line Impedance Supply Voltage 195V – 253V, 45Hz – 65Hz 328V - 440V, 45Hz – 65Hz Nominal Test Current Display Range 0.01Ω - 2000Ω Measuring Range 0.1Ω - 1999Ω Resolution 0.01Ω maximum Accuracy ±5% ±5 digits PFC Range 0kA –... -
Page 31: Environmental Conditions
Operating temperature range of 0°C to 40°C, without moisture condensation. The DL9110 / DL9118 can be stored at any temperature in the range - 25°C to +65°C (relative humidity up to 90%). The batteries should be taken out of the instrument for storage. -
Page 32: Maintenance
Electric shock danger! 8.1 Preparing to work on the DL9110 / DL9118. Make the DL9110 / DL9118 is voltage free as follows, before opening the instrument; Power the unit off using the rotary switch by selecting the Off position on the rotary switch. -
Page 33: Battery Replacement
Power the unit off by selecting the Off position on the rotary switch. Disconnect all the test leads from the unit Position the DL9110 / DL9118 face down and release the 4 captive screws in the battery compartment cover. Remove the battery compartment cover. -
Page 34: Service And Calibration
Power the unit off by selecting the Off position on the rotary switch. Disconnect all the test leads from the unit. Position the DL9110 / DL9118 face down and release the captive 4 screws in the battery compartment cover. Remove the battery compartment cover. -
Page 35: Spare Parts
DL9110 / DL9118 Operating Instructions 8.7 Spare Parts. Part No. 3 wire lead set c/w croc clips LS3W9073 Mains lead ML9073 Remote Probe RP9118 Carrying Case CC9118 1.6A 1000V HRC FF Fuse For help or advice on Service and Calibration contact:... -
Page 36: Appendix A
DL9110 / DL9118 Operating Instructions Appendix A IEC61557-2: Insulation Intrinsic error Reference conditions specified Designation influence quantity operating range code Intrinsic error Reference conditions Position Reference position ±90 Supply voltage At the limits stated by the manufacturer Temperature C and 40 Operating Error 1.15... - Page 37 DL9110 / DL9118 Operating Instructions IEC61557-6: Residual current devices (RCD) in TT and TN systems Intrinsic error Reference conditions specified Designation influence quantity operating range code Intrinsic error Reference conditions Position Reference position ±90 Supply voltage At the limits stated by the manufacturer...
