Telesis BenchMark 200 Manual page 5

BM470 CONTROLLER
Specifications
The BM470 Controller specifications are subject to change
without prior notice.
Compliance ........................... CE, RoHS
Rating ................................... NEMA 1 (I.P. 30)
Mounting Configuration ......... Table-top
Dimensions ............................... see BM470 Controller Dimensions
Weight .................................. 1.68 Kg (3.69 lb.) controller only
Power Requirements ............ 95 to 250 VAC, 2 amps, 50-60 Hz,
drawing for details
single phase

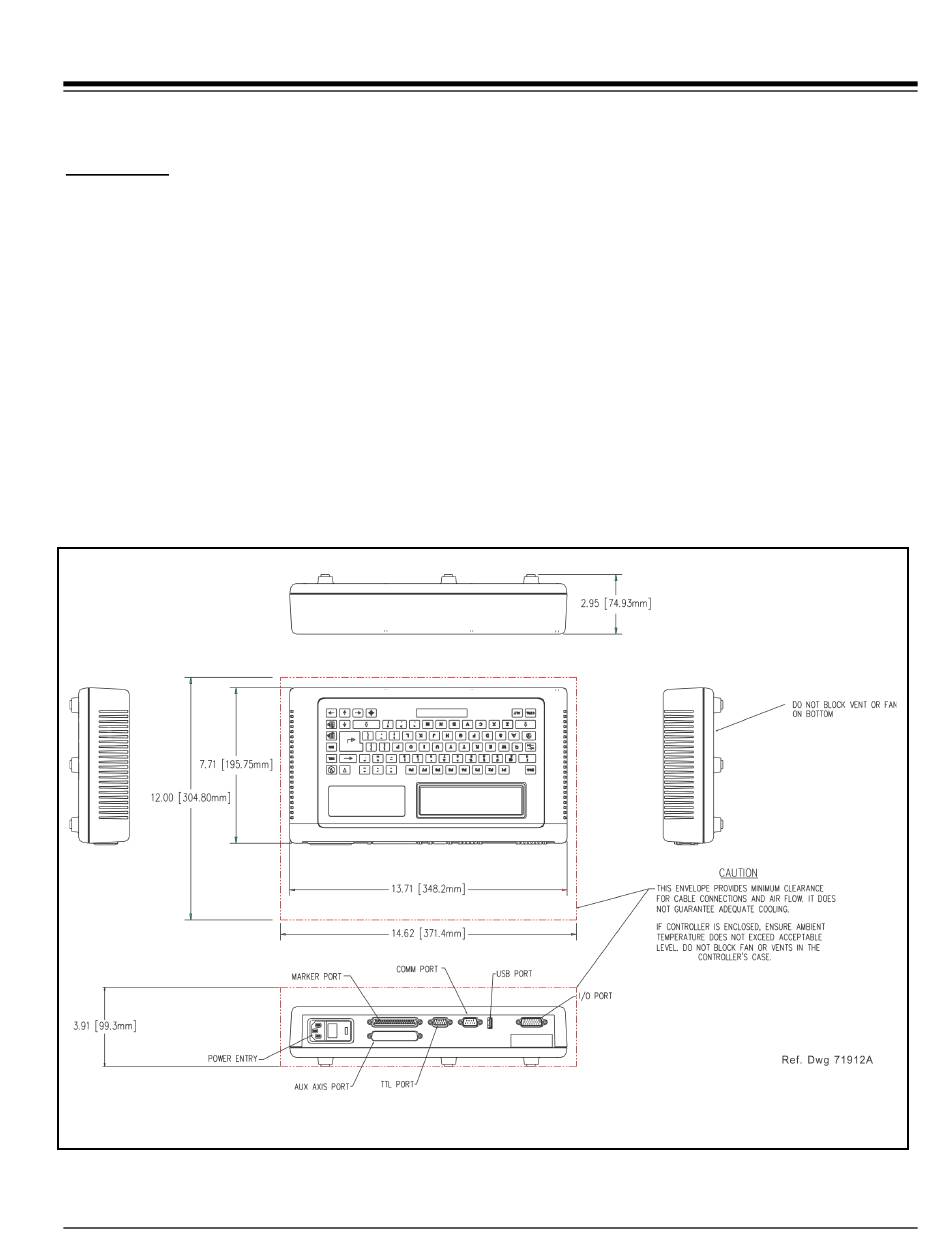

BM470 Controller Dimensions
®
BenchMark 200/BM470 Marking System
Operating Temperature ........ 0° to 50°C (32° to 122° F),
Operating Humidity ............... 10% to 80% non-condensing
Cooling ..................................... Internal, thermostatically-controlled fan
Communications ................... TTL, RS232, and USB *
Input Signals ** ........................ Two available (Start Print, Stop/Abort)
** USB for data backup & transfer
** Additional I/O signals available with the optional
BM470+ Enhanced Communications Software
34743A
non-condensing
10 VDC (minimum voltage)
30 VDC (maximum voltage)
12 to 24 VDC (nominal voltage)
2.3 mA @ 12VDC; 4.9 mA @
24VDC (nominal current)
5 of 8
