Powers BILTMORE 800 SERIES Installation Instructions

A W a tts Industries Co.
TO INSTALL
Note: Installation should be in accordance with accepted plumbing
practices. Flush all piping thoroughly before installation. If thin wall
installation is required, refer to Installation Instruction #129-075.
1. Attach checkstops to valve body. Screwed checkstops:
teflon tape is recommended to provide seal. Sweat check-
stops: to lessen potential for overheating of rubber sealing
discs during sweating in process, you must leave check-
stop in full open position, or remove all internal parts to pre-
vent melting of the rubber sealing discs.
2. Position mixer 2" ± 1/2" (51mm ± 13mm) from inlet center
to finished wall surface. Facing front of mixer, connect hot
water to left side and connect cold water to right side. The
valve has 'C' and 'H' cast into the body near the appropri-
ate inlet ports.
3. When copper tubing is used, flared fittings are recommend-
ed. If flared fittings cannot be used, then the balance car-
tridge must be removed before soldering near the mixer
body. To remove the balance cartridge: remove the o-ring,
limit stop and sleeve, unscrew bonnet retainer and pull
bonnet out of the mixer body. Pull balance cartridge out
with either pliers or cartridge puller #401-202.
4. Biltmore is factory assembled for top outlet installation, see
Figure 1. For shower only installation, pipe top outlet direct-
ly to showerhead and plug bottom port. If reversed inlets
are required, place mixer stem in closed (full clockwise)
position, remove o-ring, limit stop and sleeve, unscrew and
remove bonnet retainer. Pull bonnet, stem and mixing plate
out of mixer body and rotate 180° making certain the align-
ment tabs on the bonnet are secure in the notches on the
mixer body. Replace bonnet retainer (limit torque to 20 ft.-
lbs.), slide sleeve over retainer, install limit stop over stem,
replace o-ring. With mixer in closed position, the notch in
the spline on the stem (Figure 3) must face top outlet for
standard inlet installation (cold water to cold port on right

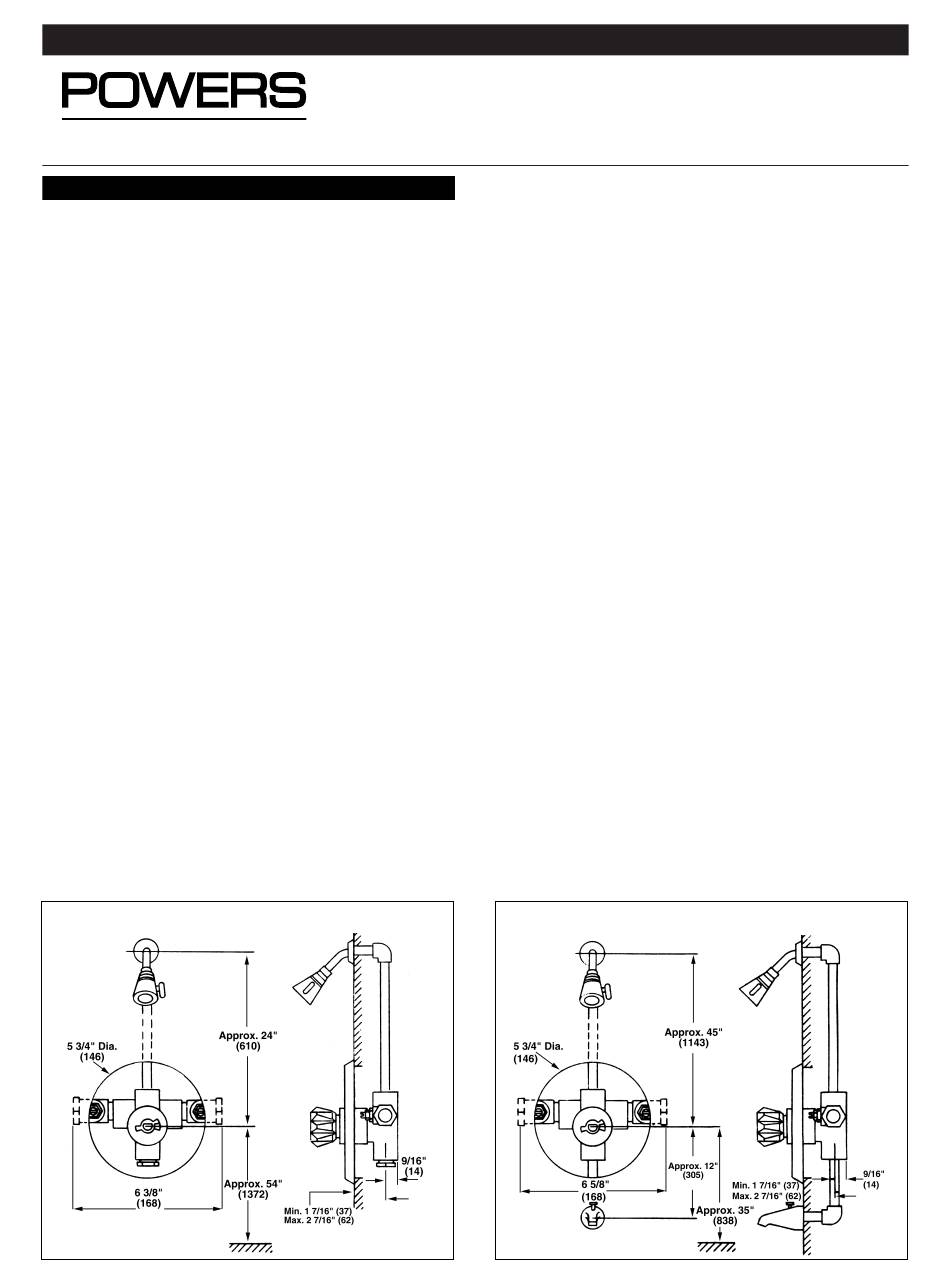

Figure 1: Rough-in Dimensions
- inches (millimeters)
INSTALLATION INSTRUCTIONS
Pressure Balancing Valves
side). For reversed inlets (cold water to hot port on left
side), the notch in the spline on the stem must face bottom
outlet.
Note: hot and cold inlets should be re-identified for
reversed inlets to avoid confusion during future mixer
maintenance.
5. For tub and shower installations, see Figure 2. Pipe bottom
outlet port 'T' directly to a diverter tub spout. The Biltmore
is equipped with a built-in diverter fitting in the mixer body,
so it is not necessary to use a twin ell. Pipe top outlet port
'S' to the showerhead. For tub installation only, plug top
outlet port 'S'. Be certain that bottom outlet port 'T' is
piped to the tub. If outlet connections are reversed, the
mixer will not function properly.
6. Rough-in procedure: a cardboard sleeve protector is fur-
nished with each Biltmore to protect the chrome plated
sleeve from damage during piping installation. When piping
installation is completed, the installer should remove the
cardboard sleeve protector and slide rough-in guide onto
mixer stem (guide stem is same notched shape as mixer
stem) and snap into place. The rough-in guide will not fit
over the cardboard sleeve protector.
The rough-in guide will insure proper size opening for mixer
and checkstop shut-off and repair accessibility, as well as
protect the chrome plated sleeve from damage during dry-
wall and tile installation.
Position mixer so finished wall surface will be within the 1"
(25mm) dimension on rough-in guide (Figure 6). This
insures the center line of the mixer connections will be
2"±1/2" (51mm ± 13mm) from the finished wall surface.
After wall is completed, remove rough-in guide and attach
dial to mixer body with the screws furnished (Figure 4). To
install dial gasket, peel backing off gasket and attach gas-
ket to inside dial plate.
Figure 2: Rough-in Dimensions
Form II800 v3
BILTMORE SERIES 800
- inches (millimeters)
