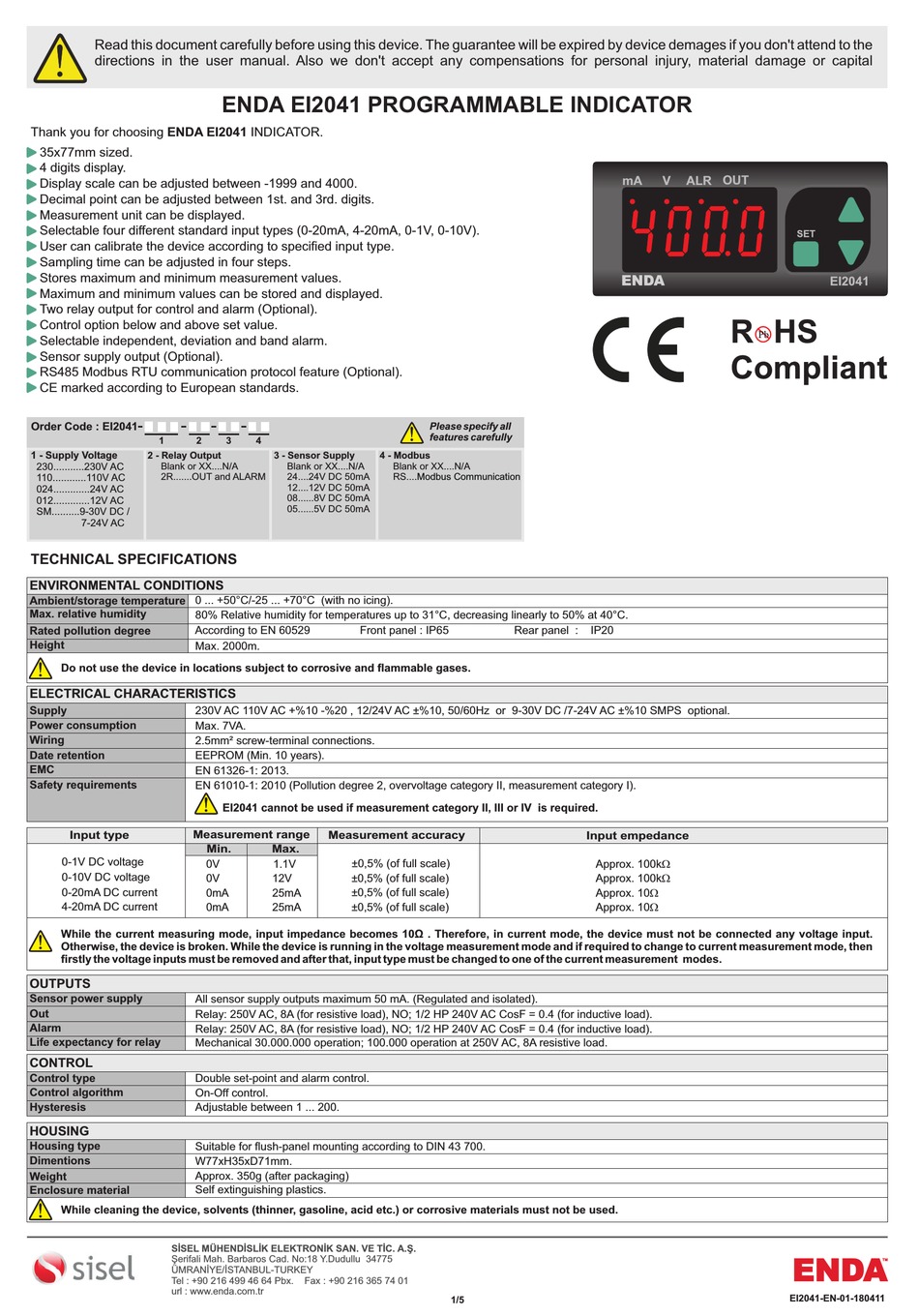

ENDA EI2041 Series Manual

Read this document carefully before using this device. The guarantee will be expired by device demages if you don't attend to the
directions in the user manual. Also we don't accept any compensations for personal injury, material damage or capital

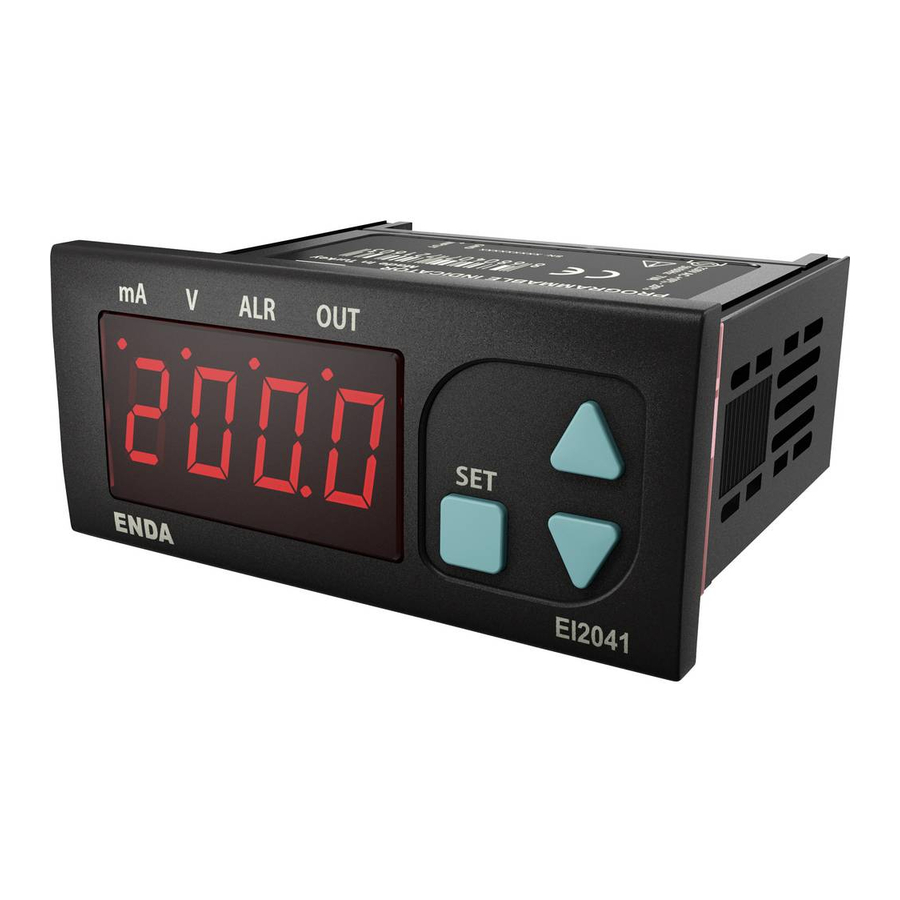

Thank you for choosing ENDA EI2041 INDICATOR.
35x77mm sized.
4 digits display.
Display scale can be adjusted between -1999 and 4000.
Decimal point can be adjusted between 1st. and 3rd. digits.
Measurement unit can be displayed.
Selectable four different standard input types (0-20mA, 4-20mA, 0-1V, 0-10V).
User can calibrate the device according to specified input type.
Sampling time can be adjusted in four steps.
Stores maximum and minimum measurement values.
Maximum and minimum values can be stored and displayed.
Two relay output for control and alarm (Optional).
Control option below and above set value.
Selectable independent, deviation and band alarm.
Sensor supply output (Optional).
RS485 Modbus RTU communication protocol feature (Optional).
CE marked according to European standards.
Order Code : EI2041
1 2
1 - Supply Voltage
2 - Relay Output
230...........230V AC Blank or XX....N/A
2R.......OUT and ALARM
110............110V AC
024.............24V AC
012.............12V AC
SM..........9-30V DC /
7-24V AC

TECHNICAL SPECIFICATIONS

ENVIRONMENTAL CONDITIONS

0 ... +50 °C/-25 ... +70°C (with no icing).
Ambient/storage temperature
Max. relative humidity 80% Relative humidity for temperatures up to 31°C, decreasing linearly to 50% at 40°C.
Rated pollution degree According to EN 60529
Height
Max. 2000m.
Do not use the device in locations subject to corrosive and flammable gases.

ELECTRICAL CHARACTERISTICS

Supply 230V AC 110V AC +%10 -%20 , 12/24V AC ±%10, 50/60Hz or 9-30V DC /7-24V AC ±%10 SMPS optional.
Power consumption Max. 7VA.
Wiring 2.5mm² screw-terminal connections.
Date retention EEPROM (Min. 10 years).
EMC EN 61326-1: 2013.
Safety requirements
EN 61010-1: 2010 (Pollution degree 2, overvoltage category II, measurement category I).
Measurement range
Input type
0-1V DC voltage
0-10V DC voltage
0-20mA DC current
4-20mA DC current
While the current measuring mode, input impedance becomes 10Ω . Therefore, in current mode, the device must not be connected any voltage input.
Otherwise, the device is broken. While the device is running in the voltage measurement mode and if required to change to current measurement mode, then
firstly the voltage inputs must be removed and after that, input type must be changed to one of the current measurement modes.

OUTPUTS

Sensor power supply All sensor supply outputs maximum 50 mA. (Regulated and isolated).
Out
Relay: 250V AC, 8A (for resistive load), NO; 1/2 HP 240V AC CosF = 0.4 (for inductive load).
Alarm
Relay: 250V AC, 8A (for resistive load), NO; 1/2 HP 240V AC CosF = 0.4 (for inductive load).
Life expectancy for relay
Mechanical 30.000.000 operation; 100.000 operation at 250V AC, 8A resistive load.

CONTROL

Control type Double set-point and alarm control.
Control algorithm
On-Off control.
Hysteresis Adjustable between 1 ... 200.

HOUSING

Housing type Suitable for flush-panel mounting according to DIN 43 700.
Dimentions
W77xH35xD71mm.
Weight Approx. 350g (after packaging)
Self extinguishing plastics.
Enclosure material
While cleaning the device, solvents (thinner, gasoline, acid etc.) or corrosive materials must not be used.
SİSEL MÜHENDİSLİK ELEKTRONİK SAN. VE TİC. A.Ş.
Şerifali Mah.
ÜMRANİYE/İSTANBUL-TURKEY
Tel : +90 216 499 46 64 Pbx.
url : www.enda.com.tr
ENDA EI2041 PROGRAMMABLE INDICATOR
3 4
3 - Sensor Supply
Blank or XX....N/A
24....24V DC 50mA
12....12V DC 50mA
08......8V DC 50mA
05......5V DC 50mA
Front Panel : IP65
EI2041 cannot be used if measurement category II, III or IV is required.
Measurement accuracy
Min. Max.
±0,5% (of full scale)
0V 1.1V
±0,5% (of full scale)
0V 12V
±0,5% (of full scale)
0mA 25mA
±0,5% (of full scale)
0mA 25mA
Barbaros Cad. No:18 Y.Dudullu 34775
Fax : +90 216 365 74 01
Please specify all
features carefully
4 - Modbus
Blank or XX....N/A
RS.... Modbus Communication
Rear panel :
1/5
mA ALR OUT
V
IP20
Input empedance
Approx. 100kW
Approx. 100kW
Approx. 10W
Approx. 10W
EI2041
ENDA TM
EI2041-EN-01-180411
