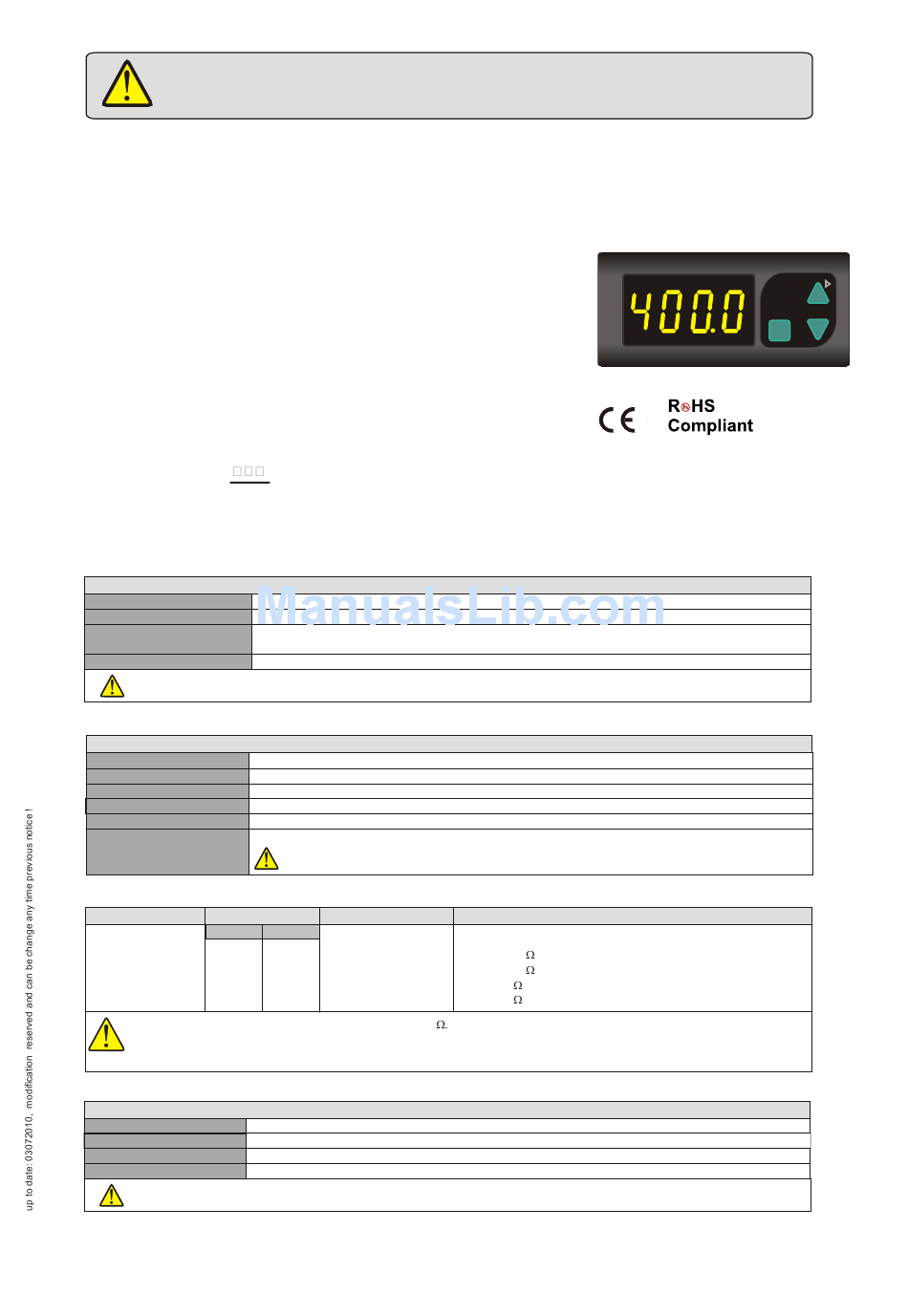

ENDA EI141 Manual

Read this document carefully before using this device. The guarantee will be expired by
damaging of the device if you don't attend to the directions in the user manual. Also we don't
accept any compensations for personal injury, material damage or capital disadvantages.

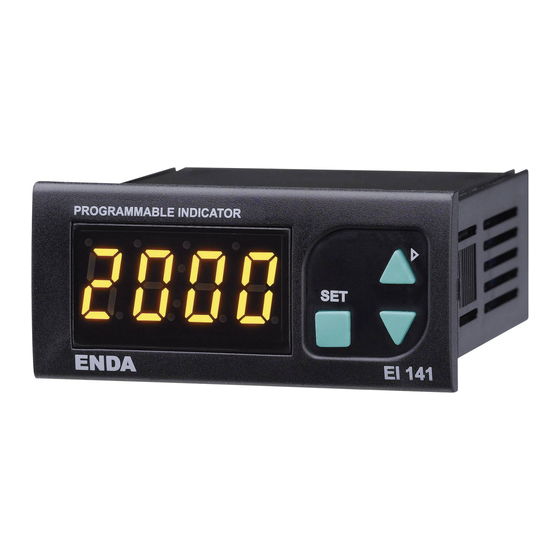

ENDA EI141 PROGRAMMABLE INDICATOR
Thank you for choosing ENDA EI141 INDICATOR.
* 35x77mm sized.
* 4 digits display.
* Easy to use by front panel keypad.
* Display scale can be adjusted between -1999 and 4000.
* Decimal point can be adjusted between 1. ile 3. digits.
* Measurement unit can be displayed.
* Selectable four different standard input types (0-20mA, 4-20mA, 0-1V, 0-10V)
* User can calibrate the device according to his/her own specified input type.
* Sampling time can be adjusted in four steps.
* Maximum and minimum measurement values are registered.
* The maximum or the minimum values can be hold on the display.
* Current and voltage calibration can be made..
* Parameter access protection on 3 levels.
* Easy connection by removable screw terminal.
Order Code : EI141-

TECHNICAL SPECIFICATIONS

ENVIRONMENTAL CONDITIONS

Ambient/storage temperature
Max. relative humidity
Rated pollution degree
Height
Do not use the device in locations subject to corrosive and flammable gases.

ELECTRICAL CHARACTERISTICS

Supply
Power consumption
Wiring
Date retention
EMC
Safety requirements
Input type
0-1V DC voltage
0-10V DC voltage
0-20mA DC current
4-20mA DC current
In the current measurement mode input impedance is 5
should not be connected to the input terminals. Otherwise, the device will be broken down. To change the input type from
voltage to a current measurement mode while the device is operating, first, leave out the voltage inputs. Then, change
input type to one of the current measurement modes.

HOUSING

Housing type
Dimensions
Weight
Enclosure material
While cleaning the device, solvents (thinner, benzine, acid etc.) or corrosive materials must not be used.
SURAN
Industrieelektronik
Dettinger Str. 9 / D-72160 Horb a.N
1 - Supply Voltage
230VAC...230V AC
1
24VAC.....24V AC
SM...........9-30V DC / 7-24V AC
0 ... +50 °C/-25 ... +70°C (with no icing)
80% up to 31 °C decreasing linearly 50% at 40
According to EN 60529
Max. 2000m
230VAC +10%/-20%, 50/60Hz, 24VAC±10%,50/60Hz or 24Vac/dc (9-30Vdc or 7-24Vac)
Max. 7VA
2.5mm² screw-terminal connections
EEPROM (Min. 10 years)
EN 61326-1: 1997, A1: 1998, A2: 2001 (Performance criterion B for the EMC standard)
EN 61010-1: 2001 (pollution degree 2, overvoltage category II, measurement category I)
EI141 must not be used in location where measurement category is II, III or IV.
Measurement range Measurement accuracy
Min. Max.
0V 1.1V ±0,5% (of full scale)
0V 14V ±0,5% (of full scale)
±0,5% (of full scale)
0mA 25mA
±0,5% (of full scale)
0mA 25mA
Suitable for flush-panel mounting according to DIN 43 700.
W77xH35xD71mm
Approx. 250g (after packing)
Self extinguishing plastics
Tel.: +49 (0)7451 / 625 617
Fax: +49 (0)7451 / 625 0650
°C .
Front panel : IP65
Rare panel : IP20
Input empedance
Approx. 11k (terminal voltage limits: min. = -2V, max. = 30V)
Approx. 11k (terminal voltage limits: min. = -2V, max. = 30V)
Approx. 5 (applicable terminal voltage is max. 50mA.)
Approx. 5 (applicable terminal voltage is max. 50mA.)
Therefore, in the current measurement mode, any voltage input
E-mail : info@suran-elektronik.de
Internet : www.suran-elektronik.de
english
PROGRAMMABLE INDICATOR
SET SET
ENDA
1./3 EI141-E
EI141
