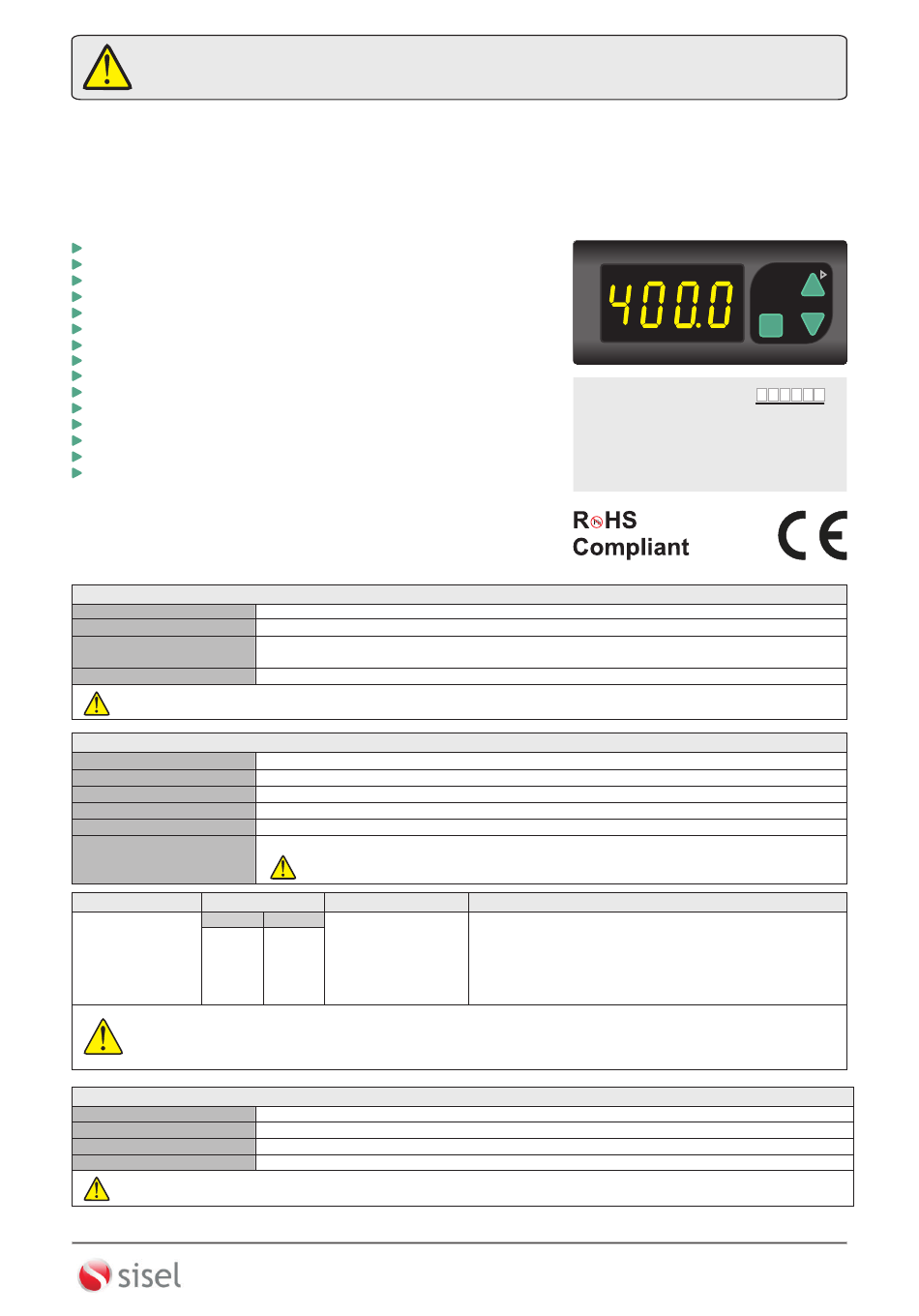

ENDA EI141 PROGRAMMABLE INDICATOR
Thank you for choosing ENDA EI141 Programmable Indicator.
-
35x77mm sized.
-
4 digits display.
-
Easy to use by front panel keypad.
-
Display scale can be adjusted between -1999 and 4000.
-
Decimal point can be adjusted between 1. and 3. digits.
-
Measurement unit can be displayed.
-
Selectable four different standard input types (0-20mA, 4-20mA, 0-1V, 0-10V)
- User can calibrate the device according to specified input type.
-
Sampling time can be adjusted in four steps.
-
Stores maximum and minimum measurement values.
-
The maximum or the minimum values can be hold on the display.
-
Current and voltage calibration can be performed.
-
Parameter access protection on 3 levels.
-
Easy connection by removable screw terminal.
-
CE marked according to European Norms.

TECHNICAL SPECIFICATIONS

ENVIRONMENTAL CONDITIONS
Ambient / Storage Temperature
Max. Relative Humidity
Rated Pollution Degree
Height
Do not use the device in locations subject to corrosive and flammable gases.
ELECTRICAL CHARACTERISTICS
Supply
Power Consumption
Wiring
Date Retention
EMC
Safety Requirements
Input Type Measurement Range
Min.
0-1V DC voltage 0V
0-10V DC voltage 0V
0mA
0-20mA DC current
4-20mA DC current 0mA
While the current measuring mode, input impedance becomes 5Ω . Therefore, in current mode, the device must not be connected any
voltage input. Otherwise, the device is broken. While the device is running in the voltage measurement mode and if required to change
to current measurement mode, then firstly the voltage inputs must be removed and after that, input type must be changed to one of the
current measurement modes.
HOUSING
Housing Type
Dimensions
Weight
Enclosure Material
While cleaning the device, solvents (thinner, benzine, acid etc.) or corrosive materials must not be used.
SİSEL MÜHENDİSLİK ELEKTRONİK SAN. VE TİC. A.Ş.
Şerifali Mah.
ÜMRANİYE/İSTANBUL-TURKEY
Tel : +90 216 499 46 64 Pbx.
url : www.enda.com.tr
0 ... +50 °C/-25 ... +70°C (With no icing)
80% Relative humidity for temperatures up to 31°C, decreasing linearly to 50% at 40°C.
According to EN 60529
Max. 2000m
230V AC +10 % -20 % or 12/24V AC ±10 , 50/60Hz or optional
Max. 7VA
2.5mm² screw-terminal connections
EEPROM (Min. 10 years)
EN 61326-1: 2013
EN 61010-1: 2010 P ( ollution degree 2, overvoltage category II, measurement category I)
EI141 Can not be used if measurement category II, III or IV is required.
Measurement Accuracy
Max.
±0,5% (of full scale)
1.1V
±0,5% (of full scale)
14V
25mA ±0,5% (of full scale)
±0,5% (of full scale)
25mA
Suitable for flush-panel mounting according to DIN 43 700.
W77xH35xD71mm
Approx. 250g (after packing)
Self extinguishing plastics
Barbaros Cad. No:18 Y.Dudullu 34775
Fax : +90 216 365 74 01
PROGRAMMABLE INDICATOR
ENDA
Order Code : EI141 -
1 - Supply Voltage
Front panel : IP65
Rear panel : IP20
% 9-30V DC / 7-24V AC ±10% SMPS
Input Empedance
Approx. 11kΩ (terminal voltage limits: min. = -2V, max. = 30V)
Approx. 11k Ω (terminal voltage limits: min. = -2V, max. = 30V)
Approx. Ω 5 (applicable terminal voltage is max. 50mA.)
Approx. Ω 5 (applicable terminal voltage is max. 50mA.)
