Installation guide
Eng
Guide d'installation
F
Guía de instalación
E
*****
Only for WOOD doors.
Seulement pour portes en BOIS.
Solo para puertas de MADERA.
1-3/4" (44,5mm)<Door thickness<2-3/4" (70mm).
1-3/4" (44,5mm)<Épaisseur d' porte<2-3/4" (70mm).
1-3/4" (44,5mm)<Espesor de puerta<2-3/4" (70mm).
Only SALTO spindle.
Seulement carrés SALTO.
Solo cuadradillos SALTO.
PZ2 (X2)
PZ1 (X2)
PZ2 (X2)
Batteries
ALLEN 3(X2)
(LR06 AA)
CABLE CLAMP(X2)
Control front plate
For door preparation see: 221373 or 4DS00020.
Pour préparation de la porte, voir: 221373 ou 4DS00020.
Para mecanizado de puerta, ver: 221373 ó 4DS00020.
The mounting with other spindles voids the guaranty.
Le montage d'autres carrés annulera le garantie.
El montaje de otros cuadradillos anula la garantia.
NOTE: Screws and spindles are included in the box of the reader.
NOTE: Les vis et les carrés sont inclus dans la boite du lecteur.
NOTA:Los tornillos y cuadradillos están incluidos en la caja del lector.
All contents current at time of publication.
SALTO Systems S.L. reserves the right to change availability of any
item in this catalog, its design, construction, and/or materials.

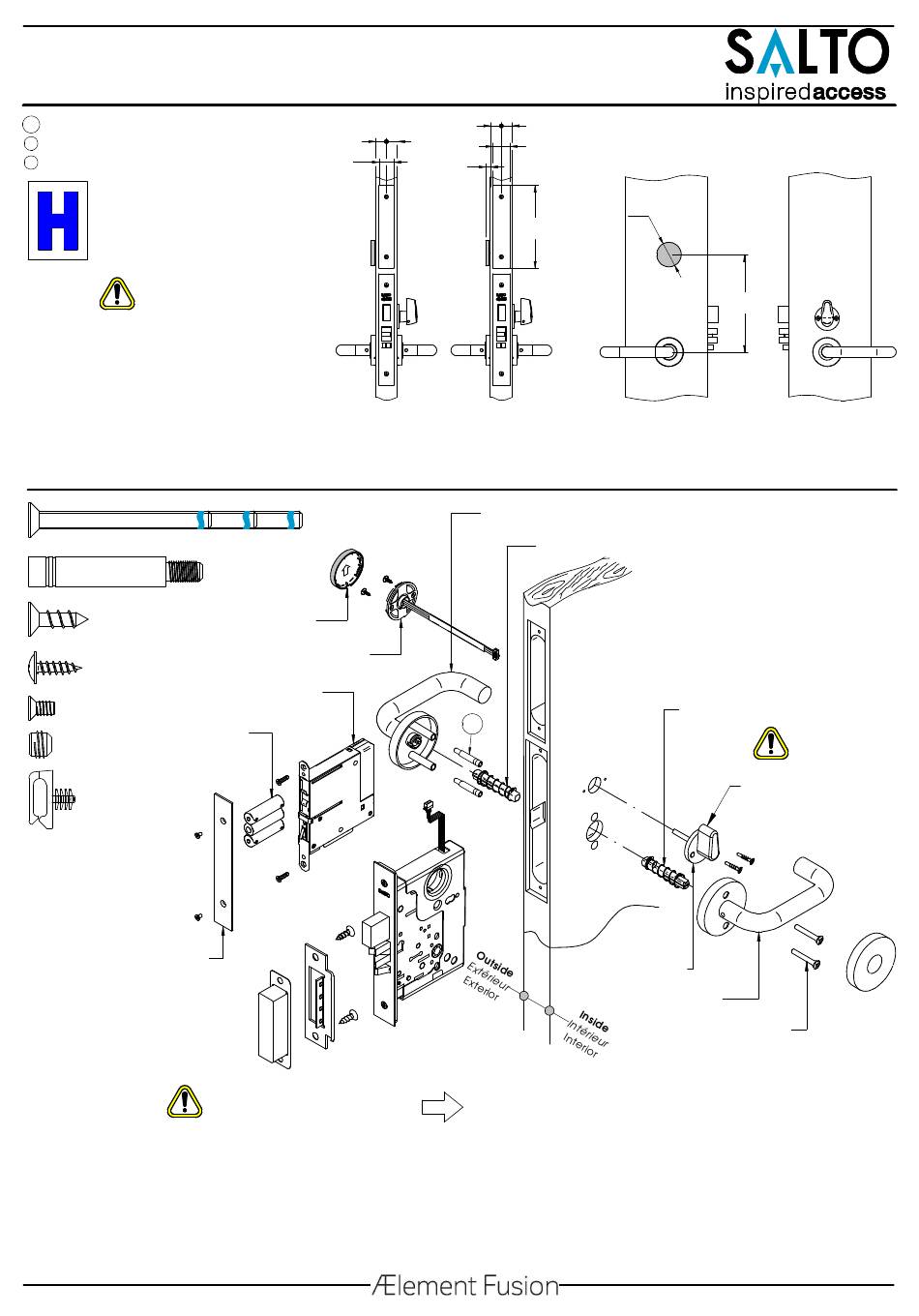

Installation guide
AElement Fusion for ANSI mortise locks
1-1/16"
(27mm)
PZ2 (X2)
BOLT (Depending
on door thickness)
Reader cover
Reader
Control
Mortise lock not included
Serrure à mortaiser non inclusa
Cerradura de embutir no incluida
= =
= =
1 15/64"
(31,5mm)
21/64"
(8mm)
6"
(152mm)
Outside lever
Outside spindle
*
SALTO LA1T0770F2
SALTO LA1T0770F7
SALTO LA1T1770F2
SALTO LA1T1770F7
©
2017 SALTO Systems S.L.
1-25/32"
O
( O 45mm)
(178mm)
OUTSIDE
EXTÉRIEUR
EXTERIOR
Inside spindle
Privacy thumbturn
Inside lever
Fixing screws
(*) Only for door thickness > 2-9/16" (65mm).
(*) Seulement pour portes de épaisseur > 2-9/16" (65mm).
(*) Solo para grosor de puerta > 2-9/16" (65mm).
Recommendation for Customer's lever set installation on SALTO
AElement. See : 4AN01299
Recommandation pour l'installation des béquilles client sur
Salto AElement. Voir: 4AN01299
Recomendaciones para la instalación de manillas Cliente en
SALTO AElement. Ver: 4AN01299
1/4
AF i
xx.. series
2
AF i
xx.. series
7
7"
INSIDE
INTÉRIEUR
INTERIOR
Optional
Opcional
Optionnel
225415-ED.-07/07/2017
