Summary of Contents for Dentmate LEDEX WL-090

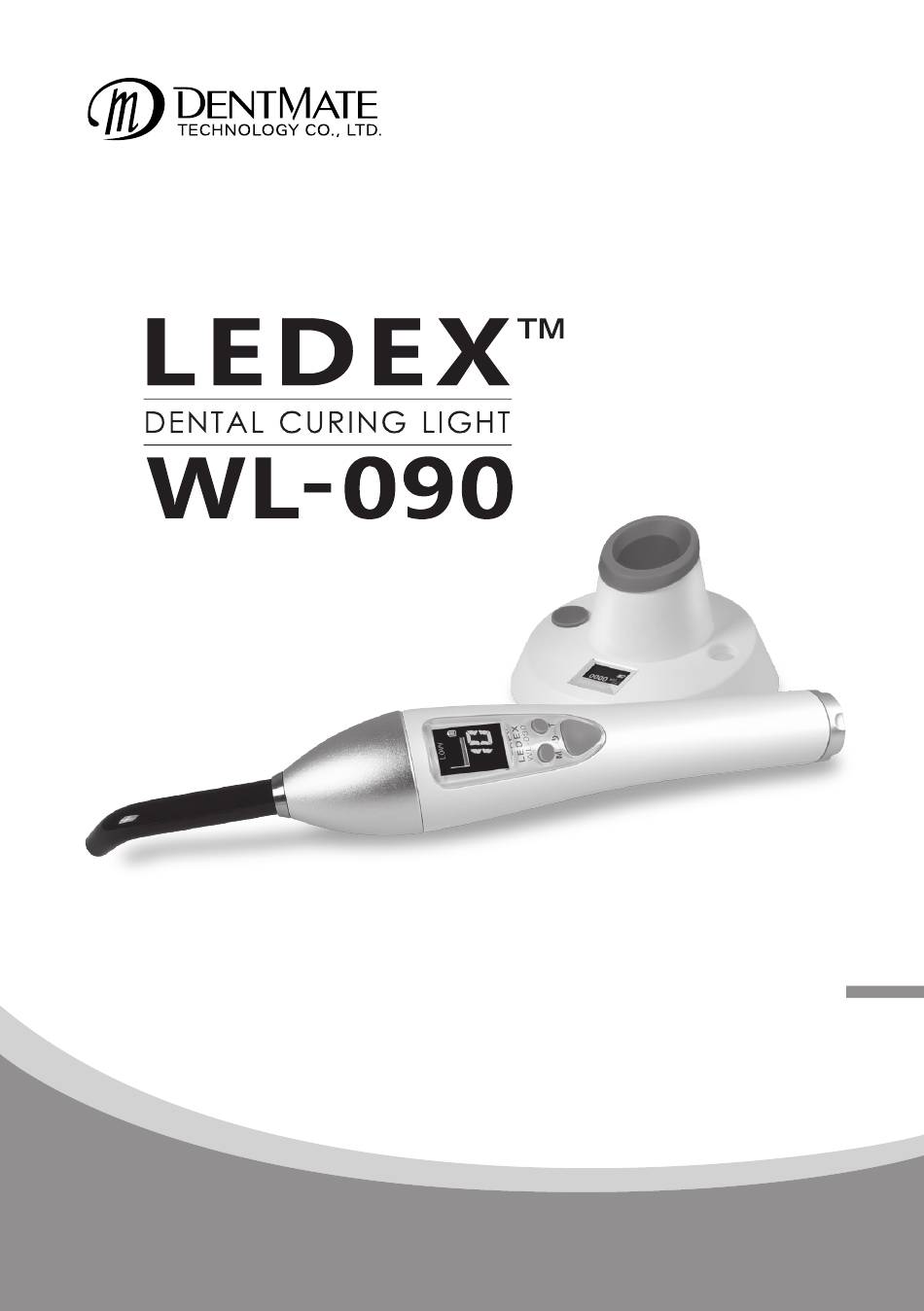

- Page 1 Instructions for use...

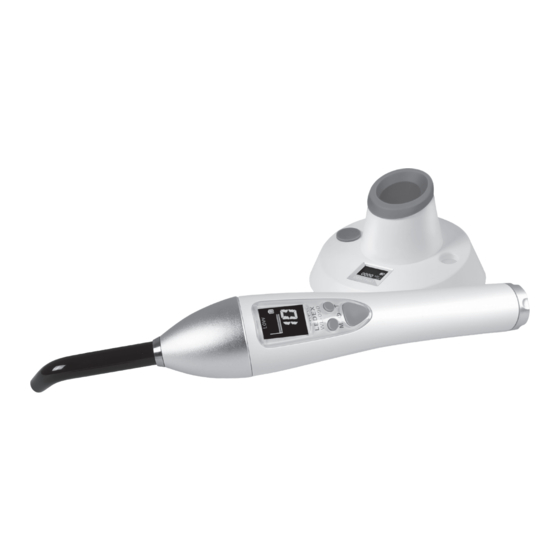

- Page 2 One Touch, And You Will Enjoy The Powerful Light Dear Customer, Thank you for choosing DENTMATE LEDEX WL-090 Dental curing light. A lot of researches & developments have gone into the manufacturing of this product. We sincerely hope that it will give you many years of trouble-free use. Please read and understand all the instructions before using this equipment, and save this manual for your reference.
-
Page 3: Table Of Contents
Table of Contents 1. Symbols Used 1.1. In these instructions for use 1.2. On the product/packaging 2. Product Information 2.1. Indications for use 2.2. System components 2.3. Features 2.4. Display 2.5. Installation and charging 2.6. Operating modes 2.7. Maintenance 3. Contraindications 4. -
Page 4: Symbols Used
1. Symbols Used 1.1. In these instructions for use If the instructions are not followed properly, the operations may lead to hazards for the product or the user/patient. WARNING 1.2. On the product/packaging Serial number Catalogue number Manufacturer Date of manufacture Consult the Class II (AC Adapter) Instructions for use... -
Page 5: Product Information
2. Product Information The light has been manufactured with a super-high luminosity 10 W LEDs. The light wavelength of LEDEX WL-090 is between 440 and 480 nm and the intensity is up to 2400 mW/cm². It can cure the composite over 2 mm in 2 secs. These characteristics enable the light to polymerize almost all photosensitive composite resins. -
Page 6: System Components
2.2. System components Instructions for use Item Description Quantity LEDEX™ WL-090 Handpiece Battery (3.7 V/2500 mAh) Cradle Power supply (Input AC100~240 V, 50-60 Hz, output DC5 V/2 A) Optical fiber light guide rod (Ø 11>8 mm) Filter Anti-glare shield Disposable light guide sleeves Disposable curing light sleeves Instructions for use... -
Page 7: Features
2.3. Features MODE : Pressing this button sequentially toggles the unit through the six curing modes. TIME : Pressing this button sequentially toggles the unit through the serial curing time. ON-OFF : Pressing this button initiates the selected curing cycle. Pressing this button during the cure cycle will interrupt or end the cycle. -
Page 8: Installation And Charging
2.5. Installation and charging Startup On receipt of the unit, any damages may occur during transportation. If necessary, contact your supplier. Handpiece First of all, it is essential that the sterilizable accessories which includes the light guide and protective shield are sterilized and the unit base is disinfected (see the chapter 7). -
Page 9: Operating Modes
1. Connect the power supply to AC100~240 V electronic socket and plug-in the connector to the cradle. Put the handpiece into the cradle to charge the battery. 2. When the battery is in a low status, the display of the handpiece will glow and show the of low battery sign. - Page 10 Factory settings Curing time duration Icon Mode Intensity of light (sec) 10,20,30,40 600 mW/cm (+/-15%) RAMP RAMP 5,10,15,20,25,30,35,40 1000 mW/cm (+/-10%) STANDARD STANDARD 5,10,15,20,25,30,35,40 1000 mW/cm (+/-10%) HIGH HIGH 2,4,6,8,10 1800 mW/cm (+/-10%) FAST ORTHO FAST ORTHO 3,4,5 repeat 10 times 1800 mW/cm (+/-10%) TURBO...
- Page 11 Light intensity Recommended Curing Time (on STANDARD mode) Fill Materials Curing time Universal composite (2 mm depth) 10 seconds Universal composite (4 mm depth) 20 seconds **Generally, these recommendations apply to situations. The emission window of the light probe is placed directly over the material in order to be polymerized. Extend the curing time accordingly to increase the distance between the light source and the material.
- Page 12 Safety status : When LEDEX WL-090 is operated frequently for long periods of time, the temperature may become too high STANDARD , so the “Safety” mode function will then be activated automatically to protect the light. The safety mode cuts the light intensity in approx.
-
Page 13: Maintenance
2.7. Maintenance Prevention of cross infection, cleaning, disinfection and storage. The use of the sleeve is an additional precautionary measure against contamination and does not substitute disinfection of the device. After using, remove the sleeve. Disinfect the light guide and handpiece with commercial alcohol based surface disinfecting solution. -
Page 14: Contraindications
4. While holding the unit steadily, press and release the ON-OFF Button. In response to the bright light, the radiometer will provide a reading of the light intensity. 5. Wait till the light is off before moving the Light Guide Attachment away from the radiometer sensor. -
Page 15: Warnings
4. Warnings 4.1. User The handpiece is intended for the polymerization of light-cured materials and is used by trained and qualified professionals, such as dentists. 4.2. Ambient conditions Do not place the device in humid surroundings or any places which are close to any liquids. Do not expose the device to any heat sources. Store the device in a safe environment. -
Page 16: To Avoid Electric Shock (Shock Hazard)
To avoid electric shock: • Do not attempt to open or alter the unit in any way. Only the service centers authorized by DENTMATE can open the unit housing and repair the device. • Do not put any foreign objects into the housing of the unit. -
Page 17: Accessories
4.6. Accessories Only use original DENTMATE components/accessories and spare parts : Original DENTMATE accessories DENTMATE REF WL-090 Handpiece 3101-1001 Battery (3.7 V/2500 mAh) 2101-0010 WL-090 Cradle 3101-2001 Power supply(Input AC100~240 V, 50-60 2103-0008 Hz, output DC5 V/2 A) Filter 2101-0013 Optical fiber light guide rod(Ø 11>8 mm) -
Page 18: Precaution
5. Precaution 5.1. During operation, the light should be aimed straightly on the resin to ensure solidification effectively. 5.2. Never aim the light directly at unprotected soft tissues because this may lead to injury or irritation. Do not aim the light at eyes. Light reflected from the tooth surface may also injure eyes. Use the protective shield supplied with the unit or suitable, light filtering safety glasses. -
Page 19: Disposal
9. Warranty DENTMATE TECHNOLOGY Co., Ltd. warrants the product to be free of manufacturing defects for a period of one year from the date of purchase; this is deemed as the date of the invoice. It could be repaired or replaced at its own discretion all equipment failures due to manufacturing defects. -
Page 20: Product Specifications
10. Product Specifications Type of Information Specifications Dental curing light Medical equipment Device name LEDEX Model number WL-090 Input: AC100~240 V, 50-60 Hz Power supply Output: DC 5 V/2 A Battery 3.7 V, 2500 mAh, type: Li-ion Light source 10 W LED The range of wavelength 440 to 480 nm ;... -
Page 21: Emc Declaration Of Conformity
This standard defines the levels of immunity to electromagnetic interferences as well as maximum levels of electromagnetic emissions for medical devices. This medical device manufactured by DENTMATE conforms to thisEN60601- 1-2:2007standard for both immunity and emissions. Nevertheless, special precautions are needed to be observed: •... -
Page 22: Manufacturer's Declaration
12. Manufacturer’s Declaration The LEDEX WL-090 is intended for use in the electromagnetic environment specified below. The customer or the user of the LEDEX WL-090 should assure that it is used in such an environment. Electromagnetic Emissions: (IEC60601-1-2) Emission Test Compliance Electromagnetic Environment The LEDEX WL-090 uses RF energy RF emission Group 1 only for internal functions. - Page 23 (IEC60601-1-2)Electromagnetic Immunity: IEC60601-1-2 Compliance Electromagnetic Immunity test test level level environment-guidance Floors should be wood, Electrostatic concrete or ceramic tile. If floors ±6 kV contact ±6 kV contact discharge a r e c o v e r e d w i t h s y n t h e t i c ±8 kV air ±8 kV air IEC 61000-4-2...
- Page 24 IEC60601-1-2 Compliance Electromagnetic environment- Immunity test test level level guidance Portable and mobile RF communications equipment should be used no closer to any part of the LEDEX WL-090, including cables, than the recommended separation d i s t a n c e c a l c u l a t e d f r o m t h e equation applicable to the frequency of the transmitter.
- Page 25 Recommended Separation Distances: Recommended separation distance between portable and mobile RF communications equipment and the LEDEX WL-090 The WL-090 is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the WL-090 can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the WL- 090 as recommended below, according to the maximum output power of the...
- Page 26 Manufacturer DENTMATE TECHNOLOGY CO., LTD. 8F, No. 8-11, Sec. 1, Zhongxing Road, Wugu District, New Taipei City 24872, Taiwan TEL: +886 2 8976 9226 FAX:+886 2 8976 9236 WEBSITE: www.dentmate.com.tw EMAIL: info@dentmate.com.tw EU-representative TOPDENTAL (PRODUCTS) LTD. 12 Ryefield Way, Silsden, West Yorkshire, BD20 0EF, UK TEL: +44 (0)1535 652 750 FAX: +44 (0)1535 652 751 WEBSITE: www.topdental.org...
- Page 27 1711 ES V.1...
Need help?
Do you have a question about the LEDEX WL-090 and is the answer not in the manual?
Questions and answers
When the using the radiometer, how do I know if the reading of the light intensity is a "good" number or "weak" number? Is there a chart to refer to?
The acceptable light intensity readings for the Dentmate LEDEX WL-090 are:
- LOW mode: 600 mW/cm² (±15%)
- RAMP mode: 1000 mW/cm² (±10%)
- STANDARD mode: 1000 mW/cm² (±10%)
- HIGH mode: 1800 mW/cm² (±10%)
- FAST ORTHO mode: 1800 mW/cm² (±10%)
- TURBO mode: 2400 mW/cm² (±10%)
