Summary of Contents for AGP T328

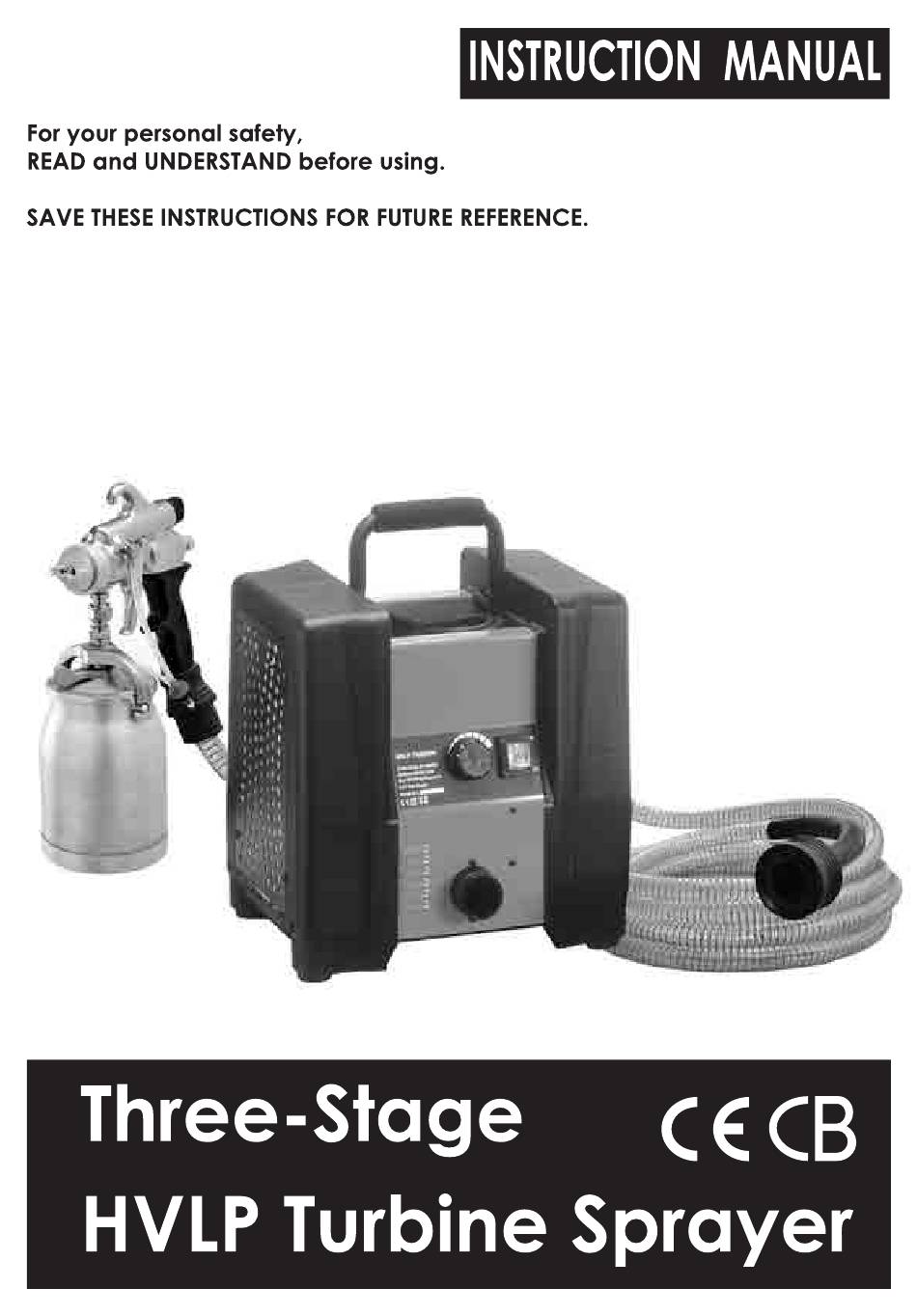

- Page 1 Version:20160722...
- Page 2 Voltage See machine nameplate Power Input 1400W Turbine 3 stage Airflow 2800 l/min Max Working Pressure 0.41 bar (6 psi) Turbine Dimensions (LxWxH) 325mm x 250mm x 325mm Net Weight 8.5 kg ( 18.7 Lbs) Material Applications: * Automotive refinish * Architectural * Marine * Industrial...
-
Page 3: General Safety Rules
GENERAL SAFETY RULES surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk WARNING! Read and understand all of electric shock if your body is earthed or instructions. Failure to follow all instructions grounded. Do not expose power tools to rain or wet listed below may result in electric shock, fire conditions. - Page 4 into account the working conditions and situations. the work to be performed. Use of the power Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and tool for operations different from intended gloves away from moving parts. Loose could result in a hazardous situation.
- Page 5 SPECIFIC SAFETY RULES FOR HVLP WARNING: FIRE AND EXPLOSION HAZARD. SPRAYERS Take all precautions to avoid sources of sparks and ignition when spraying. Keep the machine OBSERVE ALL WARNINGS! at least 8 meters away from the spraying operation. WARNING: Do not use guns for spraying flammable materials.
- Page 6 • NEVER spray in vicinity of open flame or Tethrachloethane. other sources of ignition. • The spraying area must be at least 20 ft. away PREVENT STATIC SPARKING FIRE/ from spray unit. EXPLOSIONS TOXIC FLUID HAZARD Vapors created when spraying can be ignited by sparks.
-
Page 7: Functional Description
ALWAYS GROUND ALL OF THESE 3. Attach the hose to the turbine. COMPONENTS 4. Attach the hose to the gun. Turbine: plug the power supply cord, or PREPARATION extension cord, each equipped with an undamaged three-prong plug, into a properly Prepare the paint solution grounded outlet. - Page 8 ADJUSTING THE GUN Speed control knob The gun will normally need to be adjusted before each use. This is similar to tuning a musical instrument before playing it. First adjust the Fluid Flow Control Knob. Turn On-off switch anti-clockwise for more fluid, clockwise for less fluid.
-
Page 9: Spraying Technique
CLEAN-UP Fluid flow control knob Always clean the gun at the end of the day or between colors Using a rag moistened with a compatible solvent, clean the cup and the outside of the gun. Needle Remove the Air Cap, Baffle and Nozzle and clean with a cleaning brush. -
Page 10: Maintenance
MAINTENANCE Keep the gun clean Keep the inlet filters of the turbine clean. Entrust repairs to a qualified service technician... - Page 11 WIRING...
- Page 12 HVLP TURBINE EXPLODED VIEW...
- Page 13 HVLP TURBINE PARTS LIST Parts Name Q'TY Parts Name Q'TY HEX NUT-LEFT HAND THREAD M6 POWER SUPPLY CORD FAN 70 x 6 SCREW M4 x 16 MOTOR HOUSING CORD CLIP BRUSH HOLDER SUN WASHER M5 CARBON BRUSH 7 x 12 NUT M4 x 8 SCREW M4 x 12 CORD ARMOR...
- Page 14 HVLP GUN EXPLODED VIEW...
- Page 15 HVLP GUN PARTS LIST Parts Name Q'TY G1~G2 NOZZLE PLATE GUN BODY SOCKET SET SCREW PATTERN ADJUSTING ASSEMBLY G6~G11 NEEDLE SPINDLE SPRING G14A SEAL ASSEMBLY G14~G18 NEEDLE SPRING FLUID CONTROL KNOB GRIP AIR PIPE AIR INLET NIPPLE PACKING PACKING NUT FLUID INLET TRIGGER STUD E-CLIP...
