Summary of Contents for Sherpa STS40-S

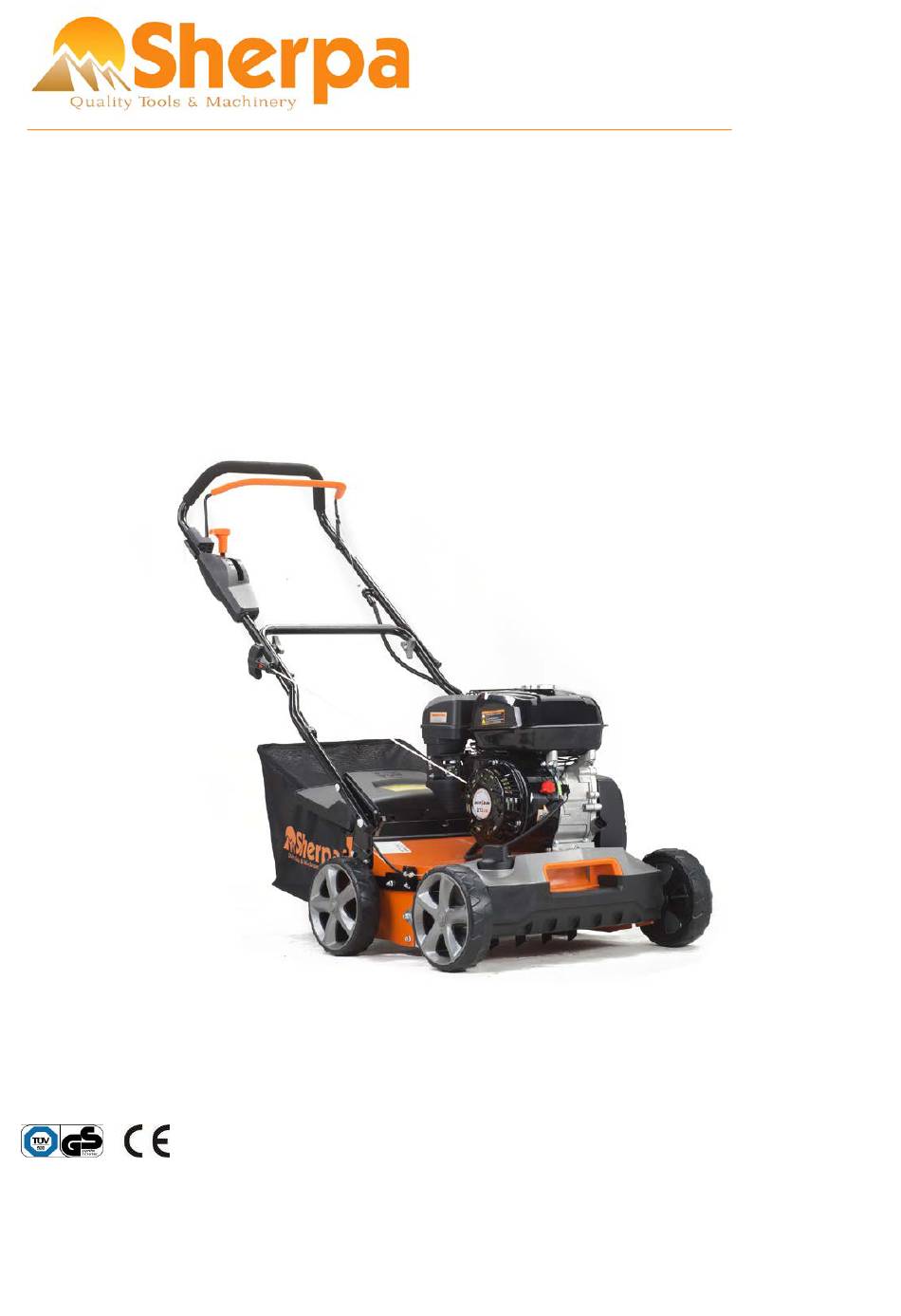

- Page 1 OWNER’S MANUAL PETROL LAWN SCARIFIER MODEL: STS40-S 2018 CAUTION: Read and follow all Safety Rules and Instructions before operating this equipment.
- Page 3 INTENDED USE This machine is a scarifier/aerator intended for private use, i.e. for use in home and gardening environments. The scarifier roller is designed for ripping moss and weeds out of the soil and for loosening the soil. This allows your grass to absorb nutrients better and gives you a healthier, more vibrant looking lawn as a result. We recommend you to scarify you lawn in the spring and autumn.
-
Page 4: Table Of Contents
CONTENT SECTION 1 SYMBOLS FOUND ON THE MACHINE …….………..…..……….….4 SECTION 2 GENERAL SAFETY RULES……………… ……………..….………….4 SECTION 3 GENERAL IDENTIFICATION ………………..…….………….………9 SECTION 4 TECHNICAL DATA ....……………………..…………………..9 SECTION 5 ASSEMBLY ......………………………………………..10 SECTION 6 OPERATING INSTRUCTIONS ….…………………….……..…..…..12 SECTION 7 REPLACEMENT OF THE ROLLER………….………………….…….14 SECTION 8 FUNCTIONAL DESCRIPTION………….……….…………………….16 SECTION 9 MAINTENANCE INSTRUCTIONS…………………….………………16 SECTION 10 LUBRICATION INSTRUCTIONS…………………….………………16... -
Page 5: Section 1 Symbols Found On The Machine
1. SYMBOLS FOUND ON THE MACHINE Read this instruction book carefully before using the product and keep it in a safe place for future reference. Keep bystanders at a safe distance. Beware of cutting fingers or toes. Remove spark plug lead before performing any service on the machine Attention, toxic fumes! Warning! Do not use the appliance in closed or poorly ventilated environment. -
Page 6: Section 2 General Safety Rules
2. GENERAL SAFETY RULES Before you put this machine into operation you have to read instructions in this manual. When using this machine, observe the following safety instructions to exclude the risk of personal injury or material damage. Please also observe the special safety instructions in the respective chapters. - Page 7 12. Carefully start the engine. Keep your feet a safe distance from the blades. 13. Start the engine, the scarifier should not be tilted, not even if the machine has to be lifted. If tilting of the scarifier is absolutely necessary, lift it on its back wheels towards the user only. 14.
- Page 8 PETROL TOOL USE AND CARE WARNING! Petrol is highly flammable and explosive. 1. Store fuel in containers specifically designed for this purpose. 2. Refuel outdoors only and do not smoke while refueling. 3. Add fuel before starting the engine. Never remove the fuel cap or add petrol while the engine is running or when the engine is hot.
- Page 9 vessels or the nervous system. Vibration may cause the following symptoms to occur in the fingers, hands or wrists: “falling asleep” (numbness), tingling, pain, stabbing sensation, alteration of skin colour or of the skin. If any of these symptoms occur, see a physician. Put safety first in case of fire: 5.
-
Page 10: Section 3 General Identification
3. GENERAL IDENTIFICATION Fig.1 1. Upper Handle 2. Engagement Lever 3. Starter Handle 4. Grass Collector 5. Wheel 6. Height Adjustment 7. Folding Handle Knob 8. Brake Control Handle 4. TECHNICAL DATA Model TS40-S Engine Type Horizontal Engine Displacement 212cm Nominal Power 4.0kW Rated Speed... -
Page 11: Section 5 Assembly
5. ASSEMBLY 5.1 FOLDING HANDLE 1. Fix the lower handlebar into the unit body with bolts, washers and locking knobs. (Fig. 2A/Fig.2B/Fig.2C) 2. Connect the lower handlebar and upper handlebar with bolts, washers and locking knobs. (Fig.2D/Fig.2E/Fig.2F) 3. Attach the cable-clamps to the position shown and then attach the cable. (Fig.2G) Locking knob Bolt Washer... - Page 12 Fig.3A 5.3 FITTING AND REMOVING THE GRASS CATCHER To fit: Raise the rear cover and hitch the grass catcher on rear of mower. (Fig.4A/Fig.4B/Fig.4C). To remove: Grasp and lift the rear cover, remove grass catcher. WARNING: Before you ever hook the grass catcher to the scarifier, you must ensure that the engine is stopped and the cutting unit is not rotating.
-
Page 13: Section 6 Operating Instructions
Fig. 6 6. OPERATING INSTRUCTIONS Service the engine with petrol and oil as instructed in the separate engine manual packed in your scarifier. Read instructions carefully. WARNING! Petrol is highly flammable. Store fuel in containers specifically designed for this purpose. Refuel outdoors only, before starting the engine and do not smoke while refueling or handling fuel. - Page 14 Grasp the brake Fuel Tap lever Fig.7A Fig.7B Fig.7C Choke Lever Fig.7D Fig.7E 6.2 TO STOP ENGINE CAUTION: The blade will continue to rotate for a few seconds after the engine is shut off. 1. Release the brake control handle to stop the engine and blade. (Fig. 8A) 2.
-
Page 15: Section 7 Replacement Of The Roller
Caution: use only original scarifier/aerator shafts approved by the manufacturer. The equipment can be assembled with the scarifying roller or the aerator roller. Only replace the roller with an original Sherpa roller, as this will ensure top performance and safety under all conditions. - Page 16 To change the scarifying roller or the aerator roller: 1. Switch off the engine and leave to cool down. 2. Remove spark-plug terminal. 3. Remove the grass catcher. 4. Raise the unit slightly at the front. Note: Do not raise the scarifier too high, as this may cause fuel to run out of the tank, if required, drain the fuel before changing the roller.
-
Page 17: Section 8 Functional Description
Fig.11H 8. FUNCTIONAL DESCRIPTION The lawn scarifier is pushed by hand over the area of grass to be scarified. The cutters are driven by a petrol engine. The depth of cut is set by varying the central height-adjustment mechanism individually. Scarification: The cutter deck rotates and removes the felt layer formed by moss, lichen and weeds and conveys the scarified material to the outside or into the grass catcher. -
Page 18: Section 12 Storage And Transport
11.1 ENGINE AIR CLEANER CAUTION: Do not allow dirt or dust to clog the air filter foam element. The engine air cleaner element must be serviced (cleaned) after 25 hours normal mowing. The foam element must be serviced regularly if the mower is used in dry dusty conditions. To CLEAN AIR FILTER 1. -
Page 19: Section 13 Troubleshooting
Start the engine and let it run until it has used up all remaining petrol and stalls. Remove the spark plug. Use an oilcan to fill approx. 20 ml oil into the combustion chamber. Operate the starter to evenly distribute the oil in the combustion chamber. Replace the spark plug. 2. -
Page 20: Section 14 Environment
carburetor clears itself and install air cleaner element. Faulty ignition module. Contact the service agent. Motor speed drops off Depth of cut too great Set to smaller depth of cut Grass too high Mow the lawn before scarifying Ejector channel blocked Pull out spark plug connector, remove blockage. -
Page 21: Section 15 Ce Certification
15. CE CERTIFICATION... -
Page 22: Section 16 Warranty
(e) The warranty policy is non-transferable and is only applicable to the original purchaser. 4. Disclaimer (a) This warranty is only a remedy for defect of products. Sherpa Tools will never warranty in terms of the merchantability or the fitness for a particular purpose. (b) No person is authorised to make any warranties, representations or promises, expressed or implied, on behalf of Sherpa Tools, or to modify the terms conditions or limitation of this warranty policy in any way. - Page 24 Sherpa Tools Ltd. STS40-S PETROL LAWN SCARIFIER If you experience any problems with this product, please do not return to the store. Contact Sherpa Tools direct on our UK helpline. UK Helpline: 01522 283 020 www.sherpatools.co.uk 2019...
Need help?
Do you have a question about the STS40-S and is the answer not in the manual?
Questions and answers
My Sherpa ST40-S keeps revving up and down, I have cleaned the sparkplug and air filter.
The Sherpa STS40-S revving up and down after cleaning the spark plug and air filter could be due to the following potential issues:
1. Carburetor Flooded with Fuel: If the carburetor is flooded with fuel, it can cause inconsistent engine performance. To resolve this, remove the air cleaner element, pull the starter rope continuously until the carburetor clears itself, and then reinstall the air cleaner element.
2. Faulty Ignition Module: If the ignition module is faulty, it could lead to erratic engine behavior. In this case, you should contact a service agent for assistance.
3. Incorrect Spark Plug Gap or Defective Spark Plug: If the spark plug gap is incorrect or the spark plug is defective, it can cause unstable engine operation. Ensure the correct gap is set between the electrodes or replace the spark plug with a new, correctly gapped one, as specified in the ENGINE OWNER'S MANUAL.
If the issue persists after addressing these points, further investigation may be required.
