Summary of Contents for Sherpa ST-GD520

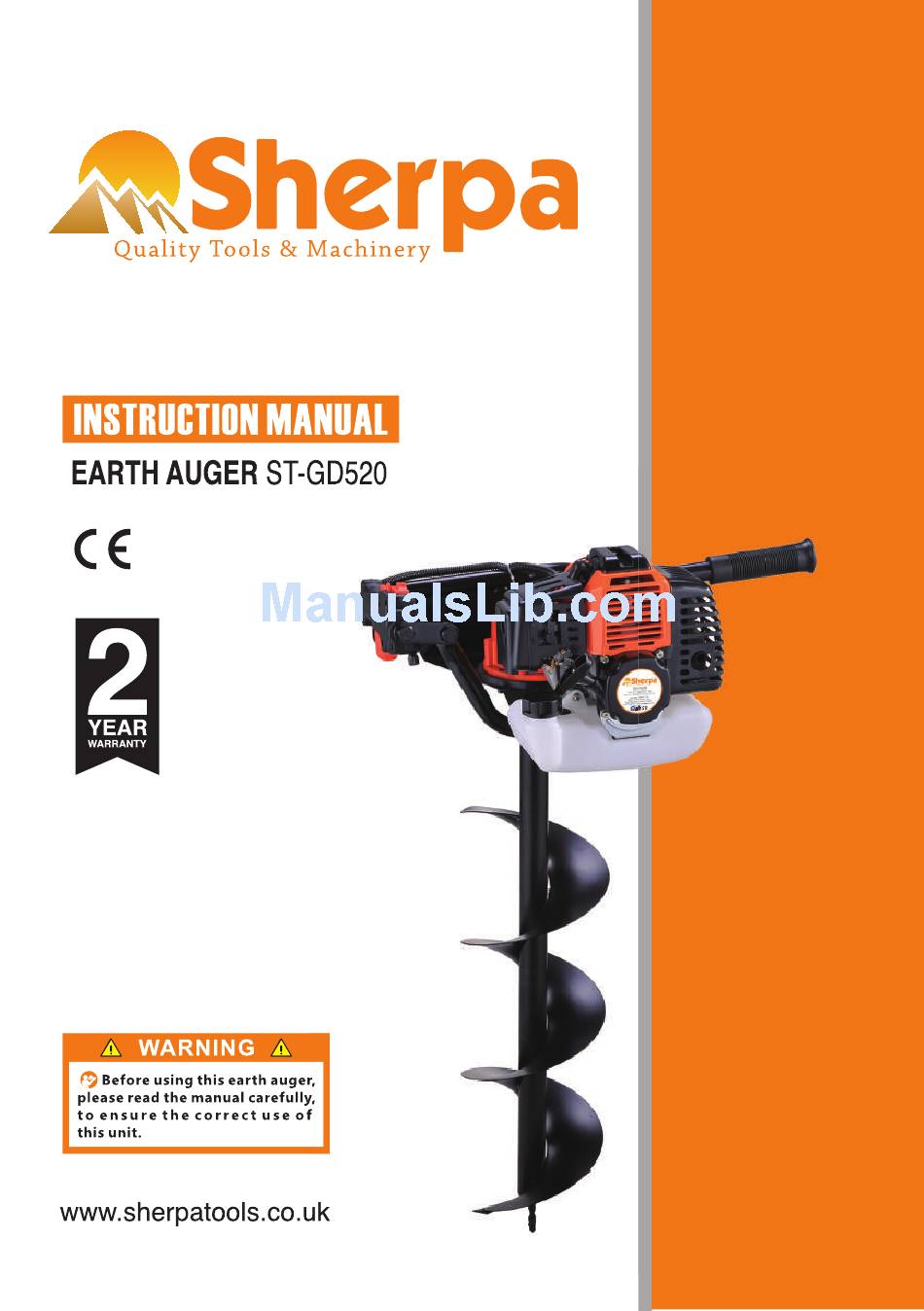

- Page 2 Sherpa Tools Ltd. ST-GD520 EARTH AUGER If you experience any problems with this product, please do not return to the store. Contact Sherpa Tools direct on our UK helpline. UK Helpline: 01522 283 020 www.sherpatools.co.uk Feb 2016...
- Page 4 Engine switched off (STOP) Engine started I Potential hazard or hazardous situation. Failure to observe these instructions may lead to injuries or Choke closed cause damage to property. Choke open Important information on proper handling. Failure to observe these instructions may lead to malfunction. User information.
- Page 5 • The intended usage also includes compliance with the operating, servicing and repair conditions prescribed by the manufacturer and following the safety instructions included in the instructions. 21.206 m/s²; K = 1.5 m/s² • The relevant accident prevention regulations for the operation as well as the other generally acknowledged Warning! occupational medicine and safety rules must be complied...
- Page 6 carelessness when using the device can result in serious • Always work on nonskid and flat ground. injuries. Avoid abnormal posture. Provide a safe standing position • Children and young persons under 18 years of age as well and keep at any time the balance. as persons who have not read the instruction manual are not •...
- Page 7 the machine for other than the intended applications may • Do not allow any tool key to be plugged in! cause dangerous situations. Before switching on, check always that all tools are Check the machine before each use and after any removed.
- Page 12 Pos. Denomination Drive unit Auger drill Ø 100 mm Auger drill Ø 150 mm Auger drill Ø 200 mm Utmost care is required when handling fuel and Venting valve oil. Keep away smoke and open flames (risk of Operating handle explosion).
- Page 13 Do not fully pull out the cranking rope and slowly guide the cranking handle back to make sure that the cranking rope is correctly wound up. • Stop the engine and allow it to cool down. Repeat this operation until the engine starts. •...
- Page 14 Check the fuel filter if required. A contaminated fuel filter Before each maintenance and cleaning work restricts the fuel supply. − Stop the engine. − Wait until the cutting device does not longer Open the tank cap (20) and pull the fuel filter (21) move.
- Page 15 Keep the handles free of oil and grease. • Water, solvents and polishing agents shall not be applied. Check the silencer (19) on a regular basis Make sure that the ventilation slots (i) for the engine Clean the exhaust outlet (37) on a regular basis. •...
- Page 16 Before After Every Every Every 100 IfIf Each Maintenance work each use each use hours required / season 8 Std. 25 Std. damaged Fuelling � Throttle trigger / throttle lock-out switch / ON/OFF switch – � Functional test Throttle trigger / throttle lock-out switch / ON/OFF switch –...
- Page 17 Before each fault elimination: − Switch off device. − Wait until the cutting device does not longer move. − Remove the spark plug connector. − Wear gloves. After each fault clearance, put into operation and recheck all security installations. Fault code Possible cause Corrective action Motor does not start...
- Page 18 Model ST-GD520 TT-GD520 Year of construction 2016 See last page Max. engine output / speed 2.2 kW / 7500 min Cubic capacity 51,7 cm³ No-load speed n 3000 min Max. engine speed 9000 min Auger drill speed, max. 300 rpm...
