Summary of Contents for Fluo FMV-ND224PH/A-T

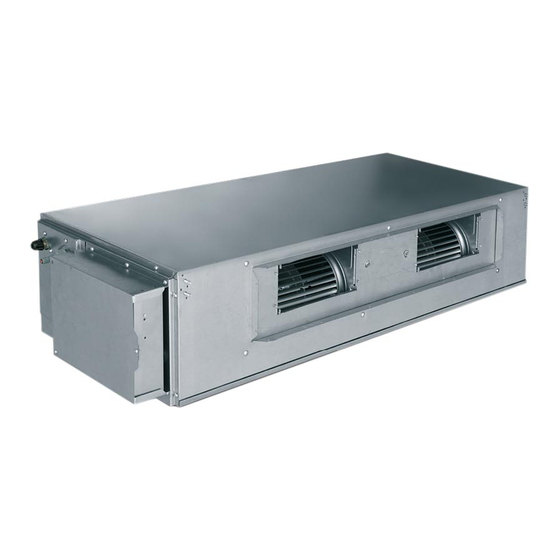

- Page 1 Multi Variable Air Conditioners Duct Type Indoor Unit Owner's Manual Air Conditioners Models: FMV-ND224PH/A-T FMV-ND280PH/A-T Thank you for choosing Air Conditioners, please read this owner’s manual carefully before operation and retain it for future reference.
- Page 2 Preface For correct installation and operation, please read all instructions carefully. Before reading the instructions, please be aware of the following items: (1) For the safe operation of this unit, please read and follow the instructions carefully. (2) During operation, total capacity of indoor units should not exceed the total capacity of outdoor units.
-
Page 3: Table Of Contents
Contents 1 Safety Precautions ......................1 2 Product Introduction ......................3 2.1 Names of Key Components ......................3 2.2 Rated Working Condition ......................3 2.3 Unit Functions ..........................3 3 Preparations for Installation ....................4 3.1 Standard Fittings ......................... 4 3.2 Location for Installation ....................... -
Page 4: Safety Precautions
Multi Variable Air Conditioners Duct Type Indoor Unit 1 Safety Precautions means items that must be forbidden! Otherwise, it may lead to personal injury or death or serious damage. means items that must be followed! Otherwise, it may lead to personal injury or property loss. - Page 5 Fault service may cause the main power supply, and electric shock or fire accidents. then immerdiately contact FLUO Please contact FLUO appointed appointed service center.If service center for help. abnormality keeps going, the unit might be damaged and lead to electric shock or fire.
-
Page 6: Product Introduction
Multi Variable Air Conditioners Duct Type Indoor Unit Any personal injury or property loss caused by improper installation, improper debug, unnecessary repair or not following the instructions of this manual should not be the responsibility of FLUO. 2 Product Introduction 2.1 Names of Key Components ①... -
Page 7: Preparations For Installation
Multi Variable Air Conditioners Duct Type Indoor Unit Notes: ① √: included, X: not included ② Please refer to the user manual of Wired Controller or Remote Controller for function details. 3 Preparations for Installation Note: Product graphics are only for reference. Please refer to actual products. Unspecified measure unit is mm. -
Page 8: Location For Installation
Multi Variable Air Conditioners Duct Type Indoor Unit 3.2 Location for Installation (1) The appliance shall not be installed in the laundry. (2) The top holder must be strong enough to support unit’s weight. (3) Drain pipe can drain water out easily. (4) There is no obstacle at inlet or outlet. -
Page 9: Wiring Requirements
Model Power Cord Size Sectional Area of Sectional Area of Ground Wire Power Cord(mm FMV-ND224PH/A-T 220~240V-1ph-50Hz 208~230V-1ph-60Hz FMV-ND280PH/A-T Notes: ① Use copper wire only as unit’s power cord. Operating temperature should be within its rated value. ② If the power cord is more than 15m long, please increase properly the sectional area of power cord to avoid overload, which may cause accident. -
Page 10: Installation Instructions
(1) Below are the outline dimension applicable to indoor units Air Reture Fig 4.1.1 Below are dimensions of A, B, C, etc. for different models: Unit: mm Model FMV-ND224PH/A-T 1353 1150 FMV-ND280PH/A-T 1563 1350 (2) Drill bolt holes and install bolts 1) Stick the reference cardboard on the installation position;... - Page 11 Multi Variable Air Conditioners Duct Type Indoor Unit Paper pattern Drill hole according Hole diameter to the hole site Fig 4.1.2 Fig 4.1.3 2) Insert the M10 expansion bolt into the hole and then knock the nail into the bolt, as shown in fig 4.1.4.
-
Page 12: Refrigerant Pipe Connection
Multi Variable Air Conditioners Duct Type Indoor Unit Suspender Hook ＞1000mm ＞560mm Flat washer Air Supply Spring washer Installation of suspender Air Reture Fig 4.1.6 4.2 Refrigerant Pipe Connection (1) Aim the flaring port of copper pipe at the center of screwed joint and then tighten the flaring nut with hand as shown in fig 4.2. - Page 13 Multi Variable Air Conditioners Duct Type Indoor Unit about 100mm lower than the drainage port of each unit. In this case, thicker pipes should be applied. drainage pipe of indoor unit additional drainage pipe insulating insulating tape pipe Fig 4.3.1 4.3.2 Drainage pipe installation 1) Insert the drain hose into the drain hole and tighten it with tapes, as shown in Fig 4.3.2.
-
Page 14: Installation Of Air Duct
Multi Variable Air Conditioners Duct Type Indoor Unit 8) The horizontal pipe can be connected to vertical pipe in the same level; please select the connection way as shown in following fig. NO1: Connection of drainage pipe joints (Fig4.36) NO2: Connection of downspout elbow (Fig4.3.7) NO3: Inserting pipe connection (Fig4.3.8) Connection of downspout elbow... - Page 15 Multi Variable Air Conditioners Duct Type Indoor Unit Fasten it with a nail cover and then seal the junction with tin tapes; You can also use other materials that have good insulation quality. ② Each air-out duct and air-return duct should be fixed on a pre-made board with iron frame. The junction of air duct should be well-sealed in order to prevent air leakage.
-
Page 16: Installation Of Wired Controller
Multi Variable Air Conditioners Duct Type Indoor Unit Fig 4.4.3 Air-return Opening Size of Air Outlet Size of Air –returen Opening Model FMV-ND224PH/A-T 1150 FMV-ND280PH/A-T 1350 4.5 Installation of Wired Controller Please refer to User Manual of Wired Controller for the installation details. -
Page 17: Wiring Work
Multi Variable Air Conditioners Duct Type Indoor Unit 0.72 inWG(180 Pa) 0.80 inWG(200 Pa) Notes: ① Keep in mind that a shortage of airflow quantity or water leakage will result because the air conditioner will be operated outside the rated range of airflow quantity if the external static pressure is wrongly set. -
Page 18: Power Cord Connection
Multi Variable Air Conditioners Duct Type Indoor Unit 5.2 Power Cord Connection Notes: All indoor units must be unified of power supply so that they can be powered ON/OFF at the same time. power supply Wiring board of power XT1 Wiring board of power XT1 Wiring board of power XT1 Wiring board of... -
Page 19: Illuminate For Connection Of Wired Controller And Indoor Units Network
Multi Variable Air Conditioners Duct Type Indoor Unit (5) Wiring instructions of remote receiving light board and wired controller: 1) Fig 5.4.1 shows the installation of wired controller. (Optional) (Optional) (Standard) Fig 5.4.1 Fig 5.4.2 2) Fig 5.4.2 shows the installation of remote controller. 3) Wired controller and receiving light board can be installed at the same time. - Page 20 Multi Variable Air Conditioners Duct Type Indoor Unit Fig 5.5...
-
Page 21: Routine Maintenance
Multi Variable Air Conditioners Duct Type Indoor Unit 6 Routine Maintenance Warning: ① Do turn off the unit and cut off the main power supply when cleaning the air conditioner to avoid electric shock or injury. ② Stand at solid table when cleaning the unit. ③... -
Page 22: Table Of Error Codes For Indoor Unit
Multi Variable Air Conditioners Duct Type Indoor Unit 7 Table of Error Codes for Indoor Unit Error Error Error Content Content Content Code Code Code Indoor Units Incompatibility Water Temperature Sensor Indoor Unit Error Error Error Indoor Fan Protection Low Air Quanlity Warning Jumper Cap Error Outdoor-Indoor Incompatibility Indoor Unit...
