Bradley S19-310DCBF Installation Instructions

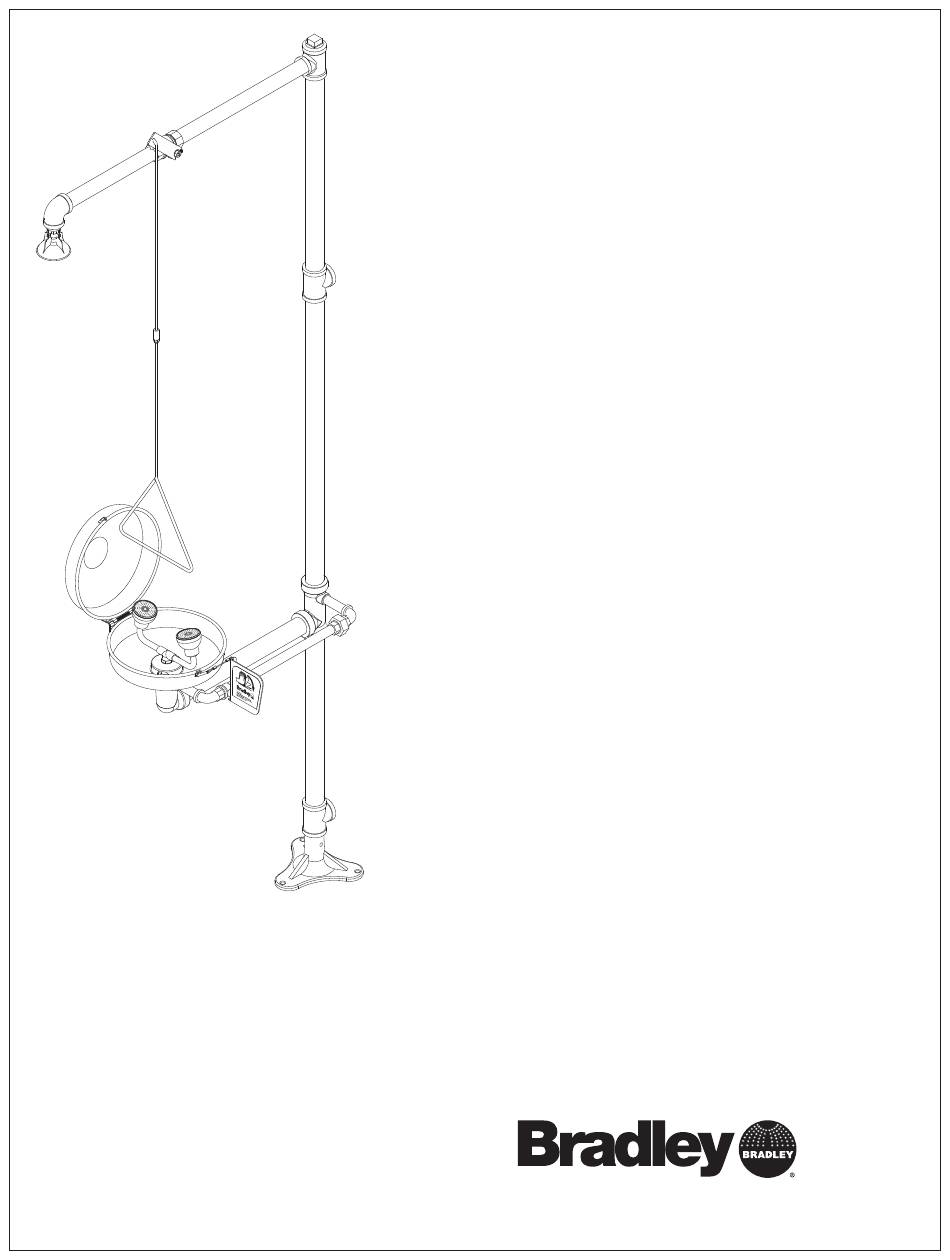

Barrier free stainless steel eyewash
Hide thumbs
1
2
3
4
5

Advertisement

Table of Contents

215-619DCBF Rev. S; ECN 08-512
© 2008 Bradley Corporation
Page 1 of 5
9/11/08
Installation
S19-310DCBF
Barrier Free
Eyewash
Table of Contents
Pre-Installation Information . . . . . . . . . . . . . . . . . . . . . . 2
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Assembly of Components . . . . . . . . . . . . . . . . . . . . . . . 4
Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
P.O. Box 309, Menomonee Falls, WI USA 53052-0309
PHONE 800.BRADLEY (800.272.3539) FAX 262.251.5817
bradleycorp.com
Stainless Steel
