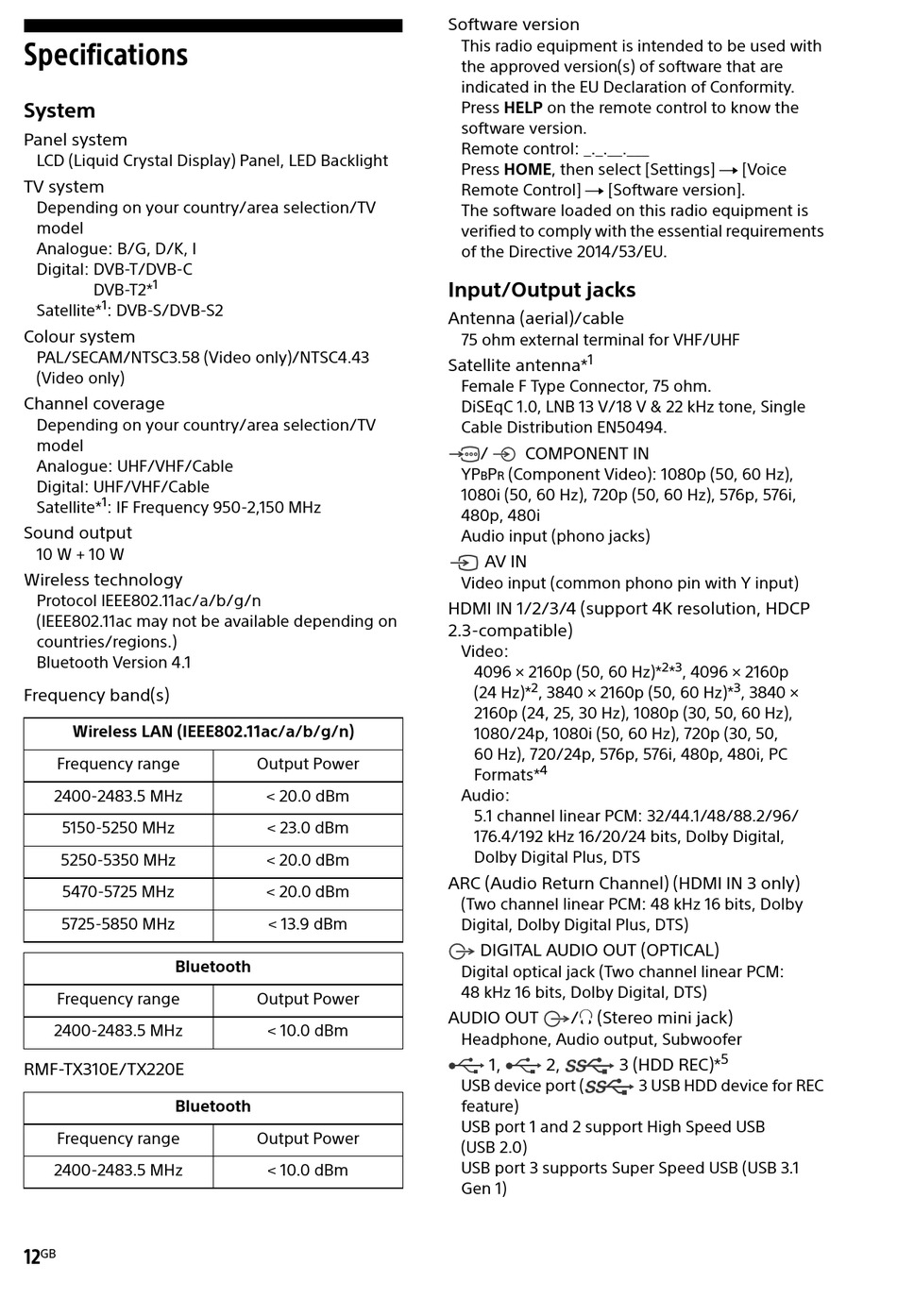

Specifications

System
Panel system
LCD (Liquid Crystal Display) Panel, LED Backlight
TV system
Depending on your country/area selection/TV
model
Analogue: B/G, D/K, I
Digital: DVB-T/DVB-C
1
DVB-T2*
1
Satellite* : DVB-S/DVB-S2
Colour system
PAL/SECAM/NTSC3.58 (Video only)/NTSC4.43
(Video only)
Channel coverage
Depending on your country/area selection/TV
model
Analogue: UHF/VHF/Cable
Digital: UHF/VHF/Cable
1
Satellite* : IF Frequency 950-2,150 MHz
Sound output
10 W + 10 W
Wireless technology
Protocol IEEE802.11ac/a/b/g/n
(IEEE802.11ac may not be available depending on
countries/regions.)
Bluetooth Version 4.1
Frequency band(s)
Wireless LAN (IEEE802.11ac/a/b/g/n)
Frequency range
2400-2483.5 MHz
5150-5250 MHz
5250-5350 MHz
5470-5725 MHz
5725-5850 MHz
Bluetooth
Frequency range
2400-2483.5 MHz
RMF-TX310E/TX220E
Bluetooth
Frequency range
2400-2483.5 MHz
12
GB
Output Power
< 20.0 dBm
< 23.0 dBm
< 20.0 dBm
< 20.0 dBm
< 13.9 dBm
Output Power
< 10.0 dBm
Output Power
< 10.0 dBm
Software version
This radio equipment is intended to be used with
the approved version(s) of software that are
indicated in the EU Declaration of Conformity.
Press HELP on the remote control to know the
software version.
Remote control: _._.__.___
Press HOME, then select [Settings] t [Voice
Remote Control] t [Software version].
The software loaded on this radio equipment is
verified to comply with the essential requirements
of the Directive 2014/53/EU.
Input/Output jacks
Antenna (aerial)/cable
75 ohm external terminal for VHF/UHF
1
Satellite antenna*
Female F Type Connector, 75 ohm.
DiSEqC 1.0, LNB 13 V/18 V & 22 kHz tone, Single
Cable Distribution EN50494.
/ COMPONENT IN
YP P (Component Video): 1080p (50, 60 Hz),
B R
1080i (50, 60 Hz), 720p (50, 60 Hz), 576p, 576i,
480p, 480i
Audio input (phono jacks)
AV IN
Video input (common phono pin with Y input)
HDMI IN 1/2/3/4 (support 4K resolution, HDCP
2.3-compatible)
Video:
4096 × 2160p (50, 60 Hz)*
2
(24 Hz)* , 3840 × 2160p (50, 60 Hz)*
2160p (24, 25, 30 Hz), 1080p (30, 50, 60 Hz),
1080/24p, 1080i (50, 60 Hz), 720p (30, 50,
60 Hz), 720/24p, 576p, 576i, 480p, 480i, PC
4
Formats*
Audio:
5.1 channel linear PCM: 32/44.1/48/88.2/96/
176.4/192 kHz 16/20/24 bits, Dolby Digital,
Dolby Digital Plus, DTS
ARC (Audio Return Channel) (HDMI IN 3 only)
(Two channel linear PCM: 48 kHz 16 bits, Dolby
Digital, Dolby Digital Plus, DTS)
DIGITAL AUDIO OUT (OPTICAL)
Digital optical jack (Two channel linear PCM:
48 kHz 16 bits, Dolby Digital, DTS)
AUDIO OUT / (Stereo mini jack)
Headphone, Audio output, Subwoofer
1, 2,
USB device port (
feature)
USB port 1 and 2 support High Speed USB
(USB 2.0)
USB port 3 supports Super Speed USB (USB 3.1
Gen 1)
2 3
* , 4096 × 2160p
3
, 3840 ×
5
3 (HDD REC)*
3 USB HDD device for REC
