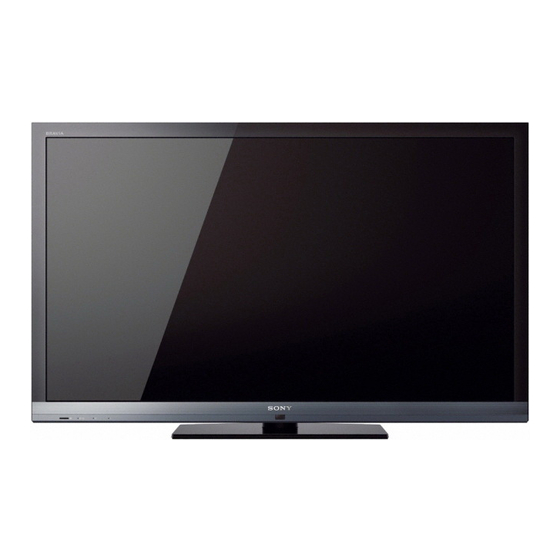

LCD
Digital Color TV
Setup Guide
(Operating Instructions)
KDL-60EX703 / 60EX701 / 60EX700 / 55EX713 / 55EX711 / 55EX710 / 52EX703 / 52EX701
KDL-52EX700 / 46EX713 / 46EX711 / 46EX710 / 46EX703 / 46EX701 / 46EX700 / 40EX713
KDL-40EX710 / 40EX703 / 40EX700 / 32EX710 / 32EX700
Setting up your TV
To watch TV
Additional Information
Sony Customer Support
U.S.A.: www.sony.com/tvsupport
Canada: www.sony.ca/support
United States
Canada
1.800.222.SONY
1.877.899.SONY
Please Do Not Return
the Product to the Store
4-178-827-
(1)
Advertisement
Table of Contents
Related Manuals for Sony BRAVIA 4-178-827-15(1)
Summary of Contents for Sony BRAVIA 4-178-827-15(1)
- Page 1 KDL-52EX700 / 46EX713 / 46EX711 / 46EX710 / 46EX703 / 46EX701 / 46EX700 / 40EX713 KDL-40EX710 / 40EX703 / 40EX700 / 32EX710 / 32EX700 4-178-827- Setting up your TV To watch TV Additional Information Sony Customer Support U.S.A.: www.sony.com/tvsupport Canada: www.sony.ca/support United States Canada 1.800.222.SONY 1.877.899.SONY...
- Page 2 ® The BRAVIA Full HDTV Experience Thank you for choosing Sony! Your new BRAVIA opens the door to the “Full HDTV Experience.” This document will help you get the most out of your TV. Please take a moment to register your TV at: U.S.A.: http://productregistration.sony.com...
-
Page 3: Table Of Contents
Table of Contents Checking the accessories...4 Inserting batteries into the remote control ...4 Setting up your TV Attaching the Table-Top Stand...5 Connecting the TV...6 Securing the TV...10 Organizing the AC power cord ...11 Running initial setup ...11 Detaching the Table-Top Stand from the TV...12 Using a Wall-Mount Bracket ...13 Installing the TV Against a Wall or Enclosed Area ...13 To watch TV... -
Page 4: Checking The Accessories
Checking the accessories AC power cord (1) Table-Top Stand (1)* (except KDL-60EX700/60EX701/60EX703 models) Stand Rear Cover (1)* Fixing screws for Table-Top Stand (M5 × 16) (4) (except KDL-60EX700/ 60EX701/60EX703 models) Assembling Screws for Table-Top Stand (M5 × 16) (4) (for KDL-40EX713/ 40EX710/40EX700/40EX703/32EX710/ 32EX700 models) Remote control (1)*... -
Page 5: Setting Up Your Tv
Setting up your TV Some TV models are packaged with a detached Table-Top Stand so you can mount your TV to a wall right away. If you are not mounting the TV to a wall, you will need to attach the Table-Top Stand. -
Page 6: Connecting The Tv
Connecting the TV The following chart shows the high-definition (HD) and standard-definition (SD) video formats supported by your BRAVIA TV inputs. * For supported PC formats refer to the i-Manual. Recommendation of the F type plug 1.5 mm Projection of the inner wire from the connection part must be less than 1.5 mm. - Page 7 Shown with a Set Top Box with HDMI connection Set Top Box Cable System or VHF/UHF Antenna System Shown with a Set Top Box with COMPONENT connection Set Top Box Cable Antenna (Continued)
- Page 8 ® Shown with HD BRAVIA Sync™ Basic Connection *Rear of TV SAT IN DVD IN VIDEO 2/BD IN OPT IN OPT IN COAX IN AUDIO IN AUDIO IN AUDIO IN VIDEO 1 COMPONENT VIDEO OUT VIDEO VIDEO AC IN HDMI S VIDEO * Signifies a BRAVIA Sync capable device.
- Page 9 Shown with PC Connection with SD VCR/DVD Rear of TV Notebook PC Splitter VCR/DVD Combo Cable/Antenna...
-
Page 10: Securing The Tv
An alternative way to secure the TV is with an optional Sony Support Belt Kit. Screw hole on the Table-Top Stand Contact Sony Customer Support to obtain the optional Support Belt Kit by providing your TV model name. • For United States call: 1-800-488-7669 or visit: www.sony.com/accessories... -
Page 11: Organizing The Ac Power Cord
Anchor the TV to the Wall Anchor the TV to the wall by using bolts, wall anchor and chain (or rope). • Your TV is shipped with screws attached to the rear of the TV. (They are fastened in the screw holes for wall mounting.) Be sure to remove the upper two screws prior to anchoring the TV on a wall. -
Page 12: Detaching The Table-Top Stand From The Tv
Detaching the Table-Top Stand from the TV Remove only the screws marked with the TV. • KDL-32EX710/32EX700 models must remove the stand rear cover prior to detaching the Table- Top Stand. • Do not remove the Table-Top Stand for any reason other than to install corresponding accessories on the TV. -
Page 13: Using A Wall-Mount Bracket
Prepare the TV for the Wall-Mount Bracket before making cable connections. For product protection and safety reasons, Sony strongly recommends that you use the Wall-Mount Bracket designed for your TV and the installation should be performed by a Sony dealer or licensed contractor. -
Page 14: To Watch Tv
To watch TV To watch programs GUIDE OPTIONS HOME To use the TV features Press HOME to display TV Home Menu/ to access TV Settings and other ™ media and network related content. Settings Picture & Display Adjust the picture and screen settings Turn on the TV. -
Page 15: To Use I-Manual
To use i-Manual Welcome to i-Manual BRAVIA TV Features Watching TV Introduces convenient features such as TV Guide, Favorites, etc. Using the Home Menu You can find how to customize your TV settings, etc. • Images and illustrations may differ from what you are watching on this TV. Your BRAVIA TV comes with an on-screen manual. -
Page 16: Troubleshooting
Press POWER on the TV to turn it off, disconnect the AC power cord, and inform your dealer or Sony service center of how the indicator flashes (number of flashes). When the STANDBY indicator is not flashing Check the items in the tables below. -
Page 17: How To Care For Your Bravia
How to Care for Your BRAVIA Safety is very important, please read and follow the safety documentation (Safety Booklet) separately provided. Unplug the TV and other connected equipment from the wall outlet before you begin cleaning your TV. • Wipe the LCD screen gently with a soft cloth. •... -
Page 18: Specifications
Specifications Model name KDL- 60EX703 60EX701 60EX700 System Television system NTSC: American TV standard ATSC (8VSB terrestrial): ATSC compliant 8VSB QAM on cable: ANSI/SCTE 07 2000 (Does not include CableCARD functionality) Channel coverage Analog terrestrial: 2 - 69 / Digital terrestrial: 2 - 69 Analog Cable: 1 - 135 / Digital Cable: 1 - 135 Panel system LCD (Liquid Crystal Display) Panel... - Page 19 Model name KDL- 55EX713 55EX711 55EX710 System Television system NTSC: American TV standard ATSC (8VSB terrestrial): ATSC compliant 8VSB QAM on cable: ANSI/SCTE 07 2000 (Does not include CableCARD functionality) Channel coverage Analog terrestrial: 2 - 69 / Digital terrestrial: 2 - 69 Analog Cable: 1 - 135 / Digital Cable: 1 - 135 Panel system LCD (Liquid Crystal Display) Panel...
- Page 20 TV model and download “Additional Information for Using Sony Wall-Mount Bracket”. To Customers Sufficient expertise is required for TV installations. Be sure to subcontract the installation to a Sony dealer or licensed contractor and pay adequate attention to safety during the installation.
-
Page 24: Online Registration
United States Software Canada Updates: NOTE: If your TV is connected to the Internet, you can check for software updates by selecting Settings, Product Support and then Automatic Software Update. © 2010 Sony Corporation Printed in U.S.A. http://productregistration.sony.com http://www.SonyStyle.ca/registration http://www.sony.com/tvsupport http://www.sony.ca/support...
