praher SUPERSTAR E-3000/F2 Operating Instructions Manual

Table of contents:
Page
2 Safety references
3 G eneral regulations / Intended use
/ Assembly
4 C ycle sequence/rinsing times
5
Digital clock/Prog. Back rinsing trigger time
Function film keyboard
6 Settings for back and clear rinsing duration
Setting for deceleration time
7 - 8 Electr. Connection
9 Board for E-3000/F2 - 24V
10 Exploded view
Ensuing damage due to neglect of the operating instructions or due to damaging sealed parts lead to a lapse
of the warranty. We do not take on liability for thus resulting damages! Please read the operating instructions
carefully before starting.
PRECISION - POWER - PROGRESS - PRODUCTION

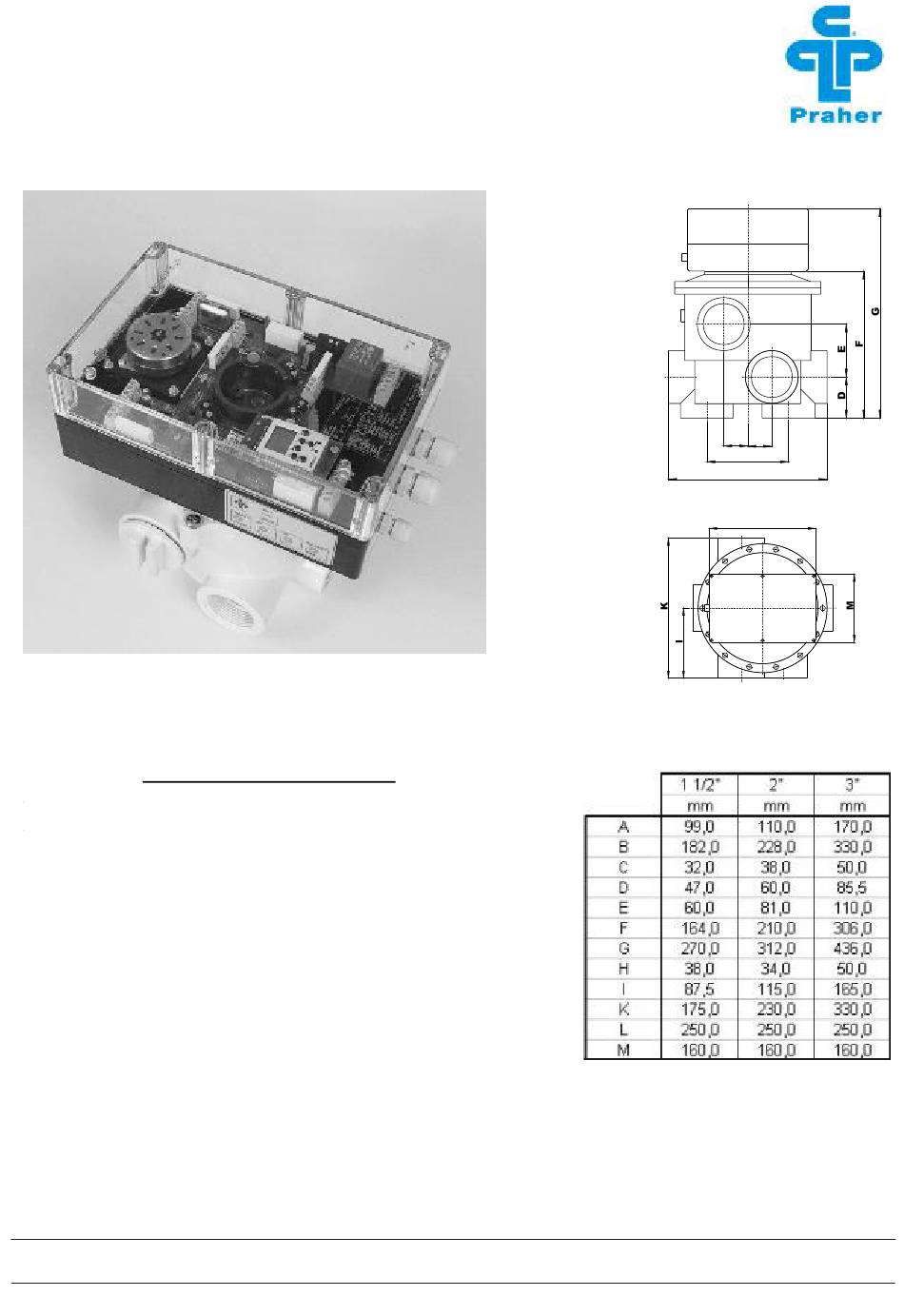

Operating instructions

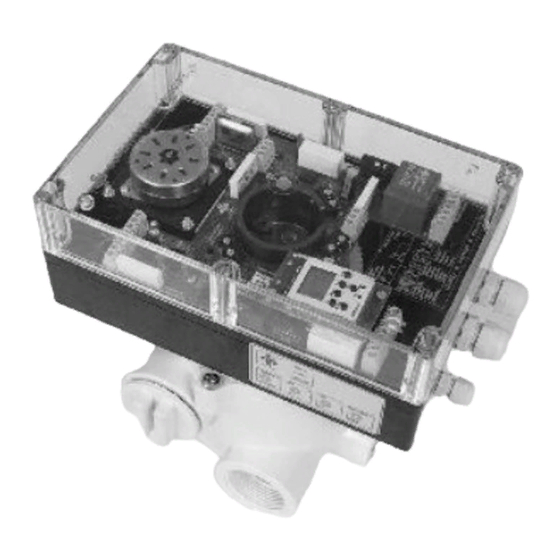

SUPERSTAR E-3000 / F2
for 1 1/2", 2"and 3" 24 VAC
H C
A
B
L
