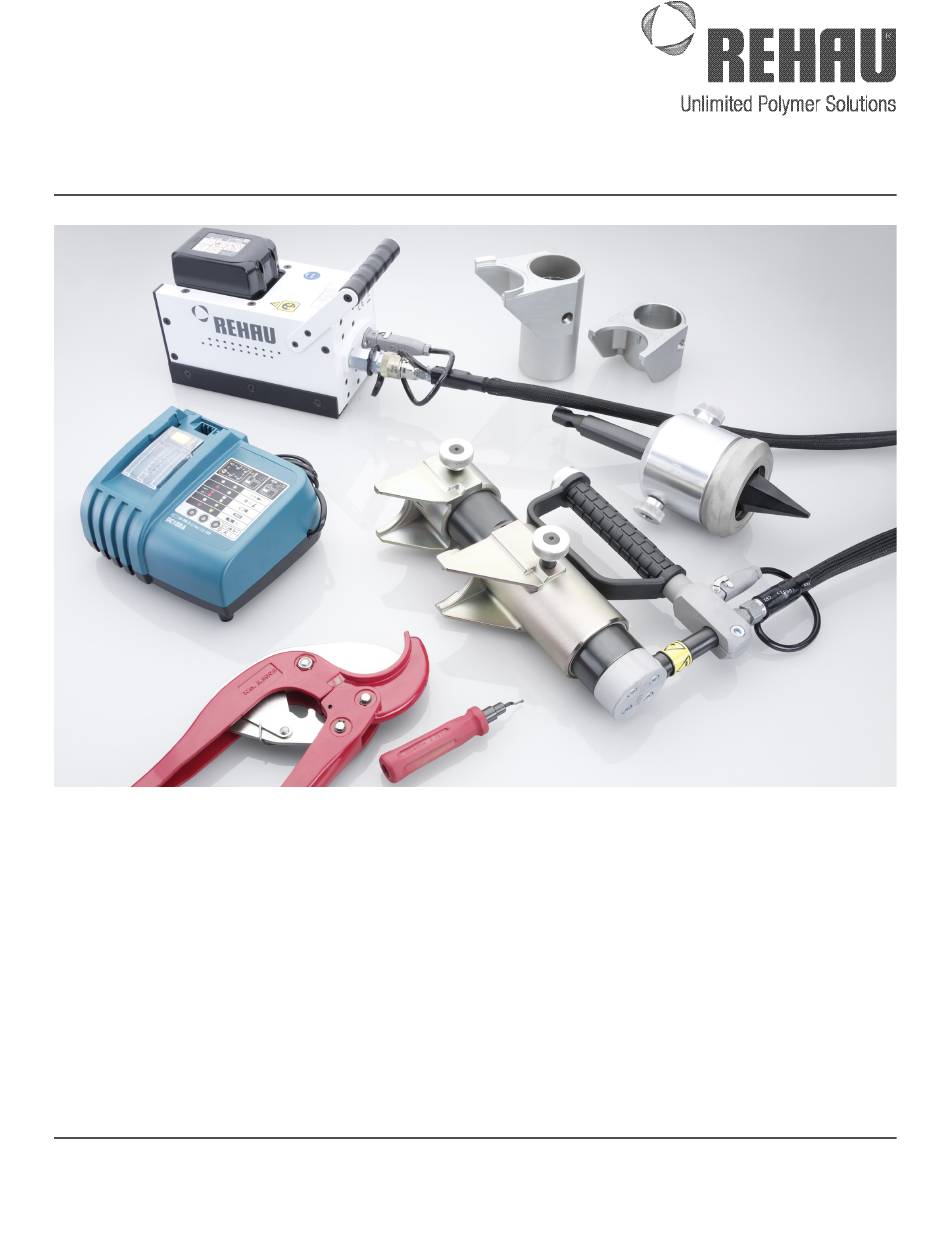

- Page 1 RAUTOOL G2 BATTERY HYDRAULIC TOOL KIT ™ PRODUCT INSTRUCTIONS www.rehau.com Construction Automotive Industry...
-
Page 2: Table Of Contents
RAUTOOL G2 TABLE OF CONTENTS Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Items Supplied . -
Page 3: Safety Information
General Use and Care contact your local REHAU representative. – The tool is intended to be used with original REHAU supplementary – Never leave the tool unattended when connected to the electrical sets for the assembly of all SDR11 compression-sleeve systems in mains. -
Page 4: Items Supplied

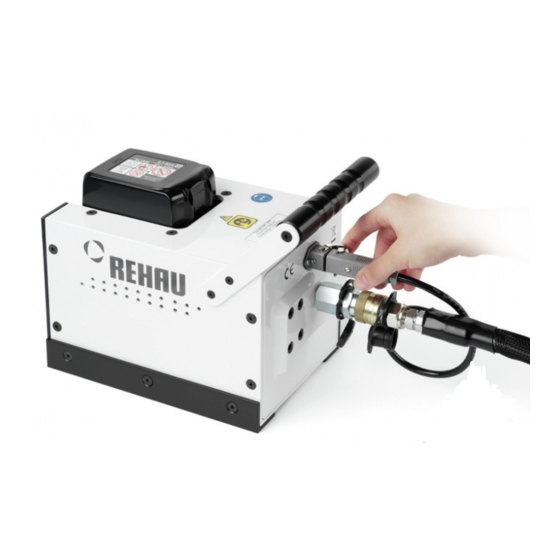

RAUTOOL G2 ITEMS SUPPLIED RAUTOOL G2 50 to 63 mm ( Art . No . 212734-001) – Battery pump AP-3 (Art. 212734-920) – Li-ion battery 18V/3 Ah (Art. 203623-001) – Battery charger 120 V US/CA (Art. 212754-001) – Hydraulic cylinder (Art. 137904-001) with hydraulic hose G2 (Art. -
Page 5: Replacement Parts And Accessories
RAUTOOL G2 REPLACEMENT PARTS AND ACCESSORIES Expander Heads G Li-ion Battery 18V/3 Ah Art. No. 138463 40 x 3.7 mm Art. No. 203623-001 137424 50 x 4.6 mm 137434 63 x 5.7 mm 137584 75 x 8.6 mm 137604 90 x 8.2 mm... -
Page 6: Technical Data, Description And Operation
RAUTOOL G2 TECHNICAL DATA, DESCRIPTION AND OPERATION TechnicalData Max. working pressure: 6,256 psi (450 bar) Max. shear force: 12,589 lb/ft (56 kN [linear]) Mains voltage battery charger: 120 VAC Battery voltage: 18 V Battery capacity: 3 Ah Battery technology: Lithium-ion... -
Page 7: Tool Preparation
RAUTOOL G2 TOOL PREPARATION Charging the Battery To charge the battery, connect the charger to the electric power mains and push the battery securely into the charger. Charging takes about 22 minutes. The battery charge level is indicated by the LEDs on the charger. - Page 8 – Before each use, check the jaw sets, expander bits, expander sets and the tool for damage or visible wear. Damaged tools must no longer be used and should immediately be sent to your local REHAU representative for repair. Expansion...
-
Page 9: Assembly Procedure
RAUTOOL G2 ASSEMBLY PROCEDURES 1. Using pipe cutters, cut pipe to required length at right angles and without leaving burrs. Do not use saws, or similar. 2. Slide compression-sleeve onto pipe. With metal compression- sleeves, the inner taper must point toward the joint. - Page 10 5. Fully insert the joint into the clamping tool. Note: Do not tilt. Tool must be applied over full surface and at right angles. 6. Insert the compression-sleeve all the way to the fitting collar by activating the pressure switch/foot lever.
-
Page 11: Important Notes
Never work with a damaged expander head as this will dam- age the pipe. Replacements are available from your local REHAU representative. Always insert the expanding tool into the pipe up to the stop. Make sure the fitting is correctly seated in the tool. -
Page 12: Maintenance
– Before every use, check the jaw sets, expanding tools and the G2 tool for damage or visible wear. Damaged tools must not be used and should immediately be sent to your local REHAU representative for repair. – Make sure that the jaw sets are fully applied across the entire surface and at a right angle during the compression process. -
Page 13: Troubleshooting
- Tool/mains adapter contacts dirty Clean contacts when dry with non-conducting material - Tool/mains adapter contacts damaged Send tool/mains adapter to your local REHAU representative - Mains adapter not correctly locked into tool Plug in adapter again, pay attention to locking mechanism... - Page 14 For updates to this publication, visit na .rehau .com/resourcecenter The information contained herein is believed to be reliable, but no representations, guarantees or warranties of any kind are made as to its accuracy, suitability for particular applications or the results to be obtained therefrom. Before using, the user will determine suitability of the information for user’s intended use and shall assume all risk and liability in connection therewith.
